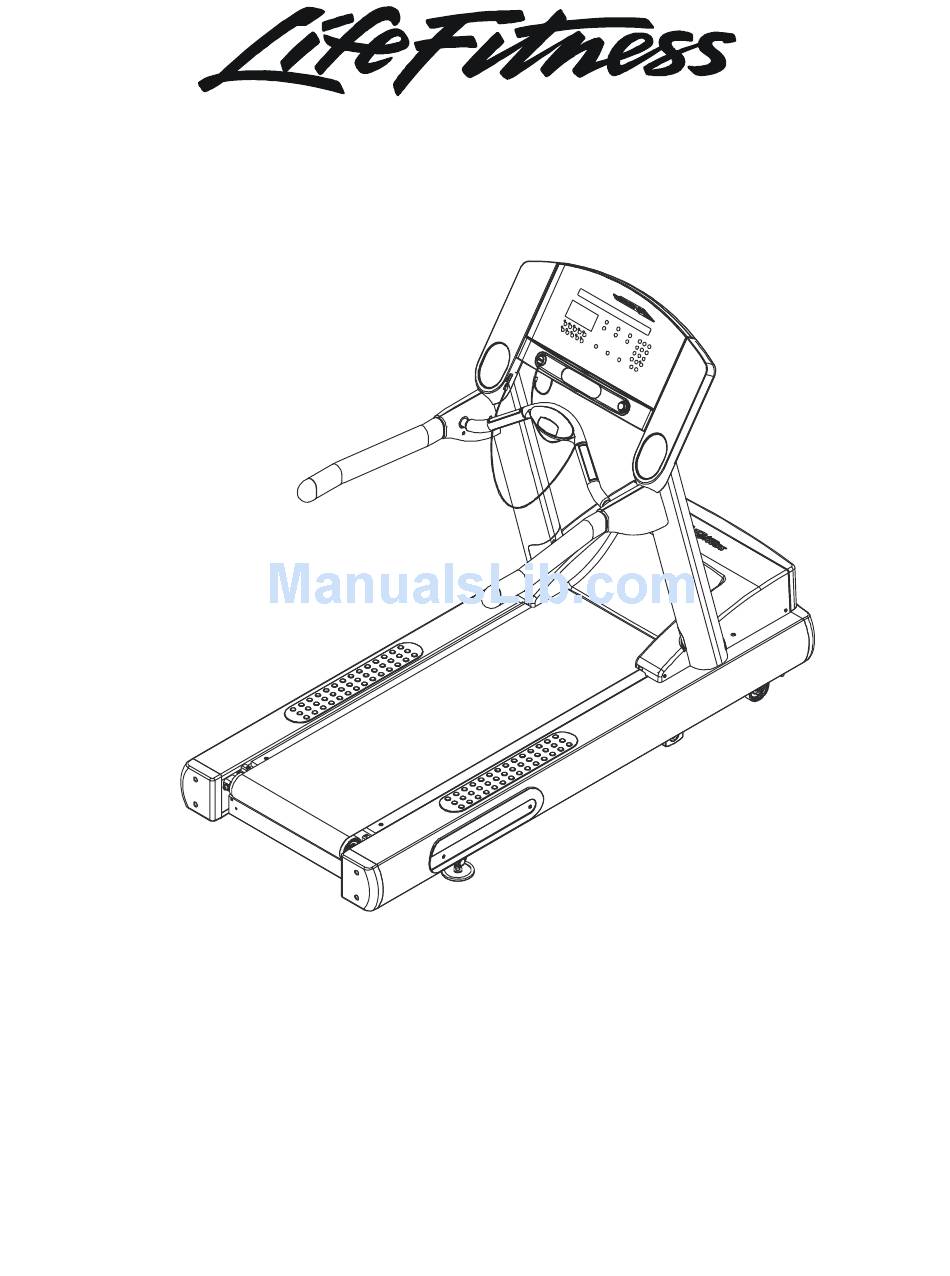

Arctic Silver 97TW Treadmill
Customer Support Services
PARTS MANUAL
rev 07 Feb 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 97TW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Life Fitness 97TW

  • Page 1 Arctic Silver 97TW Treadmill Customer Support Services PARTS MANUAL rev 07 Feb 2008...
  • Page 2: Table Of Contents

    ARCTIC SILVER 97TW 97TW-0XXX-04 Contents S/N TWG100000 and up Miscellaneous ... 3 Rear End Caps and Cup Holders... 4 Scuff Pad, Tinsel and Frame Tag Board ... 5 Console and Related Components ... 6 Uprights, Handrails, and Ergo Bar ... 7 Motor Cover, Front Cover, and End Caps ...
  • Page 3: Miscellaneous

    ARCTIC SILVER 97TW Miscellaneous OPERATION MANUAL SERVICE MANUAL ACCESS PLATE ASSEMBLY CONTENTS: 1) CONNECTOR PLATE 2) F TYPE CONNECTOR COAX CABLE POWER EXT. CABLE HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN INSTALLATION VIDEO...
  • Page 4: Rear End Caps And Cup Holders

    ARCTIC SILVER 97TW Rear End Caps and Cup Holders Cup Holder, LT AK58-00247-0002 Screws (4) 0017-00101-1772 Rear End Cap (Left or Right) 0K58-01268-0000 97TW-0XXX-04 S/N TWG100000 and up Cup Holder, RT AK58-00247-0001 Decal - LF Logo 0K60-01193-0000...
  • Page 5: Scuff Pad, Tinsel And Frame Tag Board

    ARCTIC SILVER 97TW Scuff Pad, Tinsel, and Frame Tag Board Anti-Scuff Pad 0K58-01376-0000 (2) S/N TWG100000 and up Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Frame Tag PCB B084-92187-D000 97TW-0XXX-04...
  • Page 6: Console And Related Components

    ARCTIC SILVER 97TW Console and Related Components PCB Mounting Screw (8) 0017-00101-1275 PCB Assembly A084-92185-A009 See Table Magnet Disc 0K40-01070-0000 See Table Tether Stop Assy AK58-00322-0000 CD Tray, Rubber Pad 0K58-01359-0000 Language Console Assembly Eng/Met AK58-00430-0001 Eng/Eur AK58-00430-0002 German AK58-00430-0003...
  • Page 7: Uprights, Handrails, And Ergo Bar

    ARCTIC SILVER 97TW Uprights, Handrails, and Ergo Bar Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Upright, Plug (2) 0K58-01305-0002 Upright, LT AK58-00310-0004 Upright Tube Cap (2) 0K58-01302-0000 Upright Tube Cap Screw (2)
  • Page 8: Motor Cover, Front Cover, And Front End Caps

    ARCTIC SILVER 97TW Motor Cover, Front Cover, and Front End Caps Motor Cover Screws (4) 0017-00101-1772 Felt Strip - 28” 0017-00081-0294 Front Cover 0K58-01266-0000 Screws (4) 0017-00101-1771 S/N TWG100000 and up Motor Shroud Assy. AK58-00385-0000 Front End Cap (2) 0K58-01267-0000...
  • Page 9: Belt, Deck And Rear Roller

    ARCTIC SILVER 97TW Belt, Deck, and Rear Roller Striding Belt 0K58-01397-0000 Deck 0K58-01091-0002 TECSPAK Mounting Screw (8) 0017-00101-1652 TECSPAK Spring (4) 0K40-01026-0002 TECSPAK Tinnerman Clip (4) 0017-00103-0198 Washer (8) 0017-00104-0072 Grommet (2) 0017-00042-1147 Screw 0017-00101-1776 Round Grommet 0017-00042-0326 Washer 0017-00104-0043...
  • Page 10: Lift Frame And Lift Motor

    ARCTIC SILVER 97TW Lift Frame and Lift Motor IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw 0017-00042-1145 Frame Screws 0017-00101-1723 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1612 Washer 0017-00104-0189 Hex Screw (2) 0017-00101-1777 Flat Washer (2)
  • Page 11: Wax/Lift Assembly

    ARCTIC SILVER 97TW Wax/Lift Assembly Wax/Lift Assembly AK58-00243-0000 Pin Collar Spacer (3) 0017-00042-1070 Wax Lift Mounting Screw (3) 0017-00101-1641 Wax/Lift PCB A084-92261-A001 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Mounting Bracket 0K58-01316-0000 97TW-0XXX-04 S/N TWG100000 and up Motor Capacitor PCB Mounting...
  • Page 12: Motor Controller Assembly

    ARCTIC SILVER 97TW Motor Controller Assembly (100-120v) W/O FERRITE (200-240v) W/O FERRITE (100-120v) WITH FERRITE (200-240v) WITH FERRITE Description Part No. AK60-00171-0000 AK60-00171-0001 AK60-00171-0002 AK60-00171-0003 97TW-0XXX-04 S/N TWG100000 and up...
  • Page 13: Drive Motor Assembly

    ARCTIC SILVER 97TW Drive Motor Assembly Drive Motor Assembly AK58-00172-0000 Poly-V Pulley 0K58-01056-0001 Locking Nut (4) 0017-00103-0027 Washer (4) 0017-00104-0409 Insulating Shoulder Washer (4) 0K58-01255-0000 Motor w/Caution Label AK58-00171-0000 Slotted Hex Screw (2) 0017-00101-0975 Flywheel Assembly Insulating Pad (2) AK58-00090-0002...
  • Page 14: Idler Arm Assembly And Static Brush

    ARCTIC SILVER 97TW Idler Arm Assembly and Static Brush Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01115-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Motor Pulley 0K58-01057-0001...
  • Page 15: Leg Leveler Assembly

    ARCTIC SILVER 97TW Leveler Assembly Leveler Assembly AK58-00076-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1253 S/N TWG100000 and up Leveler w/bushing Assy. AK58-00089-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 97TW-0XXX-04 Pivot Pin 0K58-01098-0001...
  • Page 16: Front Roller Assembly

    ARCTIC SILVER 97TW Front Roller Assembly Front Roller Assembly AK58-00067-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washers (4) 0017-00104-0005 Hex Bolts (4) 0017-00101-1632 Flat Washer 0017-00104-0043 Flat Washers (4) 0017-00104-0330 97TW-0XXX-04 S/N TWG100000 and up Mounting Bolt 0017-00101-0974 5-inch Front Roller...
  • Page 17: Ergo Bar With Lifepulse

    ARCTIC SILVER 97TW Ergo Bar w/Lifepulse Lens Cover Assembly AK58-00064-0000 S/N TWG100000 and up Lens Cover Mounting Screw (2) 0017-00101-0824 Heart Rate Electrode Kit GK20-00002-0005 Ergo Bar Gasket (2) 0K58-01347-0000 97TW-0XXX-04...
  • Page 18: Power Components Schematic

    ARCTIC SILVER 97TW Power Components Schematic Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/50Hz UK 0017-00003-0996 240v+ AUS MOV/Filter Cable Assy. AK58-00224-0001 5” Green/Yellow Wire...
  • Page 19: Cables

    ARCTIC SILVER 97TW 97TW-0XXX-04 Wax/Lift Power Supply S/N TWG100000 and up...
