Summary of Contents for Life Fitness 97TEZ

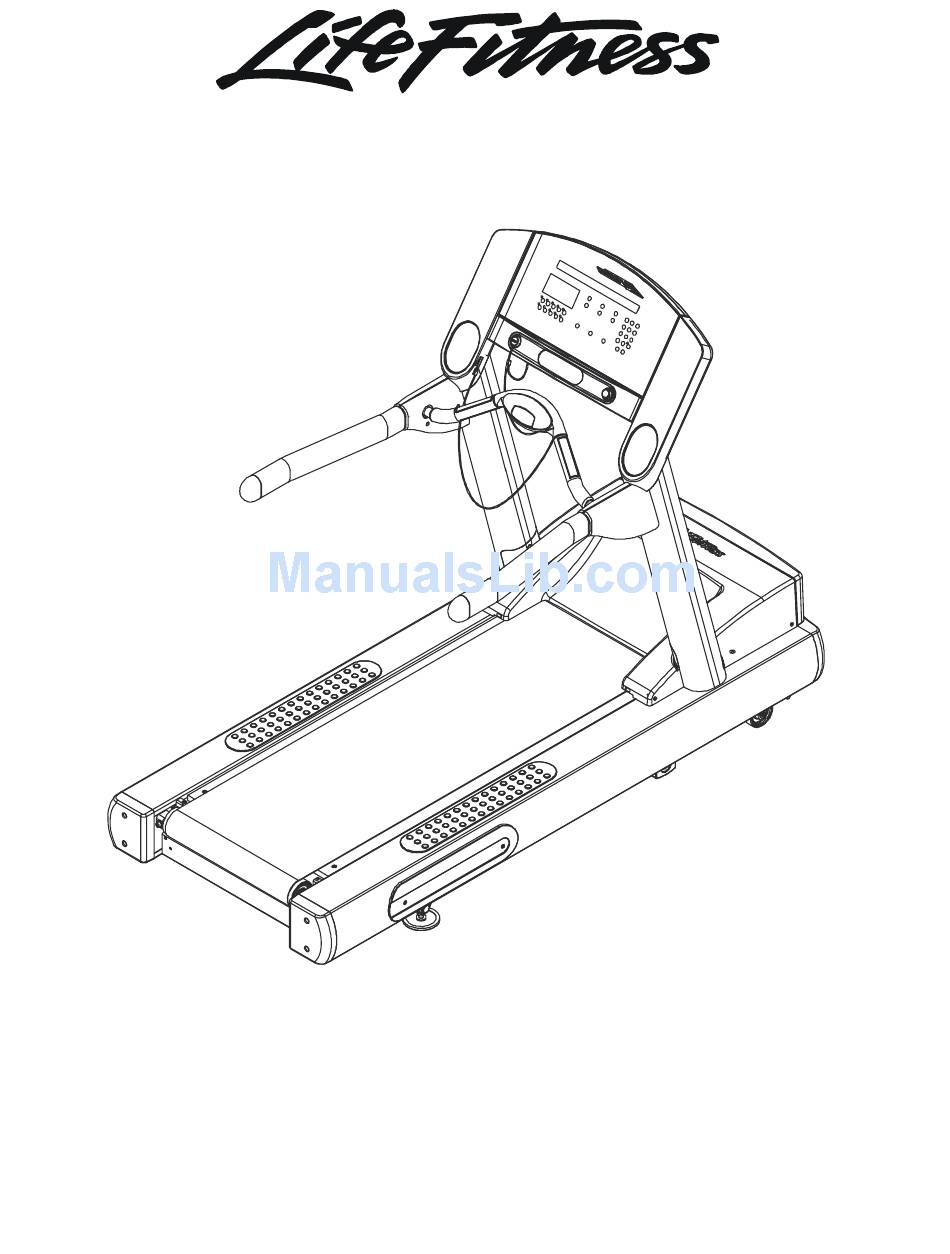

  • Page 1 Arctic Silver 97TEZ Treadmill Customer Support Services PARTS MANUAL rev. 14 Jul 2006...
  • Page 2 ARCTIC SILVER 97TEZ REFERENCES OPERATION MANUAL SERVICE MANUAL ACCESS PLATE ASSEMBLY CONSISTS OF: 1) CONNECTOR PLATE 2) F TYPE CONNECTOR COAX CABLE HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN PARTS DESCRIPTION for Entertainment LINE-CORD 125V;...
  • Page 3: Table Of Contents

    ARCTIC SILVER 97TEZ 97TEZ-0xxx-01 CONTENTS S/N TWZ100000 and up Page REAR ENDCAPS AND CUP HOLDERS ...4 SCUFF PAD, TINSEL, AND FRAME TAG BOARD ...5 CONSOLE AND RELATED COMPONENTS...6 ENTERTAINMENT TV CONSOLE...7 CONNECTOR BRACKET ...8 ENTERTAINMENT MOUNTING BRACKET ...9 UPRIGHTS, HANDRAILS, AND ERGO BAR ...10 MOTOR COVER, FRONT COVER, AND ENDCAPS ...11...
  • Page 4: Rear Endcaps And Cup Holders

    ARCTIC SILVER 97TEZ Rear End Caps and Cup Holders Cup Holder, LT AK58-00247-0002 Rear End Cap 0K58-01268-0000 Screws (4) 0017-00101-1772 Decal - LF Logo 0K60-01193-0000 Rear End Cap 0K58-01268-0000 97TEZ-0xxx-01 S/N TWZ100000 and up Cup Holder, RT AK58-00247-0001...
  • Page 5: Scuff Pad, Tinsel, And Frame Tag Board

    ARCTIC SILVER 97TEZ Scuff Pad, Tinsel, and Frame Tag Board Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad 0K58-01376-0000 (2) 97TEZ-0xxx-01 S/N TWZ100000 and up Frame Tag PCB B084-92187-D000...
  • Page 6: Console And Related Components

    0K58-01357-0000 Screws 0017-00101-1288 Accessory Cover 0K58-01280-0000 Language BZL/SW W/OVERLAY ASSY: 97TEZ; ENG BZL/SW W/OVERLAY ASSY: 97TEZ; EUR BZL/SW W/OVERLAY ASSY: 97TEZ; MET BZL/SW W/OVERLAY ASSY: 97TEZ; SPN BZL/SW W/OVERLAY ASSY: 97TEZ; FRN BZL/SW W/OVERLAY ASSY: 97TEZ; ITL BZL/SW W/OVERLAY ASSY: 97TEZ; DUT...
  • Page 7: Entertainment Tv Console

    ARCTIC SILVER 97TEZ Entertainment TV Console Rear houseing 0K32-01011-0001 Decal 0K32-01037-0001 Screw 0017-01037-0001 Inverter board GK32-00002-000 Screw 0017-00101-1829 crews Screw 017-00101-1280 0017-00101-1828 Ribbon Cable Bracket 118E-00001-0178 Gasket Seal 0K32-01044-0001 Frt Bezel AK32-00013-0001 Screw 017-00101-1288 LCD-ASY: W/ACRLIC SHIELD AK32-00016-0000 Spacer 0017-00104-0477...
  • Page 8: Connector Bracket

    ARCTIC SILVER 97TEZ Connector Bracket AK32-00156-0000 RCPT MODPH PNL F08S 0017-00021-2980 RCPT MODPH PNL F010S 0017-00021-2981 Cable 8 Wire AK32-00145-0000 Braket 0K32-01112-0001 Cable 10 Wire AK32-00146-0000 97TEZ-0xxx-01 S/N TWZ100000 and up Cable Power AK32-00045-0000 CONN F TYPE 0017-00021-2846 CONN FTYPE ADP...
  • Page 9: Entertainment Mounting Bracket

    ARCTIC SILVER 97TEZ Entertainment Mounting Bracket Mounting Screws(4) 0017-00101-1820 Washer 0017-00103-0476 Mounting Support GRAY AK32-00143-0000 Mounting Screws(2) 97TEZ-0xxx-01 S/N TWZ100000 and up Nuts(4) Retainers(4) 0017-00103-0019 0K32-01034-0000 Washers(2) 0017-00104-0471...
  • Page 10: Uprights, Handrails, And Ergo Bar

    ARCTIC SILVER 97TEZ Uprights, Handrails, and Ergo Bar Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Upright, Plug (2) 0K58-01305-0002 Upright, LT AK58-00310-0004 Upright Tube Cap (2) 0K58-01302-0000 Upright Tube Cap Screw (2)
  • Page 11: Motor Cover, Front Cover, And Front End Caps

    ARCTIC SILVER 97TEZ Motor Cover, Front Cover, and Front End Caps Motor Cover Screws (4) 0017-00101-1772 Felt Strip - 28” 0017-00081-0294 Front Cover 0K58-01266-0000 Screws (4) 0017-00101-1771 S/N TWZ100000 and up Motor Shroud Assy. AK58-00397-0000 Front End Cap (2) 0K58-01267-0000...
  • Page 12: Belt, Deck, And Rear Roller

    ARCTIC SILVER 97TEZ Belt, Deck, and Rear Roller Striding Belt 0K58-01400-0000 Deck 0K58-01091-0001 TECSPAK Mounting Screw (8) 0017-00101-1652 TECSPAK Spring (8) 0K40-01026-0002 TECSPAK Tinnerman Clip (4) 0017-00103-0198 Washer (8) 0017-00104-0072 Grommet (2) 0017-00042-1147 Screw 0017-00101-1776 Round Grommet 0017-00042-0326 Washer 0017-00104-0043...
  • Page 13: Lift Frame And Lift Motor

    ARCTIC SILVER 97TEZ Lift Frame and Lift Motor IEC Receptacle 0017-00003-0949 Retainer Bracket w/Screw 0017-00042-1145 Frame Screws 0017-00101-1723 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1612 Washer 0017-00104-0189 Hex Screw (2) 0017-00101-1777 Flat Washer (2)
  • Page 14: Wax/Lift Assembly

    ARCTIC SILVER 97TEZ Wax/Lift Assembly–AK58-00243-0000 Pin Collar Spacer (3) 0017-00042-1070 Wax Lift Mounting Screw (3) 0017-00101-1641 Wax/Lift PCB A084-92261-A001 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Mounting Bracket 0K58-01316-0000 97TEZ-0xxx-01 S/N TWZ100000 and up Motor Capacitor PCB Mounting Screw (4)
  • Page 15: Motor Controller Assembly

    ARCTIC SILVER 97TEZ Motor Controller Assembly AK60-00171-0000 (100-120v) W/O FERRITE AK60-00171-0001 (200-240v) W/O FERRITE AK60-00171-0002 (100-120v) WITH FERRITE AK60-00171-0003 (200-240v) WITH FERRITE 97TEZ-0xxx-01 S/N TWZ100000 and up...
  • Page 16: Drive Motor Assembly

    ARCTIC SILVER 97TEZ Drive Motor Assembly Poly-V Pulley 0K58-01057-0001 Locking Nut (4) 0017-00103-0027 Washer (4) 0017-00104-0409 Insulating Shoulder Washer (4) 0K58-01255-0000 Drive Motor Assembly Number AK58-00172-0000 AK58-00172-0002 Motor w/Caution Label AK58-00171-0000 (SN 100000 - AK58-00171-0001 (SN 100021 - WTE100...) Slotted Hex Screw (2)
  • Page 17: Idler Arm Assembly And Static Brush

    ARCTIC SILVER 97TEZ Idler Arm Assembly and Static Brush Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01114-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Motor Pulley 0K58-01057-0001...
  • Page 18: Leg Leveler Assembly

    ARCTIC SILVER 97TEZ Leg Leveler Assembly – AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1253 97TEZ-0xxx-01 S/N TWZ100000 and up Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000...
  • Page 19: Front Roller Assembly

    ARCTIC SILVER 97TEZ Front Roller Assembly–AK58-00066-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 3.5” Front Roller 0K58-01001-001 Flat Washer 0017-00104-0330 97TEZ-0xxx-01 S/N TWZ100000 and up...
  • Page 20: Ergo Bar With Lifepulse

    ARCTIC SILVER 97TEZ Ergo Bar w/Lifepulse Lens Cover Assembly AK58-00064-0000 S/N TWZ100000 and up Lens Cover Mounting Screw (2) 0017-00101-0824 Heart Rate Electrode Kit GK20-00002-0005 Ergo Bar Gasket (2) 0K58-01347-0000 97TEZ-0xxx-01...
  • Page 21: Power Components Schematic

    ARCTIC SILVER 97TEZ Power Components Schematic Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/59Hz UK 0017-00003-0996 240v+ AUS Xformer Bracket Assembly (foreign units only) AK58-00210-0000 MOV/Filter Cable Assy.
  • Page 22: Wax/Lift Power Supply

    ARCTIC SILVER 97TEZ Wax/Lift Power Supply 120V 240V 220/230V 200V 100V LI N E CHART RIGHT *CLEAR *BLACK *BLACK LEFT *CLEAR *BLACK *RED *BLACK *RED POLAR *WHITE *WHITE *WHITE REED SENSE REED BLACK BLACK +12VDC +12VDC WHITE BUS_REQ BUS_REQ GRAY...
