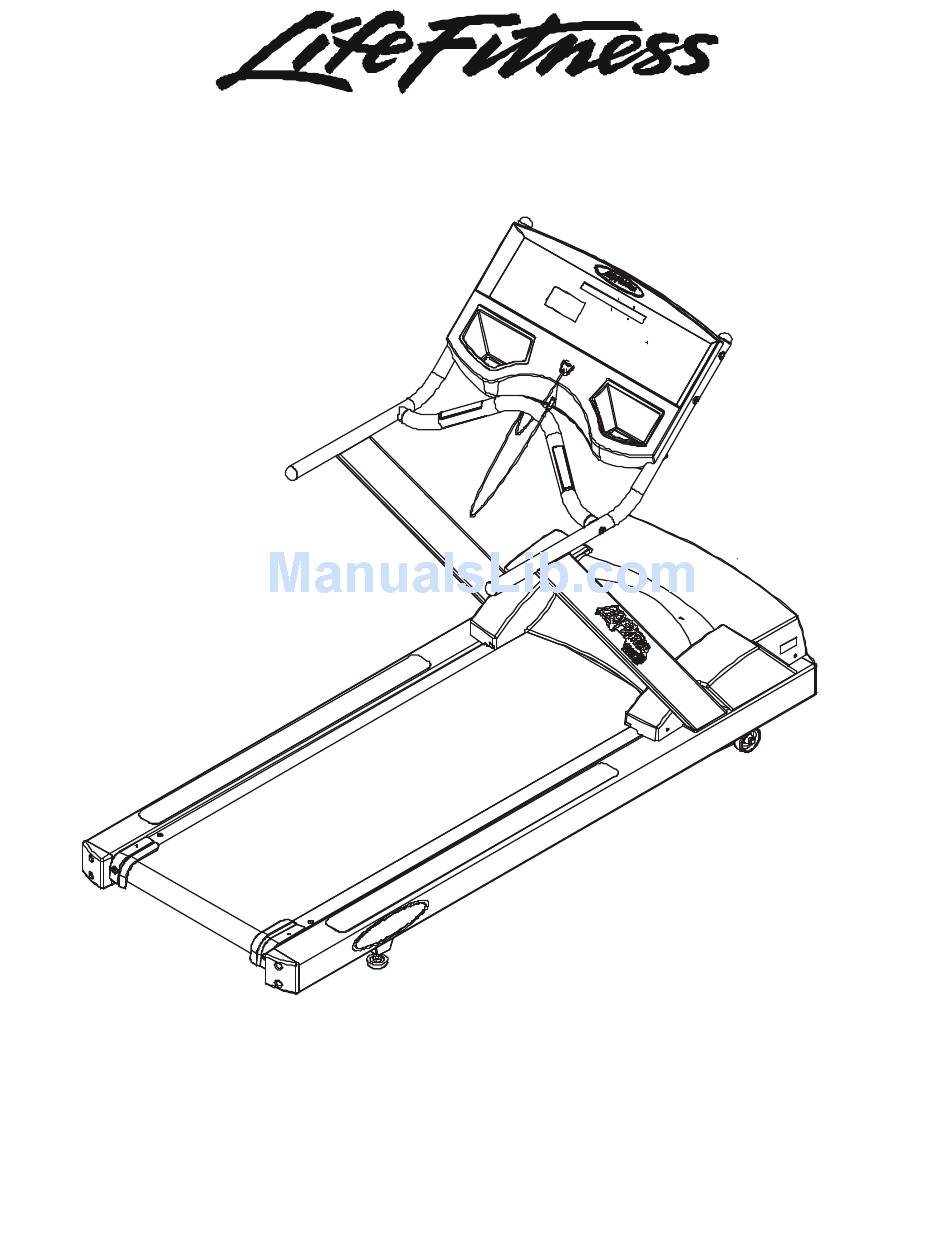

- Page 1 Arctic Silver 91TW Treadmill Customer Support Services PARTS MANUAL rev. 06/13/05...
- Page 2 ARCTIC SILVER 91TW REFERENCES OPERATION MANUAL SERVICE MANUAL COAX CABLE POWER EXT. CABLE TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN HARDWARE BAG 91TW-0XXX-02 S/N WTF100000 and up M051-00K60-A028 M051-00K60-A013 AK32-00020-0002 AK32-00078-0001 0017-00008-0204 0017-00008-0205 0017-00008-0206 AK60-00162-0000...
-
Page 3: Table Of Contents
ARCTIC SILVER 91TW 91TW-0XXX-02 CONTENTS S/N WTF100000 and up Page CONSOLE ASSEMBLY (PAGE 1 0F 3) ... 3 CONSOLE ASSEMBLY (PAGE 2 OF 3) ... 4 CONSOLE ASSEMBLY (PAGE 3 OF 3) ... 5 MOTOR COVER, LEVELER & END CAPS... 6 ERGO BAR &... -
Page 4: Console Assembly (Page 1 0F 3)
ARCTIC SILVER 91TW Console Assembly (1 of 3) Console Assembly AK60-00133-0001 English AK60-00133-0003 German AK60-00133-0004 Spanish AK60-00133-0006 Japanese AK60-00133-0007 French AK60-00133-0008 AK60-00133-0009 Dutch AK60-00133-0010 Portuguese AK60-00108-0010 Portuguese Stop Key/ Tether Assembly AK60-00101-0000 Console Front Assembly AK60-00108-0001 English AK60-00108-0003 German AK60-00108-0004 Spanish... -
Page 5: Console Assembly
ARCTIC SILVER 91TW Console Assembly (2 of 3) Left Wire Cover 0K60-01041-0003 Rear Decal 0K60-01176-0000 Phillips Screw(9) 0017-00101-1288 91TW-0XXX-02 S/N WTF100000 and up Right Wire Cover 0K60-01041-0004 Rear Console Case 0K60-01072-0001... -
Page 6: Console Assembly
ARCTIC SILVER 91TW Console Assembly (3 of 3) 2-Pin Connector Receiver Isolator Tube 0K36-01059-0002 Side Foam 0K36-01060-0000 6-Pin Connector Polar/Emergency Stop Cable Assembly AK60-00043-0000 (Note: The 6-pin connector, 2-Pin connects to the PCB Assy. Connector The 2-pin connector, connects to the Stop Switch connector.) -
Page 7: Motor Cover, Leveler & End Caps
ARCTIC SILVER 91TW Motor Cover, Leveler and End Caps Motor Cover AK60-00033-0002 End Cap(4) 0K60-01018-0001 Handrail Bolt 0017-00101-1256 Washer 0017-00104-0464 S/N WTF100000 and up Jam Nut 0017-00103-0323 Leveler 0K60-01033-0000 91TW-0XXX-02... -
Page 8: Ergo Bar & Upright Assembly
ARCTIC SILVER 91TW Ergo Bar and Upright Assembly Electrode Kit GK20-00002-0005 Mounting Screw 0017-00101-1768 Left Upright Assembly AK60-00117-0003 End Cap 0K60-01098-0001 Main Wiring Cable ERGO Bar w/Heart Rate Sensor AK60-00049-0002 Grounding Spring 0K60-01157-0000 Right Upright Assembly AK60-00116-0003 91TW-0XXX-02 S/N WTF100000 and up... -
Page 9: Accessory Trays
ARCTIC SILVER 91TW Accessory Trays Accessory Tray RT 0K60-01008-0003 Accessory Tray LT 0K60-01008-0004 Push Rivots(2) 0017-00042-1151 91TW-0XXX-02 S/N WTF100000 and up Mounting Screws(4) 0017-00101-1767... -
Page 10: Belt, Deck & Rollers
ARCTIC SILVER 91TW Belt, Deck and Rollers Striding Belt 0K60-01024-0000 Front Roller AK60-00029-0000 Deck Screws(4) 0017-00101-1775 91TW-0XXX-02 S/N WTF100000 and up Rear Roller 0K60-01011-0000 Decal 0K58-01365-0000 Deck 0K60-01022-0000... -
Page 11: Lifesprings & Anti-Static Tinsel
ARCTIC SILVER 91TW Lifesprings and Anti-Static Tinsel Deck Screw(4) 0017-00101-1775 Tinnerman Clip(4) 0017-00103-0198 Anti-Static Tinsel 0K60-01055-0000 Allen Screw(8) 0017-00101-1652 91TW-0XXX-02 S/N WTF100000 and up Lifespring(8) 0K40-01026-0002 Washer(8) 0017-00104-0072... -
Page 12: Lift Frame Assembly
ARCTIC SILVER 91TW Lift Frame Assembly Lift Arm Wheel 0K60-01020-0000 Cap, Tube End 0K60-01092-0000 Cotter Pin 0017-00007-0208 Clevis Pin 0017-00007-0271 91TW-0XXX-02 S/N WTF100000 and up Lift Frame Assembly AK60-00065-0000... -
Page 13: Lift Motor And Home Switch
ARCTIC SILVER 91TW Lift Motor and Home Switch Lift Motor 0K60-01094-0000 (120v) 0K60-01166-0000(220v/60Hz) Cotter Pins 0017-00007-0208 S/N WTF100000 and up Clevis Pins 0017-00007-0214 91TW-0XXX-02 Home Switch 0017-00032-0195... -
Page 14: Drive Motor Assembly
ARCTIC SILVER 91TW Drive Motor Assembly Drive Motor Assembly AK60-00081-0001 Motor Brush Kit GK60-00002-0007 Motor; Bleed Cable AK60-00098-0000 Tensioning Bolt 0017-00101-1283 Mounting Nuts(4) 0017-00103-0132 91TW-0XXX-02 S/N WTF100000 and up Drive Belt 0K60-01025-0000... -
Page 15: Wax Motor, Bag, Nozzle & Bracket
ARCTIC SILVER 91TW Wax Pump, Bag, Nozzle and Bracket Wax Bag GK60-00002-0001 Wax Spray Nozzle 0017-00009-1138 Wax Pump 0K60-01122-0000 (120v) AK60-00099-0000(220v) Support Wax Bag 0K60-01035-0001 Push Rivets 0017-00042-1151 Wax Bracket Assemlby AK60-00017-0000 91TW-0XXX-02 S/N WTF100000 and up Wax Hose 0017-00041-0880... -
Page 16: Sensors
ARCTIC SILVER 91TW Sensors (If Equipped) STAMP MUST FACE EACH OTHER Mounting Screws 0017-00101-0776 Speed Sensor w/o Bracket AK60-00093-0000 OPTO Speed Sensor w/Bracket AK60-00048-0001 Sensor Pulley Wheel Assembly AK60-00120-0001 Backer Plate 0K60-01189-0000 Screw 0017-00101-1017 91TW-0XXX-02 S/N WTF100000 and up Setscrews(2) -
Page 17: Rear Roller Cover Guards
ARCTIC SILVER 91TW Console Assembly (2 of 3) Rear Roller Cover Guards LT 0K60-01085-0002 Washer(2) 0017-00104-0334 91TW-0XXX-02 S/N WTF100000 and up Rear Roller Cover Guards RT 0K60-01085-0001 Rear Roller Adjusting Bolt(2) 0017-00101-1779... -
Page 18: Dc Controller & On/Off Switch
ARCTIC SILVER 91TW DC Controller and On/Off Switch DC Controller Mounting Screws(4) 0017-00101-0162 ON/OFF Switch 0017-00032-0198 91TW-0XXX-02 S/N WTF100000 and up DC Controller GK60-00002-0002 100-120 Volts/50-60 Hz GK60-00002-0003 200+ Volts/50-60 Hz... -
Page 19: Line Filter & Line Cord
ARCTIC SILVER 91TW Line Cord and Line Filter Strain Relief 0017-00042-1150 Screw(2) 0017-00101-0162 Line Cord AK60-00067-0000 Domestic 120/60 0017-00003-0696 220v/50Hz Continental 0017-00003-0890 220v/50Hz UK 0017-00003-0951 220v/60Hz U.S. (91Ti Cruise line only) AK60-00017-0000 100v/50Hz 91TW-0XXX-02 S/N WTF100000 and up Line Filter Assembly... -
Page 20: Cables
ARCTIC SILVER 91TW 91TW-0XXX-02 Cables S/N WTF100000 and up...
