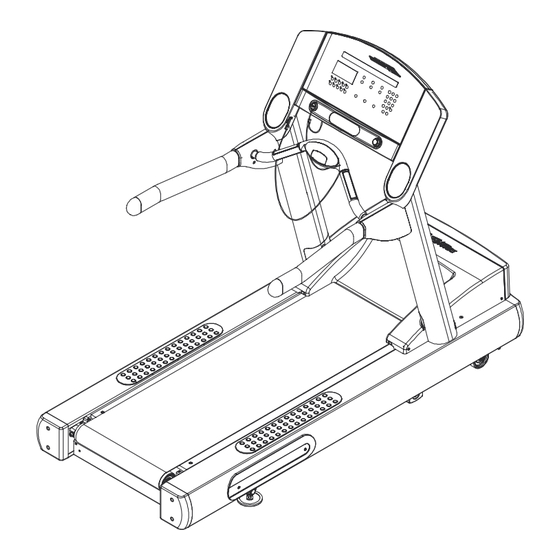

Arctic Silver 95TW Treadmill
Customer Support Services
PARTS MANUAL
rev 03 Jul 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Treadmill 95TW and is the answer not in the manual?

Questions and answers

Summary of Contents for Life Fitness Treadmill 95TW

  • Page 1 Arctic Silver 95TW Treadmill Customer Support Services PARTS MANUAL rev 03 Jul 2008...
  • Page 2 ARCTIC SILVER 95TW REFERENCES OPERATION MANUAL SERVICE MANUAL ACCESS PLATE ASSEMBLY CONSISTS OF: 1) CONNECTOR PLATE 2) F TYPE CONNECTOR COAX CABLE POWER CABLE HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN INSTALLATION VIDEO SERVICE VIDEO NOTE: ADDING THE LCD BOLT-ON SCREEN TO THE 95TW-0XXX-03 MAKES THE UNIT A 95TER-0XXX-03.
  • Page 3: Table Of Contents

    ARCTIC SILVER 95TW 95TW-0XXX-03 CONTENTS S/N WTE100000 and up Page REAR ENDCAPS AND CUP HOLDERS ...4 SCUFF PAD, TINSEL AND FRAME TAG BOARD ...5 CONSOLE AND RELATED COMPONENTS...6 UPRIGHTS, HANDRAILS AND ERGO BAR ...7 MOTOR COVER, FRONT COVER AND ENDCAPS ...8 BELT, DECK AND REAR ROLLER...9 LIFT FRAME AND MOTOR ...10 WAX/LIFT ASSEMBLY...11...
  • Page 4: Rear Endcaps And Cup Holders

    ARCTIC SILVER 95TW Rear End Caps and Cup Holders Cup Holder, LT AK58-00247-0002 Rear End Cap 0K58-01268-0000 Screws (4) 0017-00101-1772 Decal - LF Logo 0K60-01193-0000 Rear End Cap 0K58-01268-0000 95TW-0XXX-03 S/N WTE100000 and up Cup Holder, RT AK58-00247-0001...
  • Page 5: Scuff Pad, Tinsel And Frame Tag Board

    ARCTIC SILVER 95TW Scuff Pad, Tinsel and Frame Tag Bd. Anti-Static Tinsel 0K58-01102-0001 Tinsel Spring 0017-00009-0901 Anti-Scuff Pad 0K58-01376-0000 (2) 95TW-0XXX-03 S/N WTE100000 and up Frame Tag PCB B084-92187-D000...
  • Page 6: Console And Related Components

    ARCTIC SILVER 95TW Console and Related Components PCB Mounting Screw (8) 0017-00101-1275 PCB Assembly A084-92184-A006 See Table Magnet Disc 0K40-01070-0000 See Table Tether Stop Assy AK58-00322-0000 CD Tray, Rubber Pad 0K58-01359-0000 Console Assembly Overlay/Bezel/Switch Assy. AK58-00438-0001 AK58-00203-0001 AK58-00438-0002 AK58-00203-0001 AK58-00438-0003 AK58-00203-0003 AK58-00438-0004 AK58-00203-0004...
  • Page 7: Uprights, Handrails And Ergo Bar

    ARCTIC SILVER 95TW Uprights, Handrails and Ergo Bar Handrail Mounting Screw (4) Console Mounting 0017-00101-1774 Screw (4) 0017-00101-1773 Top LT Handrail Boot 0K58-01303-0002 Upright, Plug (2) 0K58-01305-0002 Upright, LT AK58-00310-0004 Upright Tube Cap (2) 0K58-01302-0000 Upright Tube Cap Screw (2) 0017-00101-1772 ERGO Bar Assembly AK58-00219-0000...
  • Page 8: Motor Cover, Front Cover And Front End Caps

    ARCTIC SILVER 95TW Motor Cover, Front Cover and Front End Caps Motor Cover Screws (4) 0017-00101-1772 Felt Strip - 28” 0017-00081-0294 Front Cover 0K58-01266-0000 Screws (4) 0017-00101-1771 95TW-0XXX-03 S/N WTE100000 and up Motor Shroud Assy. AK58-00397-0000 Front End Cap (2) 0K58-01267-0000 End Cap Screws (4) 0017-00101-1772...
  • Page 9: Belt, Deck And Rear Roller

    ARCTIC SILVER 95TW Belt, Deck and Rear Roller Striding Belt 0K58-01400-0000 Deck 0K58-01091-0002 TECSPAK Mounting Screw (8) 0017-00101-1652 TECSPAK Spring (8) 0K40-01026-0002 TECSPAK Tinnerman Clip (4) 0017-00103-0198 Washer (8) 0017-00104-0072 Grommet (2) 0017-00042-1147 Screw 0017-00101-1776 Round Grommet 0017-00042-0326 Washer 0017-00104-0043 Square Grommet 0017-00042-1147 Rear Roller Guard, LF...
  • Page 10: Lift Frame And Lift Motor

    ARCTIC SILVER 95TW Lift Frame and Lift Motor Receptacle Assembly ( includes all of the parts listed below) AK58-00514-0000 IEC Receptacle 0017-00003-0949 Line Cord Socket Bracket 0K58-01419-0000 Frame Screws 0017-00101-1723 Lift Frame End Cap 0017-00042-1076 Line Cord Clip 0017-00042-0840 Wheel 0K58-01071-0000 Phillips Screw 0017-00101-1612...
  • Page 11: Wax/Lift Assembly

    ARCTIC SILVER 95TW Wax/Lift Assembly–AK58-00243-0000 Pin Collar Spacer (3) 0017-00042-1070 Wax Lift Mounting Screw (3) 0017-00101-1641 Wax/Lift PCB A084-92261-A001 Spacer (3) Locking Nut (3) 0017-00042-1149 0017-00103-0052 Mounting Bracket 0K58-01316-0000 95TW-0XXX-03 S/N WTE100000 and up Motor Capacitor PCB Mounting Screw (4) 0017-00101-1253 Motor Capacitor PCB Assembly...
  • Page 12: Motor Controller Assembly

    ARCTIC SILVER 95TW Motor Controller Assembly AK60-00171-0000 (100-120v) W/O FERRITE AK60-00171-0001 (200-240v) W/O FERRITE AK60-00171-0002 (100-120v) WITH FERRITE AK60-00171-0003 (200-240v) WITH FERRITE 95TW-0XXX-03 S/N WTE100000 and up...
  • Page 13: Drive Motor Assembly

    ARCTIC SILVER 95TW Drive Motor Assembly Poly-V Pulley 0K58-01057-0001 Locking Nut (4) 0017-00103-0027 Washer (4) 0017-00104-0409 Insulating Shoulder Washer (4) 0K58-01255-0000 Drive Motor Assembly Number AK58-00172-0000 AK58-00172-0002 Motor w/Caution Label AK58-00171-0000 (SN 100000 - AK58-00171-0001 (SN 100021 - WTE100...) Slotted Hex Screw (2) 0017-00101-0975 Flywheel Assembly Insulating Pad (2)
  • Page 14: Idler Arm Assembly And Static Brush

    ARCTIC SILVER 95TW Idler Arm Assembly and Static Brush Idler Arm Assembly AK58-00053-0002 Anti Static Brush 0K58-01263-0001 Tinsel Bracket Screw(2) 0017-00101-1193 Grommet 0017-00042-0326 Drive Belt 0K58-01114-0000 Idler Pulley 0K26-01731-0000 Threaded Idler Shaft 0K58-01084-0002 Lock Nut: Idler 0017-00103-0324 Motor Pulley 0K58-01057-0001 Allen Screw 0017-00101-0333 Wire Clamp...
  • Page 15: Leg Leveler Assembly

    ARCTIC SILVER 95TW Leveler Assembly – AK58-00370-0000 Flat Washer (4) 0017-00104-0190 Lock Washer (4) 0017-00104-0333 Hex Nut (4) 0017-00101-1253 95TW-0XXX-03 S/N WTE100000 and up Bracket Leveler 0K58-01083-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000...
  • Page 16: Front Roller Assembly

    ARCTIC SILVER 95TW Front Roller Assy.–AK58-00066-0000 Polley V Pulley 8” 0K58-01105-0000 Lock Washer 0017-00104-0005 Hex Bolt 0017-00101-1632 Mounting Bolt 0017-00101-0974 Flat Washer 0017-00104-0043 3.5” Front Roller 0K58-01001-001 Flat Washer 0017-00104-0330 95TW-0XXX-03 S/N WTE100000 and up...
  • Page 17: Ergo Bar With Lifepulse

    ARCTIC SILVER 95TW Ergo Bar w/Lifepulse Lens Cover Assembly AK58-00064-0000 S/N WTE100000 and up Lens Cover Mounting Screw (2) 0017-00101-0824 Heart Rate Electrode Kit GK20-00002-0005 Ergo Bar Gasket (2) 0K58-01347-0000 95TW-0XXX-03...
  • Page 18: Power Components Schematic 1

    ARCTIC SILVER 95TW Power Components Schematic 1 Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v *0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/59Hz UK 0017-00003-0996 240v+ AUS * standard cord for domestic unit Black 4”...
  • Page 19: Power Components Schematic 2

    ARCTIC SILVER 95TW Power Components Schematic 2 Line Cord (Plug End Changes) 0017-00003-0947 12’ 120v 0017-00003-0974 Domestic 0017-00003-0948 12’ 220v 0017-00003-0915 RT Angle Plug 0017-00003-0781 220v/60Hz 0017-00003-0696 Continental 0017-00003-0890 240v/59Hz UK 0017-00003-0996 240v+ AUS Black 4” Jumper AK58-00081-0000 White 6” Jumper AK58-00082-0000 Green/Yellow 5”...
  • Page 20: Wax/Lift Power Supply

    ARCTIC SILVER 95TW Wax/Lift Power Supply For pre-wired units: 120” Coax Cable AK32-00020-0002 120” Power Extension Cable AK32-00078-0001 WAX LIFT POWER S UPPLY LEVEL SWITCH CLOSED @ 0% Negative Switch AK60-0009-0001 E Stop MESSAGE CENTER CONSOLE AK58-00036-0001 Life Pulse AK58-00041-0001 CA PACITOR BD.
