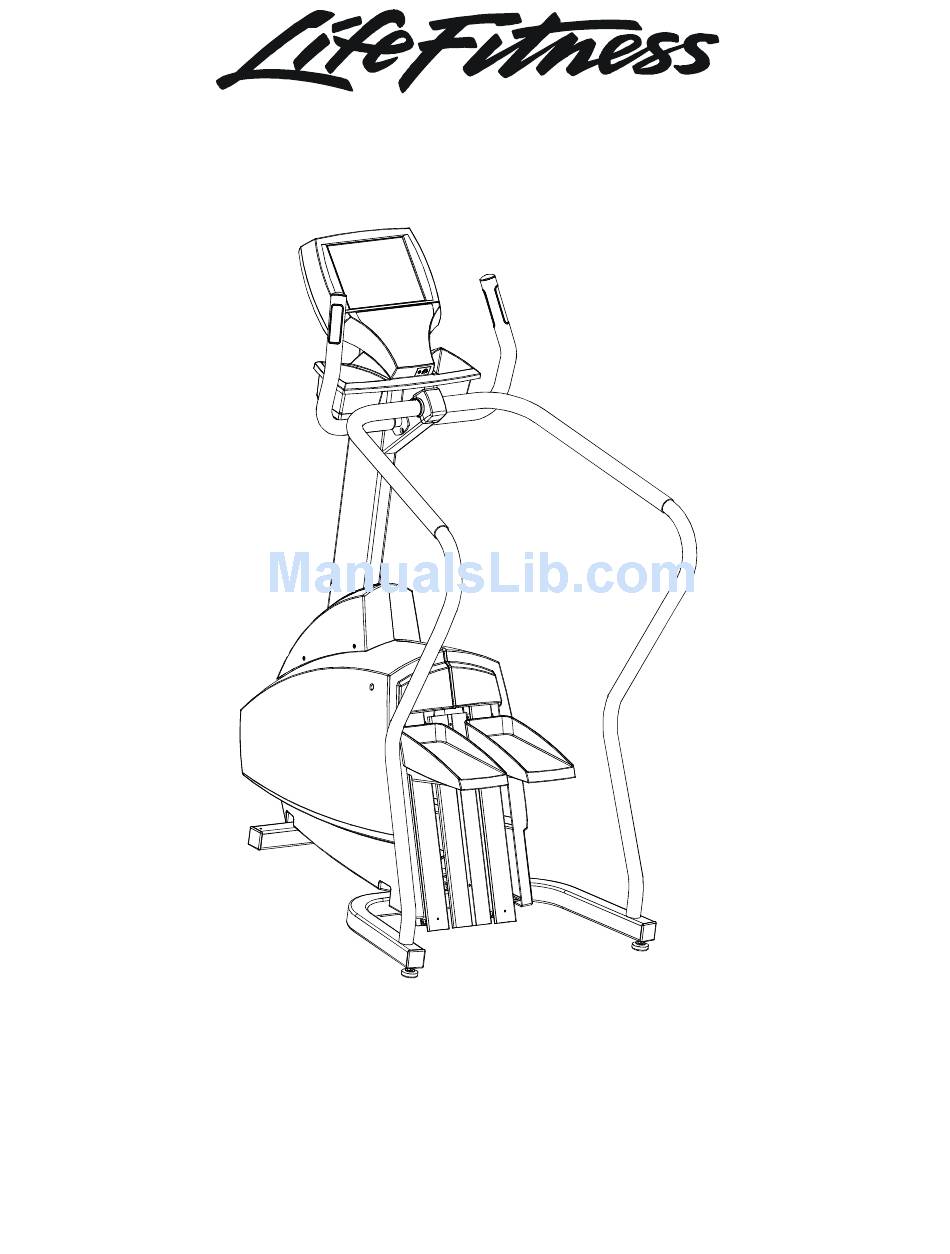

STEPPER 95SE
Customer Support Services
PARTS MANUAL
rev 14 Jul 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arctic Silver 95Se and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness Arctic Silver 95Se

Summary of Contents for Life Fitness Arctic Silver 95Se

  • Page 1 STEPPER 95SE Customer Support Services PARTS MANUAL rev 14 Jul 2008...
  • Page 2 STEPPER 95SE Notes: Manual/Video Operation Manual Service Manual Hardware Bag Parts Bag POWER SUPPLY 12V, 4.5A Without Line Cord LINE CORD, DOM. 10A 125V LINE CORD, CON. 10A 250V LINE CORD, 10A U.K. LINE CORD, AUSTRALIA Part Number M051-00K20-A387 M051-00K47-A013 AK47-00106-0000 AK47-00123-0000 118E-00001-0161...

  • Page 3: Table Of Contents

    STEPPER 95SE Contents PAGE CONSOLE...4 CONSOLE COMPONENTS ...5 FRAME COMPONENTS ...6 SHROUDS...7 PEDAL ASSEMBLY...8 MAIN DRIVE PULLEY AND CLUTCH ...9 LEFT CLUTCH ASSEMBLY ...10 CROSSOVER PULLEY ASSEMBLY...11 ALTERNATOR ASSEMBLY ...12 GUIDE ROLLERS ...13 PCB AND RESISTOR ...14 POLAR RECEIVER ASSEMBLY ...15 CABLE ...16 Page 3 of 16...

  • Page 4: Console

    Stepper 95SE Console Part Number GK47-00002-0005 GK47-00002-0006 GK47-00002-0007 GK47-00002-0008 GK47-00002-0009 GK47-00002-0010 GK47-00002-0011 GK47-00002-0012 GK47-00002-0013 GK47-00002-0014 GK47-00002-0015 Part Number AK63-00247-0001 AK63-00247-0003 AK63-00247-0004 AK63-00247-0006 AK63-00247-0007 AK63-00247-0008 AK63-00247-0009 AK63-00247-0010 AK47-00145-0001 AK47-00145-0003 AK47-00145-0001 AK47-00145-0007 AK47-00145-0008 AK47-00145-0009 AK47-00145-0010 S/N SCE100000 and up CONSOLE ASSEMBLY Description SERV KIT LCD CONS NTSC ENG SERV KIT LCD CONS NTSC SPN SERV KIT LCD CONS NTSC JAP...

  • Page 5: Console Components

    Stepper 95SE Console Components HEADPHONE-JACK ASSY AK32-00035-0000 TOUCHSCREENS, LCD 0K32-01001-0013 Interface Boards A084-92247-A009 NTSC A084-92247-A010 PAL Single Board Computer A084-92251-A003 Screws(7) 0017-00101-1242 Screw 0017-00101-1811 POLAR PCB W/HEADER AK39-00064-0000 Inverter Board 135E-00002-0002 Screws(2) 0017-00101-1813 Screws(8) 0017-00101-1810 Console Back Cover 0K32-01003-0000 Page 5 of 16 95SE-0_ _ _-01 S/N SCE100000 and up TAPE: ADHESIVE...

  • Page 6: Frame Components

    Stepper 95SE Frame Components Console Mounting Screws 0017-00101-1253 Accessory Tray 0K63-01030-0000 Screws 0017-00101-1253 Mono-Column AK47-00068-0000 Mono-Column Decal 0K47-01115-0000 S/N SCE100000 and up Bull Horn w/HR - RT AK47-00023-0001 Bull Horn w/HR - LT AK47-00023-0002 Wheel w/Bearings AK63-00016-0000 Wheel Insert 0K47-01085-0000 Page 6 of 16 95SE-0_ _ _-01 Handlebar...

  • Page 7: Shrouds

    Stepper 95SE Shrouds Mono-Column Shroud AK47-00082-0000 Phillips Pan Screw(2) 0017-00101-1242 Phillips Pan Screw(2) 0017-00101-1735 Center Shroud 0K47-01057-0000 Decal; ISO Track 0K47-01112-0000 Phillips Pan Screw(9) 0017-0010101242 S/N SCE100000 and up Cover Rail Bracket Right Shroud 0K47-01146-0000 AK47-00064-0001 Bracket Screw 0017-00101-1732 Track Cover Plate 0K47-01128-0000 Cover Screw(2) 0017-00101-1732...

  • Page 8: Pedal Assembly

    Stepper 95SE Pedal Assembly Track Roller 0K47-01084-0000 Roller Sleeve(2) Center Track Roller 0K47-01084-0000 0K47-01084-0000 Sleeve Roller(2) 0K47-01136-0000 Track Roller(4) w/Busshing Assy AK47-00087-0000 Thin Lock Nut(2) 0017-00103-0324 Low Head Terminator Screw(2) 0K47-01153-0000 Pedal Bracket Assembly w/o Rollers AK47-00086-0000 Pedal Assembly LT w/Rollers AK47-00072-0000 Pedal Assembly RT]...

  • Page 9: Main Drive Pulley And Clutch

    Stepper 95SE Main Drive Pulley and Clutch Main Drive Pulley/Shaft AK47-00006-00000 E-ring 0017-00100-0107 Thrust Washers Flat Washer 0K47-01105-0000 Right Drive Clutch Assembly AK47-00043-0001 Main Drive Belt 0K47-01054-0000 Page 9 of 16 95SE-0_ _ _-01 S/N SCE100000 and up Thrust Washer(3) 0K47-01104-0000...

  • Page 10: Left Clutch Assembly

    Stepper 95SE Clutch Assembly - LT Flat Washers(3) 0K47-01105-0000 Thrust E-Ring Washer Thrust Flat Washer Washer Page 10 of 16 95SE-0_ _ _-01 S/N SCE100000 and up Left Pulley Clutch AK47-00043-0002 E-Rings(2) 0017-00100-0107...

  • Page 11: Crossover Pulley Assembly

    Stepper 95SE Crossover Pulley Assembly Crossover Pulley Assy AK47-00007-0000 Lock Nut 0017-00103-0025 Magnet 118E-00001-0124 Screw 0017-00101-1713 Tensioning Bolt 0017-00101-0928 S/N SCE100000 and up Frame 0017-00103-0026 Adjustable Bracket 0K47-01052-0000 Auto Start Switch Bolts(2) and Cable 0017-00101-1048 AK63-00050-0000 Page 11 of 16 95SE-0_ _ _-01 Washer 0017-00104-0043...

  • Page 12: Alternator Assembly

    Stepper 95SE Alternator Assembly Locking Nut 0017-00103-0117 Tensioning Bracket 0K47-01053-0000 Alternator w/Flywheel Alternator Flywheel AK47-00038-0000 0K47-01069-0000 Washer 0017-00104-0044 Alternator Belt 0K47-01106-0000 Page 12 of 16 95SE-0_ _ _-01 S/N SCE100000 and up Alternator Pivot Bolt 0017-00101-0956 Tensioning Bracket Bolt 0017-00101-0986...

  • Page 13: Guide Rollers

    Stepper 95SE Guide Rollers Spring Guide Pulley(2) 0K47-01066-0000 Snap Ring(6) 0017-00100-0050 Shaft 0K47-01154-0000 Bolt 0017-00101-1048 S/N SCE100000 and up 0017-00103-0025 Belt Guide Pulley(2) AK63-00008-0000 Bolt - 0017-00101-1722 Nut - 0017-00143-0025 Page 13 of 16 95SE-0_ _ _-01 Belt Idler Pulley(2) 0017-00009-1147 Bolt(2) 0017-00101-1089...

  • Page 14: Pcb And Resistor

    Stepper 95SE PCB and Resistor Plastic Grommet(4) 0017-00042-0821 Power Control Board B084-92273-A000 Phillips Screw(4) 0017-00101-0823 Page 14 of 16 95SE-0_ _ _-01 S/N SCE100000 and up Resistor AK47-00037-0000 PCB Bracket 0K47-01087-0000...

  • Page 15: Polar Receiver Assembly

    Stepper 95SE Polar Receiver Assembly Screw 0017-00101-1844 0K63-01114-0000 Electrode Kit GK47-00002-0004 Screw 0017-00101-1723 Page 15 of 16 95SE-0_ _ _-01 S/N SCE100000 and up Polar Cap 0K47-01075-0000 Isolator 0K36-01059-0002 Polar Receiver SK40-00045-0001...

  • Page 16: Cable

    Stepper 95SE Cable DC Power Cable AK32-00075-0000 Reed switch and Cable AK32-00027-0000 Power Control Cable Assembly AK47-00031-0001 HR Cable AK63-00028-0001 Flat Flex Cable 118E-00001-0172 Coax Cable AK32-00020-0000 Console Power Cable AK32-00006-0004 Console Cable AK32-00026-0004 Polar Cable AK32-00017-0000 POLAR receiver HR Extensions Cable AK39-00064-0000 AK32-00022-0000 Page 16 of 16...
