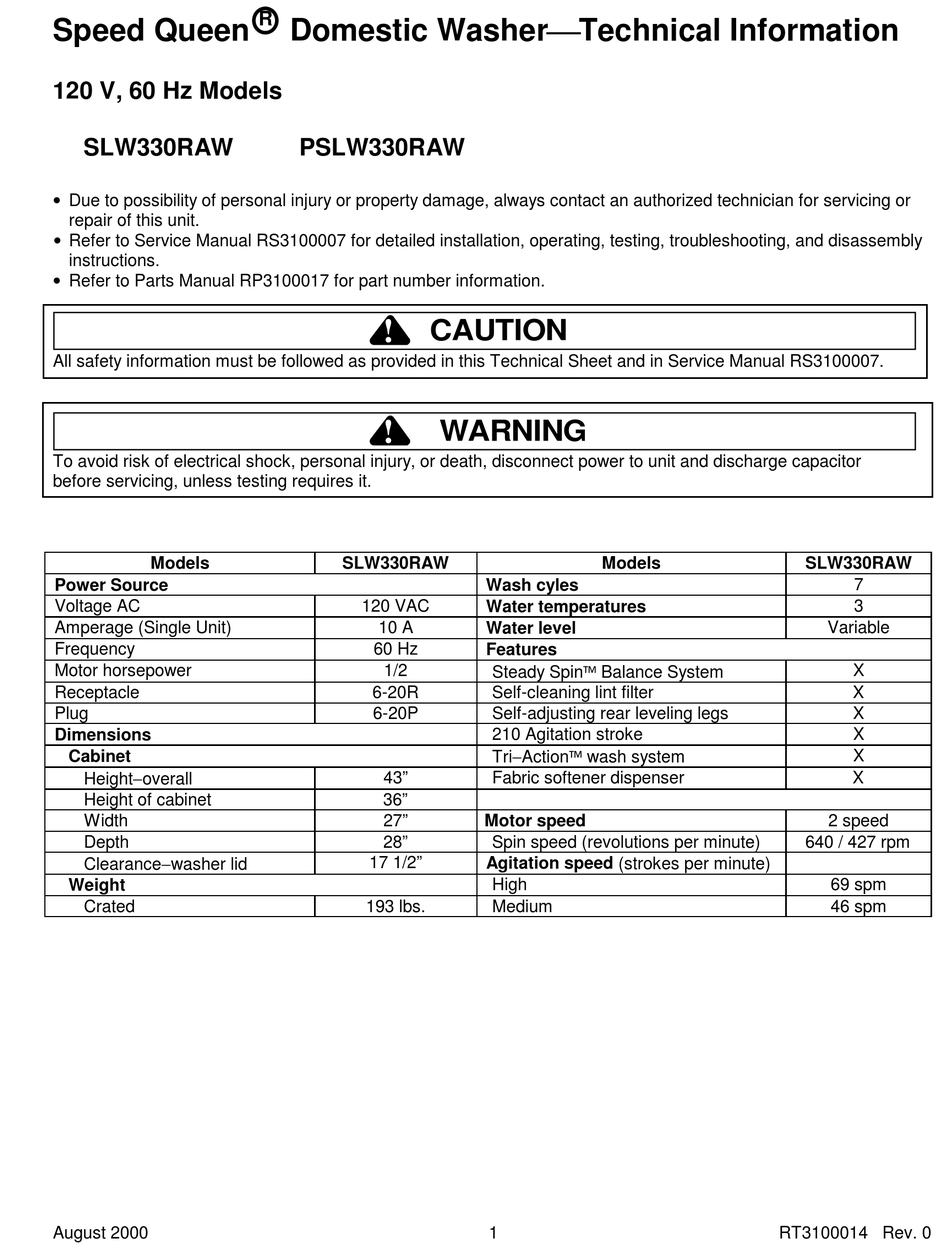

Speed Queen
120 V, 60 Hz Models
SLW330RAW
• Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or
repair of this unit.
• Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly
instructions.
• Refer to Parts Manual RP3100017 for part number information.
All safety information must be followed as provided in this Technical Sheet and in Service Manual RS3100007.
To avoid risk of electrical shock, personal injury, or death, disconnect power to unit and discharge capacitor
before servicing, unless testing requires it.
Models
Power Source
Voltage AC
Amperage (Single Unit)
Frequency
Motor horsepower
Receptacle
Plug
Dimensions
Cabinet
Height−overall
Height of cabinet
Width
Depth
Clearance−washer lid
Weight
Crated
August 2000
R
Domestic WasherTechnical Information
PSLW330RAW
!
CAUTION
!
SLW330RAW
120 VAC
10 A
60 Hz
1/2
6-20R
6-20P
43"
36"
27"
28"
17 1/2"
193 lbs.
WARNING
Models
Wash cyles
Water temperatures
Water level
Features
Steady Spin™ Balance System
Self-cleaning lint filter
Self-adjusting rear leveling legs
210 Agitation stroke
Tri−Action™ wash system
Fabric softener dispenser
Motor speed
Spin speed (revolutions per minute)
Agitation speed (strokes per minute)
High
Medium
1
SLW330RAW
7
3
Variable
X
X
X
X
X
X
2 speed
640 / 427 rpm
69 spm
46 spm
RT3100014 Rev. 0
Advertisement
Table of Contents
Related Manuals for Speed Queen SLW330RAW
Summary of Contents for Speed Queen SLW330RAW
- Page 1 Speed Queen Domestic WasherTechnical Information 120 V, 60 Hz Models SLW330RAW PSLW330RAW • Due to possibility of personal injury or property damage, always contact an authorized technician for servicing or repair of this unit. • Refer to Service Manual RS3100007 for detailed installation, operating, testing, troubleshooting, and disassembly instructions.
-
Page 2: Component Testing Information
Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Illustration Component Test Procedure Results 40077101 Temperature switch Disconnect wires from component to properly measure the resistance of the component. - Page 3 Component Testing Information WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Illustration Component Test Procedure Results 40095001 Motor Type of motor: See following section “Internal Motor Two speed Diagram and Schematic”...
-
Page 4: Internal Motor Diagram And Schematic
Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. One or Two Speed Motors Continuity exists between switch terminal R and Red wire. Start Terminals Manually depress actuator. - Page 5 Internal Motor Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. Wire harness connection block White Brown Yellow Blue Violet 4P M Yellow 6P M Overload Aux.
-
Page 6: Wiring Diagram And Schematic
Wiring Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. RT3100014 Rev. 0 August 2000... - Page 7 Wiring Diagram and Schematic WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. SCHEMATIC 120 VOLTS A.C. 60 HZ PRESSURE SWITCH MIXING VALVE COLD 3 POSITION WATER TEMP. SWITCH SWITCH COLD N.O.
-
Page 8: Timer Cycle Chart
Timer Cycle Chart WARNING To avoid risk of electrical shock, personal injury, or death, disconnect power to washer before servicing, unless testing requires it. TIMER CHART Failure to install, maintain, and/or operate this machine according to manufacture's instructions may result in conditions which can produce bodily injury and/or property damage.
