Page 1: Parts List

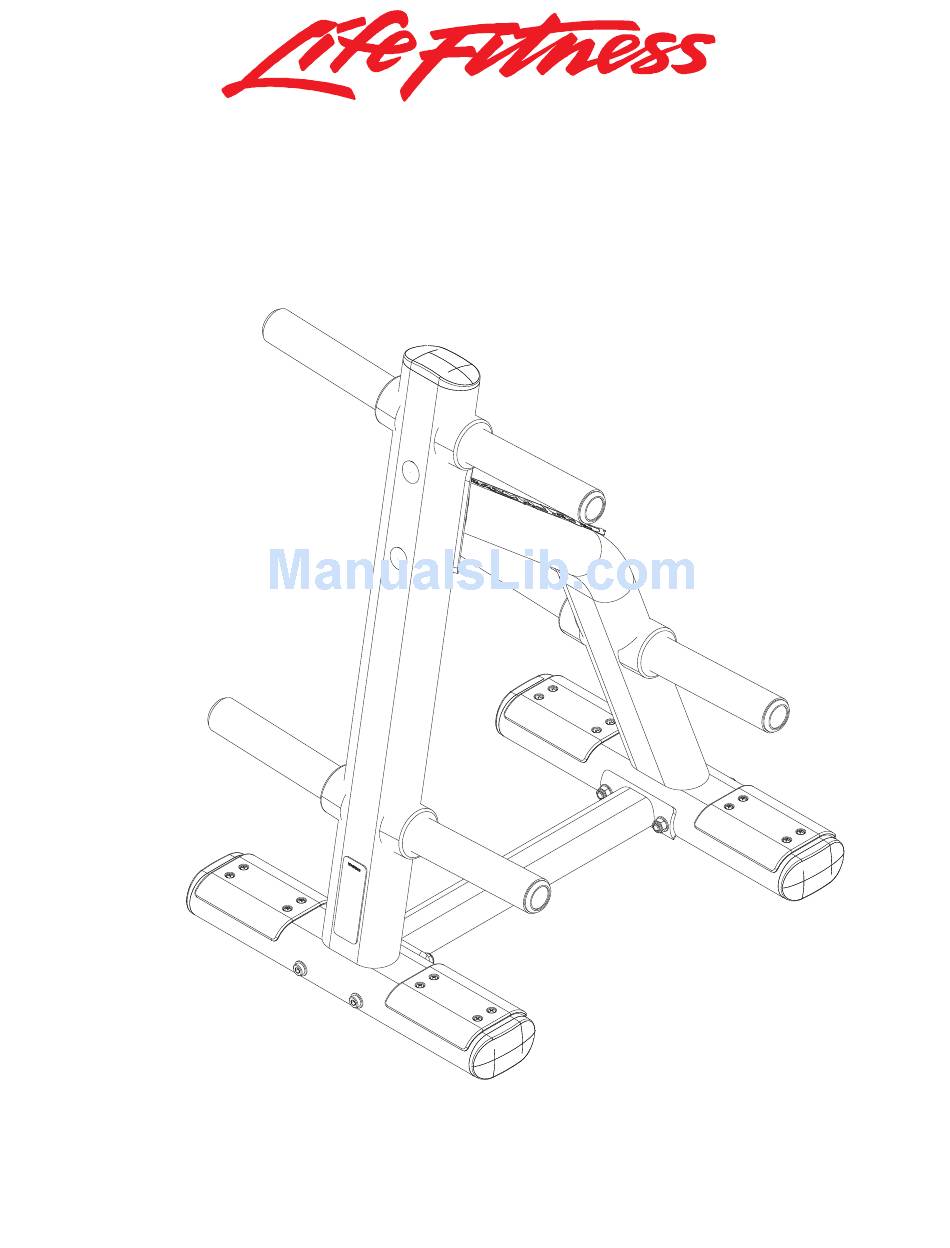

SIGNATURE SERIES SOWT SIGNATURE OLYMPIC WEIGHT TREE Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SOWT SIGNATURE OLYMPIC WEIGHT TREE CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND REAR FRAME ASSEMBLY REAR FRAME ASSEMBLY LEGEND FRONT FRAME ASSEMBLY FRONT FRAME ASSEMBLY LEGEND IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’ WITH THE REQUIRED COLOR CODES. FRAME 01 = WHITE 02 = PLATINUM... -
Page 3: Component Assembly
SOWT SIGNATURE OLYMPIC WEIGHT TREE COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
SOWT SIGNATURE OLYMPIC WEIGHT TREE COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78127XX PTD ASSY, SOWT REAR FRAME 78126XX PTD ASSY, SOWT FRONT FRAME 81066XX ASSY, SOWT, CROSS MEMBER 3237403 PLUG, 1" HOLE 3256202 SCREW, M10 X1.5 25MM 3102514 WASHER, FLAT 3/8"... -
Page 5: Rear Frame Assembly
SOWT SIGNATURE OLYMPIC WEIGHT TREE REAR FRAME ASSEMBLY - 78127XX ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Rear Frame Assembly Legend
SOWT SIGNATURE OLYMPIC WEIGHT TREE REAR FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78127XX PTD ASSY, SOWT REAR FRAME 7800401 CAP, LRG FLOV END 7810801 PAD, RUBBER FOOT 3114407 WASHER, SAE #10 3239102 SCREW, M5X12 PHL PAN TT ST BZ 7821701 GUARD, SHORT PAINT 8031801 RING, CONTOURED, WEIGHT HORN 8003301 LABEL, LIFE FIT 2-1/2 X 15 SG... -
Page 7: Front Frame Assembly
SOWT SIGNATURE OLYMPIC WEIGHT TREE FRONT FRAME ASSEMBLY - 78126XX ________________________________________ SEE PAGE 8 FOR LEGEND Page 7... -
Page 8: Front Frame Assembly Legend
SOWT SIGNATURE OLYMPIC WEIGHT TREE FRONT FRAME ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78126XX PTD ASSY, SOWT FRONT FRAME 7800401 CAP, LRG FLOV END 7810801 PAD, RUBBER FOOT 3239102 SCREW, M5X12 PHL PAN TT ST BZ 3114407 WASHER, SAE #10 7821701 GUARD, SHORT PAINT... -
Page 9: Image
SOWT SIGNATURE OLYMPIC WEIGHT TREE IMAGE ________________________________________ Page 9...
