Summary of Contents for ALcom AT6128

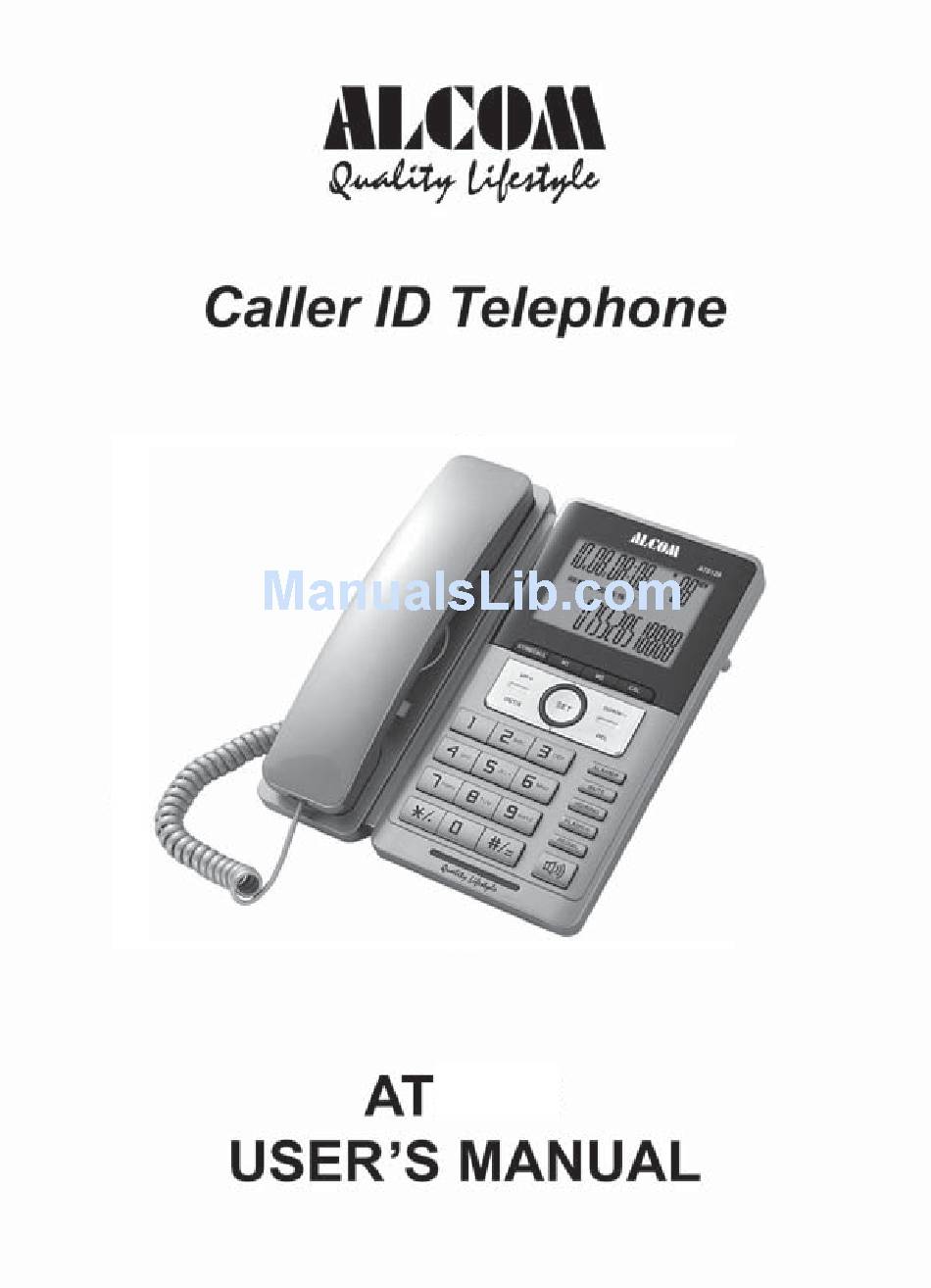

- Page 1 6128...
-
Page 2: Safety Instruction
INTRODUCTION Thank you for purchasing our newest Alcom Caller ID phone. This manual is designed to familiarize you with this phone. To get the maximum use from your new phone, we suggest that you read this instruction manual carefully before using. - Page 3 Mute function Pulse/Tone dialing mode compatible 4 levels of hands free volume for selection Ringing volume 8 steps for selection Baby call function LCD Backlight function Speakerphone with enhanced quality Hands free dialing function Ring LED indicator...
-
Page 4: Location Description
LOCATION DESCRIPTION... -
Page 5: Getting Started
GETTING STARTED 1. The unit requires 3 X 1.5V AA batteries. Open the battery compartment cover and insert the batteries in the right polarity, then close the cover (Proposal using alkaline battery). There should be time display on the liquid crystal screen after the batteries are inserted. 2. - Page 6 From Speakerphone 1. Press 2. When you hear the dial tone, dial the desired number. 3. The unit will start to time the conversation after 6 seconds. 4. When finished, press key again. Pre-dialing function 1. When the handset is on the base, dial the desired number. 2.
-
Page 7: Setting Menu
Calling back 1. In on-hook state, press OUT/X key to review the desired number, then press key or pick up the handset, and the number is dialed out, or 2. Press REDIAL key, LCD displays PICK UP, press key or pick up the handset, the number is dialed out. - Page 8 Setting PABX code 1. In on-hook state, press and hold DEL key for 3 seconds to set PABX code, LCD displays SET PCODE - and the “-” flashes. 2. Press UP/+ or DOWN/- key to set PABX code from 0 to 9 or -. 3.
- Page 9 transfer calls from that different model phone to the model referred in this manual and intercom during may not be possible in certain cases. If the paging number is set, Anti-steal dialing function will not work. This feature will work only on regular PSTN networks. Any special services starting with “...
- Page 10 displays “mute”. Press MUTE key again to return to conversation mode. SELECTING PULSE OR TONE DIALING MODE 1. In on-hook state, press and hold key for 3 seconds, LCD displays P, then dialing mode is set as Pulse. 2. Press key twice and hold key for 3 seconds again, LCD displays T, then dialing mode is set as Tone.
- Page 11 3. Press one of numeric keys (0-9) Make a call from two-touch memory In off-hook or handsfree state, press ST/RECALL + numeric key (0-9), the relevant number will be dialed. LOW BATTERY DETECTION When the voltage is lower than 3.9V, LCD displays “ ”...
-
Page 12: Calculator Function
using numerical key and press SET key to confirm. After set baby call function to ON state, pressing any key except REDIAL key or picking up handset will dial out the baby call number automatically. When baby call function is ON state, you can still answer the incoming call. NOTE: If you don’t use the function, enter baby call function setting as per above operation and select BABYCALL OFF, press SET key to confirm. - Page 13 Ring once then disconnect when receiving a call. Dialing function is still available Check if connector is in a moist environment. Check if too many extensions are used together or the quality of extension is not good enough, change the bad extension. LCD become dim Check if LCD contrast is properly set or if the batteries are weak.
- Page 14 Note: Due to continuous product development all features and specifications are subject to change without prior notice. For more Information on Warranty and Product Support please call Alcom Electronics Pte Ltd Singapore - Head Office Phone: (65) 68412668 Fax : (65) 68412628 Alcom Communications Sdn.
