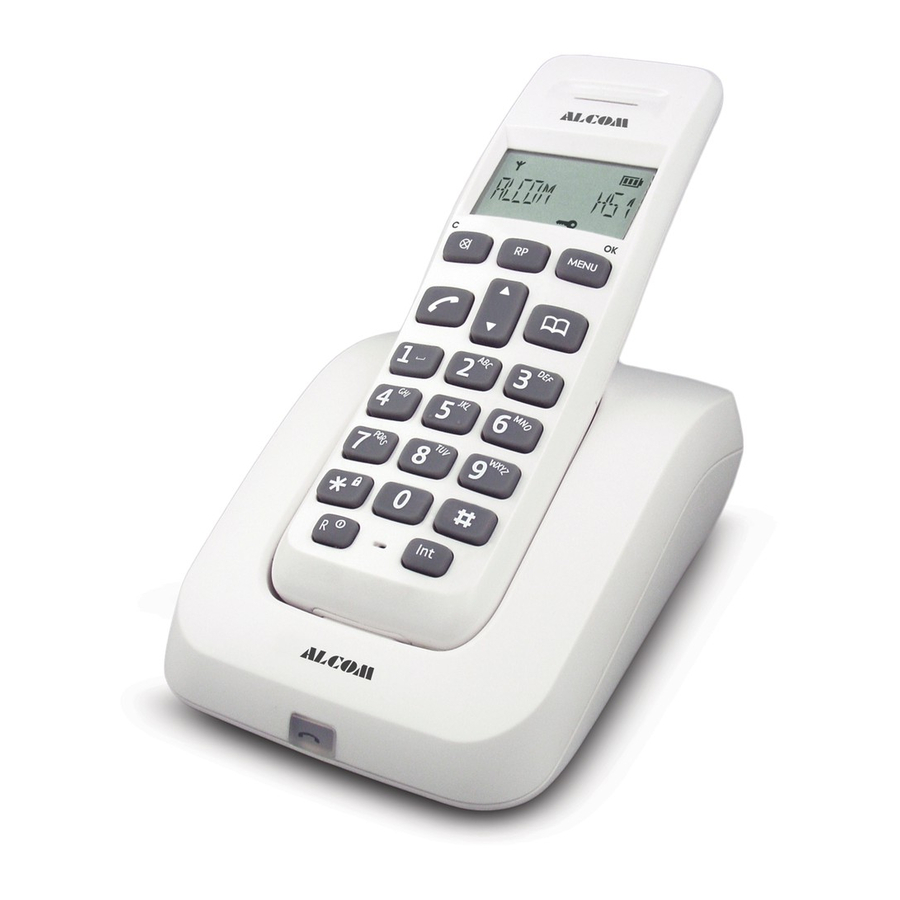

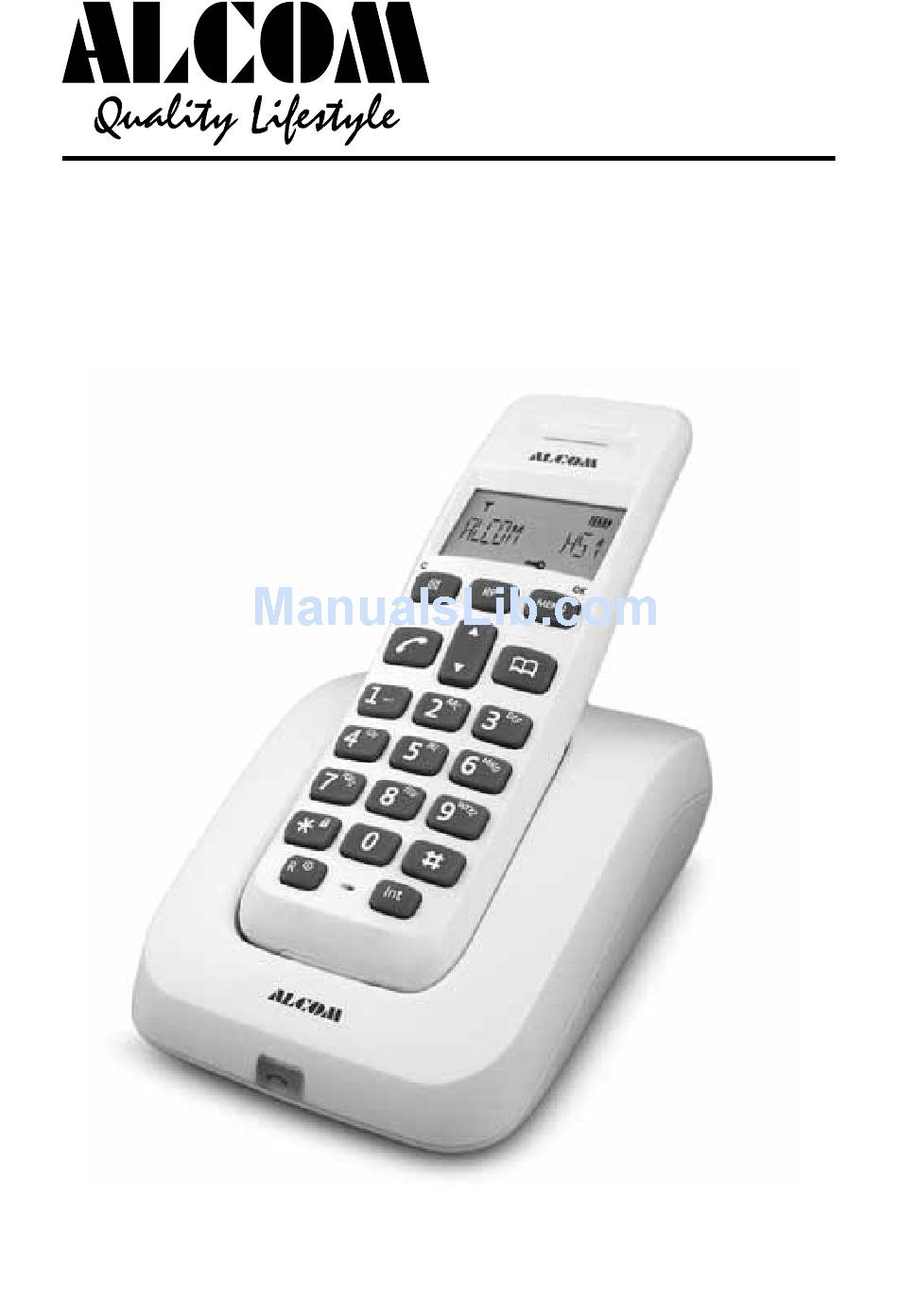

- Page 1 STUDIO Digital Cordless Telephone Instruction Manual Warning Charge the handset for 24 hours before use.
- Page 2 Welcome... to your new Studio Digital Cordless Phone! • All handsets are fully cordless for locating anywhere within range. • 50 Name and Number phonebook. • Caller Display shows you who’s calling and see details of the last 40 callers in a Calls list.* • Redial up to 10 of the last numbers called.
- Page 3 This User Guide provides you with all the information you need to get the most from your phone. Before you make your first call, you need to set up your phone. Follow the simple instructions in ‘Getting Started’, on the next few pages. IMPORTANT Only use the telephone line cord supplied.
-
Page 4: Table Of Contents
Getting started ............... 4 Location ....................4 Handset range ..................4 Signal strength ..................4 Setting up ..................... 4 Battery low warning ................6 Battery performance ................6 Date and time ..................6 Getting to know your phone ..........8 Overview of your handset .............. - Page 5 Handset settings ..............19 Handset ringer volume ............... 19 Handset ringer melody ............... 19 Auto answer ..................19 Handset name ................... 20 Language ................... 20 Key beep .................... 20 Battery low warning beep ..............21 Out of range warning beep ..............21 Keypad lock using the menu ..............
- Page 6 IX. Using additional handsets ..........28 Registering an additional handset ............. 29 Register a different make of handset to your Studio base ....29 Select a base ..................29 De-register a handset ................ 30 Help ..................30 XI. General information ............32...
-
Page 7: Getting Started
Getting started WARNING Do not place your Studio in the bathroom or other humid areas. Location You need to place your Studio base within 2 metres of the mains power and telephone wall sockets so that the cables will reach. The socket-outlet shall be installed near the equipment and shall be easily accessible. -
Page 8: Connecting The Base
the product. Which power adapter? The power adapter with a clear connecter is for the base unit and the power adapter with a red colour connecter is for the charger unit (for multi-pack only). Connecting the base 1. Plug the telephone line cord into the socket marked on the underside of the base. -
Page 9: Battery Low Warning
IMPORTANT Warning! Use only approved rechargeable batteries supplied with your Studio. Please do not use alkaline or non-rechargeable batteries. It may cause permanent damage to the product and void the warranty. Battery low warning icon flashes on the display and you hear a warning beep every minute during a call, you will need to recharge the handset before you can use it again. -
Page 10: Date And Time
Date and time If you have subscribed to Caller Display Service, the date and time is set automatically for all handsets when you receive your first call. If you do not have Caller Display service, you can set the date and time manually. Set the date manually 1. -
Page 11: Getting To Know Your Phone
Getting to know your phone Overview of your handset Earpiece Display See page 10 for an overview of the display icons. Mute/Clear/Back Menu/Ok During a call, press to switch Press to open the Menu, page 11. Secrecy on/off, page 14. Press to select menu options and In menu mode, press to return to to confirm a displayed option. - Page 12 Calls list/Up Phonebook/Exit In standby mode, press to open In standby mode, press to open the calls list, page 27. the phonebook menu, page 17. During a call, press to increase When viewing the redial/calls list earpiece volume, page 14. or when editing, press to exit and When the phone is ringing, press return to standby.
-
Page 13: Handset Lcd Display
Handset LCD Display Eco mode Battery Circle around status appears when Scrolls Eco mode is ON when charging Time or Handset name In standby mode, press and hold 0 to switch handset idle screen between handset name or time. Display icons Flashes to indicate an incoming Menu is opened external call... -
Page 14: Overview Of The Base
Overview of the base Page In standby mode, press to ring the handset(s), page 16. Press and hold to enter registration mode when registering handsets, page 28. Navigating the menus Your Studio has an easy to use menu system. Each menu has a list of options, which you can see on the menu map on the following page. -
Page 15: Menu Map
Menu map PHONEBOOK - ADD ENTRY - MODIFY ENTRY - DELETE ENTRY SETUP - BASE VOLUME - BASE MELODY - DEL HANDSET - PIN CODE - DIAL MODE - RECALL - DEFAULT - ECO MODE HANDSET - BEEP - INT RING VOL - EXT RING VOL - INT MELODY - EXT MELODY... -
Page 16: Using The Phone
III. Using the phone Note: Your handset will automatically time the duration of all external calls. The call timer will display after the first 15 seconds of your call. When the call ends, the total duration of your talk time flashes on the screen for 5 seconds. Switch the handset on/off Press and hold Recall/On/Off to switch the handset on or off. -
Page 17: Adjust The Earpiece Volume
Adjust the earpiece volume During a call, press Calls list/Up or Calls list/Down to increase or decrease the volume. Secrecy You can mute your handset so that you can talk to someone nearby without your caller hearing. 1. During a call, press Mute/Clear/Back. The display shows « MUTE » and your caller cannot hear you. -
Page 18: Redial
3-way conference call You can hold a 3-way conference call between 2 internal callers and 1 external caller. During a call with an external caller: 1. Press Int followed by the handset number (1-5) that you want to establish a conference call. 2. -
Page 19: Lock/Unlock The Keypad
Delete an entry 1. Press Calls list/Up to open the Redial list. 2. Scroll Calls list/Up or Calls list/Down to the entry you want and press Mute/Clear/Back. The display shows « DELETE ? ». 3. Press Menu/Ok to confirm or Mute/Clear/Back to cancel. Delete the entire Redial list 1. -
Page 20: Iv. Phonebook
IV. Phonebook You can store up to 50 names and numbers in the phonebook. Names can be up to 12 characters long and numbers up to 24 digits. You can also select different ringer melodies for the phonebook entries. If your Studio is connected to a switchboard, you may need to enter a pause in a stored number. -
Page 21: View Or Dial An Entry
Press Calls list/Up or Calls list/Down to move between characters/digits. Press 1 to insert a space. Use 1 twice to insert a dash. View or dial an entry 1. Press Phonebook/Exit. icon is displayed. 2. Scroll Calls list/Up or Calls list/Down to the entry you want. Enter the first letter of the name to search alphabetically. -
Page 22: Handset Settings
search alphabetically and press Menu/Ok. The display shows « CONFIRM ? ». Press Menu/Ok to confirm or Mute/Clear/Back to cancel. Handset settings Handset ringer volume You can adjust the ring volume and set different volume levels for your internal and external calls. Choose from 5 volume levels or Off. 1. -
Page 23: Handset Name
1. Press Menu/Ok, scroll Calls list/Down to « HANDSET » and press Menu/Ok. 2. Scroll Calls list/Down to « AUTO ANSWER » and press Menu/Ok. Press Calls list/Up or Calls list/Down to select « ON » or « OFF » and press Menu/Ok to confirm. -
Page 24: Battery Low Warning Beep
Battery low warning beep When the battery is almost fully discharged, you will hear a warning beep every minute during a call. You can switch these beeps on or off. 1. Press Menu/Ok, scroll Calls list/Down to « HANDSET » and press Menu/Ok. The display shows «... -
Page 25: Base Ringer Volume
2. Press Menu/Ok. 3. Press Calls list/Up or Calls list/Down to select the volume (1 - 5 or « OFF »). 4. Press Menu/Ok to confirm or Mute/Clear/Back to return to the previous menu. Base ringer melody Choose from 5 different base ringer melodies. You will hear a sample ring as you scroll to each ringer melody. -
Page 26: Recall Mode
Recall mode Depending on your country and network operator, your Studio has the recall time set as 600 ms (RECALL 2). It is unlikely that you need to change this setting unless advised to do so. 1. Press Menu/Ok, scroll Calls list/Down to « SETUP » and press Menu/Ok. 2. -
Page 27: Default Settings
To switch Eco mode on: 1. Press Menu/Ok, scroll Calls list/Down to « SETUP » and press Menu/Ok. 2. Scroll Calls list/Down to « ECO MODE » and press Menu/Ok. 3. Press Calls list/Up or Calls list/Down to select « ON » or « OFF » and press Menu/Ok to confirm. -
Page 28: Vii. Clock & Alarm
VII. Clock & alarm If you have subscribed to Caller Display Service, the date and time will be set on all your handsets whenever a call is received. You can also manually set the date and time on the individual handsets. Set the date 1. -
Page 29: Viii. Caller Display And The Calls List
VIII. Caller display and the Calls list IMPORTANT To use Caller Display, you must first subscribe to the service from your network provider. A subscription fee may be payable. To ensure that the caller’s name is displayed, make sure you have stored the full telephone number, including the area code in the phonebook. - Page 30 When a new call is received in the Calls list, icon will flash on the display in standby mode to alert you. When you have viewed the new call the icon disappears. View the Calls list 1. Press Calls list/Down to open the Calls list. If there are no calls in the list, the display shows «...
-
Page 31: Ix. Using Additional Handsets
Delete an entry 1. Press Calls list/Down to open the Calls list. 2. Scroll Calls list/Up or Calls list/Down to the entry you want and press Mute/Clear/Back. The display shows « DELETE ? ». 3. Press Menu/Ok to confirm or Mute/Clear/Back to cancel. Delete the entire Calls list 1. -
Page 32: Registering An Additional Handset
5. The display will ask for the PIN to be entered. Enter the 4 digit PIN code (default = 0000) and press Menu/Ok. You will hear a beep if the registration is successful. The handset is automatically assigned an available handset number. Use this number when making internal calls. -
Page 33: De-Register A Handset
connect to standby. De-register a handset Use one handset to de-register another. You cannot de-register the handset that you are using. 1. Press Menu/Ok, scroll Calls list/Down to « SETUP » and press Menu/Ok. 2. Scroll Calls list/Down to « DEL HANDSET » and press Menu/Ok. 3. - Page 34 icon is not scrolling during charge . Adjust the handset slightly on the base. . Clean the charging contacts with a cloth moistened with alcohol. . Check that the mains power is connected properly and switched on. . The battery is full. When the handset is fully charged, icon will appear steadily on the display.
-
Page 35: Xi. General Information
XI. General information IMPORTANT This equipment is not designed to make emergency telephone call when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public switched telephone networks and private switchboards in Singapore and Malaysia. -
Page 36: Other Medical Devices
inches) be maintained between a handheld wireless device and a pacemaker. These recommendations are consistent with those of the U.S. Food and Drug Administration. Persons with pacemakers should: - ALWAYS keep the handheld wireless device more than 15 cms away from their pacemaker when the handheld wireless device is turned ON. -
Page 37: Product Disposal Instructions
. Do not expose your product to fire, explosives or other hazardous conditions. . There is a slight chance that your phone could be damaged by an electrical storm. We recommend that you unplug the power and telephone line cord during an electrical storm. - Page 38 Note: Due to continuous product development, all features and specifications are subject to change without prior notice. For more Information on Warranty and Product Support in Singapore please call: (65) 68412668 or Fax to (65) 68412628. Email: support@alcom.com.sg Website: www.alcomonline.com...
- Page 39 Alcom Studio User Guide 28/07/2011 Version 3...
