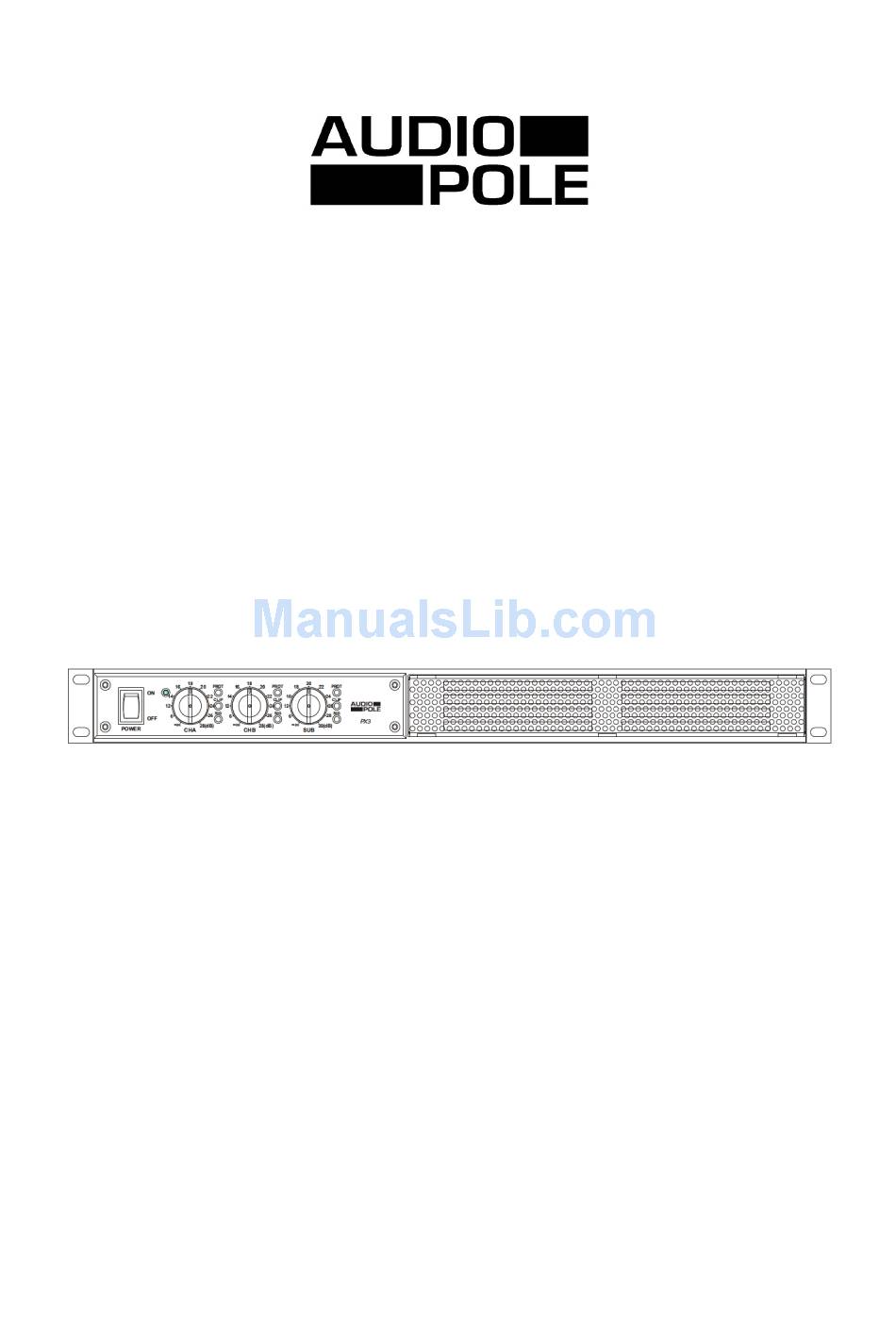

- Page 1 PROFESSIONAL POWER AMPLIFIER USER’S MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product. -
Page 3: Table Of Contents
Index 1. Introduction …………………………………………………………………….….. 2. Main Features ……………..……..……………………………………………… 3. Functions ………………………………………………………………………….. 4. Applications ………………………………………………...……………….…….. 5. Technical Specifications ….………………………………………………...…… 6. Warranty ……………………………………………………………………….…… ... -
Page 4: Introduction
Introduction Thanks for the acquisition of the PX3 AUDIOPOLE. This three channel power amplifier has been developed to drive two satellites and one subwoofer in fixed installations requiring limited space in the bays. The PX-3 has a high efficiency thanks to his Class-D technology and can deliver 2 x 150 W RMS / 4 Ohms and 1 x 220 W RMS / 4 Ohms. -
Page 5: Functions
Functions FRONT PANEL 1 – POWER Power switch. 2, 3 & 4 – Volume Volume controls. 5 – POWER ON Power indicator. 6 – SIG Signal indicator. 7 – PROT Protection indicator. If the amplifier fails, the Led lights up, the output being automatically muted. Check the cable connection between the amplifier and the speakers. - Page 6 Functions Back Panel 1 – Mains and fuse Power supply socket. Make sure that the cable plug is correctly inserted in the socket. The compartment located below the socket contains the fuse. In the event of change, it is imperative to use a fuse with identical electrical characteristics under threat of damage to the unit.
-
Page 7: Applications
Applications Inputs connections The inputs can be connected to the Euroblock socket using the female free part connectors supplied with the device. For balanced inputs use Hot pin (+), Cold pin (-) and Ground pin (G) terminals. For unbalanced inputs use Hot pin (+) and Ground pin (G) only; Hot (+) and Cold (-) must be connected together in the female connector. -
Page 8: Technical Specifications
Technical Specifications 2 Ω (EIAJ) 2 x 250 W CHA & CHB 4 Ω (RMS) 2 x 150 W 8 Ω (RMS) 2 x 90 W 2 Ω (EIAJ) 400 W ... -
Page 9: Warranty
Warranty This device is warranted parts and labor against any manufacturing defects for a period of two years from the date of purchase by the first user. Conditions 1. The unit has been installed and implemented by observing the safety instructions in this operating manual.
