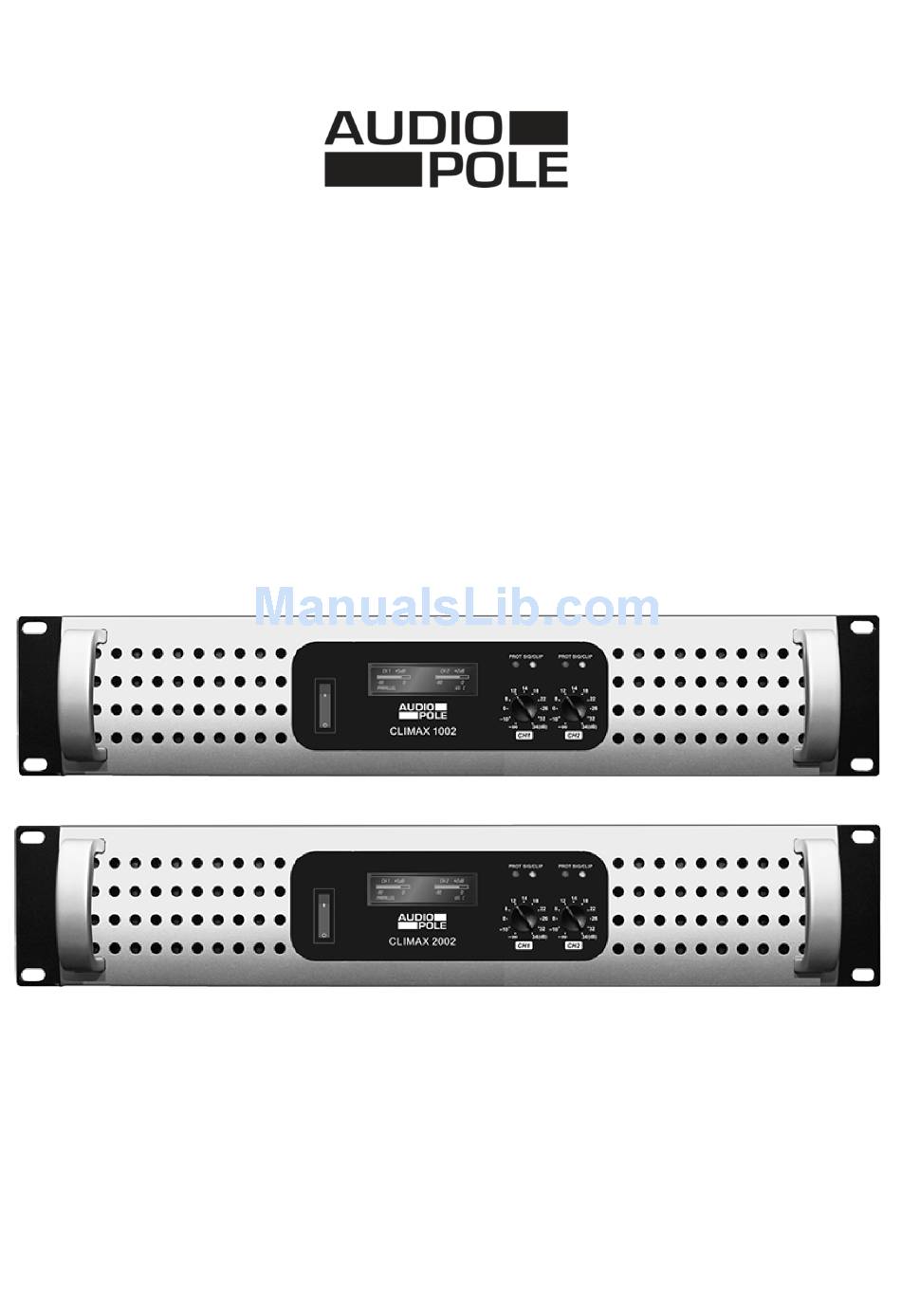

- Page 1 CLIMAX 1002 - 2002 PROFESSIONNAL AMPLIFIERS USER MANUAL...
-
Page 2: Important Safety Instructions
Important Safety Instructions This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product. -
Page 3: Table Of Contents
Index 1. Introduction …………………………………………………………………………. 4 2. Main Features ………………………………………….…………………………… 4 3. Controls ..……………………………….…………………………..……………….. 5 4. Operating Modes ……………..………………………………….……………..7 5. Technical Specifications ……...……………………………………...……..……… 9 6. Warranty ……………………………………………...…………………………….. 9... -
Page 4: Introduction
Introduction Thank you for purchasing Audiopole CLIMAX 1002 and 2002. They have been designed for middle and high power applications and can be used for touring or fixed installations. Compact and light, the devices combine Class-D amplification and switching power supply. With high efficiency, both models respectively deliver 2 x 500 W and 2 x 950 W RMS / 4 Ω, up to 1000 and... -
Page 5: Controls
Controls A - Front panel 1- POWER Power ON/OFF switch. 2 - SIGNAL / CLIP LED The LED will turn green when the respective channel’s output signal pass through. Further more, these LED will turn red when the signal is too strong, which means it is time to reduce input level until clip LED turns off. 3 - PROTECTION LED In normal operation, the Led will not illuminate;... - Page 6 Controls A - Back panel 7 - BREAKER Circuit breaker automatically trips at the onset of an overload. It acts directly on the power of the amplifier. Before reset, unplug the unit and check that the connections are correct and that load impedances are adapted to the operating mode.
-
Page 7: Operating Modes
Operating Modes 1 - STEREO Turn off the device. Use either Speakon connectors or terminals and perform wiring as shown below. The minimum load impedance must be 4 Ohms per channel. 2 - PARALLEL Turn off the device. Parallel mode delivers input source of Channel 1 into Channel 2 amplifier. Mode switch must be set at Parallel mode. - Page 8 Operating Modes 3 - BRIDGED Impedance must be equal or higher to 8 Ohms. A mono input signal is connected to channel 1 (volume of channel 2 must be set at zero). Turn off the amplifier first then carry out the wiring as shown below. The speaker is connected to the positive output terminals (red binding post) or to 1+ and 2+ of the Speakon connector.
-
Page 9: Technical Specifications
Technical specifications CLIMAX 1002 CLIMAX 2002 Power Specifications (tolerance ± 5%) Stereo Mode (Both Channels Drive) 4 Ω (RMS) 500 W x 2 950 W x 2 8 Ω (RMS) 300 W x 2 500 W x 2 Mode Bridge Mono 8 Ω... - Page 10 22, rue Édouard Buffard, Z.A.C. de la Charbonnière, Montévrain - 77771 Marne-la-Vallée Cedex 4 - France Tél : + 33 (0)1 60 54 32 00 - Fax : + 33 (0) 1 60 54 31 90 - www.audiopole.fr, www.audiopole-pa.com...
