CLIMAX 3200 DSP
PROFESIONNAL AMPLIFIER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLIMAX 3200 DSP and is the answer not in the manual?

Questions and answers

Related Manuals for Audio Pole CLIMAX 3200 DSP

Summary of Contents for Audio Pole CLIMAX 3200 DSP

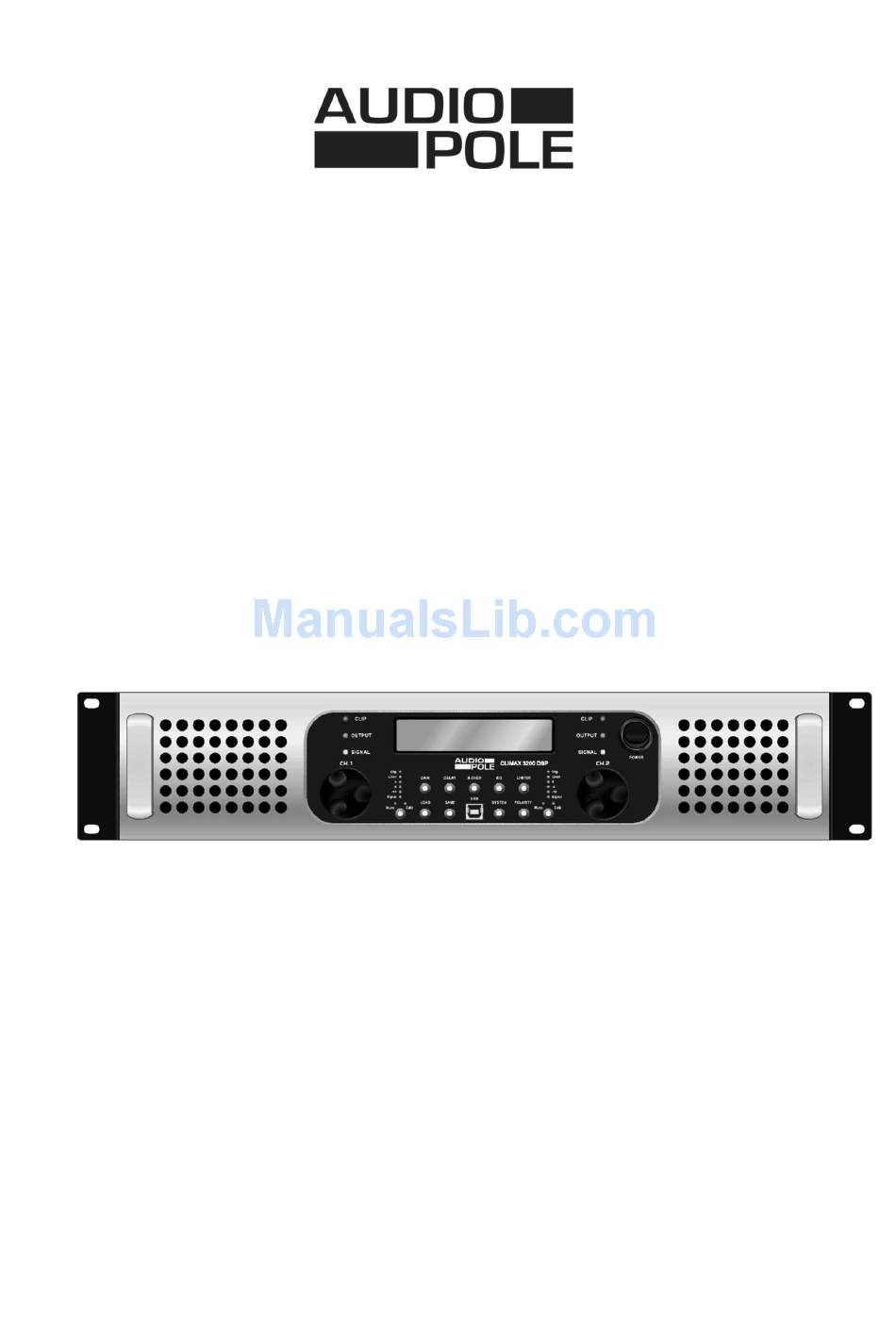

  • Page 1 CLIMAX 3200 DSP PROFESIONNAL AMPLIFIER USER MANUAL...

  • Page 2: Important Safety Instructions

    Important Safety Instructions This symbol, wherever used, alerts you to the presence of un-insulated and dangerous voltages within the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death. This symbol, wherever used, alerts you to important operating and maintenance instructions. POWER SUPPLY Ensure that the insource voltage (AC outlet) matches the voltage rating of the product.

  • Page 3: Table Of Contents

    Index 1. Introduction ………………………………………………………………………….. 4 2. Mains Features ……………...………………………….…………………………… 4 3. Controls ..……………………………….…………..……………………………….. 5 4. Settings and DSP Functions ..……………………….………….……………….. 9 5. Remote Control ……………………………………………………………………. 12 6. Connections ……..…………………………………...……………………………. 20 7. Technical Specifications ……………………………………...……..……………. 23 8. Warranty ……………………………………………...…………………………….. 23...

  • Page 4: Introduction

    In addition to his remote control capabilities the CLIMAX 3200 DSP has quick access buttons on the front panel allowing immediate modification of specific settings. A large backlit LCD screen provides real time information of the amplifier status.

  • Page 5: Controls

    Controls A - Front panel 1- POWER Power ON/OFF switch. By default, when the device is switched on for the first time, both channels activate in MUTE mode. To change, refer to page 11, paragraph 3. 2 - OUTPUT The LED brightness is proportional to the output current. It becomes visible when the current exceeds 1A. 3 - SIG The green LED is illuminated when the voltage level at the output reaches approx.
  • Page 6 Controls 9 - LED Informations Clip display Level display Signal display Edit display Mute display 10 - EDIT / MUTE Pressing the button activates the channel in MUTE mode and turns the red LED on. Holding the buttons for more than 3 seconds activates the channel in Edit mode allowing the parameter setting. 11 - DSP Functions X-OVER : Crossover setting EQ : EQ setting...
  • Page 7 Controls B - Back panel 12 - POWER CONNECTOR CEI power socket. Before any connections make sure that the power cable is not damaged. The connection to the mains supply must have an earth connection. The mains voltage supplied must conform with the electrical characteristics of the appliance.
  • Page 8 The control distance works up to 1000 m. DSP controls equalizer, crossover, delay, opposite phase, limiter, stereo, bridge, mono… All changes made will be apply in real time (see page 12). 20 - RJ45 connector to an other CLIMAX 3200 DSP Up to 250 amplifiers can be simultaneously controlled when they are linked together.

  • Page 9: Settings And Dsp Functions

    Parameters and DSP Settings Parameter setting Pressing the « Mute/Edit » key for more than three seconds activates the edit mode. Green display of the relevant channel lights up, and relevant channel turns into the parameter setting (channel default setting is « input mute »). Short press a function key (11) to activate the relevant parameter setting menu.
  • Page 10 Parameters and DSP Settings f) LOAD Load setting configuration previously saved in a memory unit. g) SAVE Save up to 30 different setting configurations. To erase a configuration, press SAVE more than 3seconds :...
  • Page 11 Parameters and DSP Settings h) SYSTEM 1 - Device ID Setup 2 - Password setting 3 - Power On setup (Mute) 4 - LCD backlight setup 5 - Work mode Stereo / Parallel / Bridge 6 - Current Program 7 - System information...

  • Page 12: Remote Control

    Remote Control 1 - PC connection CLIMAX 3200 DSP use advanced long-distance remote control technology; it can set all the function and control by connection software. Short distance can be control by connecting through USB or RS-485 slot. RS-485 can control up to 250 amplifiers.
  • Page 13 Remote Control Example B (Up to 250 amplifiers) RS-232 connection...
  • Page 14 Remote Control Example C (Up to 250 amplifiers) USB Connection USB / RS-485 Converter...
  • Page 15 Remote Control 2 - Software A. Display option H. Save / Read program B. Select display channel Copy C. Signal display Mode (Stereo / Parallel / Bridge) D. Mute ON/OFF K. Products selection (ID) E. Channel select switching Current using program and series number Connected products ID M.
  • Page 16 Remote Control Program After selected, display shows as below: Recall program from device Store program to device Store all program to device Recall all program from device Recall program from PC Store program to PC Store all program to PC To edit only one configuration, follow this procedure : •...
  • Page 17 Remote Control Copy Copy function Copy parameters from one channel to an other one Mode Mode selection : Stereo / Parallel / Bridge Device Change current device ID...
  • Page 18 Remote Control 3 - SIGNAL Settings a) Gain Gain adjustment from -59 dB to +6 dB, ± 0.5 dB step. b) Delay Delay adjustment from 0 to 1000 ms. Value can be displayed in Feet (Ft) or meter (M). c) Polarity Polarity adjustment (phase): [+] corresponds to 0°, [-] corresponds to 180°.
  • Page 19 Remote Control 4 - EQ settings a) Parameter Low-shelf or Hi-shelf. b) Hz: Frequency from 20 Hz to 20 kHz. c) Oct: From 0.05 to 3 (parametric filter) / Slope: +6 dB, +12 dB (Lo-shelf / Hi-shelf). d) dB: Gain from -20 dB to +20 dB. e) Bypass EQ ON/OFF.

  • Page 20: Connections

    Connections Before any connection, turn the amplifier off. Check the operating mode (Stereo / Parallel / Bridge) and adapt the connections of the inputs and outputs accordingly. 1 - Inputs Pin 1 = Ground Pin 2 = Hot Pin 3 = Cold 2 - Outputs SPEAKON outputs : Channel1 : Pin 1+ : Channel 1 signal, Pin 1- : Channel 1 ground...
  • Page 21 Connections 3 - Modes 2 Channels Mode (Stereo) 2 Channels Mode (Bypass) Parallel Mono Mode (Parallel)
  • Page 22 Bridge Mono Mode (Bridge) Caution ! Bridge mode impedance must not drop below 8 Ohms. 4 - Factory settings CLIMAX 3200 DSP is configured with the following factory rear panel settings: 15 INPUT GROUND LIFT 16 GAIN: -26 dB 17 CLIP LIMITER: OFF...

  • Page 23: Technical Specifications

    Technical Specifications 4 Ohms: 1600 W Power (per channel) 8 Ohms: 915 W 8 Ohms : 3200 W (BRIDGE mode) Circuitry Class-H THD+N < 0.01 % S/N ratio > 111 dB Slew rate 40 V / µs Damping factor > 400 Operating Modes STEREO / PARALLEL / BRIDGE Input Im pedance...
  • Page 24 22, rue Édouard Buffard, Z.A.C. de la Charbonnière, Montévrain - 77771 Marne-la-Vallée Cedex 4 - France Tél : + 33 (0)1 60 54 32 00 - Fax : + 33 (0) 1 60 54 31 90 - www.audiopole.fr, www.audiopole-pa.com...
