Fenix RC10 User Manual

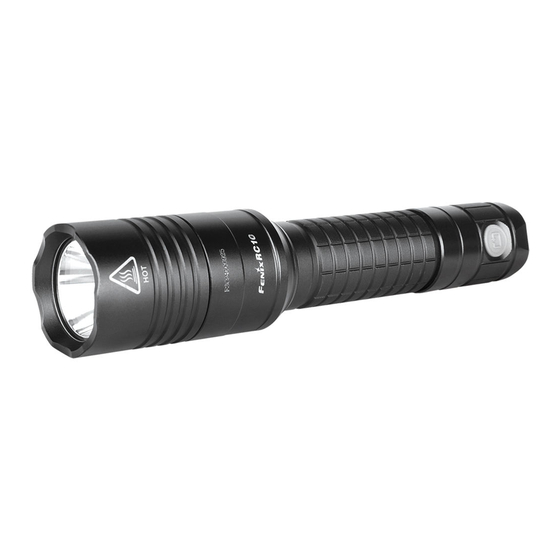

Fenix RC10 Flashlight
Fenix performance travels far and wide with the high-intensity,
rechargeable RC10. Quick to regain power and fast switching
with on-body controls, this convenient light peaks at 380
lumens. Durable and equipped for in-vehicle and home
charging, RC10 is well suited for professional, recreational
and personal use.
Max 380 Lumens
Head
All manuals and user guides at all-guides.com
Technical Parameters
Turbo
380 LUMENS 140 LUMENS
1h 55min
AC charger, car charger, battery charger, lanyard and spare o-ring
Uses Cree XP-G (R5) LED with a lifespan of 50000 hours
Built-in 2200mAh/3.6V rechargeable Li-ion battery
The charging equipment supports AC charger and car
charger
161mm (Length) x 25.4mm (Diameter) x 34mm(Head)
200-gram weight (excluding the battery)
Digitally regulated output maintains constant brightness
Anti-roll, slip-resistant body design
Tail side mode switch button for fast mode selection and
instant strobe function
Made of durable aircraft-grade aluminum
Premium Type III hard-anodized anti-abrasive finish
Toughened ultra-clear glass lens with anti-reflective coating
Notice: The above-mentioned parameters are approximate
and may vary due to different environments.
Operation Instruction
Turning RC10 on/off
Press the tail cap switch lightly to momentarily activate the
flashlight (unless pressed, it will remain off). Press the tail
cap switch completely to turn on the flashlight and lock it.
Side mode switch button
Another press will turn it off.
Mode selection
With the flashlight off, press and hold the mode switch
General Mode
Strobe
High Mid Low
40 LUMENS 5 LUMENS 380 LUMENS
6h 10min 26h 30min 142h
215m
11592cd
1m
IPX-8, underwater 2m
Button for one second to temporarily enter into Strobe
mode. It will return to the general mode unless pressed.
With the flashlight on, a single press of the side mode
switch button allows switching between Turbo Low
Mid High brightness levels. Press and hold the mode
switch button for one second to enter into Strobe mode.
Press and hold the mode switch button again to return to
the general mode.
RC10 memorizes the brightness level while in the general
mode. When turned off and then on, the flashlight
automatically enters into the general mode.
Battery charging
The RC10 has a low-voltage warning function. When
voltage is checked, the flashlight enters the lower
brightness level; if low voltage is checked in the Low
brightness level, it will blink three times per second every
five minutes. In this case, the battery should be charged or
it will cause damage to the battery. T o ensure normal use,
the flashlight will not turn off automatically until the battery
protection function begins to work.
The built-in battery has the over-discharge protection
function. When the voltage is extremely low, RC10 will turn
off automatically to protect the battery from over discharge.
The function will not influence the normal use.
When the charger is plugged into a household outlet, the
indicator light will turn green. Put the flashlight into the
charger and rotate it until it clicks into position.
The indicator light will now switch to red to indicate We will replace products afflicted with manufacturing defects
charging has begun. When the indicator light returns to within 15 days of purchase and repair a light free of charge
green, the charging cycle has been completed. The within 24 months of purchase if problems develop with normal
charging time will be about 3 hours. use; if repair is required after 24 months from the date of
When the flashlight is on, please do not charge the battery. purchase, we will charge for parts. The total repair fee is
Or it will extend the charging time or it can not charge fully. dictated by the cost of the replaced materials.
If it is needed urgently, it will still be ok to charge the Fenix flashlight accessories (including the batteries) can enjoy
battery with the flashlight on. However due to the output one-year free warranty period in the condition of normal use
protection function, RC10 can not enter into the Turbo in since the purchase date.
this case.
Warranty Card Registration
Note: The battery will discharge automatically, please
charge the flashlight every four months to maintain the
We kindly suggest that you register your guarantee card on the
maximum performance of the battery when RC10 is not
official website of Fenixlight Limited. You can get an extra six-
used for a long time.
month warranty period once you have successfully registered.
What's more, you could take part in the lottery of questionnaire
Usage and Maintenance
at the same time.
Please don't disassemble the sealed head as doing so
Warning
can cause damage to the flashlight and will void the
warranty.
RC10 is a high-intensity lighting device and capable of
Due to the momentary-on tactical switch, the flashlight
causing eye damage to the user or others so please avoid
can be activated when stored, transported or placed in a
shining the light directly into anyone s eyes.
pocket. Unscrew the tail cap one-half turn or take out the
battery to avoid unwanted operation. Available Accessories
Long-term use can result in O-ring wear. To maintain a
proper water seal, replace the ring with an approved spare.
Type
Periodic cleaning of the battery contacts improves the
Transparent diffuser tip AD102
flashlight s performance as dirty contacts may cause the
Camping lamp shade
RC10 to flicker, shine intermittently or even fail to
Traffic wand
illuminate for the following reasons:
Bike mount
Reason A: The battery lacks power.
Gun mount
Solution: Charge the battery.
Filter adapter
Reason B: The threads, PCB board contact or other
contacts are dirty.
FENIXLIGHT LIMITED
Solution: Clean the contact points with a cotton swab
Tel:+86-755-29631163/83/93
soaked in rubbing alcohol.
If the above methods don't work, please refer to the
warranty policy before contacting your authorized
Address: 8/F,2nd Building,DongFangMing
distributor.
Industrial Center,33rd District,Bao'an,
Notice: The routine cleaning video can be watched and
downloaded through the Fenix website by clicking on the
RC series followed by the maintenance tab.
Product Warranty
Note: For full details about
Model
available accessories, please
visit the Fenix website, click
AD502
on Products followed by
AD202
c l i c k i n g t h r o u g h t o t h e
AF02
accessories page.
ALG-01
Ad302
Fax:+86-755-29631181
http:www.fenixlight.com
E-mail:info@fenixlight.com
Shenzhen 518133,China
