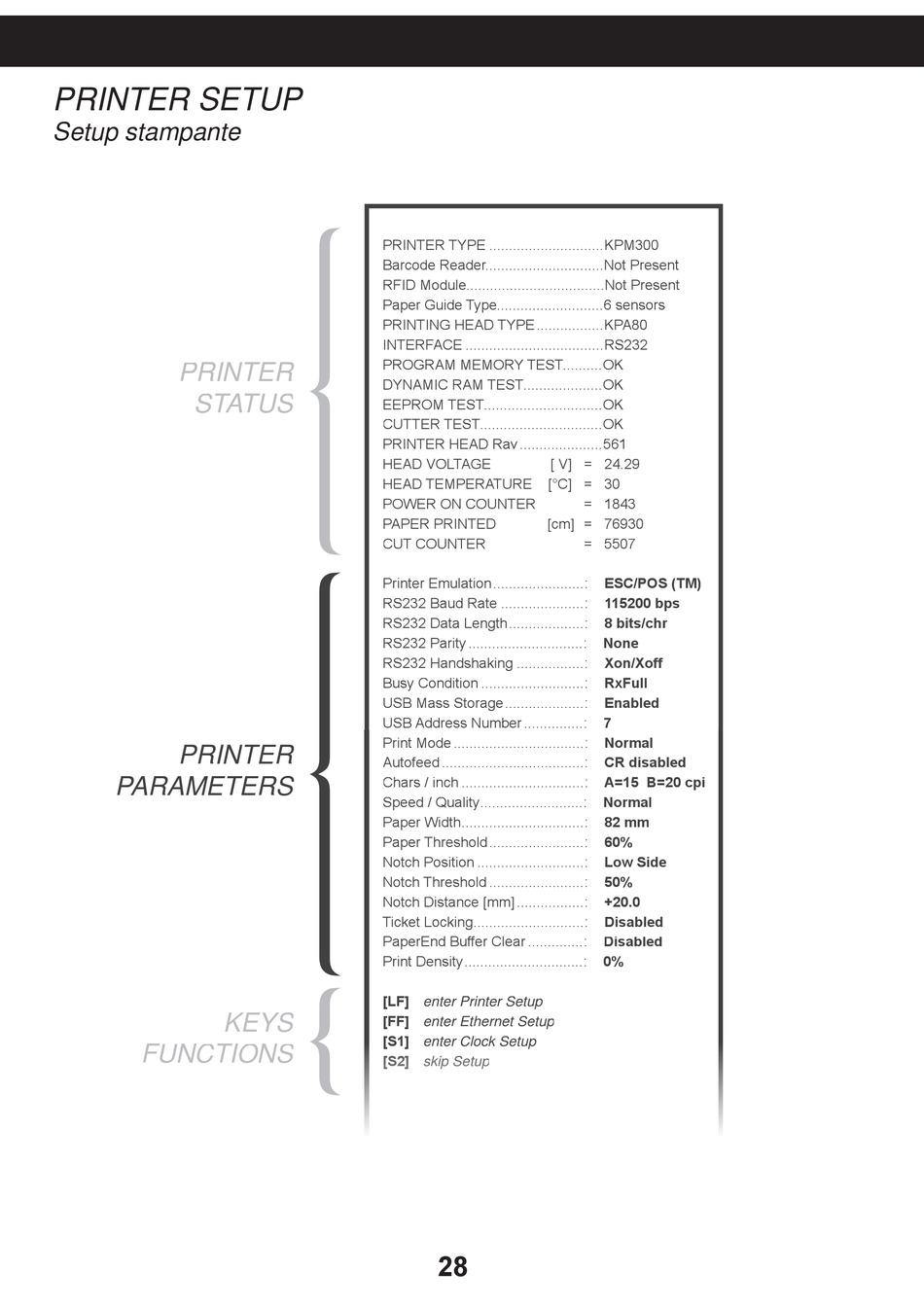

PRINTER SETUP
Setup stampante
PRINTER
STATUS
PRINTER
PARAMETERS
KEYS
FUNCTIONS
PRINTER TYPE .............................KPM300
Barcode Reader..............................Not Present
RFID Module...................................Not Present
Paper Guide Type...........................6 sensors
PRINTING HEAD TYPE .................KPA80
INTERFACE ...................................RS232
PROGRAM MEMORY TEST..........OK
DYNAMIC RAM TEST....................OK
EEPROM TEST..............................OK
CUTTER TEST...............................OK
PRINTER HEAD Rav .....................561
HEAD VOLTAGE
[ V] = 24.29
HEAD TEMPERATURE
[°C] = 30
POWER ON COUNTER
PAPER PRINTED
[cm] = 76930
CUT COUNTER
Printer Emulation .......................:
RS232 Baud Rate .....................:
RS232 Data Length ...................:
RS232 Parity .............................:
RS232 Handshaking .................:
Busy Condition ..........................:
USB Mass Storage ....................:
USB Address Number ...............:
Print Mode .................................:
Autofeed ....................................:
Chars / inch ...............................:
Speed / Quality..........................:
Paper Width...............................:
Paper Threshold ........................:
Notch Position ...........................:
Notch Threshold ........................:
Notch Distance [mm] .................:
Ticket Locking............................:
PaperEnd Buffer Clear ..............:
Print Density..............................:
[LF] enter Printer Setup
[FF] enter Ethernet Setup
[S1] enter Clock Setup
[S2]
[S
[S
2]
2]
skip
sk
sk
ip
ip
S
S
Set
etup
et
up
up
28
= 1843
= 5507
ESC/POS (TM)
115200 bps
8 bits/chr
None
Xon/Xoff
RxFull
Enabled
7
Normal
CR disabled
A=15 B=20 cpi
Normal
82 mm
60%
Low Side
50%
+20.0
Disabled
Disabled
0%
