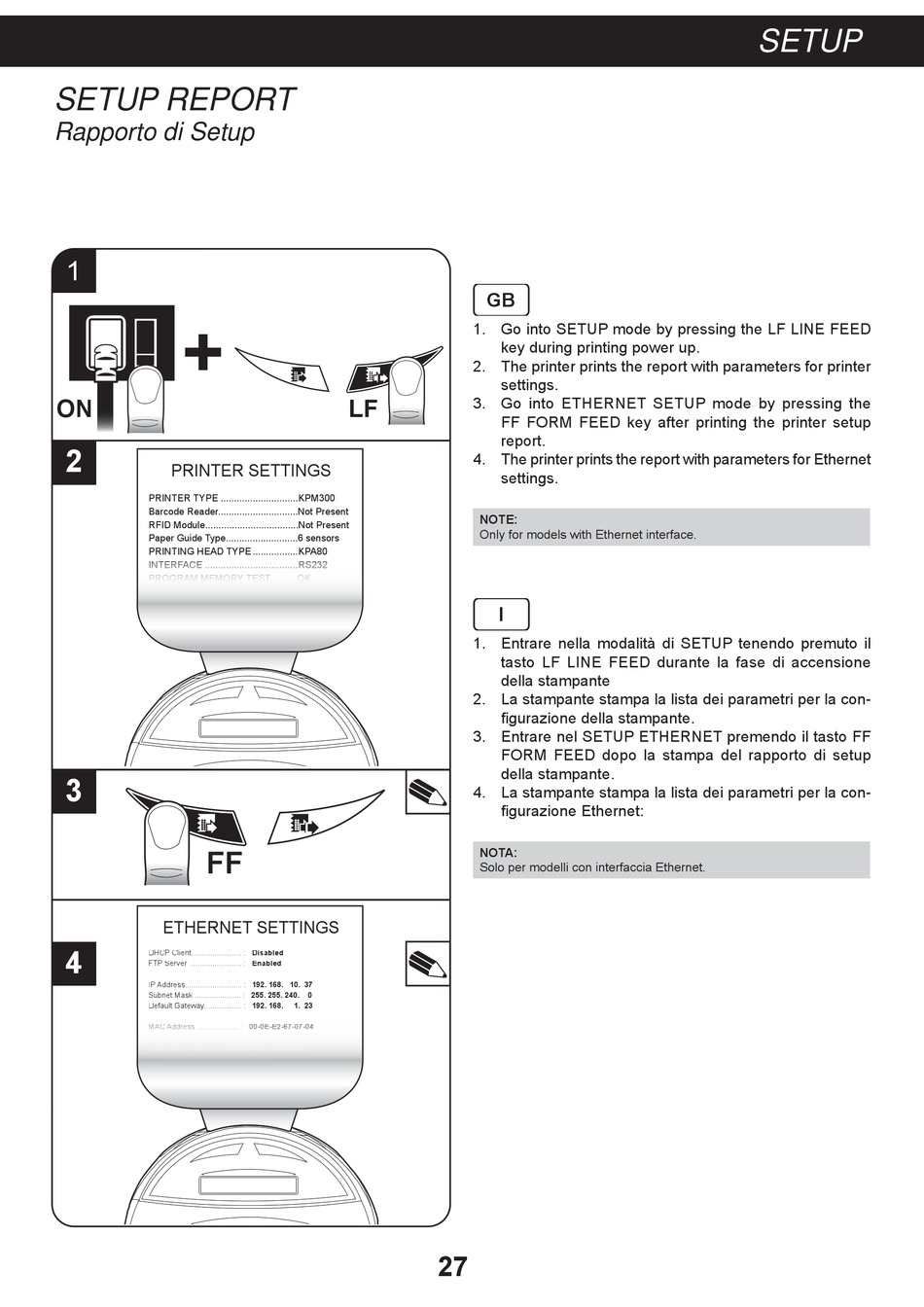

SETUP REPORT

Rapporto di Setup
1
+
ON
2

PRINTER SETTINGS

PRINTER TYPE .............................KPM300
Barcode Reader..............................Not Present
RFID Module...................................Not Present
Paper Guide Type...........................6 sensors
PRINTI PRI PRI NTING NTI NG NG HEA HEA HEAD T D D T TYPE
INT INT INT INTERF INT INT ERF ERF ERF ERF ERFACE ACE ACE ACE ACE ACE ... ...... ...... ...... ...... ...... ...... ...... ...... ...... ......
PRO PRO PRO PRO PROG O G RA GRA GRA GRA GRAM M M M M M M M M M EMO EMO EMO EMO EMORY O
3
FF

ETHERNET SETTINGS

4
DHCP Client........................ : Disabled
FTP Server ........................ : Enabled
IP Address........................... : 192. 168. 10. 37
Subnet Mask ...................... : 255. 255. 240.
Default Gateway.................. : 192. 168.
MAC MAC MAC MAC MAC Addr Address Addr Add Addr ess ess ess .... ........ ........ ........ ........
For For adva advanced nced printer pri nter setup p set
t t to to the site to t th he h e s sit ite ite htt http http http p ://1 ://192 1 ://192.168.10.37 //1 92 1 92.168 1
LF
YPE YPE ... ...... ...... ...... ...... ... ..K ..KPA8 K PA8 PA80 0 0
... ..R ..RS23 R R R R S23 S23 S232 S23 S23 2 2 2 2 2
RY RY RY RY TES TES TES TEST TES S T .. T T..... ...... T ... ..OK ..O O O O O K K K K
0
1. 23
.... : : : : 00 00-0 00-0 00 0 00 0 0E E2 E-E2 E E2 E-E2 E E2 -67- -67- 67 67 67 07 0 07 0 07-0 07 07-0 04 4 4 4 4
up pleas lease co e connec nnect t
68 1 68.10 37 0.37 0 37
GB
1. Go into SETUP mode by pressing the LF LINE FEED
key during printing power up.
2. The printer prints the report with parameters for printer
settings.
3. Go into ETHERNET SETUP mode by pressing the
FF FORM FEED key after printing the printer setup
report.
4. The printer prints the report with parameters for Ethernet
settings.
NOTE:
Only for models with Ethernet interface.
I
1. Entrare nella modalità di SETUP tenendo premuto il
tasto LF LINE FEED durante la fase di accensione
della stampante
2. La stampante stampa la lista dei parametri per la con-
fi gurazione della stampante.
3. Entrare nel SETUP ETHERNET premendo il tasto FF
FORM FEED dopo la stampa del rapporto di setup
della stampante.
4. La stampante stampa la lista dei parametri per la con-
fi gurazione Ethernet:
NOTA:
Solo per modelli con interfaccia Ethernet.
27
