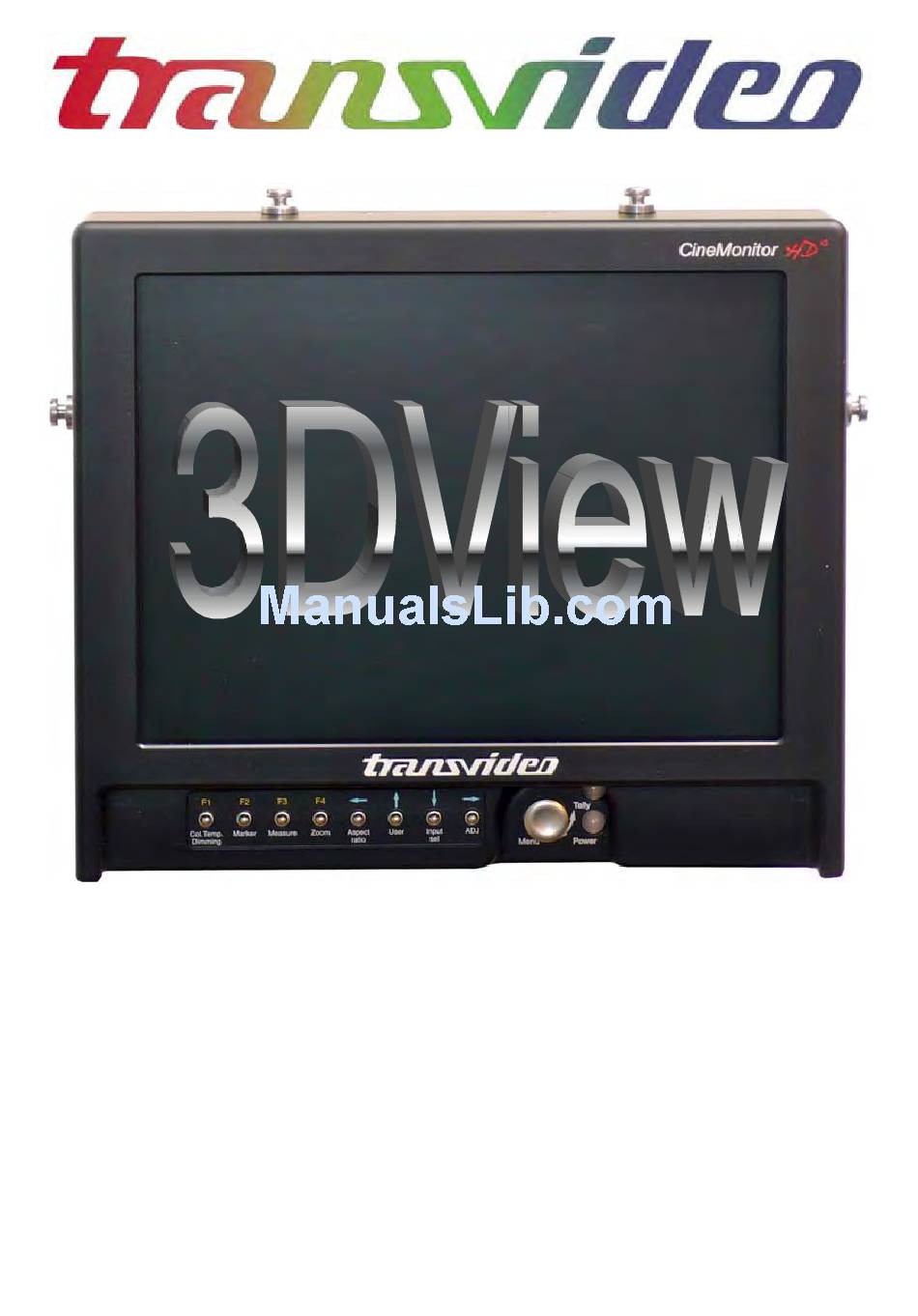

- Page 1 cev.fr CineMonitorHD3DView evolution Operator Manual Rev. 0.0 Jan 4 2010 Doc ref:...
- Page 3 Figure 3 - CineMonitorHD3DView6 back (SDI Only) CineMonitorHD3DView evolution Page 3 Rev.0.0 Jan 4th 2010...
- Page 4 About This Operator Manual describes the use of the TRANSVIDEO CineMonitorHD3DView “evolution” family. The first CineMonitor has been introduced to the Film Industry during year 1995. The CineMonitorHD3DView “evolution” is our latest contribution to the Digital Cinematography Stereoscopic world, including advanced decision tools for the HD3D filmmaker.
-
Page 5: Table Of Contents
Table of content CONDENSED OPERATING INSTRUCTIONS ........................ 9 INTRODUCTION ................................10 Unpacking and Inspection .............................. 10 Safety Inspection ................................10 Product Overview ................................11 Front Panel Controls and Indicators ......................... 11 Rear Panel Controls and Connectors........................11 Installation ................................. 12 Instrument Positioning .............................. - Page 6 D56..................................28 D65..................................28 GAMMA..................................28 GAMMA ADJUST..............................28 STANDARD 0.45 ..............................28 Use in LINEAR ..............................28 LOCK ..................................28 TOOLS..................................29 AUDIO ................................. 29 TIMECODE ................................. 30 COOKE LENS..............................31 FOCUS HELPER ..............................32 FRAMELINE................................ 32 HORIZON (if option installed) ..........................34 LIMITS.................................
- Page 7 Useful tips ..................................47 CLEANING................................47 FULL RESET ................................47 Software and Firmware ..............................48 Calibration..................................48 Product Return................................48 ACCESSORIES................................49 SPECIFICATIONS................................51 CONNECTORS ................................53 TRANSVIDEO EQUIPMENT LIMITED WARRANTY ....................54 CineMonitorHD3DView evolution Page 8 Rev.0.0 Jan 4th 2010...
-
Page 8: Condensed Operating Instructions
WARNING and CAUTION WARNING: There is very high voltage inside of the component. Risk of injury or death. WARNING: This product must be used in a correct grounded electrical environment; ground defects can create severe problems to the equipment, the picture quality and even cause danger for the user. -
Page 9: Product Overview
Product Overview Front Panel Controls and Indicators Rear Panel Controls and Connectors CineMonitorHD3DView evolution Page 11 Rev.0.0 Jan 4th 2010... -
Page 10: Installation
One or several optional slides can be attached to the sides, back or top ② of the monitor. 2 x M4 screws attach the slides. Several TRANSVIDEO’s accessories can be fixed in these positions; this mounting system is generic for Transvideo since 1990. -
Page 11: Power Requirements
Power Requirements Only DC Voltage powers this product. AC voltage can be used with an appropriate AC/DC converter Recommended power adaptors: CineMonitorHD 3DView evolution Transvideo AL24 CineMonitorHD 3DView evolution Transvideo AL80 CineMonitorHD 3DView evolution Transvideo AL80 CineMonitorHD 3DView evolution Transvideo AL80 The input power voltage range is extremely wide from 10 to 36 V DC (except specified differently). -
Page 12: Operation
Operation Start-Up & Power The ON/OFF Switch is placed on the back of the monitor. The product needs a certain time to reach its nominal brightness. This time can vary with the temperature. When using the optional Battery Holder, the switch of the battery holder overpasses the switch of the monitor. -
Page 13: Using The Menus
Using the menus The menu gives access to functionalities that do not have direct access from the keypad. The rotating knob is used to navigate in the menu structure. Pushing the rotating knob allows to access to the function sub-menu. Exit of the menu by selecting EXIT or by automatic temporization (temporization can be adjusted in the TECHNICAL Menu) Some feature described in this manual could be optional. -
Page 14: Direct Functions Description
Direct functions description ENERGY MODE Allows switching between different modes: FULL BRIGHT: Maximum brightness and power consumption, the color calibration is deactivated. CALIBRATED: Standard mode, the brightness and white point are calibrated according to the settings of MENU/COLORIMETRY USER: Brightness is adjustable from 10% to 100%, color calibration is preserved. -
Page 15: Rotating Knob
Stereographer and 3D consultant. This grid is mainly used to adjust the far planes parallax to the target screen size. It is a vertical parallel grid with adjustable width between the lines. In zoom mode the grid is sized to the native resolution. The grid can be adjusted in MENU/3D/GRID/…... -
Page 16: Measure (Waveform, Vectorscope, Histogram)
Measure (Waveform, Vectorscope, Histogram) Displays the selected measurement tools. The brightness of the reticule and of the spot can be adjusted in the TECHNICAL MENU White and black clipping alert can be configured in MENU/TOOLS/LIMITS/, the same limits are used for the waveform monitor and the histogram representation. Setting these limits is useful to have a visual alert on the waveform and histogram representation of the video signal if there is a risk of overexposure or of loss of black details. - Page 17 PARADE Displays Y, R, G , B, Pr & Pb in parade mode. Available modes: Y R G B / Y G B R R G B / G B R Y Cr Cr FRAME Displays Y, R, G or B in frame mode. (also named sweep mode) The content of one frame/picture is displayed.
-
Page 18: Rotating Knob
Rotating knob When a measurement tool is displayed. Pressing the WFM pad gives the possibility to adjust the representation by using the rotating knob. Histogram : Adjustment of the scale of the histogram CineMonitorHD3DView evolution Page 20 Rev.0.0 Jan 4th 2010... -
Page 19: Considerations About The Use Of Measurement Tools In 3Dview Mode
Waveform : 3 sizes of waveform are available The background transparency in overlay mode can be adjusted in MENU/MEASURE Considerations about the use of measurement tools in 3DView mode When using the 3DView mode the tool’s spot displays the two inputs simultaneously. -
Page 20: Zoom
ZOOM Displays the HD picture in full resolution mode (pixel to pixel). Depending of the input format, the magnification ratio can be different. Displays the SD picture in full screen. In this case there is an important magnification ratio applied to the original picture, the resultant picture includes created pixels and lines and cannot be considered as a proof. -
Page 21: User
USER User configurable input. This pad gives access to the function pre-selected in F1…F4 menu. Page 1 STATUS Displays the status of the monitor and the input voltage from the power supply or the battery (for V-Lock equipped monitors) FOCUS * Activates through the USER control the FOCUS HELPER function as programmed in MENU/TOOLS/FOCUS HELPER. - Page 22 FOCUS EXPO Nothing The horizon is optional, if the horizon is not implemented, this menu will not appear. CineMonitorHD3DView evolution Page 24 Rev.0.0 Jan 4th 2010...
-
Page 23: Input
INPUT Selects the input and gives access to the 3DView mode. At selection, the format of the video is displayed When no signal is available, displays “NO SYNC” F1…F4 Selection of active inputs (Input board dependant) CineMonitorHD 3D View SDI 1 SDI 2 3D View Pressing F1…F4 activates or not the selected input. -
Page 24: Adjust
ADJUST Select HUE (NTSC only), BRIGHTNESS, CONTRAST, SATURATION by pressing the pad. Adjust the value by rotating the rotating knob Validate by pushing the rotating knob Important: The settings are different for each input. All settings are stored in setup memories. There is one memory per input. -
Page 25: Menu Functions
MENU FUNCTIONS ADJUSTMENTS HUE (TINT) Adjustment of the color phase. This adjustment is only usable in NTSC when the monitor is equipped with a CVBS analog input. Values from -90° to +90° each step 1° BRIGHTNESS Setup the black level of the signal from -174mV to +174mV from the nominal position. -
Page 26: D56
Sets the monitor for a white point DAYLIGHT 5600 CIE 1931 Coordinates: 0.3310 0.3460 Sets the monitor for a white point DAYLIGHT 6500 CIE 1931 Coordinates: 0.3127 0.3290 GAMMA Adjust the grey point of the monitor according to the formula &... -
Page 27: Tools
When the function is activated, “LOCK” is displayed on the screen at each attempt to enter in the menu or to access a direct function. To overpass the function, the user must keep pressing the rotating knob for more than 5 seconds. It removes the function. TOOLS The tools make the richness of the CineMonitorHD3DView evolution. -
Page 28: Timecode
TIMECODE Displays the embedded VITC & or 2 or LTC Timecode. TIMECODE: ON/OFF Activates or deactivates the function ATC: AUTO, LTC, VITC1, VITC2 Selection of the displayed VITC, in AUTO mode the first time code present is displayed (1: LTC, 2: VITC1, 3: VITC2) POSITION Allows placing the tool in different position of the screen by using arrows and the rotating knob when USER is selected in the menu. -
Page 29: Cooke Lens
COOKE LENS Displays the datas of a i/lense. Accepted lenses: COOKE S4/I, COOKE 5 MODULE: ON/OFF Activates or deactivates the function ZONE: OP+ASSIT, ASSIST, OFF The COOKE 5 is able to light the focus and iris scales on the operator and/or the assistant side. -
Page 30: Focus Helper
FOCUS HELPER Activates a precise focus helper displaying infocus zones with colored dots. The focus helper is based on a complex multidimensional digital filter. When 3DView mode is activated, the infocus zone of each camera is displayed with a specific color. The color is defined in MENU/3D/COLOR/…... - Page 31 Activation of the frame CENTER ON Activation of the center cross COLOR Modification of the color of the frame Modification of the structure of the frame SEND TO CENTER Send the selected frame to the center of the screen. V SIZE Size of the frame (bottom part is moving) H SIZE Size of the frame (right part is moving)
-
Page 32: Horizon (If Option Installed)
In BETZ position it is possible to connect an external electronic bubble designed by Betz Tools. A specific cable is needed to power and remote the bubble through J001. Transvideo do not support this third party equipment. http://www.betz-tools.com/monitor_electronic-bubble.php NORMAL / REVERSE Toggles the action of the horizon, normal or reversed. -
Page 33: Limits
LIMITS The limits menu is a very important item of the CineMonitorHD3DView family. It is used to setup the characteristics of the camera you are using and some safety levels which will be used in different tools. MAX LEVEL Set up the upper clipping level (White). Adjustment goes from 100 IRE to 108 IRE All information over the limit will be displayed in red on the waveform and the overexposed zone on the picture if the “overexposure control”... -
Page 34: Sorin's Marher Width
SORIN’s MARHER WIDTH Adjust symmetrically the thickness of the marker within the limits of the white and black clipping values. About the Sorin’s marker: Sorin Dragoi RSC is a famous Romanian Director of Photography, he suggested this tool, which he is using mainly to check the exposure on skin tone. The Sorin’s marker is used to see all light equivalent zones, i.e. -
Page 35: Measurement
MEASUREMENT This option allows different setups for the video measurement tools. The settings apply to all video measurement tools except the histogram, which represents always the full picture. SIGNAL ANALYSIS Select 8 bits if the SIGNAL is 8 bits. Default value is 10 bits OVEREXPOSURE: ON/OFF Switch ON or OFF the overexposure zoning on the measurement tools. -
Page 36: Tally
TALLY This option allows the use of the TALLY function. The Tally is activated via the pin 1 and 6 of the GPI connector J002. The menu shows different levels: ACTIVE LOW/HIGH Sets the state for TALLY ON LED ON/OFF Activates/deactivates the TALLY LED on the front panel. -
Page 37: Normal
PICTURE FX NORMAL Restores the standard display HORIZONTAL FLIP Returns the picture horizontally. VERTICAL FLIP Returns the picture vertically. CineMonitorHD3DView evolution Page 39 Rev.0.0 Jan 4th 2010... -
Page 38: Picture Reverse
PICTURE REVERSE Returns the picture horizontally and vertically. AUTO REVERSE Returns the picture automatically if the monitor is up side down. AUTO FLIP VERTICAL ONLY Returns the picture automatically (vertical axis only) if the monitor is up side down CineMonitorHD3DView evolution Page 40 Rev.0.0 Jan 4th 2010... -
Page 39: Grid
This menu is only visible in 3DView mode Warning: In the following description we assume that the left eye camera is always wired on SDI1 and the right eye camera always on SDI2. GRID GRID ON/OFF Activates, deactivates the grid. The grid can be activated also in MARKER direct access pad. -
Page 40: Mode
MODE 4 possibilities are available by pressing the blue knob when the line is highlighted. When used, the settings of this menu overpass the settings of “DISPLAY MODE” menu settings SHUTTER GLASSES The 2 pictures are displayed alternatively. The optional Shutter Glasses module synchronizes the shutter glasses. ANAGLYPH Only the selected monochromatic component of left camera (SDI 1) is displayed Only the complementary components of right camera (SDI 2) are displayed... -
Page 41: Flop
FLOP The FLOP is a vertical inversion of the picture A push then a rotation of the knob activates or deactivates the FLOP of the left camera (SDI1), right camera(SDI2) or both cameras (SDI1 & SDI2) A push validates the choice. FLIP The FLOP is a horizontal inversion of the picture (mirror effect) A push then a rotation of the knob activates or... -
Page 42: Display Mode
GREEN Display the picture in green color only. TINT and SATURATION are not working in this mode. This mode has been invented by TRANSVIDEO in 1990 and is used since this time in Film & Night Vision systems. B&W Displays the picture with 256 gray levels. -
Page 43: Accessory
ACCESSORY Setting of the accessory input (when available) An appropriate cable must be used. COMPONENT RGB HD or SD RGB signal with composite synchronization on the green channel is allowed. COMPONENT YPrPb HD or SD YPrPb signal is allowed. CVBS Composite video signal is allowed. -
Page 44: Led Dimmer
LED DIMMER Dimming of the brightness of the “POWER ON” Led, it is possible to switch of completely the “POWER ON” Led. MEMORY MEM 1 … MEM 4 4 user memories per input (ANALOG, SDI Accessory) are available to save user’s configurations. -
Page 45: Service & Maintenance
Service & Maintenance General Please read carefully the chapter « TRANSVIDEO Equipment Limited Warranty » about the warranty given by TRANSVIDEO S.A. on the equipment described in this manual. For repairs after the warranty period, you can refer to your local TRANVIDEO Distributor/retailer or use the following procedure. -
Page 46: Software And Firmware
Serial Number ➂ Purpose of the return ➃ You can contact us by: Email service@transvideo.fr +33 2 3260 1479 Phone +33 2 3232 2761 Then send the product to the following address : TRANSVIDEO RAN # _ _ _ _ _ _ _... -
Page 47: Accessories
Accessories Slide P/N 918TS0127 The Slide includes a ¼-20 nut. Can be attached with 2 x M4 on left, right, top and back of the CineMonitorHD3DView Clamp for Slide P/N 918TS0131 Firmly secures the CineMonitorHD3DView on a Spigot. 3D SWING ARM P/N 918TS0148 Strong with Clamp for slide... - Page 48 Allows using Petrol, Kata or Porta- Brace shoulder straps. Sun & Night 6” P/N 918TS0135 Hood 8” P/N 918TS0142 High Quality Sun & Night Hood with movable/removable flap. 6” P/N 918TS0161 Light Hood 8” P/N 918TS0150 Light Lexan® hood to use on Steadicam applications.
-
Page 49: Specifications
Specifications Common Characteristics Parameter Value Unit Supported HD standards 720p 1080p, i, psF Supported SD standards NTSC-M / NTSC-J NTSC-443 PAL-M PAL-BG SECAM PAL-N Display mode Color Picture resolution Depends of the standard Storage temperature -40°C +80°C °C °F Operating temperature -20°C +55°C °C °F... - Page 50 Specific - CineMonitorHD3DView6 / HD6 SBL Parameter Value Unit Dimensions d58 x w195 x h160 Centimeter d2.30 x w7.70 x h6.30 Inches Weight 1250 / 2.8 Gram / Lb Power 10– 36 / 14.5 (15.5 SBL) Volts DC/watts Brightness 350, SBL 1000 Contrast ratio 500 : 1 (600:1 SBL) Sight angle...
-
Page 51: Connectors
Connectors TRANSVIDEO manufactures high quality cable assemblies and custom cables. We encourage you to use original cables. TRANSVIDEO cannot be liable for use of defective cables. Accessory connector 1 GND 2 10 to 36 IN/OUT 3 Y/CVBS2/G 4 GND VIDEO... - Page 52 TRANSVIDEO S.A. Zone Industrielle F-27135 Verneuil sur Avre Tel +33 2 3232 2761 Fax +33 2 32 601479 Email info@transvideo.fr http://transvideo.fr http://transvideointl.com Rev. 0.0 Jan 4 2010 Doc ref:...
