Transvideo Rainbow HD Quick Start Manual

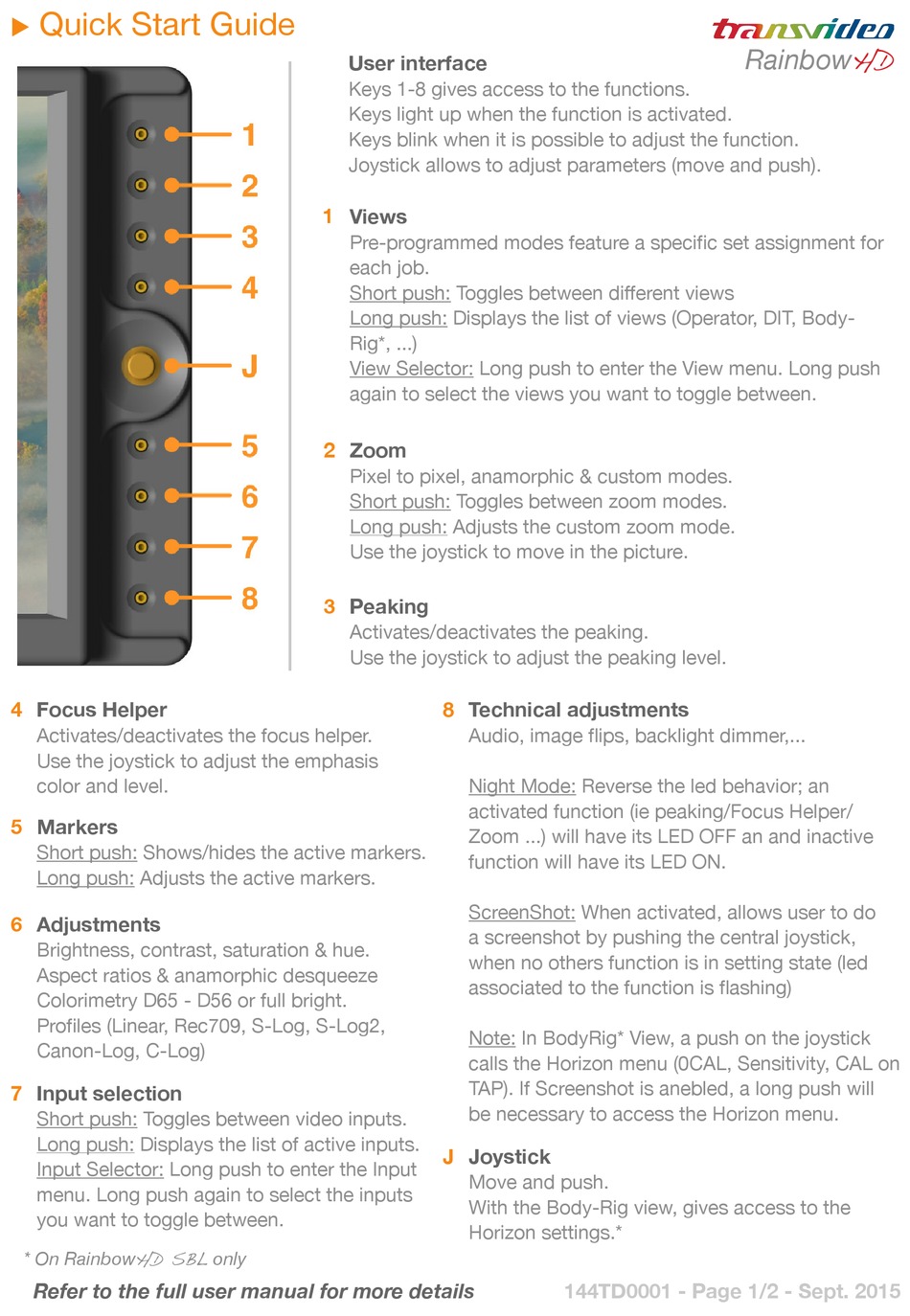

Quick Start Guide

u
4

Focus Helper

Activates/deactivates the focus helper.
Use the joystick to adjust the emphasis
color and level.
5

Markers

Short push: Shows/hides the active markers.
Long push: Adjusts the active markers.
6

Adjustments

Brightness, contrast, saturation & hue.
Aspect ratios & anamorphic desqueeze
Colorimetry D65 - D56 or full bright.
Profiles (Linear, Rec709, S-Log, S-Log2,
Canon-Log, C-Log)
7

Input selection

Short push: Toggles between video inputs.
Long push: Displays the list of active inputs.
Input Selector: Long push to enter the Input
menu. Long push again to select the inputs
you want to toggle between.
* On RainbowHD SBL only
Refer to the full user manual for more details

User interface

Keys 1-8 gives access to the functions.
Keys light up when the function is activated.
Keys blink when it is possible to adjust the function.
Joystick allows to adjust parameters (move and push).
1

Views

Pre-programmed modes feature a specific set assignment for
each job.
Short push: Toggles between different views
Long push: Displays the list of views (Operator, DIT, Body-
Rig*, ...)
View Selector: Long push to enter the View menu. Long push
again to select the views you want to toggle between.
2

Zoom

Pixel to pixel, anamorphic & custom modes.
Short push: Toggles between zoom modes.
Long push: Adjusts the custom zoom mode.
Use the joystick to move in the picture.
3

Peaking

Activates/deactivates the peaking.
Use the joystick to adjust the peaking level.
8

Technical adjustments

Audio, image flips, backlight dimmer,...
Night Mode: Reverse the led behavior; an
activated function (ie peaking/Focus Helper/
Zoom ...) will have its LED OFF an and inactive
function will have its LED ON.
ScreenShot: When activated, allows user to do
a screenshot by pushing the central joystick,
when no others function is in setting state (led
associated to the function is flashing)
Note: In BodyRig* View, a push on the joystick
calls the Horizon menu (0CAL, Sensitivity, CAL on
TAP). If Screenshot is anebled, a long push will
be necessary to access the Horizon menu.
J

Joystick

Move and push.
With the Body-Rig view, gives access to the
Horizon settings.*
144TD0001 - Page 1/2 - Sept. 2015
RainbowHD
