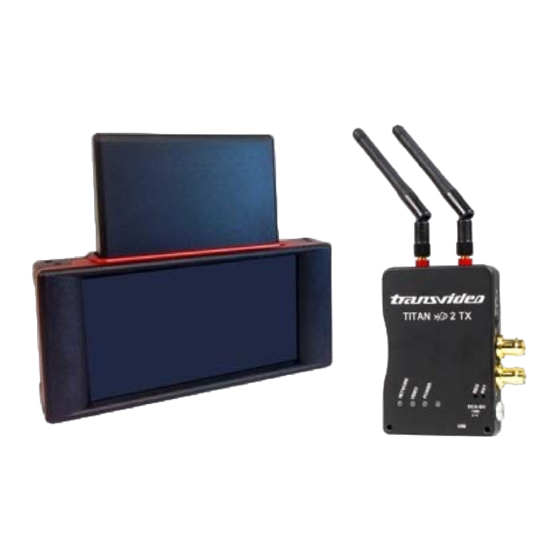

Transvideo Starlite RF Quick Start Manual

TRANSVIDEO S.A.
Zone Industrielle
F-27135 Verneuil sur Avre
FRANCE
Tel +33 2 3232
Fax +33 2 3260 1479
info@transvideo.eu
www.transvideo.eu
Warning & Caution
u
WARNING:
This product must be used in a correct grounded electrical environment; ground defects can create severe
problems to the equipment, the picture quality and even cause danger for the user.
Copyright law and international treaties protect this product, its design and its software. One or several
international patents apply to the StarliteRF. Unauthorized reproduction or distribution of this product
or its design or its software or any portion of them, may result in severe civil and criminal penalties, and
will be prosecuted to the maximum extent possible under the law.
CAUTION:
Warranty is void as the product is opened. The unit contains electrostatic sensitive devices, which can be
damaged or destroyed if you touch them. Very high voltage is present in the product and there is some risk of
electric shock if opened by a non-accredited technician. Standard ESD procedures must be strictly followed
during disassembly/re-assembly of the unit.
The user and/or technician assume full responsibility or any risk of bodily injury, death or property damage
arising out of the use or disassembly or repair of this equipment. In no event shall Transvideo S.A. or its local
representatives be liable to a user, technician or third party for any loss of income or any damage of any kind
resulting from the use of or work on the said equipment.
Main menu
u
System
Tools
Home view

Tx pairing (Registration)

u
Up to 2 Tx can be paired (or registered) with a StarliteRF, in order to be swapped by use of smart
corner A/B (smart corners menu) or tool A/B (tools menu). Nevertheless, if you use only 1 Tx at a
time, you just have to pair it and it will be automatically displayed.
Procedure to set up properly Tx in order to use swap Tx function (if you use a single Tx, just pair it
regardless if Tx A or Tx B is selected) in "Menu parameters / TX pair":
- Switch on your 2 Tx, we recommend a distance of 10 ft (3m) between StarliteRF and Tx.
Press icon "Reset Tx"
Press icon "Tx A", press "REG" button on Tx unit A until blue led blinks fast (2s) and wait for
-
- message "Press OK" appears on the monitor, and then press icon "OK"
The first Tx has been registered. Icon "Tx A" is now marked "Tx B"
Press icon "Tx B", press "REG" button on Tx unit B until blue led blinks fast (2s) and wait for
message "Press OK" appears on the monitor, and then press icon "OK"
-
The secondth Tx has been registered, and you can swap them with A/B icons.

Tools menu

u
Toggle TX A/B
Select input
SDI Out
Horizontal Flip
Home view
Vertical Flip

Adjust menu

u
Slide to adjust Luminosity, Brightness or Contrast then validate by pushing
Push Reset to restore default values.
2761
Starlite
Starlite
Press down the ON/OFF switch
to display the main menu
Adjust
Smart Corners
Starlite
Starlite
Anamorphic Desqueeze 1.3x
Anamorphic Desqueeze 2x
Back to
main menu
Starlite

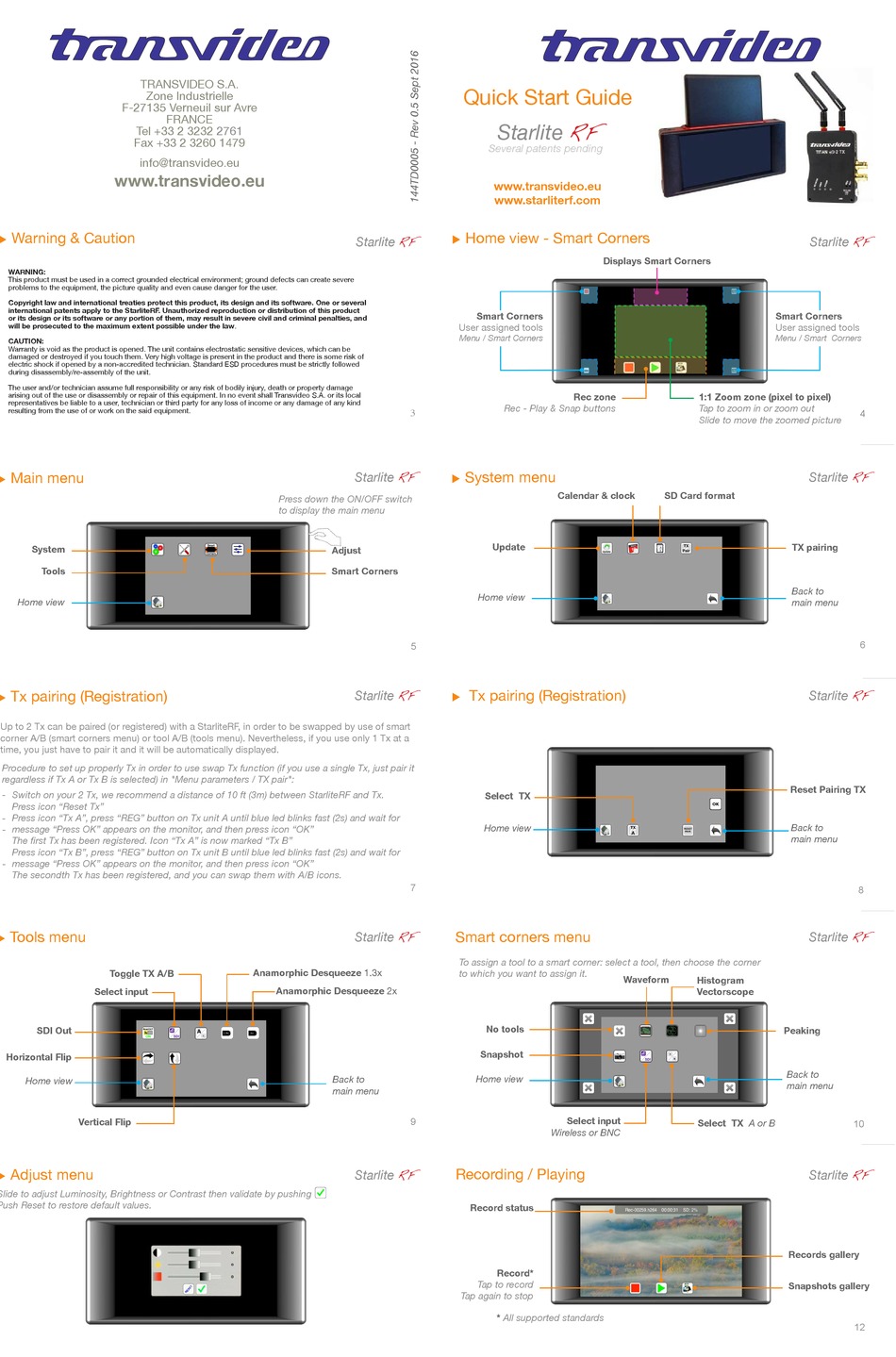

Quick Start Guide
RF
Starlite
Several patents pending
www.transvideo.eu
www.starliterf.com
RF

Home view - Smart Corners

u
Smart Corners
User assigned tools
Menu / Smart Corners
Rec zone
Rec - Play & Snap buttons
3
RF

System menu

u
Calendar & clock
Update
Home view
5
RF
Tx pairing (Registration)
u
Select TX
Home view
7
RF

Smart corners menu

To assign a tool to a smart corner: select a tool, then choose the corner
to which you want to assign it.
No tools
Snapshot
Home view
Select input
9
Wireless or BNC
RF

Recording / Playing

Record status
Record*
Tap to record
Tap again to stop
* All supported standards
Displays Smart Corners
Smart Corners
User assigned tools
Menu / Smart Corners
1:1 Zoom zone (pixel to pixel)
Tap to zoom in or zoom out
Slide to move the zoomed picture
SD Card format
Waveform
Histogram
Vectorscope
Select TX A or B
RF
Starlite
4
RF
Starlite
TX pairing
Back to
main menu
6
RF
Starlite
Reset Pairing TX
Back to
main menu
8
RF
Starlite
Peaking
Back to
main menu
10
RF
Starlite
Records gallery
Snapshots gallery
12
