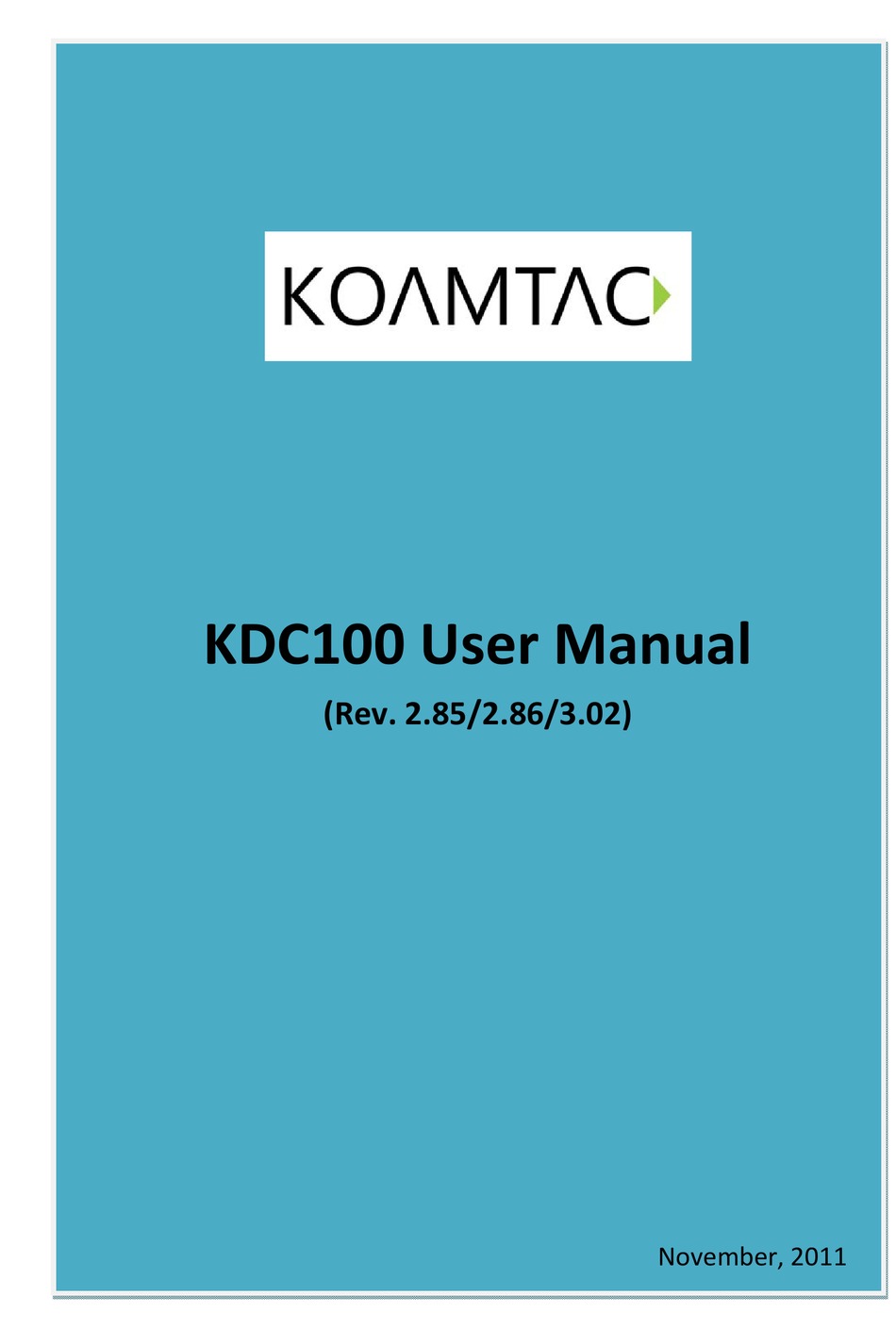

KDC100 User Manual
(Rev. 2.85/2.86/3.02)
November, 2011

Advertisement

Table of Contents
loading

Related Manuals for KoamTac KDC100

Summary of Contents for KoamTac KDC100

  • Page 1         KDC100 User Manual   (Rev. 2.85/2.86/3.02)  November, 2011 ...

  • Page 2: Table Of Contents

    1. INTRODUCTION ......................9 1.1 KDC Package ......................10   1.2 KDC Characteristics ....................11   2. INSTALLATION ......................13 2.1 KoamTac Installation Wizard................. 13   Windows XP ......................13   Vista and Windows 7 ....................18   2.2 Manual Installation ....................21  ...
  • Page 3 KDC100 User Manual 4. SYNCHRONIZATION ....................41 4.1 KTSync Menu ......................41   4.2 File Menu ........................ 44   Connect to KDC ......................44   Synchronize ......................44   4.3 Synchronization Settings ..................45   Destination of Data ....................45  ...
  • Page 4 C.9 Data Process – Data Edit (KDC100/200/250) ............90   C.10 Data Process - Data Format – Handshake (KDC100/200/250) ......91   C.11 Data Process - Termination Character & Duplicate Check (KDC100/200/250) .. 92   C.12 Bluetooth (KDC200/250) ..................93  ...
  • Page 5 KDC100 User Manual C.30 Auto Power Off Timeout (KDC250) ..............126   INDEX ......................... 127...

  • Page 6: Listing Of Figures

    KDC100 User Manual LISTING OF FIGURES  Figure 1 – KDC Package   ___________________________________________________________ 10 Figure 2 - Characteristics of KDC100   _______________________________________________ 11 Figure 3 - Characteristics of KDC200 / KDC250 / KDC300   ____________________________ 12 Figure 4 - Location of Scroll Buttons  ...

  • Page 7: Listing Of Tables

    KDC100 User Manual   LISTING OF TABLES Table 1 - Features of KDC   ___________________________________________________________ 9 Table 2 – Approximate Time to Charge KDC Battery   ________________________________ 22 Table 3 - KDC Menu Options   _______________________________________________________ 31 Table 4 - Explanation of LEDs  ...
  • Page 8 No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from KoamTac, Inc. The material in this manual is subject to change without notices. KoamTac reserves the right to make changes to any product to improve reliability, function, or design.

  • Page 9: Introduction

    Lightweight and compact, with a user-friendly design and superior functionality, KoamTac’s KDC works in a variety of portable applications. Use it independently or as an accessory to your PC, PDA, or smartphone. To find out more about KoamTac, Inc. and our family of products, visit us at www.koamtac.com.

  • Page 10: Kdc Package

    Microsoft Windows XP, Vista, 7 and Mobile 5.0+ KDC Device Driver User Manual 5. One Protective KDC Rubber Case (KDC100/200/250/300) or One Smartphone Protective Rubber Case (KDC400) NOTE: Depending on your region or distributor, package contents may vary. KDC100/200/250/300 KDC400 Figure 1 –...

  • Page 11: Kdc Characteristics

    Before you use your KDC, please become familiar with its physical characteristics. Refer to Figure 2 and Figure 3 below which indicate placement of scan and scroll buttons, OLED display, LEDs, and ports on your KDC. All KDC models are similar except for the KDC100 which includes an additional USB connector.
  • Page 12 KDC100 User Manual KDC250/300 KDC400 Figure 3 - Characteristics of KDC200 / KDC250 / KDC300...

  • Page 13: Installation

    2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed including the disk drive containing the KoamTac Installation CD. 3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the PC_Setup.exe file which executes the KTSync Setup Wizard.
  • Page 14 KDC100 User Manual Click Next icon in KTSync Confirm Installation window • Within a few minutes, installation of KTSync will be complete. Click Close icon and wait for the Device Driver Installation Wizard to load.
  • Page 15 KDC100 User Manual Device Driver Installation Wizard Below are the screen images you will see during the installation of the KDC Device Driver. Click Next icon in Device Driver Installation Wizard window Click Continue Anyway icon in Software Installation Logo testing window...
  • Page 16 KDC100 User Manual Connect KDC to Computer Using the USB cable included with the KDC, follow the directions below. Connect the cable’s ultra mini USB connector to the KDC. Connect the cable’s Type A USB connector to your PC. Wait until your computer beeps and/or displays the message Found New Hardware.
  • Page 17 KDC100 User Manual Click Continue Anyway icon in Software Installation Logo testing window Click Finish icon in Found New Hardware Wizard window Verify COM Port Address User can verify installed COM Port in Device Manager...

  • Page 18: Vista And Windows 7

    2. Click Start icon then My Computer icon. A listing of devices on your computer will be displayed including the disk drive containing the KoamTac Installation CD. 3. Click on the KoamTac Installation CD icon then click on the Setup directory. Click on the PC_Setup.exe file which executes the KTSync Setup Wizard.
  • Page 19 KDC100 User Manual Click Next icon in KTSync Confirm Installation window Click Close icon in KTSync Installation Complete window and wait for Device Driver Installation Wizard Click Install this driver software anyway in Windows Security window...
  • Page 20 KDC100 User Manual Click Finish icon in Device Driver Installation Wizard window Connect KDC to Computer Using the USB cable included with the KDC, follow the directions below. Connect ultra mini USB connector to the KDC. Connect Type A USB connector to your PC.

  • Page 21: Manual Installation

    KDC100 User Manual 2.2 Manual Installation NOTE: If you have the KDC100, it has two ports, Ultra Mini and standard Type A which swings out. See Figure 2 for more details. Windows XP, Vista, and 7 1. Insert the KoamTac Installation CD into your computer’s disk drive.

  • Page 22: Operating The Kdc

    KDC100 User Manual 3. OPERATING THE KDC 3.1 Getting Started Attach Neck Strap to KDC To prevent possible damage to the KDC, we strongly recommend wearing it around your neck by the included neck strap. Also, please don’t swing KDC by the neck strap because contact with another object may cause it to malfunction or become damaged.

  • Page 23: Configure Kdc

    Until you are familiar with configuring the KDC, it is recommended that you DO NOT modify the KDC settings. The KDC can be configured in three different methods which are explained in Section 3.3 – KDC Menus(KDC100/200/250/300 only), Chapter 4 –Synchronization, and Appendix C – Special Barcodes.

  • Page 24: Basics

    KDC100 User Manual 3.2 Basics Reading Barcodes Reading a barcode is simple. Point the KDC at a barcode and press the scan button. Be sure to point the scan engine at the barcode, not at your face, and make sure to position the light beam on the barcode.

  • Page 25: Kdc Menus

    KDC100 User Manual 3.3 KDC Menus Top Menu Sub Menu Options KDC100 KDC200 KDC250 KDC300 Normal Default Default Default Default Custom Custom Custom KDC Mode Custom Application Applicatio Applicatio Applicatio Application View/Del View/Del View/Del View/Delet View Data View/Delete ete Data...
  • Page 26 KDC100 User Manual DataMatrix Enable MaxiCode Enable MicroPDF Enable PDF417 Enable QRCode Enable HanXin Code Enable Postal Codes Postnet Enable PlanetCode Enable UK Post Enable Canada Post Enable Kix Post Enable Australia Post Enable Japan Post Enable China Post Enable...
  • Page 27 KDC100 User Manual Check DoNotVerif Digit(DoNotVerify/VerfyDONotTX/Veri fyDoTx) Append(Enable/Disable) Disable Full ASCII(Enable/Disable) Disable Check DoNotVerif I2of5 Digit(DoNotVerify/VerfyDONotTX/Veri fyDoTx) Code11 Check Digit(2 digits/1 digit) 2 digits Code128 Concatenate(Disable/Enable) Disable Telepen Output(Original/AIM) UPCA VerifyChkDgt(Enabled/Disabled) Enable NumberSys(Enabled/Disabled) Enable 2DgtAddenda(Enabled/Disabled) Disable 5DgtAddenda(Enabled/Disabled) Disable Req. Addenda(Enabled/Disabled) Disable Sep.
  • Page 28 KDC100 User Manual ISBN Trans.(Enabled/Disabled) Disable EAN-8 VerifyChkDgt(Enabled/Disabled) Enable 2DgtAddenda(Enabled/Disabled) Disable 5DgtAddenda(Enabled/Disabled) Disable Req. Addenda(Enabled/Disabled) Disable Sep. Addenda(Enabled/Disabled) Enable Tx CheckChar(Enabled/Disabled) Disable A&B PosiCode A and B/A&B LimitedA/A&B LimitedB LimitedB UPCEAN Ver.(Enabled/Disabled) Disable GS1 Emulation(No Emulate/GS1 128 Emul/GS1 Emulate) Emulate...
  • Page 29 KDC100 User Manual Data Editor/AIM ID None/In Prefix/In Suffix None None None None Data Editor/Partial Data Start Position No. of Char(s) 0 chars 0 chars 0 chars 0 chars Action Select Select Select Select Handshake Enable/Disable Disable Disable Disable Disable...
  • Page 30 0.5/3.5, 1/3, 2/2, 3/1, 4/0 1M/3M 1M/3M 1M/3M 1M/3M No. of Stored Barcodes Memory Status Free Memory Available Memory(Empties Data) Application Memory Reset Memory BT Registry(KDC100 Not use) Auto Erase Enabled/Disabled Disable Disable Disable Disable Sleep Timeout Disable, 1sec to 10minute(s) second(s) second(s)
  • Page 31 KDC100 User Manual Scrolling Enabled/Disabled Enable Enable Enable Enable Brightness 1 to 15 level(8 level) 8 level 8 level 8 level 8 level Factory Default Restores Default Settings Table 3 - KDC Menu Options...

  • Page 32: Kdc Mode Menu

    KDC100 User Manual KDC Mode Menu The KDC Mode Menu has two options – Normal and Application modes. Normal: This is the default mode which provides basic barcode scanning. In Normal mode ® barcode data can be manipulated directly through the KDC or using KTSync during the synchronization process.

  • Page 33: Data Process Menu

    KDC100 User Manual the KDC will read a barcode. Security Level is set from 1 up to 4. The higher security level means more reliable readings though some performance degradation is likely. For poor quality barcodes, we recommend increasing the security level. The default is 2.
  • Page 34 KDC100 User Manual Data Editor - KDC provides various data editing options. Prefix - Allows you to add a prefix to scanned data which can then be stored in KDC or wedged to the host. The Prefix format must be defined in the data format menu of KTSync. The maximum length for a Prefix is 11 characters.
  • Page 35 KDC100 User Manual Suffix Enter Start Prefix/Suffix Enter Finish NOTE: User can also delete or display current suffix by scanning following special barcodes Delete Suffix Display Suffix AIM ID - Allows you to add AIM ID to scanned data which can then be stored in KDC or wedged to the host.

  • Page 36: Bt Service - Kdc200/250/300/400

    KDC100 User Manual Handshake - KDC provides Handshake mode when Data Format is set to Packet Data. Handshake Mode will increase the reliability of barcode data transmission. The default mode for Handshake is Disabled. Data transmission speed is slower when Handshake Mode is Enabled.

  • Page 37: System Menu

    KDC100 User Manual System Menu Memory Size (3.0 version only) User can select normal data and application database memory partition size. KDC will erase all stored data upon changing the partition size. User should enter the following key sequence to change the partition.

  • Page 38: Led Status

    KDC100 User Manual 3.4 LED Status KDC100/200/250/300 LED Color Status Successful Reading Green USB is connected and battery is fully charged Low battery Orange USB is connected and battery is charging No reading Empty battery KDC400 Status LED Color Successful Reading...

  • Page 39: Reset Feature

    Press DOWN scroll button and SCAN button simultaneously for 5 seconds. When the LEDs illuminate yellow, release the buttons. The KDC initial screen, KoamTac Data Collector KDC displays when reset is complete. Note: The KDC stores collected data into flash memory and will not lose data or the KDC settings...

  • Page 40: Replace Battery

    KDC100. Replacement batteries can be purchased from a KoamTac distributor. Batteries should be disposed of properly. Step One - Place KDC100 face down on a firm surface. On the back, locate the small black screw in the middle of KDC. This screw secures the battery cover.

  • Page 41: Synchronization

    KDC100 User Manual 4. SYNCHRONIZATION ® When barcode data is collected, it must be uploaded to your application. KTSync , which is bundled with the KDC, is software that allows barcode data to be uploaded to any PC, PDA, or smartphone running Android 2.1+, Apple iOS3.1.3+, Blackberry, Mac and Windows XP/Vista/7/Mobile 5.0+.
  • Page 42 KTSync menu options are unavailable. NOTE: Please do not use your computer during data synchronization. Bluetooth: This option is not available on KDC100. Exit: This option ends the KTSync program. You must re-run KTSync before you can synchronize data on the KDC.
  • Page 43 KDC100 User Manual Application Menu Generation: Create user application or download predefined application. DB Lookup: Allows users to download DB into KDC and display barcode description field Master/Slave: User defines a master barcode for comparison with one or more slave barcodes Pick/BIN: User defines Pick ID and the barcode symbology for comparison with a defined Bin Inventory: Users can count inventories.

  • Page 44: File Menu

    NOTE: You can manually assign the COM port using KTSync Connect option under the File menu. Synchronize Under the File Menu, this option allows you to manually synchronize data on KDC with host. This option is similar to clicking on the Synchronize button in the KoamTac Data Synchronizer box.

  • Page 45: Synchronization Settings

    KDC100 User Manual 4.3 Synchronization Settings ® KTSync provides several synchronization options for synchronizing data from your KDC to host devices such as your PC, PDA, or smartphone running Windows XP, Vista, Windows 7, or Mobile 5.0+. ® Figure 12 - KTSync...

  • Page 46: Synchronization Methods

    KDC100 User Manual Select from Current Running Application – This option allows you to select a currently running application for data synchronization. Note: • Data synchronization begins immediately if Automatically After Connection is selected. If not selected, data synchronization is started manually by the user.

  • Page 47: Current Kdc Wedge Method

    KDC100 User Manual KDC is connected to the host. IMPORTANT: Remember to configure all options properly before selecting this option. Data synchronization can be done manually by clicking the synchronize icon if this option is not selected. Beep while Synchronization You can enable or disable the beep tone during the synchronization process.

  • Page 48: Synchronization Options

    KDC100 User Manual Synchronization Options Synchronize KDC Time with PC Time when Connected This option enables you to synchronize the KDC date and time with the host date and time. Synchronization of date and time occurs after the data is uploaded to the host device.

  • Page 49: Barcode & Kdc Settings

    KDC100 User Manual 4.4 Barcode & KDC Settings ® KTSync allows you to configure the KDC Scan Options and Barcode Settings. The configuration options ® for the KDC using KTSync are similar to the Set Barcodes, Code Options, Data Editing and Scan Options on the KDC Menu.

  • Page 50: Select Symbologies And Symbology Options

    KDC100 User Manual Select Symbologies and Symbology Options The process for scanning and reading barcodes is delicate and complicated. Although your KDC is equipped with a high performance scan engine, if configured incorrectly it may not perform at its peak performance level.

  • Page 51: Others Settings

    This feature is useful when moving from Bluetooth host device frequently. KTSync will automatically reconnect Bluetooth connection when you enter an effective Bluetooth network range. (Not Available on KDC100) To select any of these settings, click on the box to the left of the setting. A check mark (√) will display next to the setting to indicate that it is selected.

  • Page 52: Application Generation

    KDC100 User Manual 5. APPLICATION GENERATION [NOTE] KDC FW2.85.100.x doesn’t support the Application Generation feature. Users should upgrade FW2.85.100.x to FW2.86.100.x to use Application Generation feature When you select Application menu from the KTSync, you can choose from the following five Applications –...

  • Page 53: Application Generation

    KDC100 User Manual 5.1 Application Generation KDC Application Generation tool is a robust feature that allows you to create custom applications for collecting and managing barcode data. To create a custom application, select the Generation submenu ® from the Application menu in KTSync Figure 17 –...

  • Page 54: Data Filter Settings

    KDC100 User Manual • Starting quantity Enter a predefined start quantity for each scanned barcode. The start quantity can be defined from 1 to 128 and is modifiable using up or down side key. • Waiting to scan Enter the number of seconds the KDC pauses before the user prompts display. During this timeout period, the user can modify the quantity.
  • Page 55 KDC100 User Manual • Barcode Type This field allows you to select the type of barcodes the KDC will collect. When you click on the box, Select Symbols is enabled. A listing of the symbologies supported by the KDC displays. To select a barcode symbology, click on the box associated with the symbology.

  • Page 56: Application Download And Execution

    KDC100 User Manual stored. • Don’t Save Non-Compliant Data This field tells the KDC how to manage non-compliant data based on the defined data filtering fields. If this field is enabled, non-compliant data is NOT stored in the KDC. If this option is not enabled, non-compliant data is stored.

  • Page 57: Predefined Applications

    KDC100 User Manual 5.2 Predefined Applications KTSync provides four Predefined Applications – Master/Slave, Pick/Bin, DB Lookup and Inventory. Master/Slave Master/Slave predefined application allows you to define a master barcode for comparison with one or more slave barcodes. The predefined application can be run once or continuously and within either setting, you can define a substring for comparison of master and slave barcodes.
  • Page 58 KDC100 User Manual KDC Mode Collation : Define substring to be compared. Default is entire barcode Select MS Mode : Onetime (Onetime, Continuous Continuous ) Scan Master Scan Master Barcode Barcode Matched Scan Check Scan Check Mismatched Mismatched Matched Barcode...

  • Page 59: Pick/Bin

    KDC100 User Manual Pick/Bin The Pick/Bin predefined application is a special version of the Master/Slave predefined application. The Pick/Bin application allows you to define Pick ID and the barcode symbology for comparison with a defined Bin. Number of ID and Symbology Define Pick ID characters from 1 to 32 and the barcode symbology.
  • Page 60 KDC100 User Manual Exit to KDC Menu <Up>+<Down> User ID Scan User ID Valid User ID Defined Side Key Please Store User ID scan Pick data User Input Scan button Valid Barcode Please scan Bin data Ignore Scanned Pick Label...

  • Page 61: Db Lookup Application

    KDC100 User Manual DB Lookup Application The DB Lookup application allows you to download a database to the KDC which can then be utilized for advanced AUTO-ID applications like displaying additional data after scanning a barcode. For example, using our DB Lookup application, you could download a product database including information such as description, price, and stock quantity.
  • Page 62 KDC100 User Manual Figure 23 – DB Lookup Application Menu...

  • Page 63: Inventory Application

    • Starting Quantity can be 1 to 128. • Min/Max. Data Length is between 2 to 256 (KDC100/200) or 4 to 256 (KDC300) • Barcode Collation Start Position is between 1 to 256 • The length of Collation Data String is between 1 to 30 •...

  • Page 64: Troubleshooting

    Out of scan range Move scanner farther from the barcode Incorrect angle Change the angle of scanner to barcode Symbology Contact KoamTac - www.koamtac.com for possibility of Failed reading not supported custom symbology support Scan options Check scan option settings...

  • Page 65: Warranty

    KoamTac will not be liable in cases (i) in which the unit has been repaired or altered unless done or approved by KoamTac, (ii) in which the unit has not been maintained...

  • Page 66: Contact Information

    KDC100 User Manual 8. CONTACT INFORMATION CORPORATE HEADQUARTERS 116 Village Boulevard, Suite 200 Princeton, NJ 08540, USA PH: 609-734-4335 FAX: 609-228-4373 email: support@koamtac.com For more information, visit our website - www.koamtac.com...

  • Page 67: Appendix A - Barcode & Scan Options

    A.1 Symbologies KoamTac’s KDC products support most major barcode symbologies including 1D, 2D, Postal, and OCR- Fonts. Below is a list of the barcode symbologies supported by the KDC with respect to each models particular area of support.
  • Page 68 KDC100 User Manual Add-on Symbologies By default, the 2 or 5 digit add-on symbols with a UPCE, UPCA, EAN-8, and EAN-13 barcode is neither decoded nor transmitted. Transmission for these specific symbologies is enabled by setting the appropriate withAddon options. There are 4 withAddon options, one for each symbology:...

  • Page 69: Code Options

    KDC100 User Manual A.2 Code Options The KDC supports the following barcode options: Transmission of start and stop characters Reverse direction Symbology conversion Verification of optional check character Transmission of check digit Transmission of Start and Stop Characters For Codabar symbols you can choose not to transmit the start and stop symbols, the NOTIS Editing. By default, they are transmitted.

  • Page 70: Verification Of Optional "Check Digit

    KDC100 User Manual Verification of Optional “Check Digit” Code39 and Interleave 2 of 5 have an optional check digit, which, by default, is not verified. Their verification can be enabled by selecting the option VerifyCheckDigit to true or you can enable the verification for individual symbologies.

  • Page 71: Resolution Of Inconsistencies

    KDC100 User Manual Resolution of Inconsistencies Three types of inconsistencies could arise in the assignment of symbology options. The decoder has pre- defined strategies to resolve these inconsistencies: If UPCE_as_EAN13 is true, then UPCE_as_UPCA is ignored. If symbology conversion is selected but the target symbology is not enabled, then the decoder still outputs the symbol in the target symbology.

  • Page 72: Miscellaneous Barcode Information

    KDC100 User Manual A.3 Miscellaneous Barcode Information Height of a Linear Barcode Industry standards suggest a height of either 6.5mm or 15% of the symbol length, whichever is greater. Symbols of less than recommended heights may cause recognition problems. Check Characters Yes, we recommend the use of check-characters in barcodes.

  • Page 73: Equation To Determining Potential Number Of Stored Barcodes

    KDC100 User Manual Equation to Determining Potential Number of Stored Barcodes The number of barcodes that can be stored in the KDC memory depends on the size of the barcodes. Example: If only UPCA barcodes are scanned and the check digit is not transmitted, then each barcode takes up 11 (barcode data) + 2 (added bytes) + 2 (length and type) + 4 (time stamp) = 19 bytes.

  • Page 74: Appendix B - Faq

    Appendix B – FAQ B.1 Symbology Q: What barcode symbologies are supported by the KDC100? A: The KDC100 supports most major 1D barcode symbologies. Below is a list of the1D symbologies supported by the KDC100. KDC300 KDC100 / 200 / 250...

  • Page 75: Host Interface

    A: The battery on the KDC100 can be charged at least 300 times before it needs to be replaced. Q: How long does it take to charge the KDC100 battery? A: It takes about 2 hours to fully charge the KDC100 from an empty battery status to a fully charged status.

  • Page 76: Programming

    Q: Does KoamTac provide customization services for the KDC100? A: Yes. Custom applications or projects can be developed by KoamTac engineers. This service is provided for an additional fee to KoamTac. For more information regarding this service, please contact KoamTac.

  • Page 77: Appendix C - Special Barcodes

    KD100 User Manual APPENDIX C - SPECIAL BARCODES C.1 Set Symbologies (KDC100/200/250) Enable EAN13 Disable EAN13 Enable EAN8 Disable EAN8 Enable UPCA Disable UPCA Enable UPCE Disable UPCE Enable Code39 Disable Code39...
  • Page 78 KD100 User Manual Enable ITF14 Disable ITF14 Enable Code128 Disable Code128 Enable I2 of 5 Disable I2 of 5 Enable Codabar Disable Codabar Enable EAN128 Disable EAN128 Enable Code93 Disable Code93...
  • Page 79 KD100 User Manual Enable Code35 Disable Code35 Enable Bookland EAN Disable Bookland EAN Enable EAN13 with Addon Disable EAN13 with Addon Enable EAN8 with Addon Disable EAN8 with Addon Enable UPCA with Addon Disable UPCA with Addon Enable UPCE with Addon Disable UPCE with Addon...

  • Page 80: Barcode Options (Kdc100/200/250)

    KD100 User Manual C.2 Barcode Options (KDC100/200/250) Codabar - do NOT transmit start/stop Codabar - transmit start/stop Convert UPCE to UPCA Do NOT convert UPCE to UPCA Convert EAN8 to EAN13 Do NOT Return Check Digit Convert UPCE to EAN13...
  • Page 81 KD100 User Manual Convert UPCA to EAN13 Do NOT Convert UPCA to EAN13 Verify check digit for I2of5 Do NOT verify check digit for I2of5 Verify check digit for Code39 Do NOT verify check digit for Code39 Return check digit for I2of5 Do NOT return check digit for I2of5 Return check digit for Code39 Do NOT return check digit for Code39...
  • Page 82 KD100 User Manual Return check digit for UPCA Do NOT return check digit for UPCA Return check digit for EAN8 Do NOT return check digit for EAN8 Return check digit for EAN13 Do NOT return check digit for EAN13...

  • Page 83: Delete Last Scanned Barcode (Kdc100/200/250)

    KD100 User Manual C.3 Delete Last Scanned Barcode (KDC100/200/250)

  • Page 84: Scan Options (Kdc100/200/250)

    KD100 User Manual C.4 Scan Options (KDC100/200/250) Wide scan angle Narrow scan angle Normal filter mode High filter mode Auto Trigger Enable Auto Trigger Disable Continuous Short Medium Long Extra Long...

  • Page 85: Scan Timeout (Kdc100/200/250)

    KD100 User Manual C.5 Scan Timeout (KDC100/200/250) Timeout = 500msec Timeout = 1sec Timeout = 2sec Timeout = 3sec Timeout = 4sec Timeout = 5sec Timeout = 6sec Timeout = 7sec Timeout = 8sec Timeout = 9sec Timeout = 10sec...

  • Page 86: Minimum Barcode Length (Kdc100/200/250)

    KD100 User Manual C.6 Minimum Barcode Length (KDC100/200/250) Minimum Length = 2 Minimum Length = 3 Minimum Length = 4 Minimum Length = 5 Minimum Length = 6 Minimum Length = 7 Minimum Length = 8 Minimum Length = 9...
  • Page 87 KD100 User Manual Minimum Length = 20 Minimum Length = 21 Minimum Length = 22 Minimum Length = 23 Minimum Length = 24 Minimum Length = 25 Minimum Length = 26 Minimum Length = 27 Minimum Length = 28 Minimum Length = 29 Minimum Length = 30 Minimum Length = 31 Minimum Length = 32...

  • Page 88: Security Level (Kdc100/200/250)

    KD100 User Manual C.7 Security Level (KDC100/200/250) Security level = 1 Security level = 2 Security level = 3 Security level = 4...

  • Page 89: Data Process - Wedge/Store (Kdc100/200/250)

    KD100 User Manual C.8 Data Process - Wedge/Store (KDC100/200/250) Wedge Only Wedge & Store Store Only Wedge & Store if Sent Wedge & Store if Not Sent...

  • Page 90: Data Process - Data Edit (Kdc100/200/250)

    KD100 User Manual C.9 Data Process – Data Edit (KDC100/200/250) Prefix Enter Start Suffix Enter Start Prefix/Suffix Enter Finish Prefix/Suffix Enter Cancel Delete Prefix Delete Suffix Display Prefix Display Suffix...

  • Page 91: Data Process - Data Format - Handshake (Kdc100/200/250)

    KD100 User Manual C.10 Data Process - Data Format – Handshake (KDC100/200/250) Data format - Barcode only Data format - Packet data Enable Handshake Disable Handshake...

  • Page 92: Data Process - Termination Character & Duplicate Check (Kdc100/200/250)

    KD100 User Manual C.11 Data Process - Termination Character & Duplicate Check (KDC100/200/250) None CR+LF Check Duplicate Enabled Check Duplicate Disabled...

  • Page 93: Bluetooth (Kdc200/250)

    KD100 User Manual C.12 Bluetooth (KDC200/250) Enable Bluetooth Power Disable Bluetooth Power Enter Pairing Mode Discovering Enable Discovering Disable Connect To Last Connecting to Enable Auto Connect Disable Auto Connect Enable Auto Power Off Disable Auto Power Off...
  • Page 94 KD100 User Manual Enable Auto Power On Disable Auto Power On Disconnect HID Sync Enable Power Off Msg Disable Power Off Msg BT MAC Address BT FW Version Enable Wakeup Nulls Disable Wakeup Nulls Confirm To Send Enabled Confirm To Send Disabled...
  • Page 95 KD100 User Manual Bluetooth Device type SPP Bluetooth Device type HID iOS Bluetooth Device type IPHONE Bluetooth Device type SPP2.0 Bluetooth Device type HID Normal BT Toggle Enable BT Toggle Disable HID Control Character Disabled HID Control Character Alt+Numpad HID Control Character ^+Character...

  • Page 96: Bluetooth Auto Power On Time (Kdc200/250)

    KD100 User Manual C.13 Bluetooth Auto Power On Time (KDC200/250) Auto Power On Time Disabled Auto Power On Time 1sec Auto Power On Time 2sec Auto Power On Time 3sec Auto Power On Time 4sec Auto Power On Time 5sec Auto Power On Time 6sec Auto Power On Time 7sec Auto Power On Time 8sec...
  • Page 97 KD100 User Manual Auto Power On Time 10sec Enable Beep Warning Disable Beep Warning...

  • Page 98: Bluetooth Pwr Off Time (Kdc200/250)

    KD100 User Manual C.14 Bluetooth PWR Off Time (KDC200/250) 1min 2min 3min 4min 5min 6min 7min 8min 9min 10min...
  • Page 99 KD100 User Manual 11min 12min 13min 14min 15min 16min 17min 18min 19min 20min 21min 22min...
  • Page 100 KD100 User Manual 23min 24min 25min 26min 27min 28min 29min 30min...

  • Page 101: Auto Lock Time (Kdc200/250)

    KD100 User Manual C.15 Auto lock Time (KDC200/250) 0 min (Never) 1 min 2 min 3 min 4 min 5 min 10 min 15 min...

  • Page 102: Hid Keyboard Layout (Kdc100/200/250)

    KD100 User Manual C.16 HID Keyboard layout (KDC100/200/250) German French Italian Spanish...

  • Page 103: Hid Initial Delay (Kdc200/250)

    KD100 User Manual C.17 HID Initial Delay (KDC200/250) Disabled 1 second 2 seconds 3 seconds 5 seconds 10 seconds...

  • Page 104: Hid Character Delay (Kdc200/250)

    KD100 User Manual C.18 HID Character Delay (KDC200/250) Disabled 10 msec 20 msec 30 msec 50 msec 100 msec...

  • Page 105: Hid Control Character (Kdc200/250)

    KD100 User Manual C.19 HID Control Character (KDC200/250) Disabled Alt+Numpad ^+Character...

  • Page 106: System (Kdc100/200/250)

    KD100 User Manual C.20 System (KDC100/200/250) Memory Status Reset Memory Auto Erase Enable Auto Erase Disable Date/Time Battery Version Button Lock Button Unlock Enable Beep Sound Disable Beep Sound...
  • Page 107 KD100 User Manual High Beep Volume Low Beep Volume Enable Auto Menu Exit Disable Auto Menu Exit Enable Port Status Disable Port Status Time & Battery Type & Time Type & Battery Memory Status GPS Data (KDC250) Barcode Only...
  • Page 108 KD100 User Manual Enable Scrolling Disable Scrolling Factory Default Confirm Memory size change 0.5M / 3.5M 1M / 3M 2M / 2M 3M / 1M 4M / 0M...

  • Page 109: Sleep Timeout (Kdc100/200/250)

    KD100 User Manual C.21 Sleep Timeout (KDC100/200/250) Disable 1sec 2sec 3sec 4sec 5sec 10sec 20sec 30sec 1min 2min 5min...
  • Page 110 KD100 User Manual 10min...

  • Page 111: Etc (Kdc100/200/250)

    KD100 User Manual C.22 ETC (KDC100/200/250) Reverse Direction Enable Return check digit Enable Verify check digit Enable Reverse Direction Disable Return check digit Disable Verify check digit Disable...

  • Page 112: Function (Kdc100/200/250)

    KD100 User Manual C.23 Function (KDC100/200/250)

  • Page 113: Number (Kdc100/200/250)

    KD100 User Manual C.24 Number (KDC100/200/250)

  • Page 114: Lower Case Alphabet (Kdc100/200/250)

    KD100 User Manual C.25 Lower Case Alphabet (KDC100/200/250)
  • Page 115 KD100 User Manual...
  • Page 116 KD100 User Manual...

  • Page 117: Upper Case Alphabet (Kdc100/200/250)

    KD100 User Manual C.26 Upper Case Alphabet (KDC100/200/250)
  • Page 118 KD100 User Manual...
  • Page 119 KD100 User Manual...

  • Page 120: Control Character (Kdc100/200/250)

    KD100 User Manual C.27 Control Character (KDC100/200/250) Space...

  • Page 121: Symbol Character (Kdc100/200/250)

    KD100 User Manual C.28 Symbol Character (KDC100/200/250) “ & ‘...
  • Page 122 KD100 User Manual < >...
  • Page 123 KD100 User Manual Start-String Stop-String...
  • Page 124 KD100 User Manual Note: • You can compose a string up to 16 characters. • A string would be composed by scanning the “Start-String”, number/alphabet/special characters, and “Stop-String” special barcodes. • The KDC will abort string composition if you do not scan “Stop-String”...

  • Page 125: Gps (Kdc250)

    KD100 User Manual C.29 GPS (KDC250) GPS Power Enabled GPS Power Disabled GPS Bypass Data Enabled GPS Bypass Data Disabled Reset GPS Module GPS Acquire Test GPS Power Save Mode(Normal) GPS Power Save Mode(Power Saving) GPS Auto Power Off Enabled GPS Auto Power Off Disabled...
  • Page 126 KD100 User Manual C.30 Auto Power Off Timeout (KDC250) 0 min (Disabled) 5 min 10 min 20 min 30 min 60 min 120 min Display Format = GPS Data...
  • Page 127 Version ......... 37 Power ........93 Filter ........32 View ........32 Prefix ......41, 48 Format ........33 Website ....See Koamtac Process ......... 33 Full ......... 38, 64 Wedge ......33, 47 Reset ........37 Handshake ..... 34, 36 Wide ........

Table of Contents
