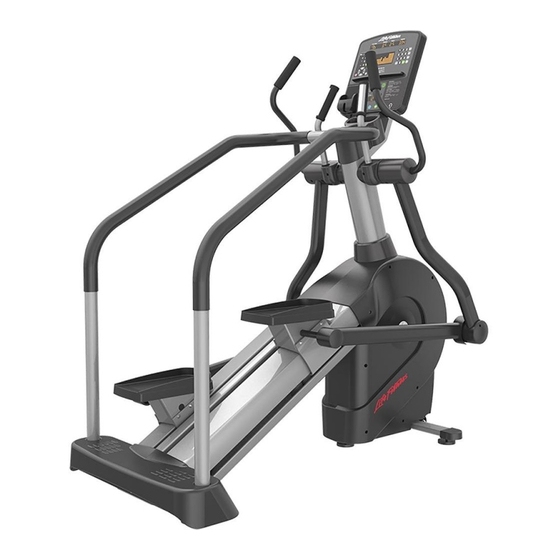

- Page 1 ARCTIC SILVER SUMMIT TRAINER 95L-0XXX-01 Customer Support Services PARTS MANUAL rev 15 Jan 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 CONTENTS S/N LXX100000 AND UP MISCELLANEOUS ... 3 CONSOLE SUPPORT & DEADSHAFT COVERS... 4 USER ARMS AND HARDWARE ... 5 MONOCOLUMN, HANDRAIL AND VERTICAL UPRIGHTSS... 6 CONSOLE AND RELATED COMPONENS ... 7 SHROUDS, BOOT AND REAR STEP ASSEMBLY ... 8 ROCKER ARMS AND CONTROL LINK ASSY’S ... -
Page 3: Hardware Bag
The 95Li comes with both Telemetry and Life Pulse sensors and is pre-wired for the attachable LCD TV. S/N LXX100000 AND UP M051-00K68-A001 M051-00K68-A002 M051-00K68-A003 M051-00K68-A004 M051-00K68-A030 0017-00008-0204 0017-00008-0205 0017-00008-0206 AK68-00107-0000 B084-92218-D002 AK47-00063-0000 AK32-00020-0002 AK32-00078-0001 0K68-01031-0000 0017-00021-2846 0017-00042-0821 AK68-00198-0000 Page 3 of 21 95L-0XXX-01... -
Page 4: Console Support & Deadshaft Covers
(2) Mounting Screws 0017-00101-1846 Right Bullhorn Cover 0K62-01007-0001 Left Bullhorn Cover 0K62-01008-0001 Bullhorn Cover Screws (1 per bullhorn cover) 0017-00101-1854 NOTE: All Deadshaft and Bullhorn Covers have their respective part number molded into the plastic. Page 4 of 21 95L-0XXX-01... -
Page 5: User Arms And Hardware
ARCTIC SILVER SUMMIT 95Li User Arms and Hardware S/N LXX100000 AND UP Right User Arm with grip AK68-00143-0001 Left User Arm with grip AK68-00143-0002 Grip 0K62-01138-0000 (3) User Arm Mtg. Screws 0017-00101-1791 Page 5 of 21 95L-0XXX-01... -
Page 6: Monocolumn, Handrail And Vertical Uprightss
( 1 per bullhorn) AK47-00029-0000 (4) Upper Handrail Mounting Screws 0017-00101-1805 (4) Lower Handrail Mounting Screws 0017-00101-1760 (2) Vertical Upright Tube 0K68-01032-0000 Upright Tube Screws ( 1 per upright) 0017-00101-1635 Page 6 of 21 95L-0XXX-01 S/N LXX100000 AND UP Handrail Assembly AK68-00206-0000... -
Page 7: Console And Related Componens
AK39-00064-0000 OVERLAY/BEZEL/SWITCH AK68-00184-0001 AK68-00184-0001 AK68-00184-0003 AK68-00184-0004 AK68-00184-0006 AK68-00184-0007 AK68-00184-0008 AK68-00184-0009 AK68-00184-0010 AK68-00184-0014 Page 7 of 21 95L-0XXX-01 S/N LXX100000 AND UP Battery Door 0K62-01026-0000 Upper and Lower PCB mounting screws 0017-00101-1650 Lower PCB B084-92222-B000 LANGUAGE Eng/LED Eng + Met Ger/Met... -
Page 8: Shrouds, Boot And Rear Step Assembly
Right Shroud Assembly AK68-00176-0000 Left Shroud Assembly AK68-00176-0001 Shroud Mtg. Screws ( 6 per shroud) 0017-00101-1796 S/N LXX100000 AND UP Rear Step (plastic only) 0K68-01020-0000 Rear Step Assembly AK68-00136-0000 (3) Rear Step Mounting Screws 0017-00101-1903 Page 8 of 21 95L-0XXX-01... -
Page 9: Rocker Arms And Control Link Assy's
ARCTIC SILVER SUMMIT 95Li Rocker Arms & Control Link Assy’s Rocker Arm Washer 0017-00104-0418 Retaining Ring 0017-00100-0178 Rocker Arm Assembly AK68-00125-0000 Control Link Assembly AK68-00147-0000 S/N LXX100000 AND UP Page 9 of 21 95L-0XXX-01 Control Link Mounting Screw 0017-00101-1881 and Washer 0017-00104-0479... -
Page 10: Rocker Arm/Control Link Covers
Assembly with Bracket AK68-00207-0000 (2) Bracket to Rocker Arm Mtg .Screws 0017-00101-1846 Outer Cover Kit with Seal and Screw GK62-00002-0066 Right Clevis Cover Assy. AK68-00154-0001 S/N LXX100000 AND UP Left Clevis Cover Assy. AK68-00154-0002 Page 10 of 21 95L-0XXX-01 0K61-01283-0001... -
Page 11: Pedal Track Covers And Hardware
0K68-01088-0000 (4) Bracket Mounting Screws 0017-00101-1881 (2) 2 00” Trimlok 0K68-01105-0000 1 250” Trimlok 0K68-01106-0000 Page 11 of 21 95L-0XXX-01 S/N LXX100000 AND UP Left Pedal Track Cover AK68-00165-0000 Right Pedal Track Cover AK68-00166-0000 Center Cover Assembly AK68-00167-0000 (6) Cover Mounting Screws... -
Page 12: Pedals, Trucks And Rollers Assembly
0017-00103-0324 (4) Mini Mono & Shaft Assy. AK68-00217-0000 Mtg. Screws ( 1 per Roller) 0017-00101-1908 Nut ( 1 per Roller) 0017-00103-0333 Page 12 of 21 95L-0XXX-01 Right Pedal Adaptor AK68-00129-0000 Left Pedal Adaptor AK68-00127-0000 (6) Pedal Adaptor Mounting Screws 0017-00101-1903... -
Page 13: Resistor Assembly And Crossover Pulley
ARCTIC SILVER SUMMIT 95Li Resistor Assembly and Crossover Pulley Crossover Pulley AK68-00104-0000 Mtg. Bolt 0017-00101-1911 0017-00103-0332 Resistor Assy. AK68-00108-0000 Resistor 100E-00002-0091 (2) Resistor Assy. Mtg. Screws 0017-00101-1797 S/N LXX100000 AND UP Page 13 of 21 95L-0XXX-01... -
Page 14: Flexonic Belts And Tendsioner Bracket
ARCTIC SILVER SUMMIT 95Li Flexonic Belts and Tensioner Bracket Flexonic Belts 0K62-01134-0000 Reed Switch AK68-00159-0000 S/N LXX100000 AND UP Page 14 of 21 95L-0XXX-01 Tensioner Bracket AK68-00130-0000 Tensioner Screw 0017-00101-1905 Tensioner Nut 0017-00103-0333 (3) Bracket Screw 0017-00101-1906 (3) Bracket Washer... -
Page 15: Clutch Shaft And Sprockets
Sprocket AK68-00102-0001 Clutch Shaft 0K47-01024-0000 S/N LXX100000 AND UP Bearing Housing AK68-00157-0000 (3) Mounting Screw 0017-00101-1909 (3) Nut 0017-00103-0332 Page 15 of 21 95L-0XXX-01 (3) Hardened Washer 0K47-01105-0000 (3) Thrust washer 0K47-01104-0000 Users Left Clutch Sprocket AK68-00102-0000 Retaining Ring 0017-00100-0107... -
Page 16: Clutch Pulley And Shaft Assembly
Clutch Pulley & Shaft Assembly AK68-00105-0000 Assembly includes: (2) Bearings, Bearing Housing, Intermediate Shaft, Bearing Retainer, Retaining Rings and Bearing Retainer mounting screws. S/N LXX100000 AND UP Page 16 of 21 95L-0XXX-01 Pulley with magnet AK68-00212-0000 Screw 0017-00101-1836 Washer 0017-00104-0465 Hex Key... -
Page 17: Timing Belts And Springs
Upper Spring 0K68-01051-0000 Lower Spring 0K68-01081-0000 Mounting screw ( 1 per Spring) 0017-00101-1902 Washer ( 1 per Spring) 0017-00104-0465 Page 17 of 21 95L-0XXX-01 S/N LXX100000 AND UP Crossover Pulley AK68-00104-0000 Pulley Mtg. Screw 0017-00101-1911 0017-00103-0332 Lower Timing Belt AK68-00211-0000... -
Page 18: Power Control Board, Battery & Alternator
Alternator Brush Kit 0017-00009-0895 Mtg. Hardware (1) - 0017-00101-0986 (1) -0017-00101-1867 (1) -0017-00103-0332 6 Volt Battery 0017-00003-0685 (2) Battery Mtg. Screws 0017-00101-1797 S/N LXX100000 AND UP Power Control Board B084-92218-D002 (4) PCB Mtg. Screws 0017-00101-1838 Page 18 of 21 95L-0XXX-01... -
Page 19: Access Panel, Wheels And Leg Levelers
0017-00103-0330 Access Panel Assembly AK68-00107-0000 (See Miscellaneous page for Panel Assembly parts breakdown) Panel Mtg. Screw 0017-00101-1838 Page 19 of 21 95L-0XXX-01 S/N LXX100000 AND UP Wheel 0017-00042-0674 Wheel Shaft 0K68-01045-0000 Push On Cap 0017-00042-1066 (Note: It is recommended that... -
Page 20: Lower Track Cover And Hardware
ARCTIC SILVER SUMMIT 95Li Lower Track Cover and Hardware Lower Track Cover Assembly AK68-00220-0000 Mounting Screw (3) 0017-00101-1906 Washer, Nylon (3) 0017-00104-0485 Flat Washer (3) 0017-00104-0479 Page 20 of 21 95L-0XXX-01 S/N LXX100000 AND UP... -
Page 21: Cables
13POS.KK-156 LWR-CNSL Upper Console Board A084-92219-A029 START START 17POS. LOWER KEYPAD 19 POS. UPPER KEYPAD Page 21 of 21 95L-0XXX-01 S/N LXX100000 AND UP N.C. N.C. MAGNET REED SWITCH Main Cable AK62-00093-0001 Lower Console Cable AK63-00038-0000 24POS. MICROFIT 24POS. MICROFIT...
