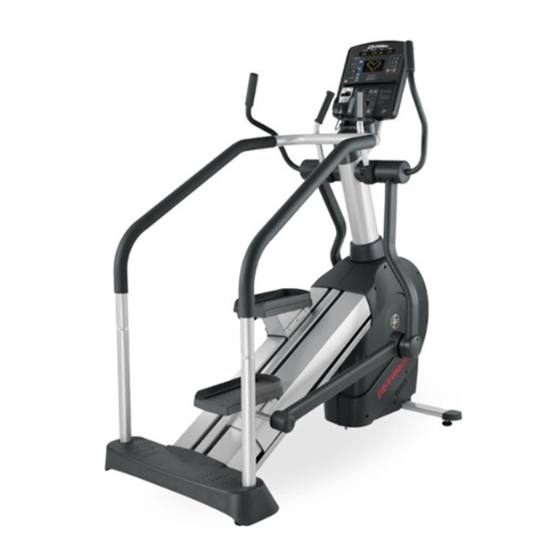

- Page 1 ARCTIC SILVER SUMMIT TRAINER 95L-0XXX-01 Customer Support Services PARTS MANUAL rev 28 Jan 2010...
-
Page 2: Table Of Contents
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 CONTENTS S/N LXX100000 AND UP MISCELLANEOUS ....................3 CONSOLE SUPPORT & DEADSHAFT COVERS..............4 USER ARMS AN D HARDWARE ..................5 MONOCOLUMN, HANDRAIL AND VERTICAL UPRIGHTSS............6 CONSOLE AND RELATED COMPONENS ................7 SHROUDS, BOOT AND REAR STEP ASSEMBLY ..............8 ROCKER ARMS AND CONT ROL LINK ASSY’S .............. -
Page 3: Miscellaneous
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 REFERENCES S/N LXX100000 AND UP OPERATION MANUAL – (ENG) M051-00K68-A001 OPERATION MANUAL – (F/S/P) M051-00K68-A002 OPERATION MANUAL – (G/D/I) M051-00K68-A003 OPERATION MANUAL – (JAP) M051-00K68-A004 SERVICE MANUAL M051-00K68-A030 TOUCH UP PAINT: SPRAY CAN 0017-00008-0204 .5 OZ BOTTLE W/APPLICATOR 0017-00008-0205 .33 OZ PEN... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Console Support & Deadshaft Covers S/N LXX100000 AND UP Console Support Cap 0K62-01030-0000 Accessory Tray 0K62-01022-0000 (2) Mounting Screws 0017-00101-1846 Console Support Assembly AK62-00123-0000 (6) Console Support Mtg. Screws 0017-00101-1791 Console Support Cover 0K62-01023-0000 (2) Cover Screws 0017-00101-1796. -
Page 5: User Arms And Hardware
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 User Arms and Hardware S/N LXX100000 AND UP Right User Arm with grip AK68-00143-0001 Left User Arm with grip AK68-00143-0002 Grip 0K62-01138-0000 (3) User Arm Mtg. Screws 0017-00101-1791 Page 5 of 21... -
Page 6: Monocolumn, Handrail And Vertical Uprightss
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Monocolumn, Handrail and Vertical Uprights S/N LXX100000 AND UP Electrode Kit GK20-00002-0005 HR Bullhorn Cable ( 1 per bullhorn) AK47-00029-0000 Monocolumn with inserts Handrail Assembly GK68-00002-0002 AK68-00206-0000 (3) Mounting Bolts 0017-00101-1881 (3) Washers 0017-00104-0469 (4) Upper Handrail... -
Page 7: Console And Related Componens
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Console & Related components S/N LXX100000 AND UP Console Case with decal (6) Console Case Screws AK62-00142-0000 0017-00101-1242 Programmed PCB A084-92219-A029 A084-92221-A020 - (Jap only) Lower Display Cable AK63-00038-0000 Polar Cable AK39-00063-0000 Battery Door 0K62-01026-0000... -
Page 8: Shrouds, Boot And Rear Step Assembly
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Shrouds, Boot and Rear Step Assy. S/N LXX100000 AND UP Monocolumn Boot 0K68-01061-0000 Right Shroud Assembly AK68-00176-0000 Left Shroud Assembly AK68-00176-0001 Shroud Mtg. Screws ( 6 per shroud) 0017-00101-1796 Rear Step (plastic only) 0K68-01020-0000 Rear Step Assembly... -
Page 9: Rocker Arms And Cont Rol Link Assy's
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Rocker Arms & Control Link Assy’s S/N LXX100000 AND UP Rocker Arm Washer 0017-00104-0418 Retaining Ring 0017-00100-0178 Rocker Arm Assembly AK68-00125-0000 Control Link Mounting Screw Control Link Assembly 0017-00101-1881 AK68-00147-0000 and Washer 0017-00104-0479 Page 9 of 21... -
Page 10: Rocker Arm/Control Link Covers
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Rocker Arm/Control Link Covers S/N LXX100000 AND UP Inner Link Cover Assembly with Bracket AK68-00207-0000 (2) Bracket to Rocker Arm Mtg .Screws 0017-00101-1846 Outer Cover Kit with Seal and Screw GK62-00002-0066 0K61-01283-0001 Left Clevis Cover Assy. -
Page 11: Pedal Track Covers And Hardware
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Pedal Track Covers and Hard ware S/N LXX100000 AND UP Left Pedal Track Cover AK68-00165-0000 Right Pedal Track Cover Upper Track Cover AK68-00166-0000 Mounting Bracket Track 0K68-01087-0000 0K68-01003-0000 (2) (4) Bracket Mounting Center Cover Assembly... -
Page 12: Pedals, Trucks And Rollers Assembly
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Pedals, Truck and Rollers Asse mbly S/N LXX100000 AND UP Pedal (left or right) 0K53-01027-0004 Pedal Mounting Screws (4) 0017-00101-1912 Right Pedal Adaptor AK68-00129-0000 Left Pedal Adaptor AK68-00127-0000 Pedal Adaptor Mounting Screws (6) 0017-00101-1903 Mono Roller & Shaft Assembly (3) -
Page 13: Resistor Assembly And Crossover Pulley
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Resistor Assembly and Crossover Pulley S/N LXX100000 AND UP Crossover Pulley AK68-00104-0000 Mtg. Bolt 0017-00101-1911 0017-00103-0332 Resistor Assy. AK68-00108-0000 Resistor 100E-00002-0091 (2) Resistor Assy. Mtg. Screws 0017-00101-1797 Page 13 of 21... -
Page 14: Flexonic Belts And Te Ndsioner Bracket
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Flexonic Belts and Tensioner Bracket S/N LXX100000 AND UP Flexonic Belts 0K62-01134-0000 Tensioner Bracket AK68-00130-0000 Tensioner Screw 0017-00101-1905 Tensioner Nut 0017-00103-0333 (3) Bracket Screw Reed Switch 0017-00101-1906 AK68-00159-0000 (3) Bracket Washer 0017-00104-0469 Page 14 of 21... -
Page 15: Clutch Shaft And Sprockets
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Clutch Shaft and Sprockets S/N LXX100000 AND UP Poly-V Pulley 0K35-01186-0007 Setscrews (2) 0017-00101-2015 Hex Key 0K53-01183-0000 (3) Hardened Washer 0K47-01105-0000 Thrust washer (3) Thrust washer 0K47-01104-0000 0K47-01104-0000 Retaining Ring 0017-00100-0107 (2) Hardened Washer 0K47-01105-0000... -
Page 16: Clutch Pulley And Shaft Assembly
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Clutch Pulley and Shaft Assembly S/N LXX100000 AND UP Pulley with magnet AK68-00212-0000 Screw 0017-00101-1836 Washer 0017-00104-0465 Hex Key 0K53-01183-0000 Setscrews (2) Clutch Pulley & Shaft Assembly 0017-00101-2015 AK68-00105-0000 Assembly includes: (2) Bearings, Bearing Housing,... -
Page 17: Timing Belts And Springs
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Timing Belts and Springs S/N LXX100000 AND UP NOTE: The following parts are used on each end of both Timing belts: Belt Terminator 0K35-01105-0000 Bracket 0K35-01142-0000 (2) Screws 0017-00101-1904 Washers 0017-00104-0469 Upper Spring 0K68-01051-0000 Lower Spring... -
Page 18: Power Control Board, Battery & Alte Rnator
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Lower PCB, Battery and Alternator S/N LXX100000 AND UP Alternator with flywheel Assembly AK68-00213-0001 Alternator 0017-00009-0841 Alternator Brush Kit 0017-00009-0895 Mtg. Hardware (1) - 0017-00101-0986 (1) -0017-00101-1867 (1) -0017-00103-0332 Power Control Board 6 Volt Battery... -
Page 19: Access Panel, Wheels And Leg Levelers
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Access Panel, Wheels and Leg Levelers S/N LXX100000 AND UP End Cap 0K62-01003-0000 Wheel 0017-00042-0674 Leg Leveler Access Panel Wheel Shaft 0K68-01047-0000 Assembly 0K68-01045-0000 AK68-00107-0000 Push On Cap 0017-00103-0330 (See Miscellaneous 0017-00042-1066 page for Panel Assembly... -
Page 20: Lower Track Cover And Hardware
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Lower Track Cover and Hardware S/N LXX100000 AND UP Lower Track Cover Assembly AK68-00220-0000 Mounting Screw (3) 0017-00101-1906 Washer, Nylon (3) 0017-00104-0485 Flat Washer (3) 0017-00104-0479 Page 20 of 21... -
Page 21: Cables
ARCTIC SILVER SUMMIT 95Li 95L-0XXX-01 Cables S/N LXX100000 AND UP Power Control Cable AK47-00063-0002 ORANGE Power Control Board POWER RES. B084-92218-D002 12POS.MNL 2 x .75 OHM RED/BLK RPM_ALT 240W RED/BLK RED/BLK VoltR AC TAP V alt GREEN VoltR GREEN GREEN...
