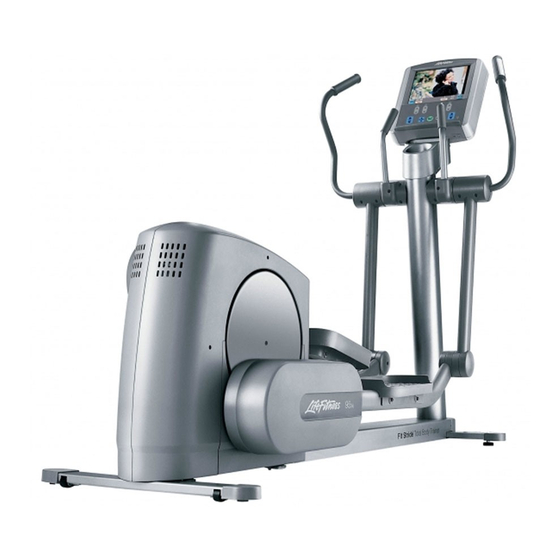

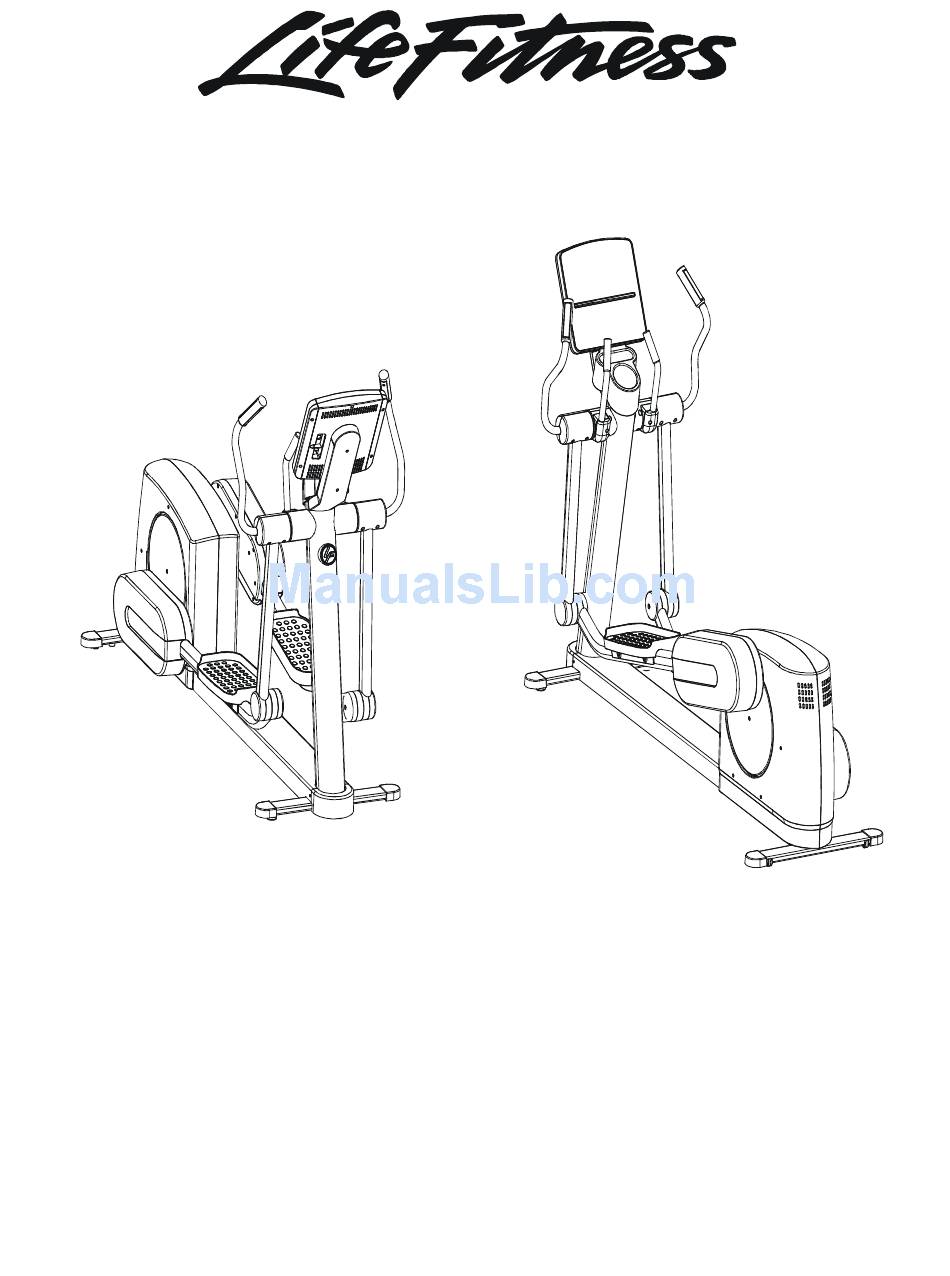

- Page 1 ARCTIC SILVER QUIET DRIVE CROSS TRAINER 95Xe Customer Support Services PARTS MANUAL revised 30 Jul 2008...
- Page 2 ARCTIC SILVER QUIET DRIVE 95Xe REFERENCES OPERATION MANUAL SERVICE MANUAL HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN ACCESS PANEL ASSEMBLY COAX CABLE POWER SUPPLY w/CORD, 12v DC POWER CABLE, 80 IN. LiNE CORD: DOM 10A 125V LINE CORD: CON 10A 250V LINE CORD: 10A UK LINE CORD: AUSTRALIA...
-
Page 3: Table Of Contents
ARCTIC SILVER QUIET DRIVE 95Xe 95XE-0XXX-03 CONTENTS S/N AXG100000 and up Page CONSOLE SUPPORT & DEADSHAFT COVERS ...4 HANDLEBARS AND BULLHORNS ...5 COMPLETE CONSOLE ASSEMBLY ...6 CONSOLE COMPONENTS ...7 UPPER FRAME HARDWARE ...8 ROCKER ARMS AND PEDAL LEVERS ...9 CRANK COVER AND LOWER CAPS ...10 LOWER FRAME SHROUDS AND HARDWARE...11 PEDAL LEVER COMPONENTS ...12 PCB, BATTERY, REED SWITCH &... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER QUIET DRIVE 95Xe Console Support & Deadshaft Covers Console Support AK62-00123-0000 Console Support Cap 0K62-01030-0000 Console Support Shroud 0K62-01023-0000 Right Inside Deadshaft Cover 0K62-01010-0000 Left Inside Deadshaft Cover 0K62-01011-0000 Front Inside Deadshaft Covers 0K62-01009-0000 95XE-0XXX-03 S/N AXG100000 and up Bullhorn Cover, RT 0K62-01007-0001 Bullhorn Cover, LT... -
Page 5: Handlebars And Bullhorns
ARCTIC SILVER QUIET DRIVE 95XE Handlebars and Bullhorns Right Handlebar AK62-00086-0000 User Arm Heart Rate Cable AK61-00051-0001 Medallion Bug AK58-00245-0000 Bug Adaptor 0K62-01034-0001 S/N AXG100000 and up Right Bullhorn Assembly AK62-00053-0001 AK62-00057-0001 Bullhorn 0K62-01136-0000 Grip 0K62-01199-0000 Gasket Left Bullhorn Assembly AK62-00054-0001 AK62-00058-0001 Bullhorn 0K62-01136-0000 Grip... -
Page 6: Complete Console Assembly
ARCTIC SILVER QUIET DRIVE 95XE Complete Console Assembly GK62-00002-0047 GK62-00002-0048 GK62-00002-0049 GK62-00002-0050 GK62-00002-0051 GK62-00002-0052 GK62-00002-0053 GK62-00002-0054 GK62-00002-0055 GK62-00002-0056 GK62-00002-0057 GK62-00002-0058 GK62-00002-0059 GK62-00002-0060 GK62-00002-0061 GK62-00002-0062 GK62-00002-0063 CONSOLE ASSEMBLY KIT: SERVICE LCD CONSOLE NTSC; ENG KIT: SERVICE LCD CONSOLE NTSC; SPN KIT: SERVICE LCD CONSOLE NTSC; JAP KIT: SERVICE LCD CONSOLE NTSC;... -
Page 7: Console Components
ARCTIC SILVER QUIET DRIVE 95XE 95XE-0XXX-03 Console Components S/N AXG100000 and up A084-92247-A011 NTSC... -
Page 8: Upper Frame Hardware
ARCTIC SILVER QUIET DRIVE 95XE Upper Frame Hardware Console Mounting Screws(4) 0017-00101-1796 Console Support Mounting Screws(6) 0017-00101-1791 Shroud Mounting Screws 0017-00101-1796 Accessory Tray (not shown) 0K62-01022-0000 Mounting Screws(2) 0017-00101-1846 Inside Deadshaft Cover Screws(2) 0017-00101-1796 S/N AXG100000 and up Bullhorn Screw Kit (includes 4 screws) GK62-00002-0042 Handlebar... -
Page 9: Rocker Arms And Pedal Levers
ARCTIC SILVER QUIET DRIVE 95XE Rocker Arms & Pedal Levers contents: Rocker Arms (2) Hardened Spacers (2) Oilite Washers (2) Retaining Rings (2) Loctite 620 Alcohol pad LF Bug Medallion Assembly AK58-00245-0000 Rocker Arms AK62-00002-0070 Shaft Collar w/Screws 0K61-01259-0000 Right Pedal Lever Assembly AK62-00236-0000 Left Pedal... -
Page 10: Crank Cover And Lower Caps
ARCTIC SILVER QUIET DRIVE 95XE Crank Cover and Lower Caps Front frame Cap 0K62-01004-0000 Mounting Screws 0017-00101-1795(2) S/N AXG100000 and up Stabilizer Caps 0K62-01003-0000(4) 95XE-0XXX-03 Crank Cover 0K61-03100-0002 Mounting screws(2) 0017-00101-1837... -
Page 11: Lower Frame Shrouds And Hardware
ARCTIC SILVER QUIET DRIVE 95XE Lower Frame Shrouds & Hardware Rocker Cover Kit (includes clip & screw) GK62-00002-0066 Mounting screw 0017-00101-1796 Right Inside Rocker Cover 0K62-01038-0000 Right Inside Lever Joint Cover 0K62-01040-0000 Outside Pedal Joint Cover 0K62-01035-0000 Mounting screw 0017-00101-1836 Leg Levelers AK62-00124-0000 Rocker Cover Kit... -
Page 12: Pedal Lever Assembly Components
ARCTIC SILVER QUIET DRIVE 95XE Pedal Lever Assembly Components Control Link Kit GK62-00002-0071 (contains 2 control links, part nos. AK62-00384-0000) Pedal/Rocker Shaft and Bearing Assembly GK62-00002-0001 E-Ring Left Pedal 0017-00100-0107 0K62-01005-0000 Thrust Washer Right Pedal 0K47-01105-0000 0K62-01006-0000 Brass Washer 0K47-01104-0000 Pedal Mounting Hardware Screws(4) 0017-00101-1805... -
Page 13: Pcb, Battery, Reed Switch & Bracket
ARCTIC SILVER QUIET DRIVE 95XE PCB, Battery, Reed Switch & Bracket Power Control Board B084-92280-A000 PCB Mounting screws (4) 0017-00101-1838 95XE-0XXX-03 S/N AXG100000 and up PCB, Reed Switch Battery Bracket 0K62-01233-0000 Grommet (4) 0017-00042-0821 Reed Switch 118E-00001-0140 Reed Switch Mounting screws (2) 0017-00101-1794... -
Page 14: Bearing Insert Assembly
ARCTIC SILVER QUIET DRIVE 95XE Bearing Insert Assembly – AK62-00299-0000 Service Kit- GK62-00002-0044 Includes: 1- crankshaft 2- bearings 2- sets of bearing flanges 4- nuts and washers Service Kit- GK62-00002-0045 Includes: 1 - intermediate shaft 2 - bearings 2- sets of bearing flanges 4- nuts and washers 95XE-0XXX-03 S/N AXG100000 and up... -
Page 15: Crank Arm Pulley Assembly
ARCTIC SILVER QUIET DRIVE 95XE Crank Arm Pulley Assembly Retaining Ring 0017-00100-0107 Crank arm mounting bolt 0017-00101-1849 nut - 0017-00103-0334 Magnet Mounting screw 0017-00101-1835 washer 0017-00104-0144 Crank arm weld Assembly AK62-00205-0000 Magnet-Standoff Assembly AK62-00186-0000 95XE-0XXX-03 S/N AXG100000 and up Poly-V Crank Pulley 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001... -
Page 16: Drive Module
ARCTIC SILVER QUIET DRIVE 95XE Drive Module Crank Arm-Pulley Assembly See Page 15 for breakdown Crankshaft 0K62-01222-0000 J10 Flexonic Belt 0K62-01135-0000 Intermediate Shaft 0K62-01223-0000 Resistor Assembly Includes Power Control Cable AK62-00260-0000 95XE-0XXX-03 S/N AXG100000 and up Alternator-Flywheel Assembly AK61-00250-0001 Mando Alternator Brushes 0017-00009-0895 Right Crank Arm Weld Assembly... -
Page 17: Drive Module Hardware
ARCTIC SILVER QUIET DRIVE 95XE Drive Module Hardware Crankshaft 0K62-01222-0000 Square Machine Key (2) 0K53-01122-0000 Alernator-flywheel mounting bolt and nut bolt-0017-00101-1867 nut-0017-00103-0332 95XE-0XXX-03 S/N AXG100000 and up Alternator-Flywheel Assembly Mounting bolt 0017-00101-0986 Crank Arm Mounting bolt 0017-00101-1849 0017-00103-0334 Machine Key 0K53-01183-0000 Use Weld-Nut Kit GK62-00002-0068... -
Page 18: Cables
ARCTIC SILVER QUIET DRIVE 95XE Cables Coax Cable AK32-00020-0000 95XE-0XXX-03 S/N AXG100000 and up Heart Rate Cable in User Arm L or R AK61-00051-0001...
