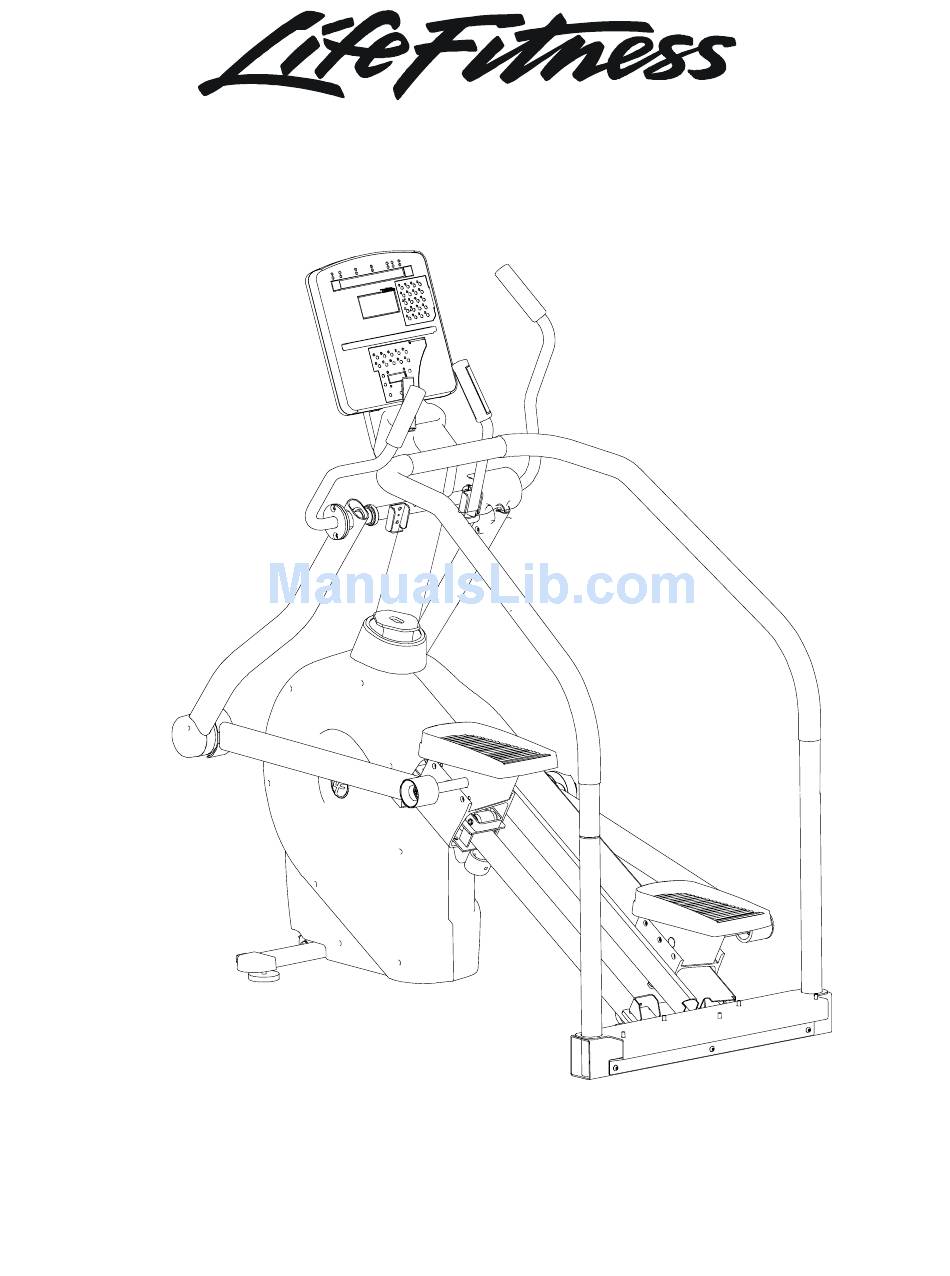

- Page 1 ARCTIC SILVER SUMMIT TRAINER 95LE-0XXX-01 Customer Support Services PARTS MANUAL rev 15 Jan 2008...
-
Page 2: Table Of Contents
ARCTIC SILVER SUMMIT 95LE 95LE-0XXX-01 CONTENTS S/N LEX100000 AND UP MISCELLANEOUS ...3 CONSOLE SUPPORT & DEADSHAFT COVERS...4 USER ARMS AND HARDWARE ...5 MONOCOLUMN, HANDRAIL AND VERTICAL UPRIGHTS ...6 COMPLETE CONSOLE ASSEMBLY ...7 CONSOLE COMPONENTS ...8 SHROUDS, BOOT AND REAR STEP ASSEMBLY ...9 ROCKER ARMS AND CONTROL LINK ASSY’S ... -
Page 3: Miscellaneous
ARCTIC SILVER SUMMIT 95LE MISCELLANEOUS OPERATION MANUAL – (ENG) OPERATION MANUAL – (F/S/P) OPERATION MANUAL – (G/D/I) OPERATION MANUAL – (JAP) OPERATION MANUAL – (CHI) OPERATION MANUAL – (KOR) OPERATION MANUAL – (RUS) SERVICE MANUAL HARDWARE BAG TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN... -
Page 4: Console Support & Deadshaft Covers
ARCTIC SILVER SUMMIT 95LE Console Support & Deadshaft Covers Console Support Cap 0K62-01030-0000 Console Support Assembly AK62-00123-0000 (6) Console Support Mtg. Screws 0017-00101-1791 Console Support Cover 0K62-01023-0000 (2) Console Support Cover Mtg. Screws 0017-00101-1796. (2) Front Outside Deadshaft Cover 0K62-01012-0000 (2) Rear Outside Deadshaft Cover 0K62-01013-0000 (2) Front Inside Deadshaft Cover... -
Page 5: User Arms And Hardware
ARCTIC SILVER SUMMIT 95LE User arms and hardware S/N LEX100000 AND UP Right User Arm with grip AK68-00143-0001 Left User Arm with grip AK68-00143-0002 Grip 0K62-01138-0000 (3) User Arm Mtg. Screws 0017-00101-1791 95LE-0XXX-01... -
Page 6: Monocolumn, Handrail And Vertical Uprights
ARCTIC SILVER SUMMIT 95LE Handrail and Vertical Uprights Monocolumn with inserts GK68-00002-0002 (3) Mounting Bolts 0017-00101-1881 (3) Washers 0017-00104-0469 Electrode Kit GK20-00002-0005 HR Bullhorn Cable ( 1 per bullhorn) AK47-00029-0000 (4) Upper Handrail Mounting Screws 0017-00101-1805 (4) Lower Handrail Mounting Screws 0017-00101-1760 (2) Vertical Upright Tube 0K68-01032-0000... -
Page 7: Complete Console Assembly
ARCTIC SILVER SUMMIT 95LE Complete Console Assembly AK68-00195-0001 AK68-00195-0004 AK68-00195-0006 AK68-00195-0007 AK68-00195-0011 AK68-00195-0012 AK68-00196-0002 AK68-00196-0003 AK68-00196-0004 AK68-00196-0007 AK68-00196-0008 AK68-00196-0009 AK68-00196-0010 AK68-00196-0011 AK68-00196-0012 CONSOLE ASSEMBLY CONS-ASSY: MFG; 95LE-01; FM; NTSC; ENG/LED CONS-ASSY: MFG; 95LE-01; FM; NTSC; SPN/MET CONS-ASSY: MFG; 95LE-01; FM; NTSC; JAP/MET CONS-ASSY: MFG;... -
Page 8: Arctic Silver Summit 95Le 95Le-0Xxx
ARCTIC SILVER SUMMIT 95LE 95LE-0XXX-01 Console Components S/N LEX100000 AND UP 0K62-01024-0002- PAL... -
Page 9: Shrouds, Boot And Rear Step Assembly
ARCTIC SILVER SUMMIT 95LE Shrouds, Boot and Rear Step Assembly Monocolumn Boot 0K68-01061-0000 Right Shroud Assembly AK68-00176-0000 Left Shroud Assembly AK68-00176-0001 Shroud Mtg. Screws (6 per shroud) 0017-00101-1796 95LE-0XXX-01 S/N LEX100000 AND UP Rear Step (plastic only) 0K68-01020-0000 Rear Step Assembly AK68-00136-0000 (3) Rear Step Mounting Screws... -
Page 10: Rocker Arms And Control Link Assy's
ARCTIC SILVER SUMMIT 95LE Rocker Arms and Control Link Assy’s Rocker Arm Washer 0017-00104-0418 Retaining Ring 0017-00100-0178 Rocker Arm Assembly AK68-000125-0000 Control Link Assembly AK68-00147-0000 95LE-0XXX-01 S/N LEX100000 AND UP Control Link Mounting Screw 0017-00101-1881 and Washer 0017-00104-0479... -
Page 11: Rocker Arm/Control Link Covers
ARCTIC SILVER SUMMIT 95LE Rocker Arm/Control Link Covers Inner Link Cover Assembly with Bracket AK68-00207-0000 (2) Bracket to Rocker Arm Mtg Screws 0017-00101-1846 Outer Cover Kit with Seal and Screw GK62-00002-0066 Right Clevis Cover Assy. AK68-00154-0001 95LE-0XXX-01 S/N LEX100000 AND UP 0K61-01283-0001 Left Clevis Cover Assy. -
Page 12: Pedal Track Covers And Hardware
ARCTIC SILVER SUMMIT 95LE Pedal Track Covers & Hardware Upper Track Cover Mounting Bracket 0K68-01087-0000 (4) Bracket Mounting Screws 0017-00101-1881 Lower Track Cover Mounting Bracket 0K68-01088-0000 (4) Bracket Mounting Screws 0017-00101-1881 (2) 2 00” Trimlok 0K68-01105-0000 1 250 “ Trimlok 0K68-01106-0000 95LE-0XXX-01 S/N LEX100000 AND UP... -
Page 13: Pedals, Truck And Rollers Assembly
ARCTIC SILVER SUMMIT 95LE Pedals, Truck and Roller Assembly Truck and Roller Assembly AK68-00110-0000 (4) Mounting Screws 0017-00101-1906 S/N LEX100000 AND UP Pedal ( Left and Right) 0K53-01027-0002 (4) Pedal Mtg. Screws 0017-00101-1912 Right Pedal Adaptor AK68-00129-0000 Left Pedal Adaptor AK68-00127-0000 (6) Pedal Adaptor Mounting Screws... -
Page 14: Resistor Assembly And Crossover Pulley
ARCTIC SILVER SUMMIT 95LE Resistor Assembly and Pulleys Crossover Pulley AK68-00104-0000 Mtg. Bolt 0017-00101-1911 0017-00103-0332 Resistor Assy. AK68-00108-0000 Resistor 100E-00002-0091 (2) Resistor Assy. Mtg. Screws 0017-00101-1797 95LE-0XXX-01 S/N LEX100000 AND UP... -
Page 15: Flexonic Belts And Tensioner Bracket
ARCTIC SILVER SUMMIT 95LE Flexonic Belts Flexonic Belts 0K62-01134-0000 Reed Switch AK68-00159-0000 95LE-0XXX-01 S/N LEX100000 AND UP Tensioner Bracket AK68-00130-0000 Tensioning Screw 0017-00101-1905 Tensioner Nut 0017-00103-0333 (3) Bracket Screws 0017-00101-1906 (3) Bracket Washers 0017-00104-0469... -
Page 16: Clutch Shaft And Sprockets
ARCTIC SILVER SUMMIT 95LE Clutch shaft and Sprockets Poly-V Pulley 0K35-01186-0007 (2) Set Screws 0017-00101-1833 Hex Key 0K53-01183-0000 Thrust washer 0K47-01104-0000 Retaining Ring 0017-00100-0107 (2) Hardened Washer 0K47-01105-0000 Users Right Clutch Sprocket AK68-00102-0001 Clutch Shaft 0K47-01024-0000 95LE-0XXX-01 S/N LEX100000 AND UP (3) Hardened Washer 0K47-01105-0000 (3) Thrust washer... -
Page 17: Clutch Pulley And Shaft Assembly
ARCTIC SILVER SUMMIT 95LE Clutch Pulley and Shaft Assembly Clutch Pulley & Shaft Assembly AK68-00105-0000 Assembly includes: (2) Bearings, Bearing Housing, Intermediate Shaft, Bearing Retainer, Retaining Rings and Bearing Retainer mounting screws. 95LE-0XXX-01 S/N LEX100000 AND UP Pulley with magnet AK68-00212-0000 Screw 0017-00101-1836... -
Page 18: Timing Belts And Springs
ARCTIC SILVER SUMMIT 95LE Timing Belts and Springs Upper Timing Belt AK68-00210-0000 S/N LEX100000 AND UP Note: The following parts are used on each end of both Timing Belts: Belt Terminator 0K35-01105-0000 Bracket 0K35-01142-0000 (2) Screws 0017-00101-1904 (2) Washers 0017-00104-0469 Upper Spring 0K68-01051-0000 Lower Spring... -
Page 19: Power Control Board, Battery & Alternator
ARCTIC SILVER SUMMIT 95LE Lower PCB, Battery and Alternator Alternator with flywheel Assembly AK68-00213-0001 Alternator 0017-00009-0841 Alternator Brush Kit 0017-00009-0895 Mtg. Hardware (1) - 0017-00101-0986 (1) -0017-00101-1867 (1) -0017-00103-0332 95LE-0XXX-01 S/N LEX100000 AND UP Power Control Board B084-92280-A000 (4) PCB Mtg. Screws 0017-00101-1838... -
Page 20: Access Panel, Wheels And Leg Levelers
ARCTIC SILVER SUMMIT 95LE Access Panel, Wheels and Leg Levelers End Cap 0K62-01003-0000 Leg Leveler 0K68-01047-0000 0017-00103-0330 Wheel 0017-00042-0674 Wheel Shaft 0K68-01045-0000 Access Panel Push On Cap Assembly 0017-00042-1066 AK68-00107-0001 Note: It is (see Miscellaneous recommended that page for parts a push on cap be breakdown) ordered whenever... -
Page 21: Lower Track Cover And Hardware
ARCTIC SILVER SUMMIT 95LE Lower Track Cover and Hardware Lower Track Cover Assembly AK68-00220-0000 Mounting Screw (3) 0017-00101-1906 Washer, Nylon (3) 0017-00104-0485 Flat Washer (3) 0017-00104-0479 95LE-0XXX-01 S/N LEX100000 AND UP... -
Page 22: Cables
ARCTIC SILVER SUMMIT 95LE Cables Polar Receiver Cable AK32-00017-0000 A084-92247-A013 ( NTSC) A084-92247-A014 ( PAL) A084-92251-A009 Headphone Jack Cable AK32-00009-0000 Life Pulse Cable Assy. AK32-00024-0001 Console Cable to Interface AK32-00026-0006 Power Cable to SBC AK32-00006-0006 95LE-0XXX-01 S/N LEX100000 AND UP Power Control Cable AK68-00156-0000...
