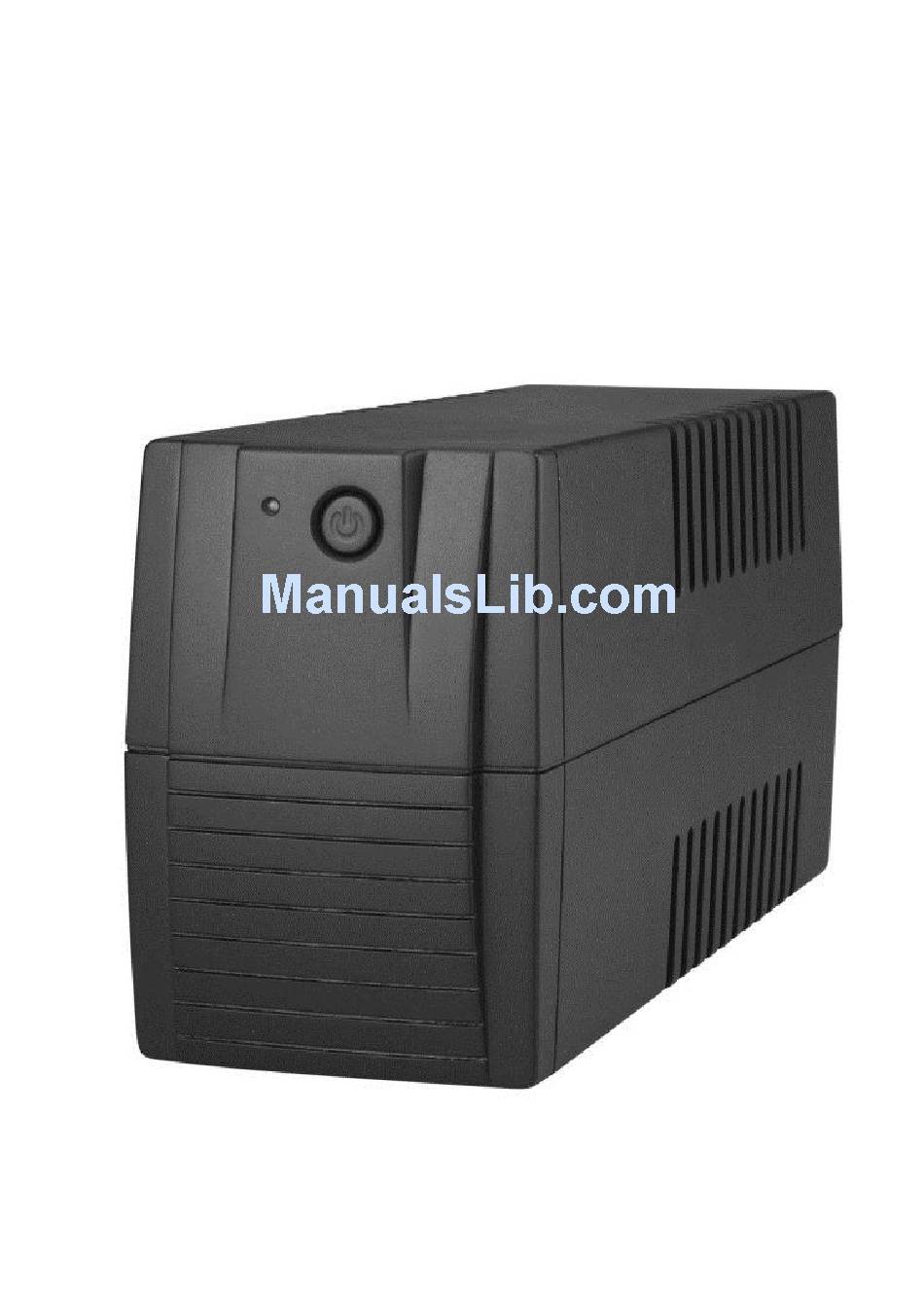

- Page 1 450VA/650VA/850VA User’s Manual Line Interactive UPS Uninterruptible Power System...
- Page 2 Line Interactive UPS 450VA/650VA/850VA Table of Contents Safety Instructions Installation and Operation Specifications System Introduction Software Installation Definitions of LED Indicators Trouble Shooting Guide Thank you for purchasing this UPS system product. For utilizing its features and benefits, please read the following instructions on its installation, usage and safety cautions thoroughly Safety Instructions (Keep this Manual Handy)
- Page 3 Line Interactive UPS 450VA/650VA/850VA CAUTION! CAUTIONS ON HANDLING THE UPS The UPS contains no user serviceable parts but hazardous voltage, and such service shall be performed by an equipped factory service technician. Do not disassemble and apply any service by yourself. Connection of the UPS to an outlet that is not designed for a two-pole, three-wire grounding plug may expose you to an electric leakage.
-
Page 4: System Introduction
Line Interactive UPS 450VA/650VA/850VA System Introduction This UPS has been designed to protect your personal computer and peripherals from possible power hazards. Its compact size makes itself very suitable for offices and home studios with limited space. It may be small, but can provide you the maximized power protection while a power failure arises. -
Page 5: Installation And Operation
Line Interactive UPS 450VA/650VA/850VA Installation and Operation ■ Inspect the UPS Take out the UPS from its packaging and check for any damage that might have occurred during shipping. If any damage is found, repack and return the UPS to your dealer. ■... - Page 6 Line Interactive UPS 450VA/650VA/850VA ■ Plug your Computer and its Peripherals to the UPS Plug your computer and its peripherals to the available output sockets on the back of the UPS respectively. ■ Turn On/Off UPS To start up the UPS, press the power switch button. (When switching on, the LED will light up).
-
Page 7: Trouble Shooting Guide
Line Interactive UPS 450VA/650VA/850VA Trouble Shooting Guide When your UPS is found not working normally, please refer to the following trouble shooting table to try to solve the problems. If any problem still persist or are not mentioned here, please call our service center for assistance. The UPS Fails to turn on and no LED lights Possible Cause Solution... -
Page 8: Specifications
Line Interactive UPS 450VA/650VA/850VA Specifications MODEL CAPACITY VA/W 450VA/240W 650VA/360W 850VA/480W Voltage 120VAC or 230VAC INPUT Voltage Range 85-145VAC / 170-280VAC Voltage 110/120VAC or 220/230/240VAC Voltage Regulation +/-10% (Batt. Mode) OUTPUT Frequency 50Hz or 60Hz Frequency Regulation +/-1 Hz (Batt. Mode) Output Waveform Modified Sine Wave Battery Type...
