Summary of Contents for Centralion DC UPS

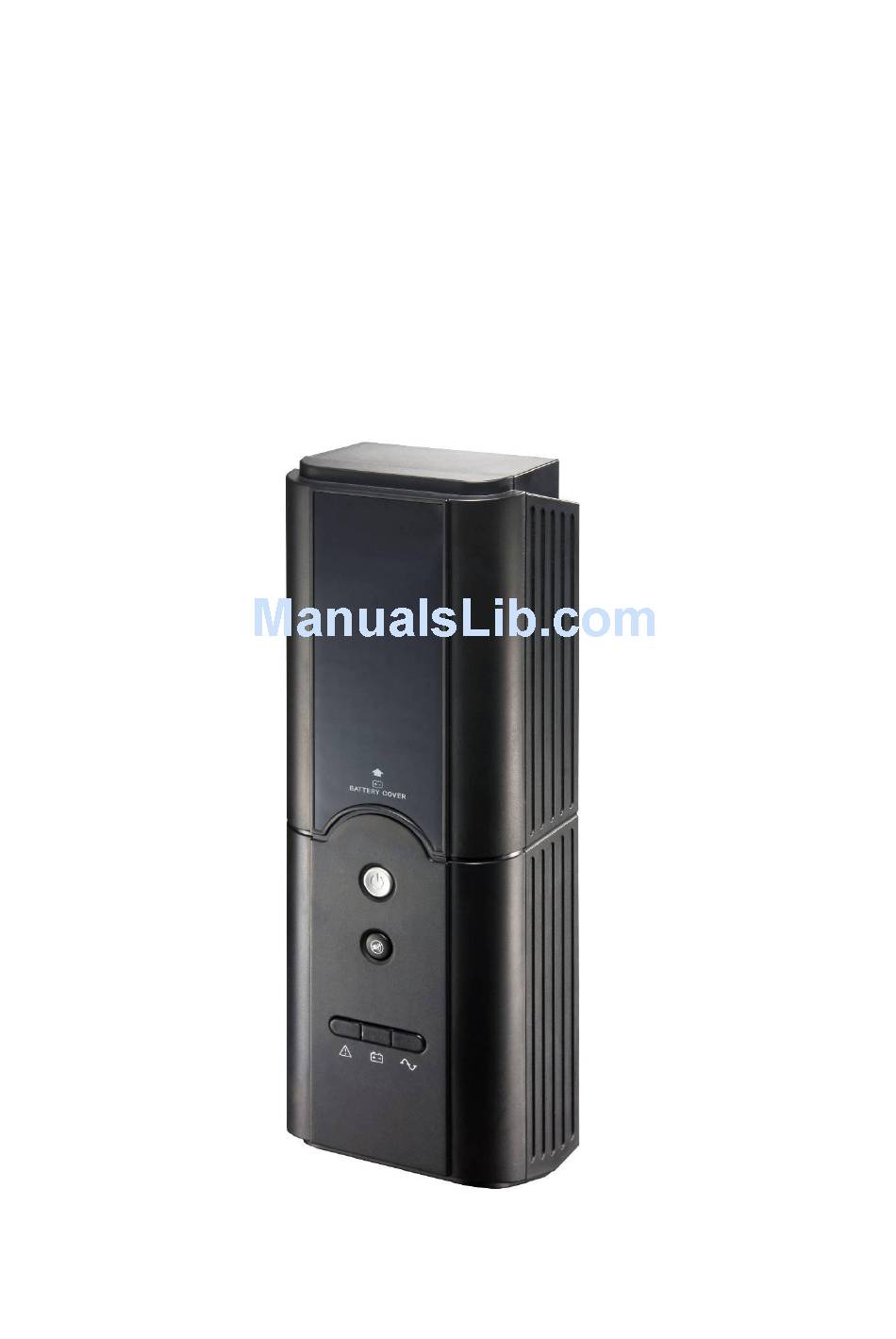

  • Page 1 DC UPS User Manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Introduction…………………………………………………………3-4 1.1 General Introduction …………………………………………3 1.2 Panel Introduction ……………………………………………3 1.3 The 7 Pin Terminal Connecters Introduction Table ………4 2. Safety Information…………………………………………………5 3. Package Contents…………………………………………………6 4. Installation …………………………………………………………7-9 4.1 Wire Connection ………………………………………………7-8 4.2 Wall-Mounting Instructions (Optional) ………………………9 5.

  • Page 3: Introduction

    DC to AC. The thoughtful wall-mount design allows you to install DC UPS to diverse environments for maximizing your precious space. DC UPS can be applied to any other device equipped with a compatible DC input connector.

  • Page 4: The 7 Pin Terminal Connecters Introduction Table

    The rear view  DC output socket TheDC outputincludes 12VDCpowe r, AC input socket four dry contact signals and common TheAC input socket is return point for these signals. Please IEC320 C14. findthe definensand wire connections for DC output socket as below table. 1.3 The 7 Pin Terminal Connecters Introduction Table Terminal Connectors Function...

  • Page 5: Safety Information

    The battery charges when it is connected to the AC power. The battery will fully charge during the first eight hours of normal operation. Do not expect full battery run capability during this initial charge period.  Connect the DC UPS to utility power for completely charging the internal battery before starting the UPS.

  • Page 6: Package Contents

    3. Package Contents The DC UPS package includes the following items. Please inspect if there are any missing parts. 1 x DC UPS Unit with 12V internal battery preinstalled 1 x User Manual 1 x 7-position connector...

  • Page 7: Installation

    4. Installation 4.1 Wire Connection 1. Remove the wire connection cover in the rear of the DC UPS. Keep the cover will and reinstall the cover after all the wires are well-connected. 2. Plug IEC-LOCAL power cord into the AC input socket on the back of DC UPS. Do not connect the AC power cord to utility outlet prior to this process.
  • Page 8 7-position connector. Make sure that the correct wire gauges are used for the safety (Please refer to “1.3 The 7 Pin Terminal Connecter Intro Table”) (2) Plug the 7-conductor cable into the outlet of the DC UPS (3)Then place the cable between the two sticks for fixing the cable as the following picture 4.

  • Page 9: Wall-Mounting Instructions (Optional)

    Step 5. If not, go to Step 4. STEP 3: Insert anchor(s) into the hole(s). STEP 4: Screw in the screw, leaving it protruding 1⁄4 inch from the wall. STEP 5: Mount the DC UPS on the screw heads. Mounting holes Mounting holes 80mm...

  • Page 10: Operation

    After the installation, you can start to operate the DC UPS and let your device running under uninterruptible power supply environment as the following procedure. STEP 1: Plug the AC input power cord of the DC UPS into the wall outlet (The utility power outlet) STEP 2: Push the power on/off switch and you may hear a long beep buzzer alarm for knowing the unit is properly turned on.

  • Page 11: Available & Visual Alarms

    Visual Indicator Audible Alarm Description ON A/C Green LED lights None The DC UPS is operating on A/C Testing Battery Green LED flashes None The DC UPS is conducting a self-test. This automatic procedure is normal and will occur when the unit is switched on, and periodically thereafter.

  • Page 12: Battery Replacement Procedure

    STEP 1 Turn off power switch. Disconnect the DC UPS from power and any connected devices. Remove the battery door on the front of the DC UPS by pulling up the battery door. STEP 2 Remove the battery from enclosure; remove the wire connections from the battery.

  • Page 13: Specifications

    8. Specifications Model Name DC UPS Nominal input voltage 230Vac INPUT Acceptable Input Voltage 80~260Vac Range Acceptable Input frequency 45Hz~65Hz Range Output power (max) Normal Voltage 12Vdc OUTPUT Output Voltage Range 10.5V~13.8V Line Mode Efficiency > 80% Type/Rating 12V/7Ah x 1pc Discharge Prevention 10.5V ±...
