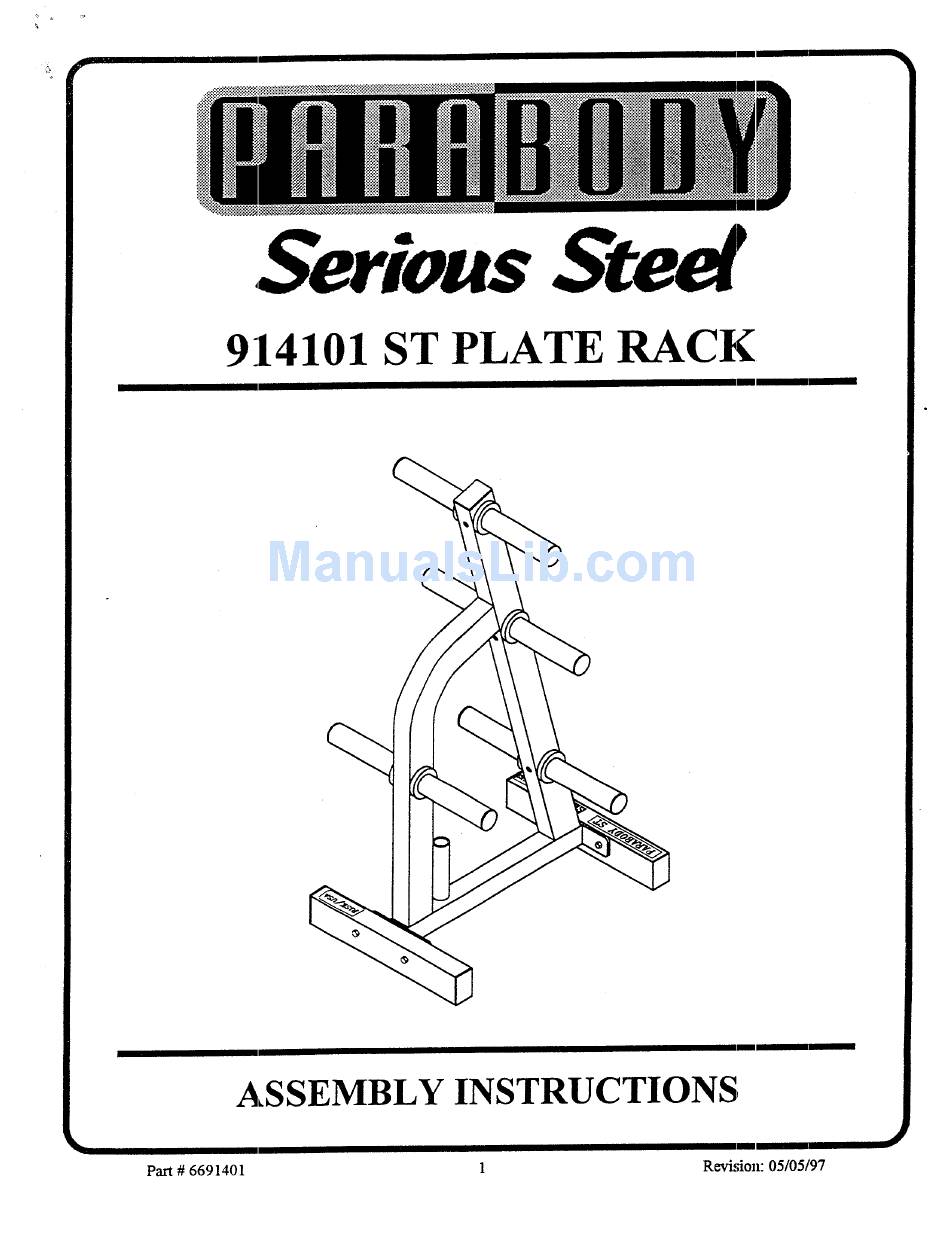

- Page 1 ~Serious Steel 9114101 ST PLATE RACK ASSEMBLY INSTRUCTIONS Revis’ion: 05/05/97 Part # 6691401...
- Page 2 Parabody customer service department at (800) 328-9714. Please note: * Thank you for purchasing the Parabody 914101 ST PLATE RACK. Please read these instructions thoroughly and keep them for furore reference. This product :must be assembled on a fiat, level surface to assure its proper function.
- Page 3 PART # 6690101 6690401 3102502 3102910 3102801 3102502 3102502 3202401 6615503 1/2 X 3" FIGURE 1 STEP 1: SECURELY assemble two 3 X 2 X 18" TUBES (9) to the FRAME WELDMrI BOLTS (4) four 1/2" FLAT WASHERS (7) and four 1/2" LOCKNUTS (5) ~s shown in FIGURE PARTS LIST DESCRIPTION FRAME WELDMENT...
- Page 4 FIGURE 2 STEP 2: Insert the four 1.-1/2 DIA X 19" TUBES (2) through the side of FRAME WELDM[ENT hole in the 19" :IqJ-BES (2) lines up with the holes in the FRAME WELDMENT STEP 3: SECURELY assemble the four 1-1/2" DIA X 19" TUBES (2) to the FRAME WF, LDMENT (1) using four 3/8-16 X 1"...
