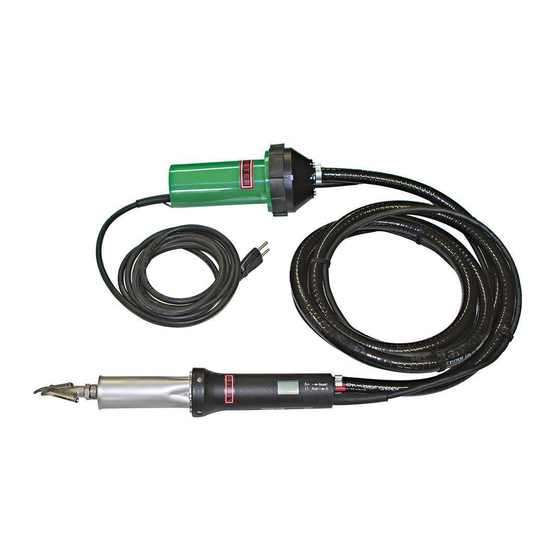

Leister Diode S Operating Instructions

Hot air tool
Hide thumbs Also See for Diode S:
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual

OPERATING INSTRUCTIONS

GB
LEISTER Diode S, Diode PID
Hot Air Tool
Please read operating instructions carefully
before use and keep for further reference.

APPLICATION

• The LEISTER Hot Air Pistol Diode S, Diode PID is designed for continuous
operation and is suitable as a hand tool or for building into machines, instal-
lations and appliances
• Welding of thermoplastic materials and also single-ply flexible plastics and
modified bitumen in the form of boards, tubes, profiles, lining membranes,
coated materials, films, foams, tiles, and sheets. The following procedures
are possible: overlap welding, welding with rod, with tape, butt welding
and melt welding
• Heating-up for forming, bending and sealing of thermoplastic semi-
finished materials and plastic granules
• Drying of water-damp surfaces
• Shrinking of heat-shrink sleeves, films, tapes, solder sleeves and moulded parts.
• Soldering copper pipes, solder joints and metal foils
• Activating/dissolving of solvent free adhesives and fusion adhesives.
• Separating and fusing synthethic fibres and fabrics
• Removing plastic mould flash and putting a shine on plastic surfaces
LEISTER Diode PID
• Temperature electronically
steplessly controlled
• Digital display of SET and
ACTUAL value °C
(in °F on request)
• Air flow monitoring
• Element protection
• Heat protection tube
LEISTER Diode S
• Temperature steplessly
adjustable
• Element protectoion
• Heat protection tube
LEISTER Process Technologies, Riedstrasse, CH-6060 Sarnen / Switzerland
Tel. + 41- 41 662 74 74 Fax + 41- 41 662 74 16
www.leister.com
®
sales@leister.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Diode S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leister Diode S

Summary of Contents for Leister Diode S

  • Page 1: Operating Instructions

    Please read operating instructions carefully before use and keep for further reference. APPLICATION • The LEISTER Hot Air Pistol Diode S, Diode PID is designed for continuous operation and is suitable as a hand tool or for building into machines, instal- lations and appliances •...
  • Page 2 WARNING Danger to life when opening the tool, as live compo- nents and connections ar exposed. Unplug the tool before opening it. Incorrect use of hot air blowers can cause fire and explosion hazard, especially near combustible materials and explosive gases. Do not touch the element housing and nozzle when they are hot as they can cause burns.
  • Page 3 1 mm max. (in accordance with DVS 2208 part II). ATTENTION • The Hot Air tool should be placed on a heat resistant surface or use LEISTER tool stand . The tool must not be operated without air supply.
  • Page 4 • Guarantee and liability will be in accordance with the guarantee certificate as well as the current valid general business and sales conditions. • The LEISTER Company rejects any guarantee claims for tools which are not in their original condition. The tools must never be altered or changed.
