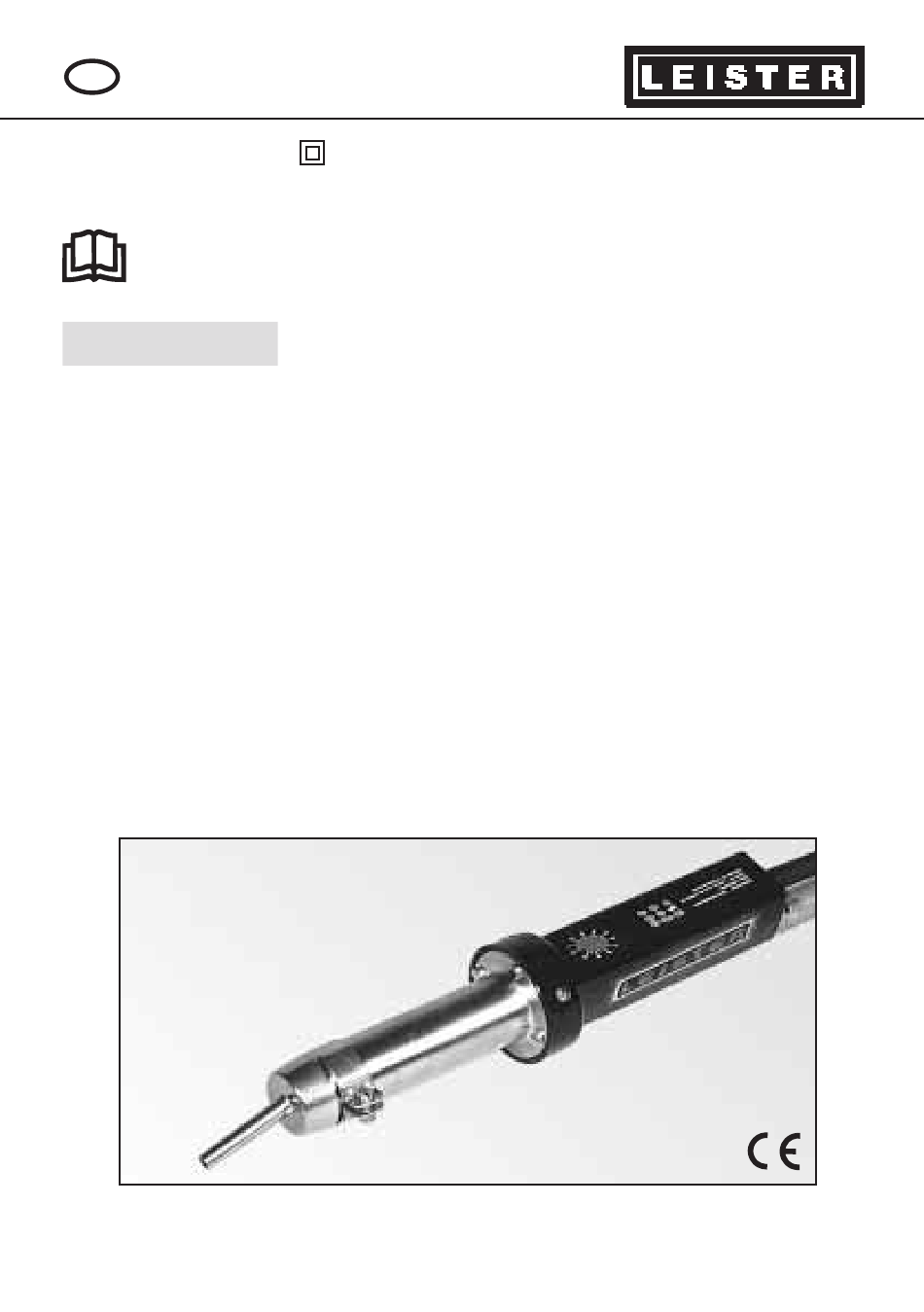

OPERATING INSTRUCTIONS

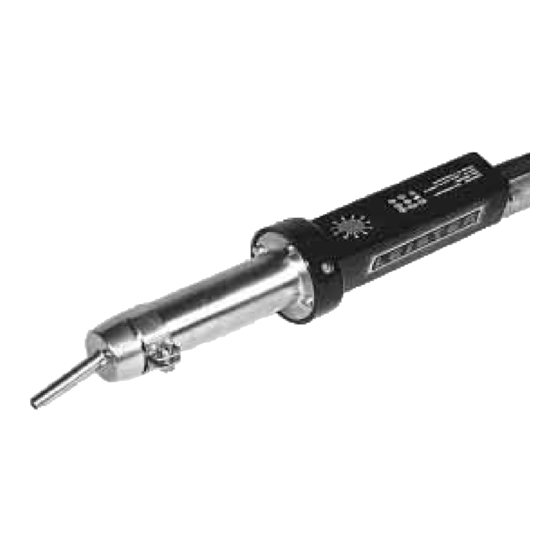

LEISTER Diode

Hot Air Pistol

Please read operating instructions carefully

before use and keep for further reference.

APPLICATION

• The Hot Air Pistol Diode is designed for continuous operation and is suitable

as a hand tool or for building into machines, installations and appliances

• Welding of thermoplastic materials and also single-ply flexible plastics and

modified bitumen in the form of boards, tubes, profiles, lining membranes,

coated materials, films, foams, tiles, and sheets. The following procedures

are possible: overlap welding, welding with rod, with tape, butt welding

and melt welding

• Heating-up for forming, bending and sealing of thermoplastic semi-finished

materials and plastic granules

• Drying of water-damp surfaces

• Shrinking of heat-shrink sleeves, films, tapes, solder sleeves and moulded parts.

• Soldering copper pipes, solder joints and metal foils

• Activating/dissolving of solvent free adhesives and fusion adhesives.

• Separating and fusing synthethic fibres and fabrics

• Removing plastic mould flash and putting a shine on plastic surfaces
