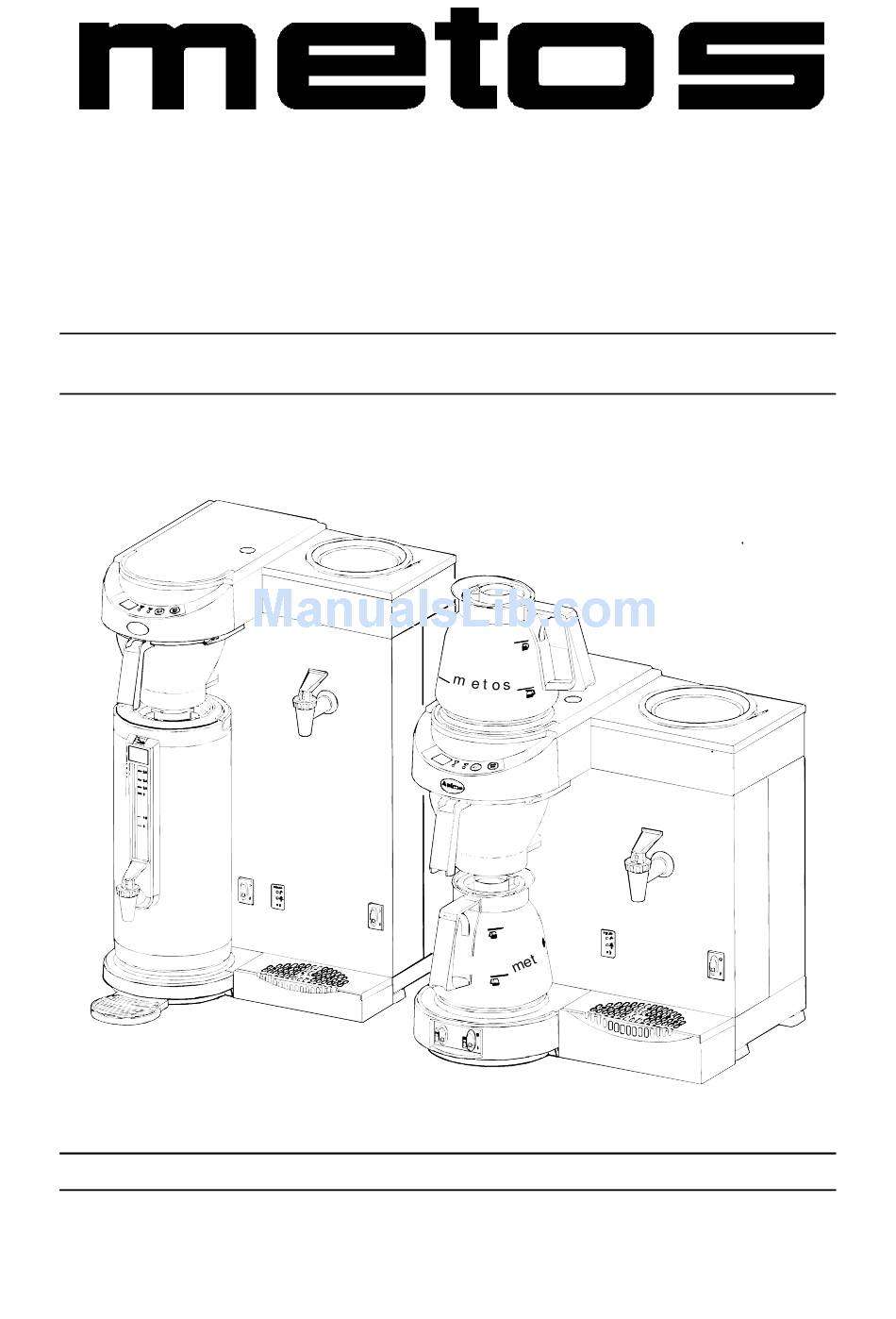

- Page 1 COFFEE MAKER M-Series TYPE: M200W, M202W, MT200W, MT202W Installation and Operation Manual S/N: Rev.: 2.1...
- Page 3 Dear Customer, Congratulations on deciding to choose a Metos appliance for your kitchen activities. You made an excellent choice. We will do our best to make you a satisfied Metos customer like thousands of customers we have around the world.
- Page 4 8.5.2008 Rev. 2.1...
-
Page 5: Table Of Contents
8.5.2008 Rev. 1. General ......................1 1.1 Symbols used in the manual ..................1 1.2 Symbols used on the appliance ..................1 1.3 Checking the relation of the appliance and the manual ..........1 2. Safety instructions ..................2 2.1 General .......................... 2 2.1.1 Instructions for use .................... - Page 6 8.5.2008 Rev. 4.2.1 Making coffee ...................... 13 4.2.2 Water boiler ......................13 4.2.3 Potentials of the water boiler ................14 4.2.4 Settings ......................... 14 4.3 Maintenance ........................ 17 4.3.1 Cleaning of the appliance and accessories ............17 4.3.2 Removing coffee deposits from glass jug and filter ..........17 4.3.3 Removing coffee deposits from thermos jug ............
-
Page 7: General
8.5.2008 Rev. 2.1 General 1. General Carefully read the instructions in this manual as they contain important information re- garding proper, efficient and safe installation, use and maintenance of the appliance. Keep this manual in a safe place for eventual use by other operators of the appliance. The installation of this appliance must be carried out in accordance with the manufactur- er’s instructions and following local regulations. -
Page 8: Safety Instructions
8.5.2008 Rev. 2.1 Safety instructions 2. Safety instructions 2.1 General This appliance meets the mandatory safety regulations. Inexpert use can result in personal injury and material damage. The following warnings and safety instructions must be ob- served before using the coffee maker. 2.1.1 Instructions for use Read these instructions for use carefully, before using this appliance. -
Page 9: Maintenance And Troubleshooting
8.5.2008 Rev. 2.1 Safety instructions 2.1.4 Maintenance and troubleshooting • Observe the descaling intervals indicated by the descaling indicator light. • Overdue maintenance to the heating system can result in high repair costs and an- nulment of the guarantee. • Always follow the manufacturer’s instructions when using the descaling agent. -
Page 10: Start/Stop Button (5.5)
8.5.2008 Rev. 2.1 Safety instructions 2.2.3 Start/stop button (5.5) The coffee making process can be interrupted at any point using the Start/stop button lo- cated on the control panel. 2.2.4 Jug detector (10) This appliance is fitted with a jug detector that operates the leak stop under the filter. This jug detector also ensures that the appliance only makes coffee if there is a jug under the filter. -
Page 11: Functional Description
8.5.2008 Rev. 2.1 Functional description 3. Functional description 3.1 Use of the appliance The sole use of this appliance is to make coffee and/or tea, and to warm water. 3.1.1 Other use The use of the appliance for other purposes is not permitted and may be hazardous. The manufacturer cannot be held liable for losses caused by using the appliance for purposes other than those indicated here or by incorrect use. -
Page 12: Construction
8.5.2008 Rev. 2.1 Functional description 3.2 Construction... -
Page 13: Control Panel Of The Coffee Making Section
8.5.2008 Rev. 2.1 Functional description The most important parts (see pic.): Appliance on/off switch, coffee making section and bottom hot plate On/off switch for top hot plate Basket filter with leak stop device Basket filter paper Control panel coffee making section (see below for details) Top hot plate Glass jug/thermos flask Descaling opening... -
Page 14: Display (5.1)
8.5.2008 Rev. 2.1 Functional description 3.3.1 Display (5.1) The display shows the selected amount of coffee, in terms of cups or litres. For display in litres, see Settings chapter.While the coffee is being made the display alternately shows the selected amount and the amount of coffee that has already been made. 3.3.2 Descale indication light (5.2) The red indicator light will light up if the appliance needs to be descaled. -
Page 15: Sound Signals
8.5.2008 Rev. 2.1 Functional description 3.3.4 Sound signals Sounds three times at the end of the coffee making process. Sounds once if the jug is re- moved during the coffee making process. A long signal sounds when the appliance is switched on. -
Page 16: Temperature Ok Indicator Light (12.2)
8.5.2008 Rev. 2.1 Functional description 3.4.2 Temperature ok indicator light (12.2) The green indicator light lights up when the water boiler has reached the correct temper- ature. The control light turns off when the water temperature is too low. 3.4.3 Temperature adjuster water boiler (12.3) With this tuner the water boiler temperature can be increased/reduced, using a small screwdriver. -
Page 17: Operation Instructions
8.5.2008 Rev. 2.1 Operation instructions 4. Operation instructions 4.1 First time use Ensure that the mains lead does not come into contact with the hot plates (if present). When used for the first time the appliance works according to the standard factory set- tings. -
Page 18: Daily Use
8.5.2008 Rev. 2.1 Operation instructions 4.1.1 Daily use Leak stop This appliance is fitted with a leak stop that ensures that no coffee drips out of the filter when you: • take away the jug after making coffee. • take the filter out of the appliance after making coffee to empty it. The leak stop can only work if the jug detector is pressed in sufficiently by the jug. -
Page 19: Operation Procedures
8.5.2008 Rev. 2.1 Operation instructions 4.2 Operation procedures 4.2.1 Making coffee • Place a sheet of basket filter paper containing the desired amount of coffee (fast filter type) in the basket filter. See the table above for the amount of coffee re- quired. -
Page 20: Potentials Of The Water Boiler
8.5.2008 Rev. 2.1 Operation instructions 4.2.3 Potentials of the water boiler • Tap hot water off (a maximum of 1.8 litres at a time). It will take approx. 5 minutes before the temperature of the water boiler is restored. (M(T)202W approx. 4 min.) •... - Page 21 8.5.2008 Rev. 2.1 Operation instructions...
- Page 22 8.5.2008 Rev. 2.1 Operation instructions Setting of the display to show cups or litres The appliance is factory set to display the number of cups. If you want the display to show litres, you can adjust it as follows: • Press the selection button (5.4) and hold it in, the press the start/stop button (5.5) once.
-
Page 23: Maintenance
8.5.2008 Rev. 2.1 Operation instructions 4.3 Maintenance 4.3.1 Cleaning of the appliance and accessories The appliance must not be submerged or sprayed. • Clean the outside of the appliance with a clean, damp cloth, if necessary using mild (non-abrasive) cleaning agent. •... -
Page 24: Descaling
8.5.2008 Rev. 2.1 Operation instructions 4.3.4 Descaling Stay close to the appliance when performing maintenance. It is advisable to wear safety glasses and protective gloves when descaling the appliance. Flush the appliance at least two times after descaling it. Wash your hands thoroughly after descaling the appliance. Observe the descaling intervals indicated by the descale indicator light. -
Page 25: Descaling The Water Boiler
8.5.2008 Rev. 2.1 Operation instructions 4.3.6 Descaling the water boiler Leave the lid of the water boiler open during the descaling process. • Before descaling the water boiler, carefully read the instructions for use on the des- caling agent. • Switch the water boiler off when the temperature ok indicator light (12.2) is on. -
Page 26: Installation
8.5.2008 Rev. 2.1 Installation 5. Installation 5.1 General 5.1.1 Unpacking The machine has been carefully packed to prevent damage being caused to your new cof- fee maker. Remove the packing carefully without using sharp objects. Check if the appli- ance is complete. The appliance is delivered with the following accessories: M 200W M 202W MT 200W... -
Page 27: Installation
8.5.2008 Rev. 2.1 Installation 5.2 Installation 5.2.1 Preparation for positioning the appliance Water always remains in the heating system: for this reason the appliance must not be placed in an area where the temperature can fall below freezing point. • Position the appliance at buffet height on a firm, level base that can bear the weight of the appliance when it is filled. -
Page 28: Setting The Descale Indicator
8.5.2008 Rev. 2.1 Installation 5.2.5 Setting the descale indicator Scale deposits are left in the heating system when the appliance is used. The amount of scaling depends on the hardness of the water being used. The appliance is fitted with a descale light (5.2), which lights up when the heating system has processed a certain quan- tity of water and has to be descaled. -
Page 29: Service
8.5.2008 Rev. 2.1 Troubleshooting 6. Troubleshooting Have all repairs to the electrical system performed by a qualified service technician. If your appliance is not functioning correctly, use the troubleshooting guide below to see whether you can resolve the problem yourself. If not, please contact your dealer. Symptom Possible cause Action... - Page 30 8.5.2008 Rev. 2.1 Troubleshooting Symptom Possible cause Action After filling until the max. level, the The dry-boil protection has been Switch the dry-boil protection back on. heating is not switched on. switched off. The water boiler does not heat up, both The safety electrode has turned off the Switch off the water boiler.
-
Page 31: Technical Specifications
8.5.2008 Rev. 2.1 Technical specifications 8. Technical specifications Electrical diagram M200W Electrical diagram M200W Electrical diagram M202W Electrical diagram M202W Electrical diagram MT200W Electrical diagram MT200W Electrical diagram MT202W Electrical diagram MT202W Installation drawing M200W, M202W Installation drawing MT200W, MT202W... - Page 32 Electrical diagram M200W...
- Page 33 Electrical diagram M200W...
- Page 34 Electrical diagram M202W...
- Page 35 Electrical diagram M202W...
- Page 36 Electrical diagram MT200W...
- Page 37 Electrical diagram MT200W...
- Page 38 Electrical diagram MT202W...
- Page 39 Electrical diagram MT202W...
- Page 40 E = Electric connection / Elanslutning / Sähköliitäntä W = Water connection / Vattenanslutning / Vesiliitäntä Installation drawing M200W, M202W...
- Page 41 E = Electric connection / Elanslutning / Sähköliitäntä W = Water connection / Vattenanslutning / Vesiliitäntä Installation drawing MT200W, MT202W...
- Page 42 0W,MT202W Empty weight M200W,MT200W 14 kg Empty weight M202W 22 kg Empty weight MT202W 23 kg Transport dimensions (LxWxH) M200W 600x475x520 mm Transport dimensions (LxWxH) M202W 600x700x520 mm Transport dimensions (LxWxH) MT200W 485x445x910 mm Transport dimensions (LxWxH) MT202W 700x445x910 mm...
