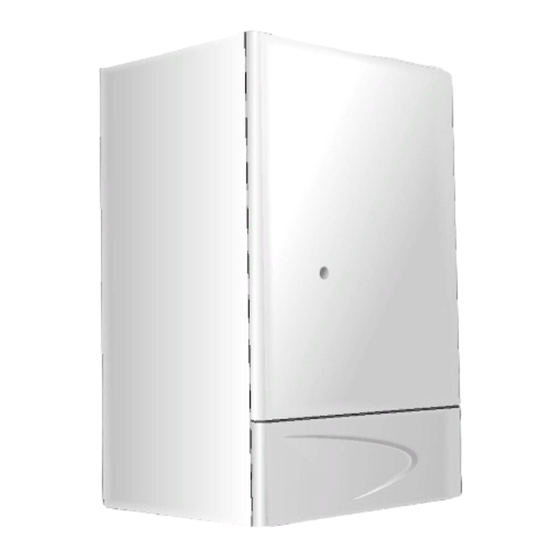

Ariston Genus 27 Plus User Manual
  1. Manuals
  2. Brands
  3. Ariston Manuals
  4. Boiler
  5. Genus 27 Plus
  6. User manual

Ariston Genus 27 Plus User Manual

Hide thumbs Also See for Genus 27 Plus:

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual
Users
Manual
403

Advertisement

loading
Need help?

Need help?

Do you have a question about the Genus 27 Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Ariston Genus 27 Plus

Summary of Contents for Ariston Genus 27 Plus

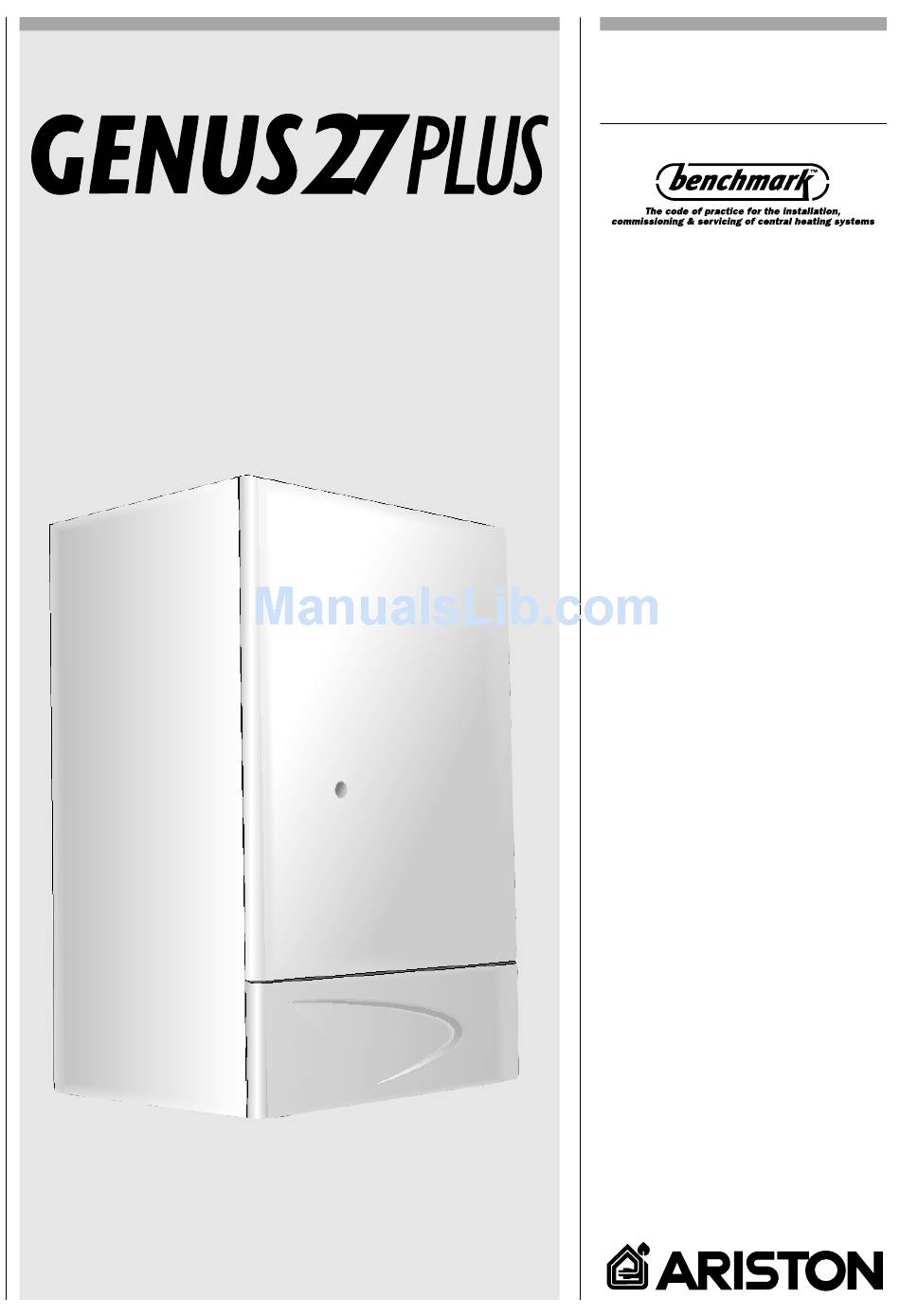

  • Page 1 Users Manual...
  • Page 2 Dear Customer, Thank you for choosing an ARISTON boiler. We guarantee that your boiler is a reliable and technically sound product. This User’s Manual provides detailed instructions and recommendations for proper installation, use and maintenance. Remember to keep this manual in a safe place for future reference i.e. by the gas meter.

  • Page 3: Control Panel

    1. GENERAL MTS (GB) Limited support the initiative. Your installer will give you, and show you how to use, a logbook which will give you important INFORMATION information about your boiler, and heating system. Please have this logbook to hand whenever you contact a service engineer or us. All CORGI Registered Installers carry a CORGI ID card, and have a registration number.
  • Page 4 CAUTION 2. OPERATING Installation, start-up, adjustments and maintenance must be INSTRUCTIONS performed by a competent person only, in accordance with the current Gas Safety (Installation & Use) Regulations and the instructions provided. Improper installation may cause damage or injury to individuals, animals and personal property, for which the manufacturer will not be held liable.
  • Page 5 does not light within the pre-set safety time limit, the red “B” L.E.D. will light up. To reset the ignition system, the reset button “A” must be pressed. Should the system fail to light a second time, check to make sure that the gas cock is open.

  • Page 6: Adjusting The Heating Temperature

    Installation with a room thermostat: - Turn the “C” selector knob to < >; - Turn on the power supply to the boiler by pressing the On/Off switch ”L”; the green L.E.D. will then turn on; - Turn the thermostat knob “H” to the highest temperature setting. - With this type of installation, the boiler is controlled by a room thermostat UT008Af...

  • Page 7: Shutdown Procedure

    SHUTDOWN PROCEDURE To turn off the main burner, simply press the On/Off switch “L”; the green L.E.D. “I” will also turn off. As a precautionary measure, it is recommended that the gas cock located on the bottom of the boiler be turned off as well. UT008Aa 3.
  • Page 8 Automatic Manual Continuous Operation Operation Operation = ON = ON = Continuously ON = OFF = OFF = Continuously OFF The switching If the current You can only times corres- switching mode is return to automatic pond to the changed manually, mode from the program the next switching...
  • Page 9 Reading the programmed switching times Pressing the “Prog” key displays the programmed switching times until the first free memory location appears in the display “– – : – –”. If you now press the “Prog” key once again, the number of free memory Iocations will be displayed, e.g.

  • Page 10: Boiler Shutdown

    4. USEFUL INFORMATION AND TROUBLESHOOTING BOILER SHUTDOWN The boiler unit is equipped with safety devices which intervene in certain situations to shutdown the boiler. Some of these situations are signalled by the unit and can be corrected by the user. SHUTDOWN DUE TO THE FAILURE OF THE BURNER TO LIGHT AUTOMATICALLY This anomaly is indicated by the red “B”...
  • Page 11 FLUE TEST FEATURE (only for authorised personnel) The “C” Summer/Winter/Flue Test selector knob can be set to < > to bypass temperature adjustment on the heating circuit for the purpose of analysing the fumes produced by combustion. To access this mode, open a water tap or taps so that the flow rate is no less than 8 litres per minute.
  • Page 12 Manufacturer: Merloni TermoSanitari SpA - Italy Commercial subsidiary: MTS (GB) LIMITED MTS Building Hughenden Avenue High Wycombe Bucks HP13 5FT Telephone: (01494) 755600 Fax: (01494) 459775 Internet: http://www.mtsgb.ltd.uk E-mail: info@mtsgb.ltd.uk Technical Service Hot Line: (01494) 539579...
