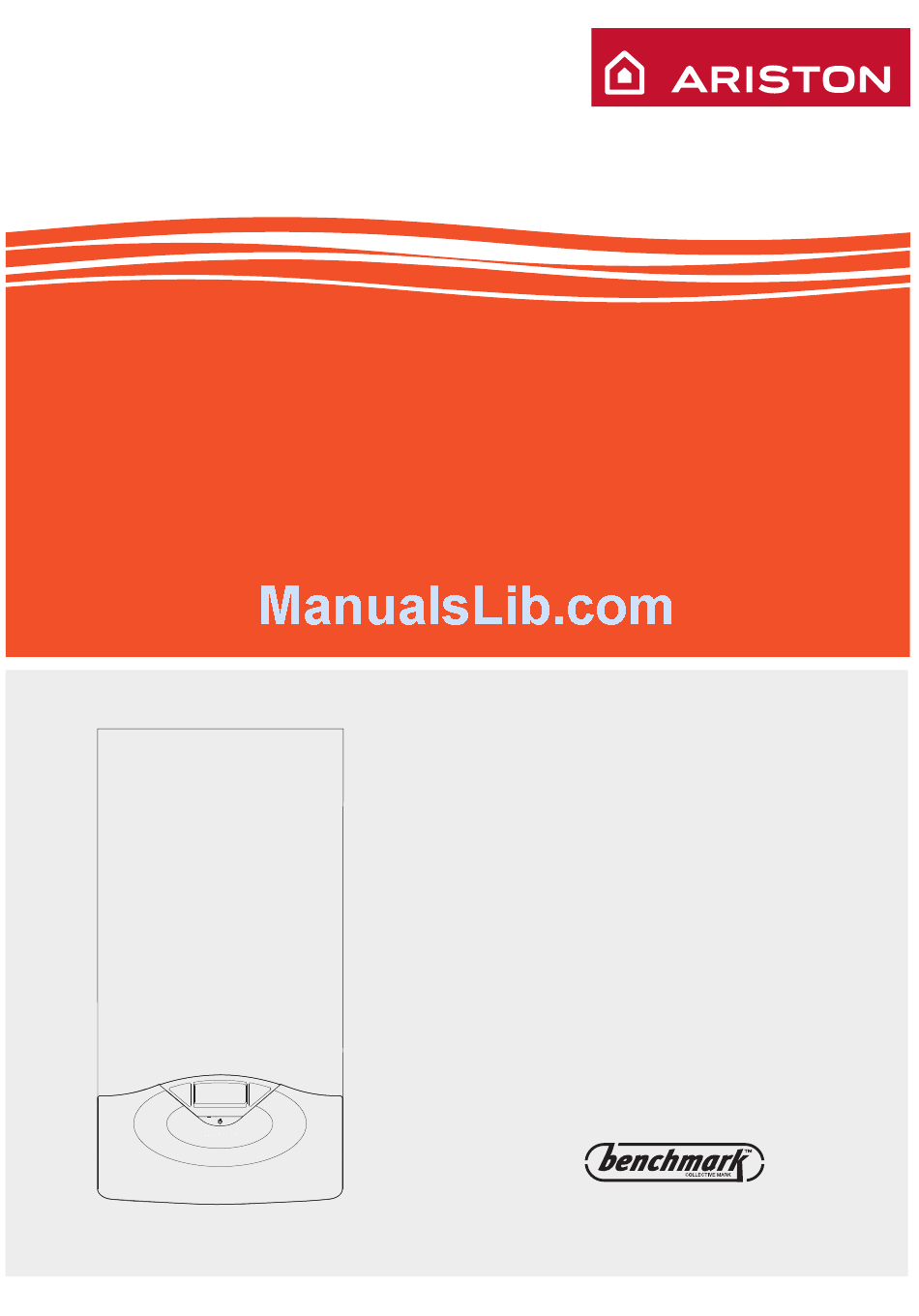

User'Manual
GENUS
HE
Condensing wall hung system boiler
G.C.N : 47-116-54 (24 kW)
G.C.N : 47-116-55 (30 kW)
G.C.N : 47-116-56 (38 kW)
GENUS HE 24
GENUS HE 30
GENUS HE 38
The code of practice for the installation,
commissioning & servicing of central heating systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENUS HE 24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ariston GENUS HE 24

  • Page 1 Condensing wall hung system boiler G.C.N : 47-116-54 (24 kW) G.C.N : 47-116-55 (30 kW) G.C.N : 47-116-56 (38 kW) GENUS HE 24 GENUS HE 30 GENUS HE 38 The code of practice for the installation, commissioning & servicing of central heating systems...
  • Page 2 Service under the guarantee does not affect the expiry date of the gua- Thank you for choosing an ARISTON boiler. rantee. The guarantee on parts and appliances which are exchanged ends when the guarantee on the original appliance expires.
  • Page 3: Timer Programming

    User’s manual Auto Function Timer Programming The AUTO function serves to optimise boiler The boiler allows the temperature to be scheduled performance, while maintaining an optimum radiator as required directly from the control panel which temperature and maximum user comfort. It ensures displays the operating periods throughout the day.
  • Page 4 User’s manual Display ABCDEFGHIL123456 17 . Weekly programming Schedule programming Initial operating and filling procedures. Day of the week (Mon..Sun) Check the water pressure on the display regularly and make sure Zone indication relating to the that the figure is between 0.6 and1.5 bar when the system is cold. display/setting process of the Hea- If the pressure is just under the minimum value the display will ting schedule programming (zone...
  • Page 5 User’s manual Operating mode selection Switching off the heating Use the MODE button 6 to select the desired operating mode. To switch off the heating, press the MODE button; the heating ope- ration symbol will disappear from the display. The Mode button Operating mode Display can be used to keep the domestic hot water production process...
  • Page 6: Operation Shutdown

    User’s manual Appliance shut-off conditions IMPORTANT IF THIS SHUTDOWN OCCURS FREQUENTLY, CONTACT AN The boiler is protected from malfunctions by means of internal checks performed by the electronic P.C.B., which stops the boiler AUTHORISED SERVICE CENTRE FOR ASSISTANCE. FOR SAFETY from operating if necessary.
  • Page 7: Time-Date-Language

    User’s manual Accessing the settings and adjustment menus MENU 0 The Menu/Ok button can be used to access a series of menus which enable boiler operation to be adapted to the system and to the demands of the user. The available menus are as follows: description menu 0 = Time-Date-Language “Display text”...
  • Page 8: Weekly Programming

    User’s manual MENU 1 WEEKLY PROGRAMMING SET TIMERS The boiler is supplied with three default operating The boiler can be set to follow a weekly programme which ensures programmes the operation of the appliance fits your requirements and your (menu 1 - parameter“pre-set timer” 1 06). lifestyle.
  • Page 9 User’s manual Enabling one of the pre-set programmes Press the c button until the text “OFF lock Period” appears. To activate one of the pre-set weekly programmes, proceed as To programme a further inactive heating follows: - press the M button, on the display flash period (e.g.
  • Page 10 User’s manual Applying a modification to other days of the week Party function If you wish to modify the programming for a particular day of the The Party function allows you to set heating operation on (Comfort pro- gramme) for a minimum period of 15 minutes and a maximum period week (e.g.
  • Page 11 User’s manual MENU 4 - MENU 5 Setting day and night temperatures for heating zone PARAMETERS HEATING ZONA 1 & 2 If the boiler Genus is connected to a bus device (e.g. remote control CLIMA MANAGER), the desired ambient temperature can be set for day and night according to the schedule programme entered.
  • Page 12 User’s manual Set fixed flow temperature on the heating zone INFO ( ) - display only - accessed by pressing the button The parameter is used to modify the heating flow temperature if the temperature regulation at a fixed value is activated. The temperature of Zone 1 and Zone  (if present) may be adjusted.
  • Page 13: Maintenance

    User’s manual Auto button - Temperature adjustment activation Change of gas type The AUTO function enables boiler operation to be adapted to Our boilers are designed to function either with Natural Gas (meth- environmental conditions and to the type of system it is installed ane) or L.P.G.
  • Page 14 User’s manual...
  • Page 15 User’s manual...
  • Page 16 Commercial subsidiaries: MTS (GB) Limited Professional Team Limited MTS Building Suites 9 & 10, Plaza 56 Hughenden Avenue Blanchardstown Corporate Park  High Wycombe Ballycoolin Bucks HP1 5FT Dublin 15 Telephone: (01494) 755600 Telephone: (01) 810 7 Fax: (01494) 459775 Fax: (01) 810 77 Internet: www.mtsgroup.com/uk Internet: www.mtsgroup.com/ie...
