Wildix W-AIR 70 User Manual

Hide thumbs Also See for W-AIR 70:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administrator's Manual
W-AIR 70 cordless phone
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
User Manual
Version: 01.10.2014
!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W-AIR 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wildix W-AIR 70

Summary of Contents for Wildix W-AIR 70

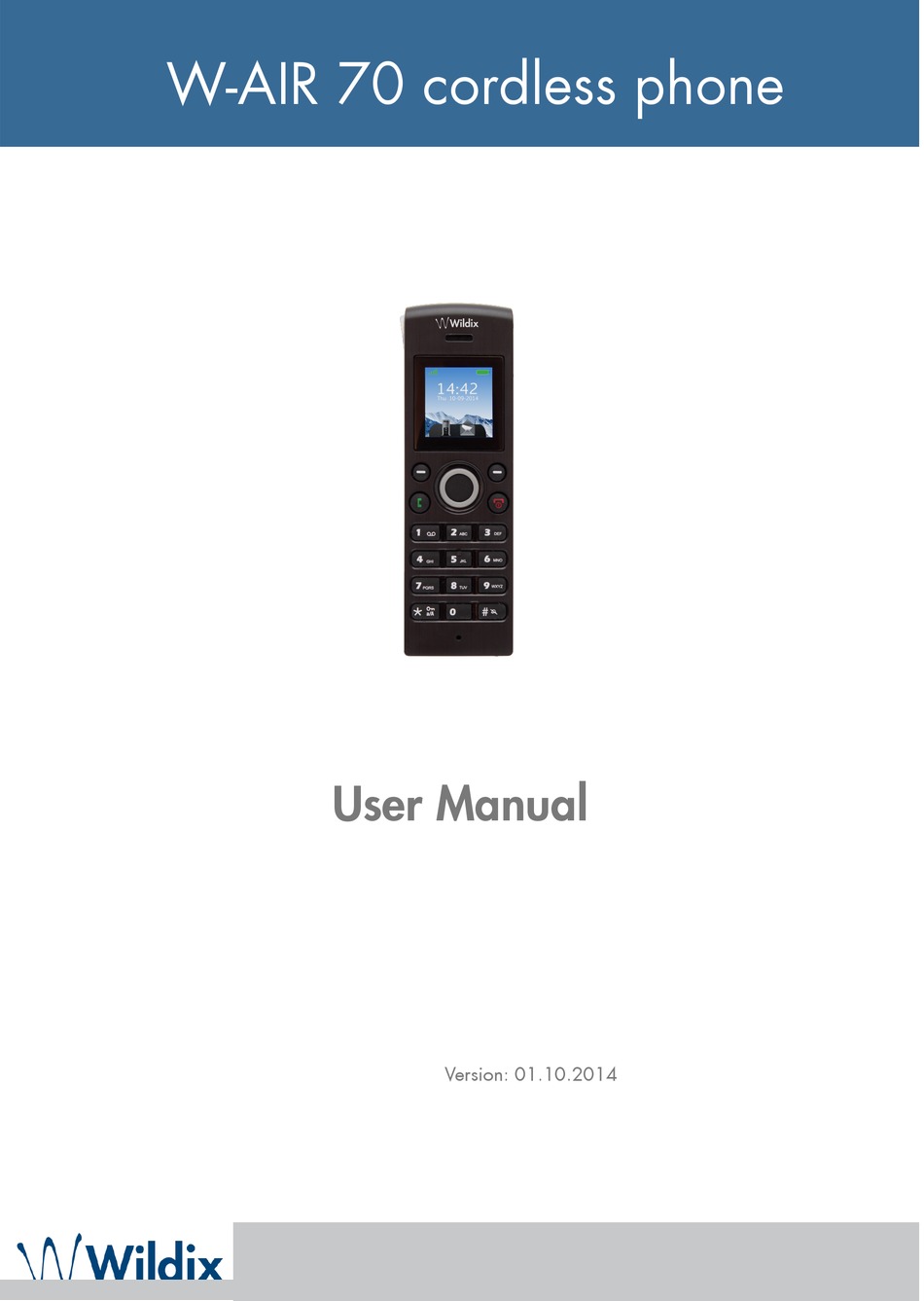

  • Page 1 W-AIR 70 cordless phone User Manual Version: 01.10.2014...

  • Page 2: Table Of Contents

    The manual provides you with the necessary information about your Wildix W-AIR 70 cordless phone. Please read this guide to ensure the proper installation and operation of the phone. Unboxing Before opening the package Parts checklist Before Using the Cordless Phone...
  • Page 3 Call a Speed Dial number End a call Hold 17 Initiate a new call, when there is a call on hold Swap Call Transfer Attended Call Transfer Blind Call Transfer Conference call Adjust the volume Mute/Unmute Speaker mode W-AIR 70 Cordless Phone User Manual...

  • Page 4: Unboxing

    Before opening the package Examine the package for evidence of physical damage prior to opening. If there is a proof of mishandling, report it to your certified Wildix Partner. Parts checklist Make sure that all the components are present in the shipping package/box:...

  • Page 5: Before Using The Cordless Phone

    • Remove the back cover from the handset Handset Serial Number The serial number and IPUI number of each handset is situated either on a label behind the battery, or on the package label. W-AIR 70 Cordless Phone User Manual...

  • Page 6: Phone Overview

    During navigation across the different menus, the highlighted menu’s icon is moving to indicate where the navigation key is at the moment. - The Contacts menu contains all the names/numbers of the local phonebook. W-AIR 70 Cordless Phone User Manual...
  • Page 7 - The Connectivity menu allows to register/deregister the handset. - The Settings menu contains personal handset settings such as time/date, language, etc. - The Audio settings menu contains personal handset settings for the audio profile as ring volume, ring melody, etc. W-AIR 70 Cordless Phone User Manual...

  • Page 8: Quick Start Guide

    Quick Start Guide W-AIR 70 Cordless Phone User Manual...

  • Page 9: Basic Operations

    In text input mode, use “0” to add a space. When there is no data input for some time, the phone goes in idle mode and the information which has not been saved, gets lost. W-AIR 70 Cordless Phone User Manual...

  • Page 10: Use The Keys

    Any key from “2” to “9” can be set up for speed dial. If set, a long-press on any key in idle generates a call. For additional information see the chapter “Menu Operations: Contacts: Assign a Speed Dial number to a local contact”. W-AIR 70 Cordless Phone User Manual...

  • Page 11: Menu Operations

    • Select a speed dial number (from “2” to “9”) that you wish to assign to the selected contact • Press the Left Soft Key “Add” or the Selection Key. Central Directory The menu allows you to access to the corporate phonebooks. W-AIR 70 Cordless Phone User Manual...

  • Page 12: Search For A Contact Of Central Directory

    • Press the green Off-hook Key to redial the contact. Edit a number before call (the modification will not be saved to the Contacts menu) • Select the call • Press the Right Soft key “More” W-AIR 70 Cordless Phone User Manual...

  • Page 13: Save A Number To Contacts

    Time & date The menu allows you to adjust time and date and select a different time and date format. Language The menu allows you to select between 12 languages used for the handset. W-AIR 70 Cordless Phone User Manual...

  • Page 14: Led Signal

    This menu allows you to set up the sounds and the ringtones of the handset. Silent mode When “Silent mode” is enabled, no sounds are played on the handset. Press the Right Soft key “On” to enable and Left Soft key “Off” to disable the feature. W-AIR 70 Cordless Phone User Manual...

  • Page 15: Ring Volume

    When the feature is enabled, an audible notification is given when the handset is put in the charger to indicate that the handset is charging. Press the Right Soft key “On” to enable and Left Soft key “Off” to disable the feature. W-AIR 70 Cordless Phone User Manual...

  • Page 16: Call Operations

    If one call is active and another one is on hold: • Press the red On-hook key to end the active call and to resume the call on hold • Press the red On-hook key again to terminate the second call. W-AIR 70 Cordless Phone User Manual...

  • Page 17: Hold

    • When the third participant answers, press the Left Soft key “Conf.” to start a three-way conference call (“Conference” screen is displayed and the conversation is now between the three parties) Note: The maximal number of participants is set according to the number of base stations in the system. W-AIR 70 Cordless Phone User Manual...

  • Page 18: Adjust The Volume

    During a call, press the Left Navigation key to enable/disable the mute function. Speaker mode To answer a call in a speaker mode, press the green Off-hook Key twice. To enable/disable a speaker mode during a call, press the green Off-hook Key during a conversation. W-AIR 70 Cordless Phone User Manual...
