Summary of Contents for Wildix W-AIR 150

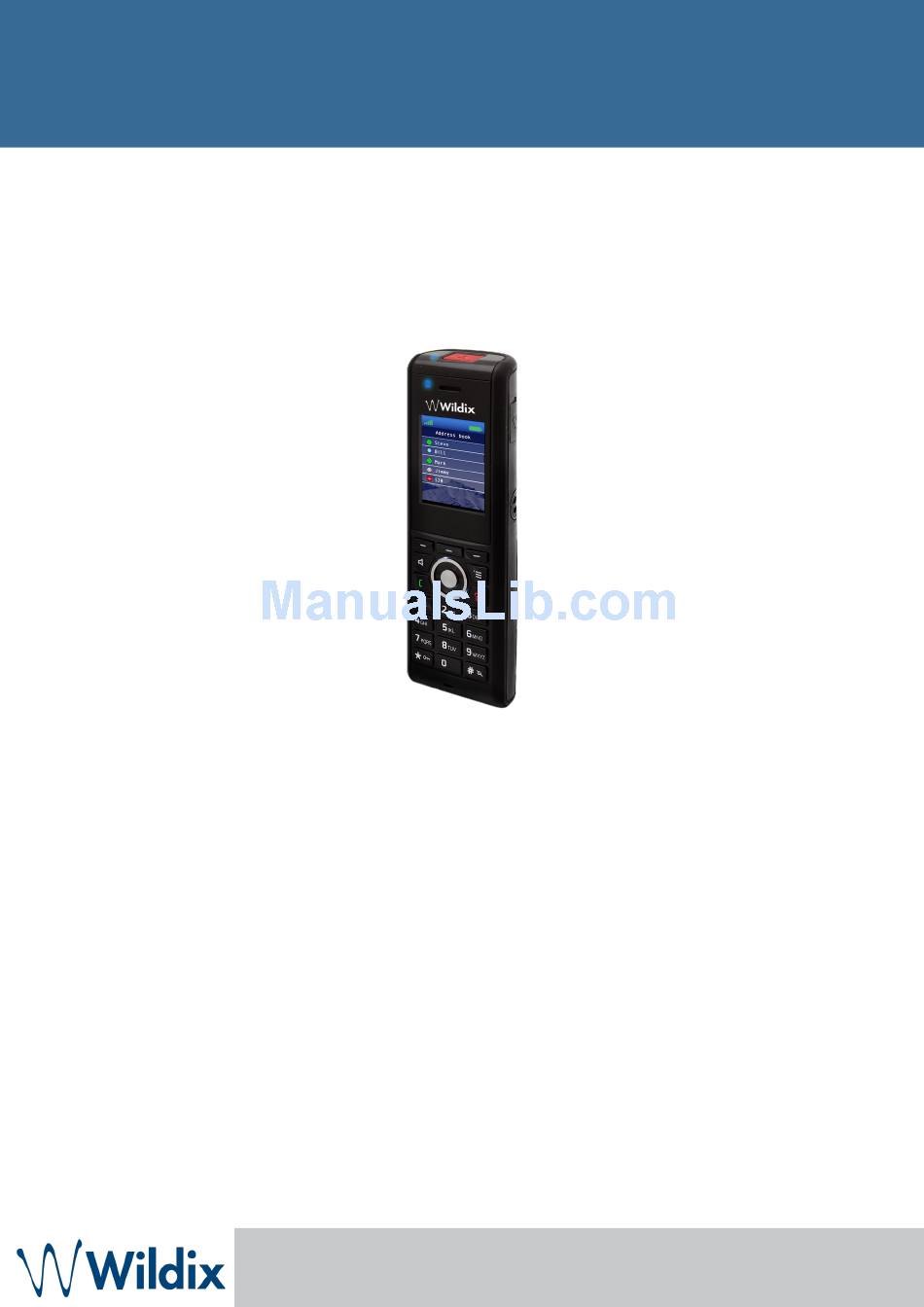

- Page 1 W-AIR 150 cordless phone User Manual Date: 15.03.2015 FW: 03.23.00.19...
- Page 2 The manual provides you with the necessary information about your Wildix W-AIR 150 cordless phone. Please read this guide to ensure the proper installation and operation of the phone W-AIR 150 Cordless Phone - User Manual...
-
Page 3: Table Of Contents
Save a number to Contacts Delete calls from Calls menu Connectivity Register a handset to the base station Deregister a handset from the base station Settings Time & date Language LED signal Power save Security (Auto keylock) W-AIR 150 Cordless Phone - User Manual... - Page 4 Call a Speed Dial number End a call Hold and retrieve Initiate a new call, when there is a call on hold Swap Call Transfer Attended Call Transfer Blind Call Transfer Conference call Emergency alarms Alarms triggering W-AIR 150 Cordless Phone - User Manual...
-
Page 5: Unboxing
1 x Battery 1 x Charger 1 x A/C adapter 1 x Belt Clip Cover 1 x Pull Cord Cover 1 x Belt Clip 1 x Svirvel for belt clip 2 x Mounting screws W-AIR 150 Cordless Phone - User Manual... -
Page 6: Before Using The Cordless Phone
• Remove the back cover from the handset Handset Serial Number The serial number and IPUI number of each handset is situated either on a label behind the battery, or on the package label. W-AIR 150 Cordless Phone - User Manual... -
Page 7: Phone Overview
The status bar may display additional information, such as missed calls, new voicemail messages, new messages, bluetooth status, alarm/silent alarm, key lock, sound off. W-AIR 150 Cordless Phone - User Manual... -
Page 8: Menu Icons
It is possible to enter the sequence: 99* [extension number] * [password], then press the green Off-hook Key and press “1” to log in. Example: Extension number: 101 Password: 4Ag7$Z Enter: 99*101*4247*9* , then (after the vocal command) press “1” to use this phone. W-AIR 150 Cordless Phone - User Manual... -
Page 9: Basic Operations
In text input mode, press “0” to add a space. When there is no data input for some time, the phone goes in idle mode and the information which has not been saved, gets lost. W-AIR 150 Cordless Phone - User Manual... -
Page 10: Menu Operations
(4) Select a speed dial number (from “2” to “9”) that you wish to assign to the selected contact (5) Press “Add” Note: “0” is used to start a normal dial with “+”; “1” is used for Voicemail access. W-AIR 150 Cordless Phone - User Manual... -
Page 11: Central Directory
Note: If a green arrow is displayed to the right from the contact, this contact has more than one number. To scroll through the different numbers, use the Left and Right Navigation keys. Presence status icons The colleagues are displayed in the list with their actual presence and activity status (synchronised with Wildix Collaboration): - online - offline - user has set up “do not disturb”... -
Page 12: Redial A Contact From The Call List
Note: To assign a handset to a user, please follow the steps described in the chapter “Quick Start Guide” Deregister a handset from the base station • Select “Deregister” • Enter the Access code • Press “Yes” W-AIR 150 Cordless Phone - User Manual... -
Page 13: Settings
Any key: the user can press any key on the keypad (except the red On-hook Key and the Soft keys) to answer an incoming call Automatic: the incoming call is answered automatically after five seconds. W-AIR 150 Cordless Phone - User Manual... -
Page 14: Silent Charging
Note: When the ring volume is set to the lowest level, the ringer is muted, the “Sound off” icon is displayed in the Status bar and no sound is heard when receiving an incoming call. W-AIR 150 Cordless Phone - User Manual... -
Page 15: Ring Melody
When the feature is enabled, an audible notification is given to the earpiece during the call when the user is close to the maximum range of the nearest base station in the system. W-AIR 150 Cordless Phone - User Manual... -
Page 16: Charger Warning
Note: When the alarm starts ringing, the user can either press “Dismiss” to disable it, or “Snooze” to enable the alarm clock to ring again after a certain timeout. To set up the snooze timeout, select “Snooze time” and select the timeout. W-AIR 150 Cordless Phone - User Manual... -
Page 17: Call Operations
If one call is active and another one is on hold: • Press the red On-hook key to end the active call and to resume the call on hold • Press the red On-hook key again to terminate the second call. W-AIR 150 Cordless Phone - User Manual... -
Page 18: Hold And Retrieve
• The user who has started the conference call must press the red On-hook Key Note: Each of the called participants can hang up to leave the conference call (in this situation the conference call continues between the remaining participants) W-AIR 150 Cordless Phone - User Manual... -
Page 19: Emergency Alarms
Alarm is sent in the form of an outgoing call to the emergency number preconfigured on the base station’s interface for this extension. For more information about configuring emergency settings, please read “Wildix W-AIR system - Administrator’s Guide 3.x”, chapter 7 (Alarms setting) Alarms triggering Wildix W-AIR 150 supports five types of alarms.
