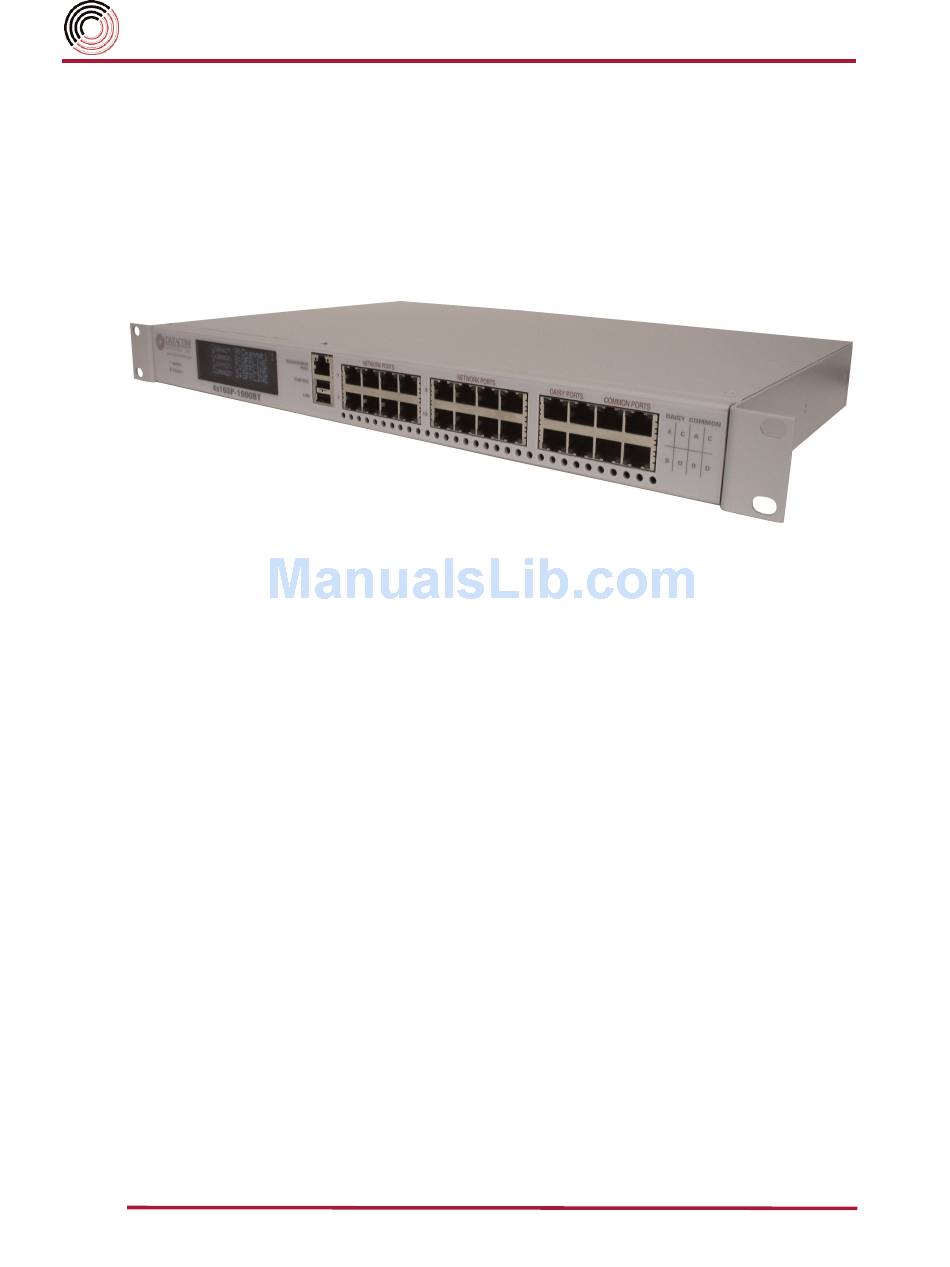

- Page 1 Datacom Systems Inc 4X16SP-1000BT Copper Gigabit SPAN Switch USERguide January 2008 541-0103-U-A.02 © 2005-2008 by Datacom Systems Inc. All Rights Reserved.
-
Page 3: License Agreement
Datacom Systems, Inc. To obtain this permission, write to the attention of the Datacom Systems legal department at 9 Adler Drive, East Syracuse, New York 13057-1290, or call 315-463-9541. - Page 4 Datacom Systems Inc 4X16SP-1000BT Copper Gigabit SPAN Switch • USERguide...
-
Page 5: Table Of Contents
Contents What Shipped? – 4X16SP-1000BT Copper Gigabit SPAN Switch ... . . 6 Overview ............7 Features and Benefits . -
Page 6: What Shipped? - 4X16Sp-1000Bt Copper Gigabit Span Switch
Datacom Systems Inc What Shipped? 4X16SP-1000BT Copper Gigabit SPAN Switch series 1 — 4X16SP-1000BT Copper Gigabit SPAN Switch 2 — AC Power Cords 4 — DRL366-3 Cables (category 5E cable) 1 — DRL470-6-6-6-6 Y-cable (serial DB9 female to 4 type A male USB) 1 —... -
Page 7: Overview
• Daisy-chain up to four (4) units to give your network tools access to as many as sixty-four (64) 10/100/1000 baseT SPAN/mirror ports. • Manage the switch through your monitoring tool’s API or use Datacom Systems MANAgents software ™... -
Page 8: Introduction
SPAN ports which accelerates problem resolution, reduces down- time and increases productivity. Application — Figure 1 depicts a typical 4X16SP-1000BT application. Figure 1 - 4X16SP-1000BT Copper Gigabit SPAN Switch Application 4X16SP-1000BT Copper Gigabit SPAN Switch • USERguide... -
Page 9: Specification
28 mm (H) x 146 mm (W) x 146 mm (D) Weight: Unit - 11 pounds; Shipping - 17 pounds Customer provided cabling Cables: Management DRL470-6-6-6-6 Control DRL448-6 Link Customer provided cabling Network DRL366-3 Daisy DRL366-3 Common 4X16SP-1000BT Copper Gigabit SPAN Switch • USERguide... -
Page 10: Front Panel Description
GRAPHIC DISPLAY — This scrolling graphic displays 4X16SP-1000BT Copper Giagbit Switch power-on and operating status information. MANAGEMENT PORT — This port is used for remote 4X16SP-1000BT Copper Giagbit Switch control with an RJ45 connector connection to the network. These connectors have integrated LEDs that display status of each port. - Page 11 NETWORK PORTS 1 to 16 — These ports are RJ45 connectors used for making connection to SPAN network device connectors or In-Line taps. DAISY PORTS A to D — These ports are RJ45 connectors cabled to the next in sequence 4X16SP-1000BT switch COMMON A, COMMON B, COMMON C or COMMON D port, respectively, when connected in a daisy-chain configuration.
-
Page 12: Rear Panel Description
SN — Serial Number (SN). A number that identifies Datacom Systems electronic equipment such as the 4X16SP-1000BT Copper Giagbit Switch. MAC — Media Access Control (MAC) address, a hardware address that uniquely identifies each node (this 4X16SP-1000BT Copper Giagbit Switch) of a network. -
Page 13: Hardware Installation
Figure 4. Figure 4 - Hardware Installation To connect the 4X16SP-1000BT into the network, refer to FIGURE 4 and follow these steps: Step 1. Two 100-240 VAC, 50-60 Hz power source inlet connections are provided. -
Page 14: Led Display
Right LED — Notch Down Table 2 - LED Display Step 3. Connect the COMMON A PORT of the 4X16SP-1000BT RJ45 connector to the network tool Network Interface Card (NIC) port connector using a DRL366-3 cable. These connectors have integrated LEDs that display status of each port. -
Page 15: Daisy-Chain Installation
Gigabit SPAN Switch hardware installation is illustrate in Figure 5. Figure 5 - Daisy-Chain Installation To connect another 4X16SP-1000BT into a Daisy-Chain configuration, refer to FIGURE 5 and follow these steps: Step 1. Two 100-240 VAC, 50-60 Hz power source inlet connections are provided for each 4X16SP-1000BT Copper Gigabit SPAN Switch. - Page 16 DRL366-3 cables and noting link LED illuminates indi- cating link has been established between both devices. Step 4. Connect the DAISY A PORT of the first 4X16SP-1000BT RJ45 connector to the COMMON A PORT of the second 4X16SP-1000BT RJ45 connector using a DRL366-3 cable.
- Page 17 CONTROL port of the first 4X16SP-1000BT USB-style connector to a local host control console. using the DRL470-6-6-6-6 cable. Step 6. Connect the LINK port of the first 4X16SP-1000BT USB-style connector to the CONTROL port of the second 4X16SP-1000BT USB-style connector using the DRL448-6 cable.Repeat LINK connections to the CONTROL connec-...
-
Page 18: Customer Service, World Wide Web
