Datacom Systems VS-1212-F Quick Install Manual

10/100/1000 mb and 10 gb data access switches
Hide thumbs Also See for VS-1212-F:

Advertisement

Quick Links

VS-1212-F 10/100/1000 Mb and 10 Gb
VS-1224-F 10/100/1000 Mb and 10 Gb
Data Access Switches
QUICKinstall
August 2012
541-0136-Q-A.00
© 2012 Datacom Systems Inc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-1212-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Datacom Systems VS-1212-F

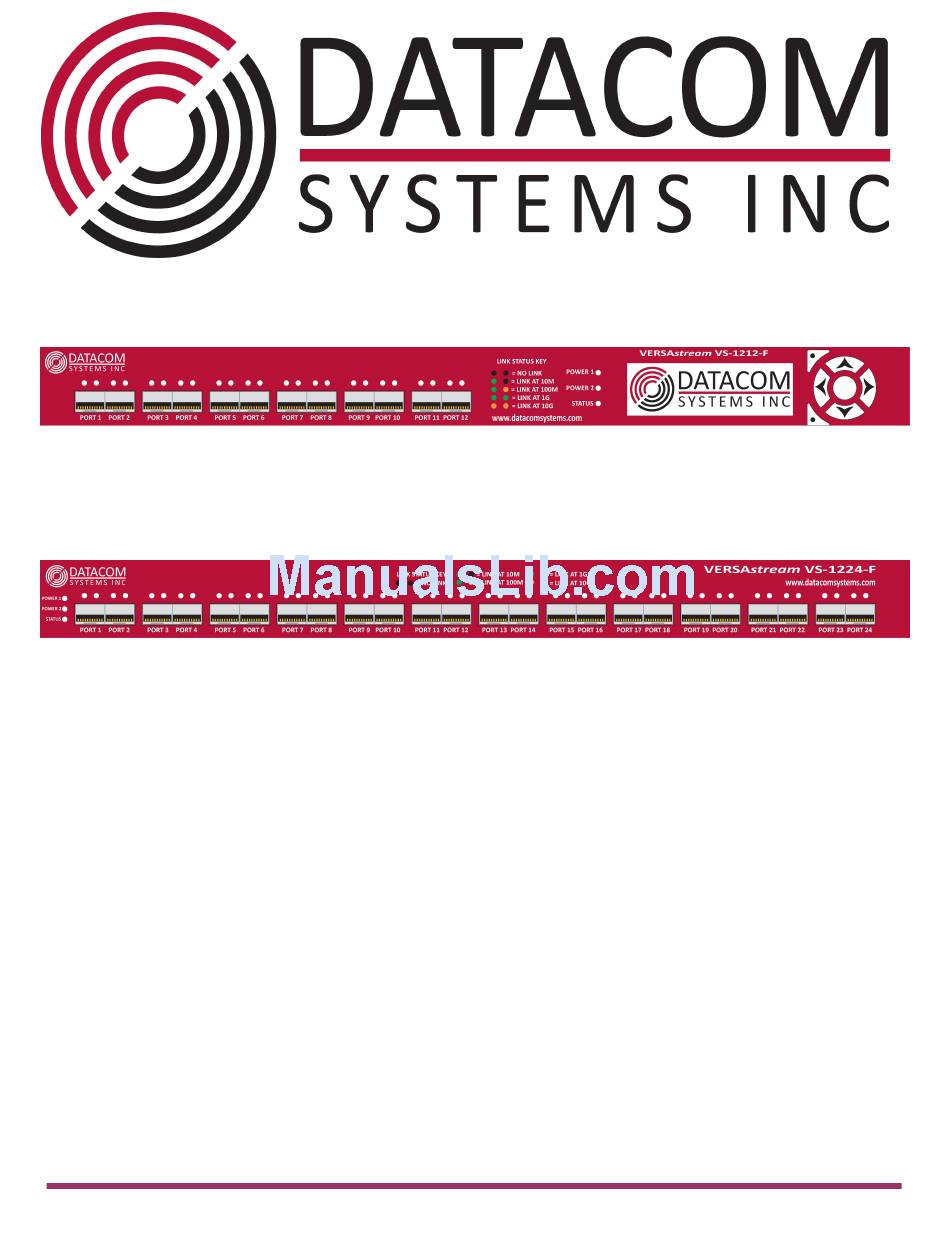

  • Page 1 VS-1212-F 10/100/1000 Mb and 10 Gb VS-1224-F 10/100/1000 Mb and 10 Gb Data Access Switches QUICKinstall August 2012 541-0136-Q-A.00 © 2012 Datacom Systems Inc...
  • Page 2: Table Of Contents

    VS-1212-F and VS-1224-F Data Access Switches Table of Contents Section 1 Terms of Use 1 Copyright ........................... 3 2 License Agreement ........................... 3 3 Proprietary Notice ........................... 3 Tradem ark Attribution ................................3 4 Certifications and Marks ........................... 4 5 Safety Notices and Warnings ...........................
  • Page 3: Section 1 Terms Of Use

    13057-1290, or call +1 315-463-9541. License Agreement Notice To All Users: By using Datacom Systems, Inc. products, you agree to the terms set forth. No licenses, express or implied, are granted with respect to the technology described and Datacom Systems, Inc. retains all rights with respect to the technology described herein. If applicable, you may return the product to the place of purchase for a full refund.
  • Page 4: Certifications And Marks

    VS-1212-F and VS-1224-F Data Access Switches Certifications and Marks CAUTION: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The CE logo indicates that this equipment was tested and found to meet radiated and...
  • Page 5: Section 2 Overview

    Greater selectivity and visibility accelerates problem resolution, reduces downtime and increases enterprise productivity. Like all Datacom Systems Data Access Products, the VS-1212-F Data Access Switch and VS- 1224-F Data Access Switch are compatible with all vendor hardware and can be controlled by our ™...
  • Page 6: What Shipped

    (1) year - see 5.2 Warranty section for details. Supported SFP Transceivers Datacom Systems supports the following small form-factor pluggable (SFP) transceivers and enhanced small form-factor pluggable (SFP+) transceivers: NOTE: Removing and reinserting an SFP requires resetting the port speed in the Command Line ™...
  • Page 7: Front - Any-To-Any Ports

    The POWER 1, POWER 2 LEDs illuminate when the unit power is switched ON with power green available to both of the two rear AC power sockets. Although only one power source is required to © 2012 Datacom Systems Inc...
  • Page 8: Front - Display And Buttons

    Although only one power supply is required to power the VS-1212-F and VS-1224-F, use of a second independent power source is strongly recommended to assure uninterrupted monitoring.
  • Page 9: Rear - Management Module

    IMPORTANT: If you expect to remotely connect to the VS-1212-F and VS-1224-F series, you must change the IP Address, Subnet Mask and Gateway to match your Local Area Network. Note: If your VS-1212-F and VS-1224-F already has the IP Address, Subnet Mask and Gateway set for your network, you may proceed to the 'Stand-Alone Installation ' section.
  • Page 10 USB to RS-232 Plug-in Adapter. Step 2. Using a supplied AC Line Cord, plug the VS-1212-F Data Access Switch or VS-1224-F Data Access Switch into the external power source. Note that either POWER 1 or POWER 2 LED...
  • Page 11: Section 4 Stand-Alone Installation

    Step 1. Using the supplied AC Line Cords, plug the VS-1212-F Data Access Switch and VS- 1224-F Data Access Switch into different circuit external power sources.Although only one power supply is required to power the VS-1212-F and VS-1224-F, use of a second independent power source is strongly recommended to assure uninterrupted monitoring.
  • Page 12: Port Connection

    VS-1212-F and VS-1224-F Data Access Switches Port Connection This section will focus on the PORT connection of the typical VS-1212-F Data Access Switch hardware installation. The VS-1224-F Data Access Switch hardware installation is similar to the typical VS-1212-F Data Access Switch hardware installation.
  • Page 13: Web Browser

    The Home window is the first screen upon successful User login. With an active browser connection, Logout will automatically occur after 5 minutes of inactivity [default setting of 5 minutes can be change under Setup > System > Interface Timeouts.] © 2012 Datacom Systems Inc...
  • Page 14: Telnet Or Ssh

    VS-1212-F and VS-1224-F Data Access Switches Step 3. If additional user operational GUI navigational help or information is necessary, detailed support, documentation and help can found on the Datacom Systems website http://www. datacomsystems.com. Step 4. In the upper right window Click 'Logout' to end the session>...
  • Page 15 Enter key to display the command line > prompt. To see a list of available commands, at the > command line prompt, type ? and press the Enter key. Step 4. If additional user operational CLI navigational help or information is necessary, detailed support, documentation and help can found on the Datacom Systems website http://www. datacomsystems.com.
  • Page 16: Section 6 Customer Service

    VS-1212-F and VS-1224-F Data Access Switches Customer Service Datacom Customer Service is available via telephone and Internet. Please leave a voice message and our Customer Service Staff will return your call as soon as possible. You may also find the assistance you need at our website: http://www.datacomsystems.com.
  • Page 17 Datacom Systems Inc. 9 Adler Drive • East Syracuse, NY 13057 TEL: +1 315 463-9541 • FAX: +1 315 463-9557 http://www.datacomsystems.com...
