DURAstream™
1 Gigabit DS-4000
FASTStart Guide
July 2014
541-0152-R.01
© 2014 Datacom Systems Inc

Advertisement

loading
Need help?

Need help?

Do you have a question about the DURAstream DS-4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Datacom Systems DURAstream DS-4000

Summary of Contents for Datacom Systems DURAstream DS-4000

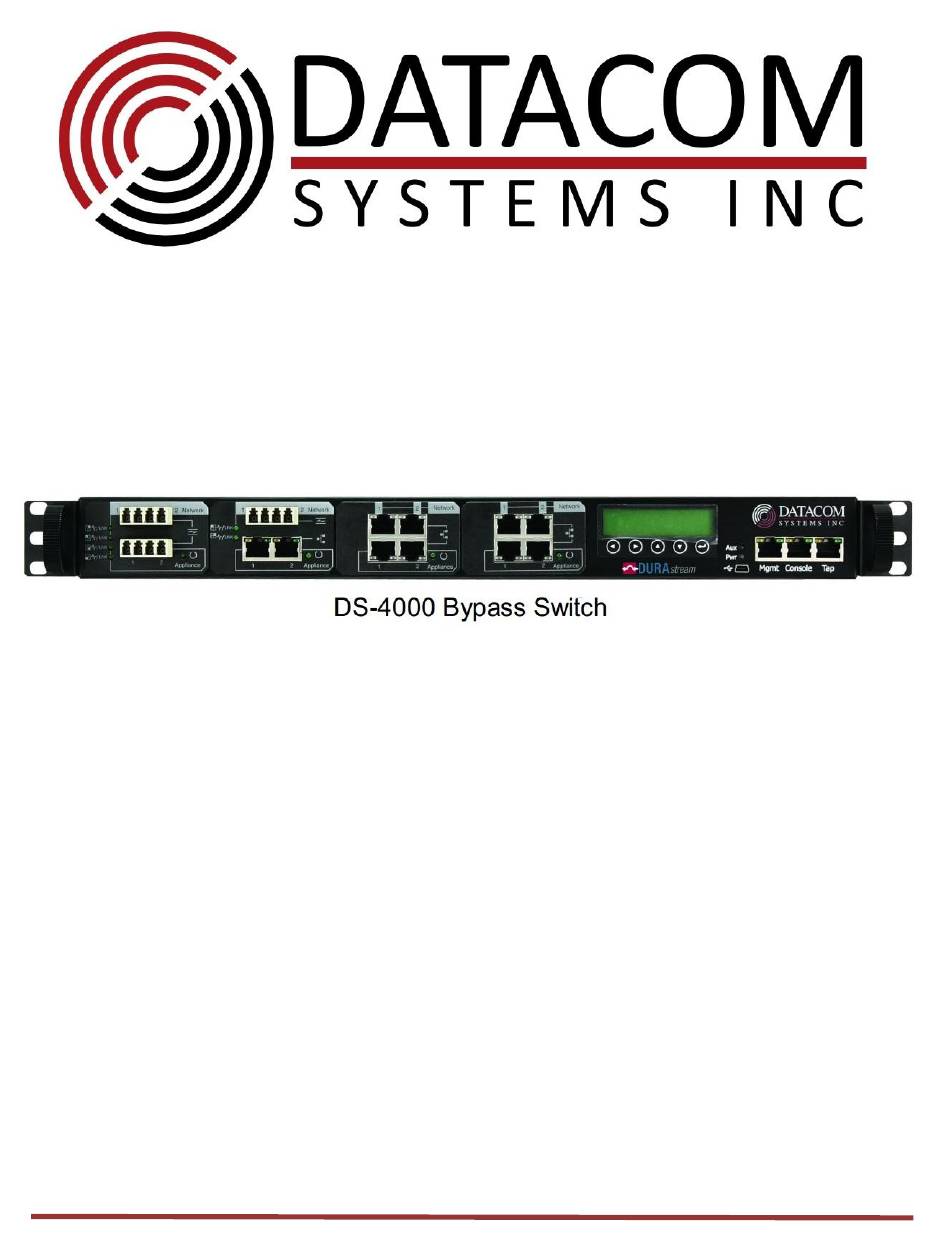

  • Page 1 DURAstream™ 1 Gigabit DS-4000 FASTStart Guide July 2014 541-0152-R.01 © 2014 Datacom Systems Inc...

  • Page 2: What Is Included

    (2) Switching AC Adapters (2) AC Line Cords Summary: Datacom Systems Inc. DURAstream™ DS-4000 Bypass Switch is a 1Gbps intelligent external active bypass that enables plug and play connectivity which includes an auto heartbeat and requires no additional drivers to be installed on any connected appliance.

  • Page 3: Port Layout

    Port: User Settings Username: admin Password: admin Management Port Settings IP Address: 192.168.0.111 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1 Serial Terminal Settings Bits per second: 115200 Data bits: Parity: None Stop: Flow Control: None © 2014 Datacom Systems Inc DURAstream™...
  • Page 4 Show the current port settings: datacom>show links configuration nter configuration mode for a network or appliance Port: datacom>configure port portid S3.N2 N2 indicates network port 2. S3 indicates segment 3. A1 would indicate appliance port 1 portid S3.N2 © 2014 Datacom Systems Inc DURAstream™...
  • Page 5 Enter configuration mode for a segment: datacom>configure segment 1 Enable/Disable link fault detection: datacom(segment[1])>lfd <enabled/disabled> Set segment boot-mode: datacom(segment[1])> boot-mode heartbeat <normal-active-bypass/normal-active- inline/manual-active-inline/manual-active-bypass-plus/manual-active-bypass/manual- passive-bypass/auto> Example: datacom ports portid S3.N2>bypass boot-mode heartbeat normal-active-bypass © 2014 Datacom Systems Inc DURAstream™...
  • Page 6 By clicking on the “Management Port” tab on the left side of the page, you can view the management port fields. Clicking on the blue “Management Port” title at the top will enter configuration mode. Page to view Management port settings Page to edit Management port settings © 2014 Datacom Systems Inc DURAstream™...
  • Page 7 “Links” tab will bring up a page that shows the settings for all network and appliance ports on the DS-4000. To configure the link settings, click on the blue “Links” title at the top of the page. Showing statistics for all Network/Appliance ports. Edit the attributes of Network/Appliance ports. © 2014 Datacom Systems Inc DURAstream™...
  • Page 8 To configure a specific segment, click on one of the blue “Segment #” titles at the top of the screen. Showing all of the configurable attributes for segments. Configure the various attributes of a segment. © 2014 Datacom Systems Inc DURAstream™...
  • Page 9 “Users” show the admin user. To configure password for admin, click on one of the blue “admin” title at the top of the screen. Showing the admin account. Modifying the password for the admin account. © 2014 Datacom Systems Inc DURAstream™...
