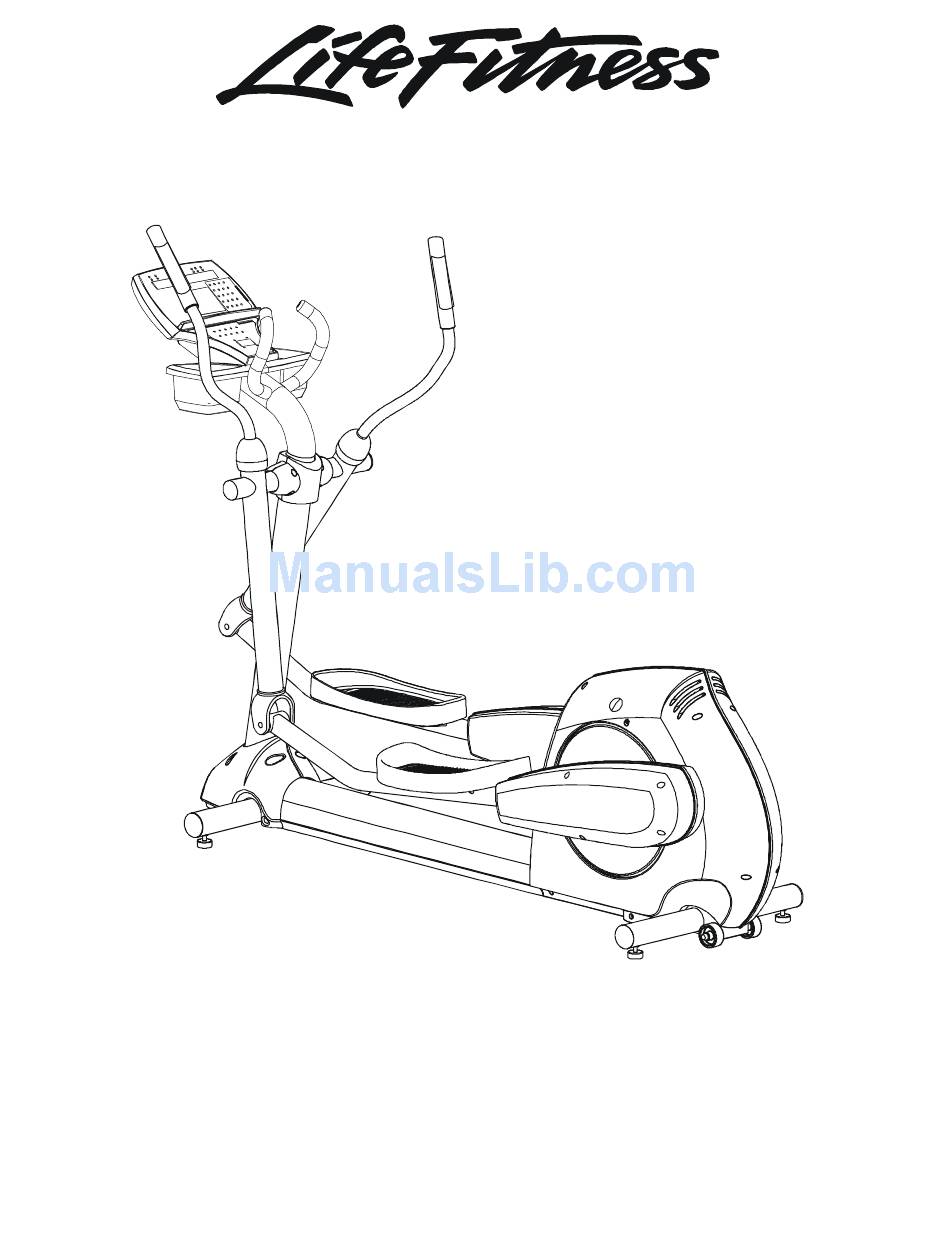

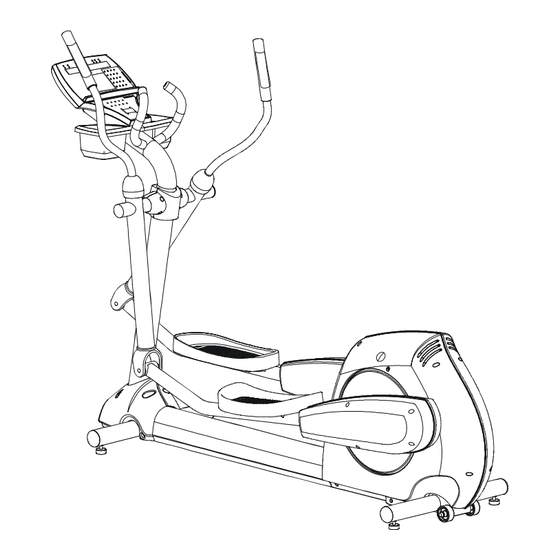

- Page 1 CROSS-TRAINER 91X-0XXX-01 Customer Support Services PARTS MANUAL revised 26 Feb 2008...
- Page 2 HARDWARE BAG DESCRIPTION BATTERY: 6V; 2.5AH 1/4 -20X 5 HXL NO L CUP ST BO B SHAFT: PEDAL-LEVER; CLEVIS B KIT: SERV; POLAR-RCVR; TESTED BM The 91X-0XXX-01 has both Telemetry and LifePulse sensors for Heart Rate. M051-00K61-A093 M051-00K61-A097 0017-00008-0204 0017-00008-0205 0017-00008-0206...
-
Page 3: Table Of Contents
ANTI-LIFT BRACKET AND OUTER PEDAL COVERS...10 FRAME ASSEMBLY ...11 CLEVIS AND FRONT FRAME COVERS ...12 PEDAL LEVER ASSEMBLY...13 ROCKER ARM COVERS ...14 ROCKER ARM ASSEMBLY ...15 REAR DRIVE SHROUDS W/DECALS...16 UPPER ARM / HEART RATE ASSEMBLY ...17 CABLES...18 S/N XTF100000 and UP 91X-0XXX-01 Page... -
Page 4: Drive Belts And Alternator
Lock Nut 0017-00103-0117 Alternator Belt 0K53-01184-0000 Intermediate Pulley Bolt 0017-00101-1651 Intermediate Bracket Alternator Pivot Bolt 0K61-02400-0001 0017-00101-0964 Intermediate Pulley Assy AK61-00061-0000 91X-0XXX-01 S/N XTF100000 and UP Alternator Strap Bolt-2 0017-00101-0986 Flange Lock Nut 0017-00103-0188 Alternator Strap w/Insert 0K61-02601-0000 Drive Belt 0K61-02701-0000... -
Page 5: Console Support Assembly
GK63-00002-0062 Main Cable AK61-00136-0000 Console Cap 0K61-01283-0001 Bolt-2 0017-00101-1645 Flat Washer-2 0017-00104-0192 S/N XTF100000 and UP Mounting Screws (8) (not shown for accessory tray and console) 0017-00101-1744 Bullhorn Grip 11.75” (2) 0K62-01136-0002 Console Support Assembly AK61-00500-0015 Polar Cable AK36-00021-0003 91X-0XXX-01... -
Page 6: Console Assembly
Console Assembly AK61-00203-0001 Eng/Eng AK61-00203-0002 Eng/Met AK61-00203-0004 Spn/Met AK61-00203-0007 Frn/Met AK61-00203-0010 Por/Met S/N XTF100000 and UP Console Board - Upper A084-92219-A022 Console Case Assembly AK63-00121-0001 Phillips Pan Screws(13) 0017-00101-1650 Battery Door 0K63-01029-0001 Overlay/Bezel/ Switch Assembly AK61-00183-0001 AK61-00183-0001 AK61-00183-0004 AK61-00183-0007 AK61-00183-0010 91X-0XXX-01... -
Page 7: Roller Assembly
Bolt 0017-00101-1606 Flat Washer 0017-00104-0417 Roller Bearing Assembly GK61-00002-0026 Set Screws 0017-00101-0314 Set Screw Square Key 1/4-20x5 0K53-01122-0000 0017-00101-0333 91X-0XXX-01 S/N XTF100000 and UP Shaft Collar Allen-Head 0K61-01260-0000 Cap Screw 0017-00101-1645 Arm Extension 0K61-03004-0000 Crank Cover 0K61-03100-0002 Crank Arm AK61-00064-0001... -
Page 8: Crankshaft Assembly
Hex Bolts (4) Poly-V Crank Pulley 0017-00101-1551 0K61-02409-0000 Crankshaft Plate 0K61-02302-0001 Retaining Ring (2) 0017-00100-0152 Magnet-Standoff Assy. AK62-00186-0000 91X-0XXX-01 S/N XTF100000 and UP 1.00” Dia. Pillow Block (2) 0K53-01181-0000 Torx screw 0017-00101-1282 Flat Washer 0017-00104-0144 Crankshaft w/plate 0K61-01360-0002 Locking Nut (4) -
Page 9: Drive Linkage Assembly
Assembly AK61-00073-0001 Spherical Washer 0017-00009-1085 Spherical End Sleeve 0K61-01066-0000 Wave Washer Spring 0017-00009-1084 Flat Washer 0017-00104-0164 Silver Bearing Back Side S/N XTF100000 and UP Control Link Sleeve 0K61-01261-0000 Locking Nut 0017-00103-0286 91X-0XXX-01 Black Bearing Front Side Flat Washer 0017-00104-0164... -
Page 10: Anti-Lift Bracket And Outer Pedal Covers
Phillips Pan Screw 0017-00101-1646 Left Link Cover w/decal AK61-00175-0002 Decal 0K61-01367-0000 White (used on 91X-0006-01 only) 0K61-06310-0003 S/N XTF100000 and UP Right Link Cover w/decal AK61-00175-0001 Decal 0K61-01367-0000 White Link Cover (used on 91X-0006-01 only) 0K61-06330-0003 Roller Retainer Plate 0K61-04114-0000 91X-0XXX-01... -
Page 11: Frame Assembly
Pillow Block Bearing Bolts 0017-00101-1635 Resistor Bracket assy. W/cable AK61-00127-0000 S/N XTF100000 and UP Pillow Block Bearing Nuts 0017-00103-0025 Screw (14) 0017-00101-1282 Control PCB AK61-00145-0000 Screw (14) 0017-00101-1282 91X-0XXX-01 Extrusion Cover 0K61-06121-0008 White Extrusion Cover (used on 91X-0006-01 only) 0K61-06121-0005... -
Page 12: Clevis And Front Frame Covers
Phillips Screw-18 0017-00101-1242 Clevis Cover-2 AK61-00062-0001 Wheel Cap-2 0017-00042-1066 Front Cover-RT 0K61-06250-0002 White Cover - (used on 91X-0006-01 only) 0K61-062 0-0001 91X-0XXX-01 S/N XTF100000 and UP Stabilizer Cap-4 0K61-01284-0001 Leg Leveler-4 AK61-00035-0000 Wheel Shaft 0K61-01300-0000 Wheel-2 0017-00042-0674 Wheel & Cap Kit... -
Page 13: Pedal Lever Assembly
0017-00041-0053 BEVELED WASHER OK61-01356-0000 Pedal Kit Tape-4 pieces GK61-00002-0054 0K61-04115-0002 Push-On Clip-4 0017-00009-1143 Left Pedal Assembly AK61-00172-0002 Right Pedal Assembly AK61-00172-0001 91X-0XXX-01 S/N XTF100000 and UP Locking Nut-2 0017-00103-0137 Pedal Lever Clevis Shaft-2 0K61-01076-0000 Bolt-2 0017-00101-1646 Rocker Seal, Stealth 0K61-01359-0003... -
Page 14: Rocker Arm Covers
Rear Rocker Arm Cover 0K61-06341-0003 Front Rocker Arm Cover 0K61-06340-0003 Rear Deadshaft Cover 0K61-06351-0003 Rear Rocker Arm Cover 0K61-06340-0003 91X-0XXX-01 S/N XTF100000 and UP Polar Receiver AK40-00045-0001 Insulator Receiver Tube 0K36-01059-0002 Front Deadshaft Cover 0K61-06350-0003 Front Rocker Arm Cover 0K61-06341-0003... -
Page 15: Rocker Arm Assembly
91X CROSS-TRAINER ROCKER ARM ASSEMBLY Flat Washer 0017-00104-0454 Hex Bolt 0017-00101-1635 S/N XTF100000 and UP Shaft Split Collar 0K61-01259-0000 Rocker Arm AK61-00094-0003 91X-0XXX-01... -
Page 16: Rear Drive Shrouds W/Decals
REAR DRIVE SHROUDS W/DECALS Left Rear Cover w/Decal AK61-00176-0002 White t Rear Cover (used on 91X-0006-01 only) AK61-00060-000 Phillips Pan Screw-22 0017-00101-1242 Right Rear Cover w/Decal AK61-00176-0001 White Right Rear Cover (used on 91X-0006-01 only) AK61-00060-0008 Plug-2 0K14-01384-0000 91X-0XXX-01 S/N XTF100000 and UP... -
Page 17: Upper Arm/Heart Rate Assembly
91X CROSS-TRAINER UPPER ARM/HEART RATE ASSEMBLY Upper Arm - RT Assembly AK61-00178-0001 Electrode Kit GK20-00002-0005 S/N XTF100000 and UP Upper Arm - LT Assembly AK61-00178-0002 Flat Washer 0017-00104-0450 Bolt 0017-00101-1645 Life Pulse Cable AK61-00051-0000 Strain Relief Bushing 0017-00042-1078 91X-0XXX-01... -
Page 18: Cables
RT SIGNAL SIGNAL 4POS. MICROFIT TESTER Vsysc UPPER CONSOLE B084-92219-*005 10POS. BACKGROUND DEBUG HDR. BERR BKPT FREEZE RESET 91X-0XXX-01 S/N XTF100000 and UP Reed Switch Assembly 118E-00001-0140 3POS.MINI FIT Vbat RPM_REED 13POS. KK-156 Main Cable AK61-00136-0000 16-POS.MINI FIT JR. 19POS.LIF...
