ARCTIC SILVER 93CW Upright Bike
Customer Support Services
PARTS MANUAL
rev 29 Apr 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Upright Bike 93CW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Life Fitness Upright Bike 93CW

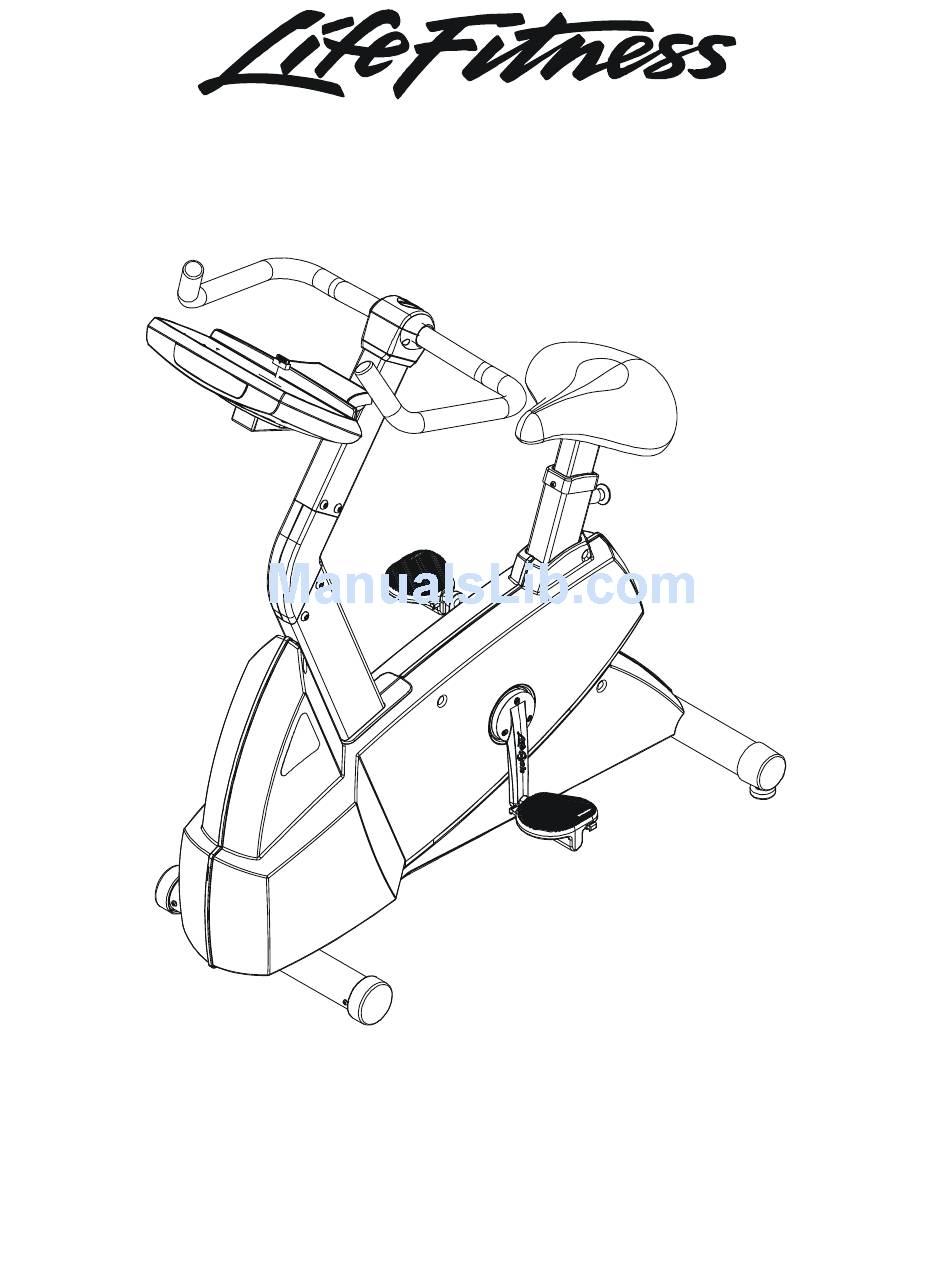

  • Page 1 ARCTIC SILVER 93CW Upright Bike Customer Support Services PARTS MANUAL rev 29 Apr 2008...
  • Page 2 ARCTIC SILVER 93CW REFERENCES OPERATION MANUAL HARDWARE BAG NETWORK C-SAFE KIT TOUCH UP PAINT: SPRAY CAN .5 OZ BOTTLE W/APPLICATOR .33 OZ PEN COAX CABLE ER READY BRACKET ASSEMBLY ASSEMBLY CONSISTS OF: 1) POWER CABLE 2) ER READY BRACKET 3) F TYPE CONNECTOR SERVICE MANUAL NOTE: ADDING THE BOLT ON LCD SCREEN TO THE 93CW-0XXX-02 MAKES THE UNIT A 93CER-0XXX-02.
  • Page 3: Table Of Contents

    ARCTIC SILVER 93CW 93CW-0XXX-02 CONTENTS S/N CCM100000 and up Page CONSOLE AND RELATED COMPONENTS...4 CONSOLE MOUNTING SCREWS AND POLAR COVERS..………………………………..5 ALTERNATOR W/PULLEY ...6 CRANKSHAFT AND BEARING ASSEMBLY...7 INTERMEDIATE SHAFT AND BEARING ASSEMBLY...8 SEAT LATCH ASSEMBLY ...9 SEAT POST ASSEMBLY ...10 SEAT POST SHROUDS………………………………………………………………………….11 IDLER BRACKET ASSEMBLY...12 CONSOLE SUPPORT ASSEMBLY...13...
  • Page 4: Console And Related Components

    ARCTIC SILVER 93CW Console and Related Components Overlay Bezel Phillips Pan Screws(13) 0017-00101-1650 Console Assembly AK63-00161-0001 Eng Met AK63-00161-0003 Ger Met AK63-00161-0004 Spn Met AK63-00161-0006 Jap Met AK63-00161-0007 Frn Met AK63-00161-0008 Itl Met AK63-00161-0009 Dut Met AK63-00161-0010 Por Met S/N CCM100000 and up Console Board - Upper A084-92220-A005 Phillips Pan Screws(13)
  • Page 5: Console Mounting Screws And Polar Covers

    ARCTIC SILVER 93CW Console Mtg. Screws & Polar Covers Console Assembly Console Mounting Screws(4) 0017-00101-1744 S/N CCM100000 and up Upper Cover 0K63-01145-0001 Lower Cover 0K63-01146-0001 Cover Screws(4) 0017-00101-1744 93CW-0XXX-02...
  • Page 6: Alternator W/Pulley

    ARCTIC SILVER 93CW Alternator w/Pulley-AK63-00093-0000 Alternator Pulley 0K61-02500-0001 Locking Nut 0017-00103-0117 S/N CCM100000 and up Alternator 0017-00009-0841 Bolt 0017-00101-0956 Washer 0017-00104-0044 93CW-0XXX-02 Brushes 0017-00009-0895...
  • Page 7: Crankshaft And Bearing Assembly

    ARCTIC SILVER 93CW Crankshaft and Bearing Assembly Crank Arm Hub 0K63-01095-0001 *Needle Bearing(2) 0K63-01128-0000 *Small Snap Ring(2) 0017-00100-0241 Pulley Assemlby AK63-00051-0000 Pully 0K63-01018-0000 Flywheel Screws(3) 0017-00101-1715 Washers(3) 0017-00104-0458 *Crank Shaft & Bearing Kit GK63-00002-0077 *Crank Shaft 0K63-01012-0000 *Small Thrust Washer(2) 0K63-01129-0000 *Large Thrust Washer(2) 0K63-01129-0001...
  • Page 8: Intermediate Shaft And Bearing Assembly

    ARCTIC SILVER 93CW Intermediate Shaft and Bearing Assembly Clutch Assembly AK63-00026-0000 (not included in kit) Delrin Washers (2) 0017-00104-0455 Retaining Ring 0017-00100-0242 Intermediate Shaft and Bearing Assembly Kit GK63-00002-0007 93CW-0XXX-02 S/N CCM100000 and up Magnet 118E-00001-0124 (not included in kit) Intermediate Spacer (not Bearings (2,...
  • Page 9: Seat Latch Assembly

    ARCTIC SILVER 93CW Seat Latch Assy. -AK63-00043-0001 Latch Bracket 0K63-01064-0000 E-Ring 0017-00100-0050 Link Shaft Assy. AK63-00113-0001 Latch Spring 0K63-01117-0000 NYLINER 0017-00042-1129 Set Screws (2) 0017-00101-0333 NYLINER 0017-00042-1129 93CW-0XXX-02 S/N CCM100000 and up Latch Rack 0K63-01061-0000...
  • Page 10: Seat Post Assembly

    ARCTIC SILVER 93CW Seat Post Assy. – AK63-00232-0003 Screw 0017-00101-1750 Seat Adjustment Rack 0K63-01049-0001 Seat Post Decal 0K63-01310-0000 Pan Screws(3) Polylastomer Bumper 0017-00101-1614 0017-00042-1131 93CW-0XXX-02 S/N CCM100000 and up Standard Seat Assy. AK63-00229-0004 Lock Washer(4) 0017-00104-0064 Hex Bolt(4) 0017-00101-1121 Extrusion Guide Cap 0K63-01044-0000 Seat Post Assembly...
  • Page 11: Seat Post Shrouds

    ARCTIC SILVER 93CW Seat Post Shrouds Left Seat Post Shroud 0K63-01092-0010 Screw 0017-00101-1741 93CW-0XXX-02 S/N CCM100000 and up Right Seat Post Shroud 0K63-01092-0009...
  • Page 12: Idler Bracket Assembly

    ARCTIC SILVER 93CW Idler Bracket Assy.-AK63-00021-0000 Lock Nut 0017-00103-0218 93CW-0XXX-02 S/N CCM100000 and up Idler Bracket 0K63-01050-0000 Idler w/Bearing AK63-00008-0000...
  • Page 13: Console Support Assembly

    ARCTIC SILVER 93CW Console Support Assembly End Cap 0K63-01320-0000 Support Screws(4) 0017-00101-1755 Pan Screws(4) 0017-00101-1753 Handlebar Cover-RT 0k63-01191-0003 I-Beam Joint 0K63-01178-0001 Handlebar Cover-LT 0K63-01191-0004 S/N CCM100000 and up Cable Assy: Jack/Hr AK36-00021-0003 Console Support Weldment Assy AK63-00089-0002 Console Cable AK63-00037-0002 93CW-0XXX-02 Polar Bracket 0K63-01113-0000...
  • Page 14: Left Side Shroud And Crankarm

    ARCTIC SILVER 93CW Left Side Shroud and Crankarm Shroud Screws(3) 0017-00101-1741 Shroud Plug 0K63-01084-0001 Decal 0K63-01314-0000 93CW-0XXX-02 S/N CCM100000 and up Left Side Shroud AK63-00177-0002 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, LT 0K39-01042-0008 Left Pedal AK63-00124-0004 Left Pedal Strap 0K63-01238-0004...
  • Page 15: Right Side Shroud And Crankarm

    ARCTIC SILVER 93CW Right Side Shroud and Crankarm Right Pedal AK63-00124-0003 Right Pedal Strap 0K63-01238-0003 Crank Arm Screws(3) 0017-00101-1855 Crank Arm, RT 0K39-01042-0007 S/N CCM100000 and up Right Side Shroud Decal AK63-00177-0001 0K63-01314-0000 Right Side Shroud Screws(8) 0017-00101-1741 93CW-0XXX-02...
  • Page 16: Pcb Mounting Bracket Assembly

    ARCTIC SILVER 93CW PCB Mounting Bracket Assembly Assembly Number – AK63-00049-0000 Plastic Grommet(4) 0017-00042-0821 PCB Circuit Board B084-92218-D000 Pan Screws(4) 0017-00101-0823 93CW-0XXX-02 S/N CCM100000 and up Battery Screws(2) 0017-00101-0975 Battery - 6V 0017-00003-0685 Positive Terminal Battery Mounting Bracket 0K63-01211-0000...
  • Page 17: Front Wheels

    ARCTIC SILVER 93CW Front Wheels – AK63-00017-0001 Wheel Screw 0017-00101-1747 Wheel Insert 0K63-01039-0000 Wheel/Bearing Assembly AK63-00016-0001 S/N CCM100000 and up Pan Screw(2) 0017-00101-1747 Flat Washer 0K63-01041-0000 93CW-0XXX-02...
  • Page 18: Resistor Assembly

    ARCTIC SILVER 93CW Resistor Assembly- AK63-00047-0000 Resistor .5 OHM 240 Watt 100E-00002-0084 Retainer 0K63-01215-0000 Resistor Bracket(2) 0K63-01165-0000 S/N CCM100000 and up Nut(3) 0017-00103-0081 Pan Screw (2) 0017-00101-1282 Power Control Cable Assembly AK63-00029-0001 93CW-0XXX-02 Resistor Mounting Rod 0K63-01166-0000...
  • Page 19: Handlebar Assembly

    ARCTIC SILVER 93CW Handlebar Assy. - AK63-00101-0001 Dipped Grip 0K63-01177-0002 93CW-0XXX-02 S/N CCM100000 and up Handlebar AK63-00084-0000...
  • Page 20: Belts

    ARCTIC SILVER 93CW Belts Alternator Belt 0K63-01065-0000 S/N CCM100000 and up Intermediate Belt 0K63-01066-0001 93CW-0XXX-02...
  • Page 21: Cables

    ARCTIC SILVER 93CW Cables 93CW-0XXX-02 S/N CCM100000 and up 15 OHMs Resistor...
