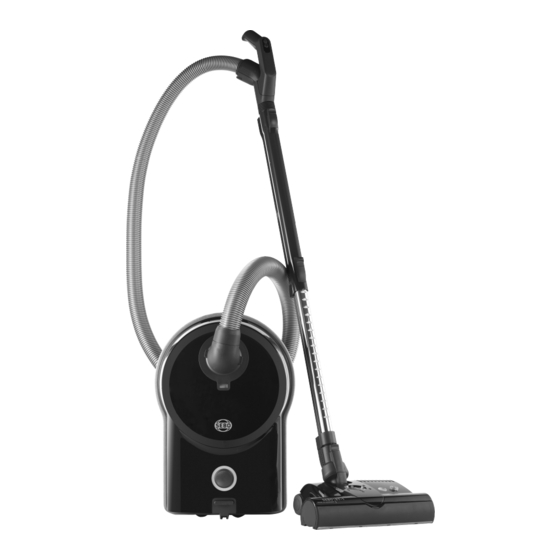

Sebo airbelt d vacuum cleaner
Hide thumbs Also See for AIRBELT D:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , Instruction Manual

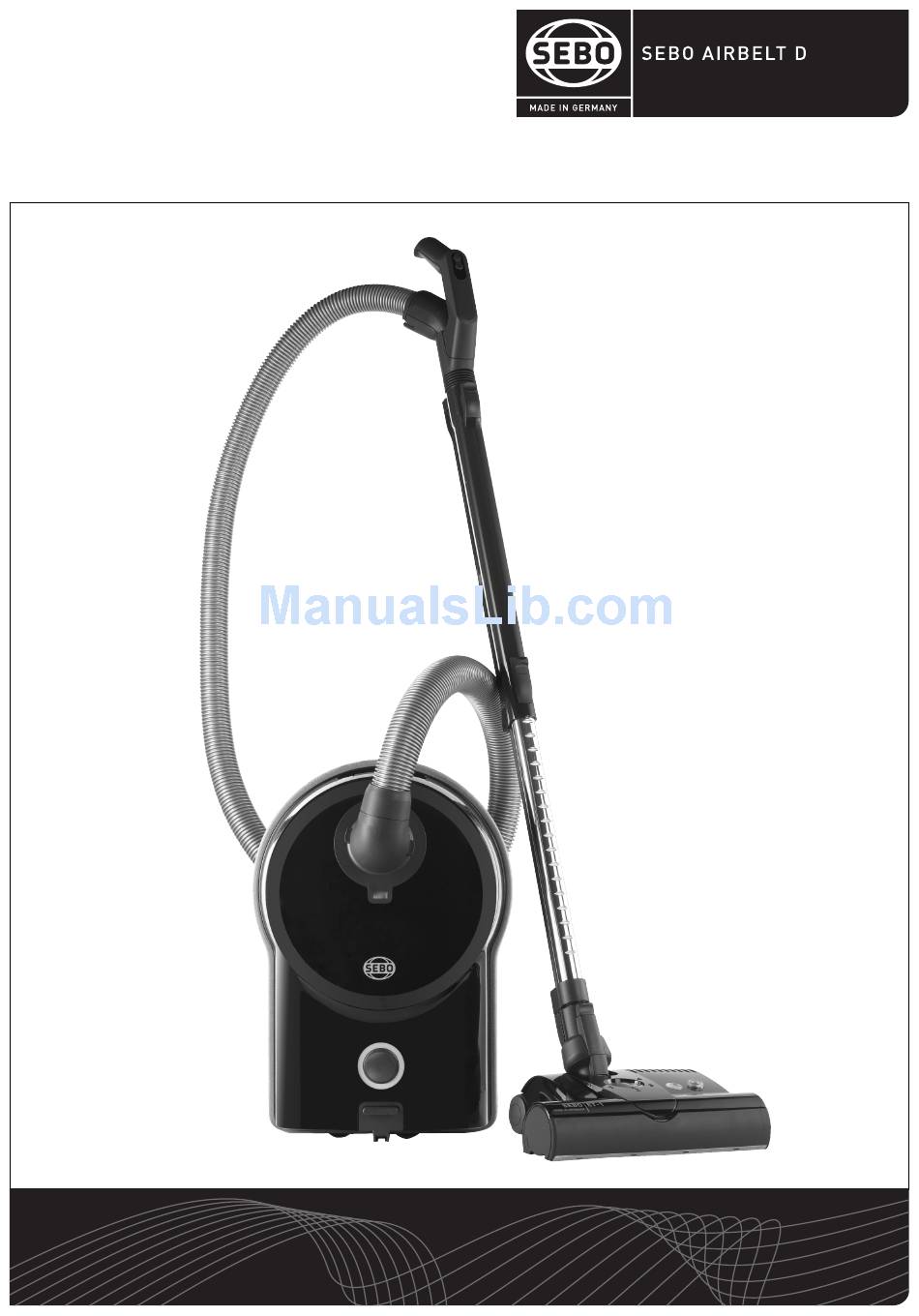

OWNER'S MANUAL
For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRBELT D and is the answer not in the manual?

Questions and answers

Related Manuals for Sebo AIRBELT D

Summary of Contents for Sebo AIRBELT D

  • Page 1 OWNER’S MANUAL For Household Use Only...

  • Page 2: Table Of Contents

    To contact SEBO in Canada: SEBO America, LLC Floor Care Equipment, Ltd. Telephone: (800) 334-6614 Telephone: (800) 661-8687 Fax: (303) 792-9196 Fax: (800) 270-4807 Website: www.sebo.us Website: www.sebocanada.ca For Warranty coverage information please refer to your Warranty Card included with your SEBO vacuum cleaner.

  • Page 3: Important Safety Instructions

    Do not allow plug to whip while rewinding. such as cigarettes, matches, or hot ashes. Do not use 29. If using a power head with this vacuum, use only a SEBO machine to vacuum up flammable or combustible liquids power head. Refer to power head manual for further infor- such as gasoline.

  • Page 4: Sebo Airbelt D Product Features

    SEBO AIRBELT D4 PRODUCT FEATURES The SEBO AIRBELT D4 is equipped with many extras that will make Large Operating Range – A 40-foot cord with your life easier! Its “suction-optimized” airflow pathway, together a 50-foot cleaning radius saves time because...

  • Page 5: Et Power Heads Product Features

    OPTIONAL ATTACHMENTS, ACCESSORIES, BAGS & FILTERS In addition to the standard on-board tools, a variety of optional SEBO filter bags can be purchased in boxes of eight and filters attachments are available. The nine-foot extension hose are sold as a set. SEBO bags, filters and accessories are rea- (extends suction hoses) and the 20-inch extension tube are very sonably priced and widely available.

  • Page 6: Standard Features Of All Sebo Vacuums

    This is why all SEBO vacuums have tight seals and air exits through the sides, which allows unimpeded air- throughout.

  • Page 7: Identification Of Parts

    IDENTIFICATION OF PARTS 1. Handle grip 2. Power control rocker 3. Tube release button 4. Slide Button 5. Telescopic tube 6. On/Off button 7. Cable rewind button 8. LED suction-power indicator 9. Tool release button 10. Kombi nozzle (optional) 11. Hose 12.

  • Page 8: Operating Instructions

    When possible, consult the materials supplied by your flooring manufacturer for information on proper upkeep and cleaning. To ensure that your new SEBO vacuum cleaner is compatible with your floor, please test the vacuum cleaner on each type of flooring surface in a small inconspicuous area to determine if any damage...

  • Page 9: Suction Control

    (5) to the handle grip (1). To disconnect, simply press the tube release button (3) and pull the tube off the handle. Most SEBO accessories can be attached directly to the handle grip (1) with the telescopic tube removed.

  • Page 10: Retracting The Cord

    Retracting the Cord - Figure 12 To retract the cord, switch the vacuum off, unplug it from the outlet, then press the cord rewind button (#7) and the mechanism will automatically rewind the cord. You must hold the button down until the cord is fully rewound.

  • Page 11: Vacuum Maintenance

    (47). Continue around the vacuum. Secure the ends with the clip (23). AIRBELT Cover - Part #6047AM/01-08 SEBO AIRBELT covers are available in a variety of colors and patterns. See your SEBO dealer for available selection. Figure 25 Note: Never operate the vacuum with incorrectly attached filters or without filters, bag, AIRBELT or filter bag housing cover (18).

  • Page 12: Changing The Motor Filter

    Changing the Motor Filter - Figures 26 & 27 The motor filter (48) needs to be changed when it becomes extremely dirty or clogged. To remove the motor filter, switch off the power and unplug the vacuum. Lift the cover release catch (#15, figure 26) and raise the filter bag cover (18).

  • Page 13: Clog Removal

    CLOG REMOVAL Always switch off power and unplug vacuum from outlet before removing any clogs! NOTE! D4 users with ET-1 or ET-2 power heads, please refer to your power head user’s manual for more detailed instructions for removing clogs in your power head. If the “bag full or clog”...

  • Page 14: Trouble-Shooting Guide

    TROUBLE-SHOOTING GUIDE Always unplug vacuum from outlet before dismantling any part of the machine! PROBLEM REASON SOLUTION Does not turn on 1. Telescopic tube not inserted properly. 1. See page 7. 2. Not plugged into working outlet. 2. Use another outlet. 3.

  • Page 15: Airbelt D4 Schematic And Part Numbers

    AIRBELT D4 SCHEMATIC AND PARTS LIST Canister with Handle/Hose 90640AM Premium D4 - Black (Onyx) 90630AM D4 - Red 90641AM Premium D4 - White 90641AM Premium D4 - White Machine Pos. Part # Description 8001WEER Bottom casing (2 & 3) 8086 Castor cpl 8065ER...
