OWNER'S MANUAL
For Household Use Only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRBELT D4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sebo AIRBELT D4

Summary of Contents for Sebo AIRBELT D4

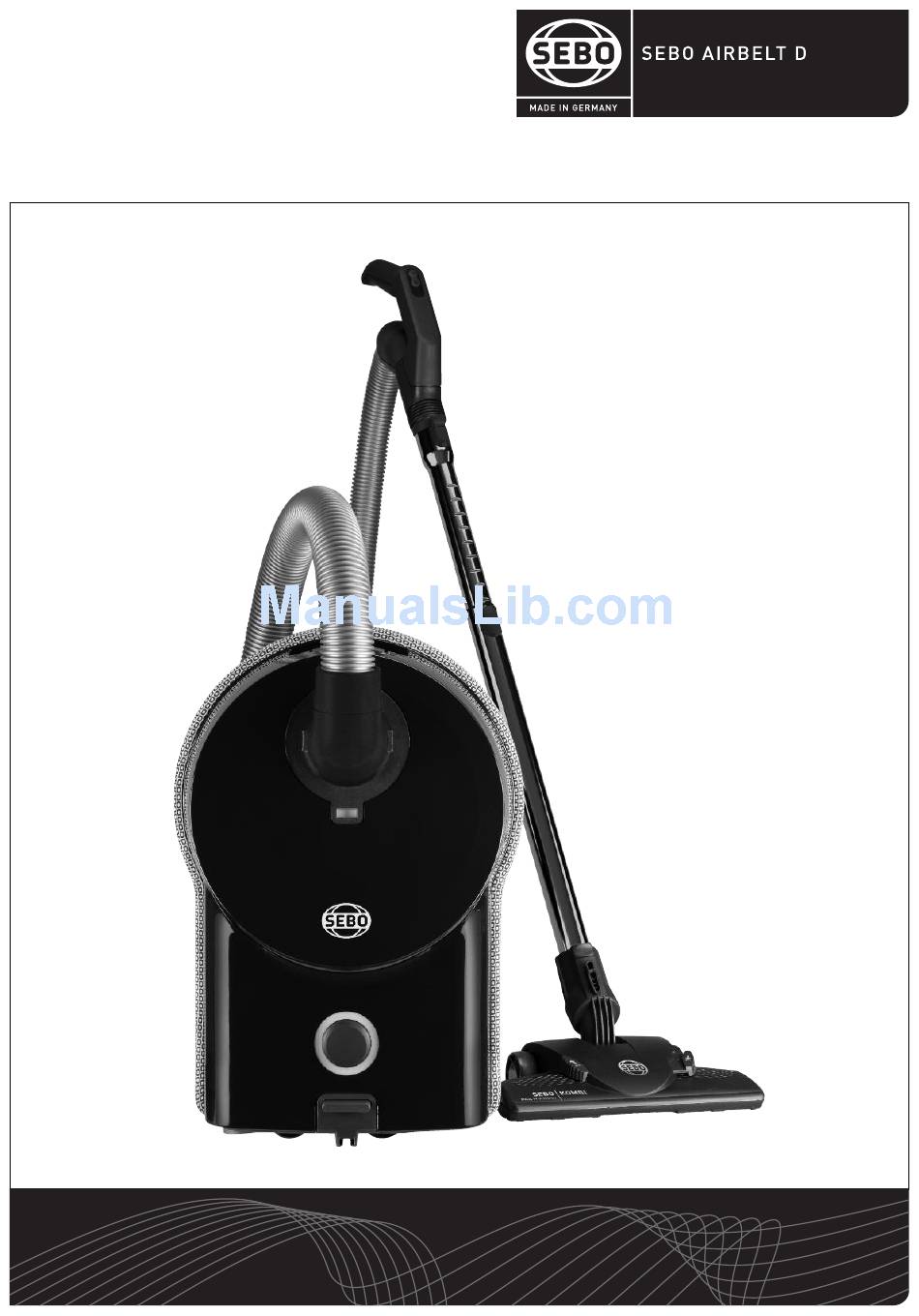

  • Page 1 OWNER’S MANUAL For Household Use Only...

  • Page 2: Table Of Contents

    Clogs in the Head or Brush Clogs in the Telescopic Tube Clogs in the Hose Clogs in Entrance to Filter Bag Trouble-Shooting Guide AIRBELT D4 Schematic and Part Numbers Warranty How To Contact SEBO TECHNICAL DETAILS Vacuum motor 1250 watts (12 amps)

  • Page 3: Important Safety Instructions

    16. Do not use vacuum without filter bag and/or filters in place. either hose or power head. 17. Turn off all machine controls before unplugging. 33. Use a SEBO power head only in combination with a SEBO vacuum cleaner. 18. Use extra care when cleaning on stairs.

  • Page 4: Special Airbelt D Product Features

    SEBO AIRBELT D4 PRODUCT FEATURES The SEBO AIRBELT D4 is equipped with many extras that will make Comfortable Ergonomic Handle – The AIRBELT handles are your life easier! Its “suction-optimized” airflow pathway, together ergonomically designed and positioned to reduce wrist and arm with its one-of-a-kind tapered-hose technology, provides ultra- fatigue.

  • Page 5: Et Power Heads Product Features

    Both Carpet and Hard Floor Cleaning – With a power brush to clean carpets and a parquet nozzle to clean hard floors, the AIRBELT D4 provides all the flexibility needed to care for a vari- ety of floor surfaces. The D4 vacuum can morph into a hard floor polisher, by adding a SEBO DISCO head.

  • Page 6: Optional Disco Floor Polisher Product Features

    ⁄ ” polishing width) – It’s never been easier to make hard floors shine! The SEBO DISCO floor pol- isher can both vacuum and polish, for a super-gloss finish. It can be attached to the FELIX uprights or to the AIRBELT canisters. Its suction removes fine dust (dust from fully dried floor polishing product) during polishing, and the 2,000 rpm disc speed will create a high-gloss shine for a fantastic hard floor finish.

  • Page 7: Identification Of Parts

    The release button (9) is in the same position on all of the heads, brushes and power heads. NOTE: To attach a SEBO power head (ET-1, ET-2 or DISCO) to your D4 canister, please refer to your power head owner’s manual for instructions. Attaching incorrectly could cause damage!

  • Page 8: Operating Instructions

    3. Press the canister On/Off button on the base of the canister (6) gently with your foot or hand. The blue light around the button (8) will blink right and left indicating that the power is on. Your SEBO AIRBELT D4 has a soft-start system for longer component life. This may delay starting slightly.

  • Page 9: Suction Control

    Suction Control - Figure 7 The suction power will automatically increase from standby to maximum power after the machine is switched on. You can override this process by pressing the plus (+) or minus (-) on the power control button (2) conveniently located on the handle grip (1). Press the plus on the button for maximum suction or press the minus to reduce suction for vacuuming curtains or delicate fabrics.

  • Page 10: Retracting The Cord

    LED Suction-Power Indicator - Figure 14 Your AIRBELT D4 canster features an LED light display (8) that monitors suction power. It is located around the ON/OFF power control knob (6). When the canister power is switched on, a blue light will blink right and left. As the suction increases, the lights will rotate around the ring.

  • Page 11: Vacuum Maintenance

    (55). Continue around the vacuum. Secure the ends with the clip (23). AIRBELT Cover - Part #6047AM/01-08 SEBO AIRBELT covers are available in a variety of colors and patterns. See your SEBO dealer for available selection. Figure 27 Note: Never operate the vacuum with incorrectly attached filters or without filters, bag, AIRBELT or filter bag housing cover (18).

  • Page 12: Changing The Motor Filter

    Changing the Motor Filter - Figures 28 & 29 The motor filter (42) needs to be changed when it becomes extremely dirty or clogged. To remove the motor filter, switch off the power and unplug the vacuum. Lift the cover release catch (#15, figure 28) and raise the filter bag cover (18).

  • Page 13: Clog Removal

    CLOG REMOVAL Always switch off power and unplug vacuum from outlet before removing any clogs! NOTE! D4 users with ET-1, ET-2 or DISCO power heads, please refer to your power head user’s manual for more detailed instructions for removing clogs in your power head.

  • Page 14: Trouble-Shooting Guide

    TROUBLE-SHOOTING GUIDE Always unplug vacuum from outlet before dismantling any part of the machine! PROBLEM REASON SOLUTION Does not turn on 1. Telescopic tube not inserted properly. 1. See page 7. 2. Not plugged into working outlet. 2. Use another outlet. 3.

  • Page 15: Airbelt D4 Schematic And Part Numbers

    AIRBELT D4 SCHEMATIC AND PARTS LIST Canister with Handle/Hose 90640AM Premium D4 - Black (Onyx) 90630AM D4 - Red 90641AM Premium D4 - White 90641AM Premium D4 - White Machine Pos. Part # Description 8001WEER Bottom casing (2) 8086 Castor cpl...

  • Page 16: Warranty

    To locate an authorized SEBO dealer in your area, or to purchase receipt and mail in the warranty card provided register a warranty claim in the United States of with your new SEBO vacuum cleaner.
