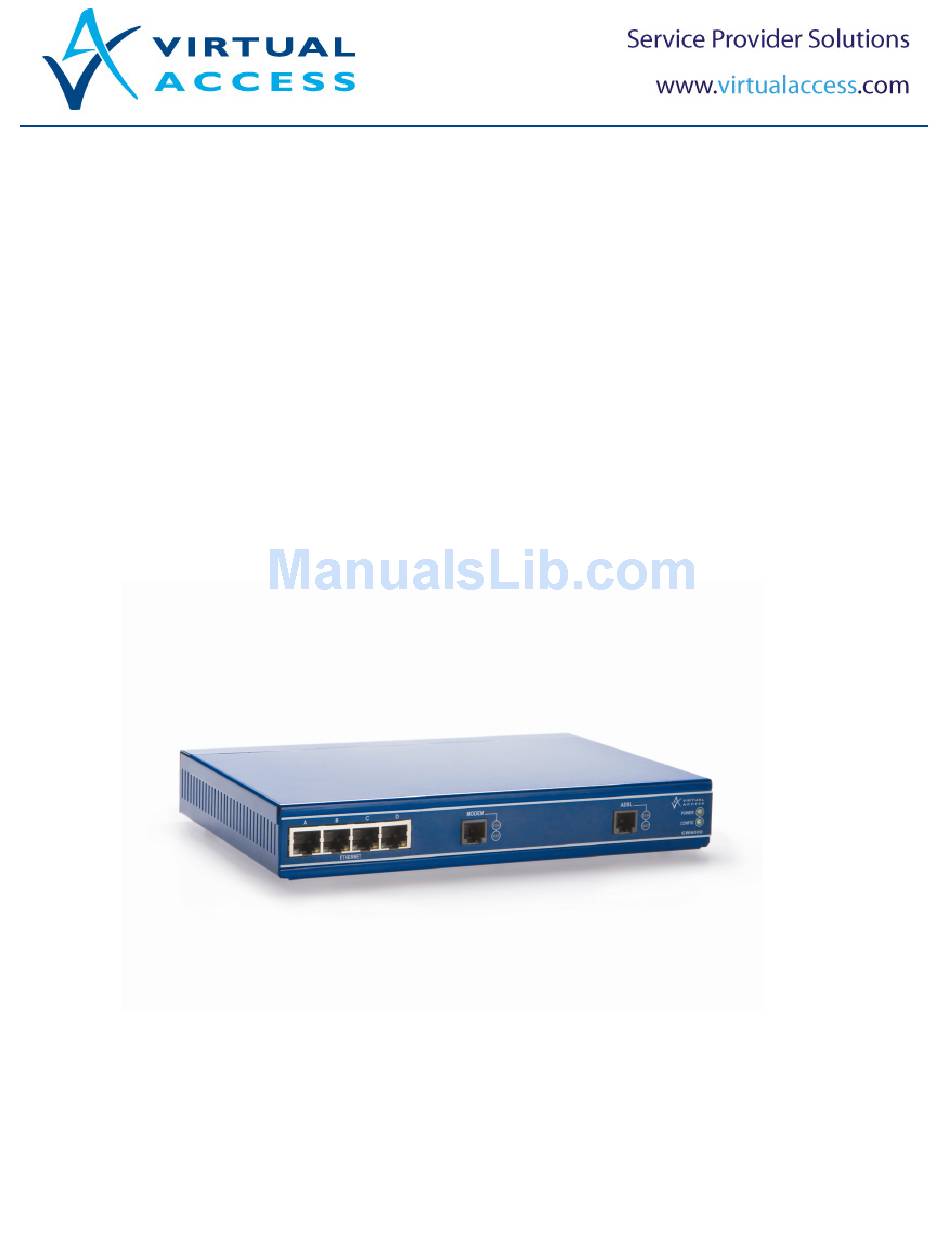

- Page 1 Service Managed Gateway Installing your 6000 Series Router Issue Date 15 September 2010...
-
Page 2: Table Of Contents
Installing a GW6000 or GL6000 ADSL SMG outside the UK ....10 Copyright 2010 Virtual Access (Irl) Ltd. This material is protected by copyright. No part of this material may be reproduced, distributed, or altered without the written consent of Virtual Access. All rights reserved. Third party trademarks are the property of the third parties. -
Page 3: Location Variants
UK or outside the UK. If you are a UK customer, read section 2, ‘Installing a 6000 series router in the UK.’ If you are a customer outside the UK, read section 3, ‘Installing a 6000 series router outside the UK’. -
Page 4: Installing A 6000 Series Router In The Uk
2.2 6000 series serial number and model descriptions for the UK When you receive your 6000 Series pack, retain the outer packaging. The label containing the model number, serial number (S/N) and part number (P/N) is located on the side of the packaging box. - Page 5 2: Installing a 6000 series router in the UK Access support for installation and configuration confirmation or should you request service on the device. Figure 1: The model number on the side of the packaging Check that all the parts are in your package before you install your SMG.
-
Page 6: Installing A Uk 6000 Series Router Before It Is Automatically Configured
2: Installing a 6000 series router in the UK 2.3 Installing a UK 6000 series router before it is automatically configured The SMG is shipped in its factory default configuration for automatic configuration. After you have powered up the router for the first time, the config LED flashes to indicate that it is in a factory default configuration. - Page 7 2: Installing a 6000 series router in the UK Figure 3: The power cable for the 6000 series router The SMG initialises. The CONFIG LED flashes, and all the LEDs temporarily light in sequence. Then your SMG activates. The activation process can take between 2 and 10 minutes. The CONFIG LED flashes throughout activation.
-
Page 8: Installing A 6000 Series Router Outside The Uk
3.2 6000 series serial number and model descriptions for outside the UK When you receive your 6000 Series pack, retain the outer packaging. The label containing the model number, serial number (S/N) and part number (P/N) is located on the side of the packaging box. - Page 9 3: Installing a 6000 series router outside the UK Figure 4: The model number on the side of the packaging Check that all the parts are in your package before you install your SMG. If there is a 'Y' in a field, you should have that part. If you are missing any parts, please contact your distributor.
-
Page 10: Installing A 6000 Series Router Before It Is Automatically Configured
3: Installing a 6000 series router outside the UK 3.3 Installing a 6000 series router before it is automatically configured The SMG is shipped in its factory default configuration for automatic configuration. After you have powered up the router for the first time, the config LED flashes to indicate that it is in a factory default configuration. - Page 11 3: Installing a 6000 series router outside the UK Figure 6: The power cable for the 6000 series router The SMG initialises. The CONFIG LED flashes, and all the LEDs temporarily light in sequence. Then your SMG activates. The activation process can take between 2 and 10 minutes. The CONFIG LED flashes throughout activation.
