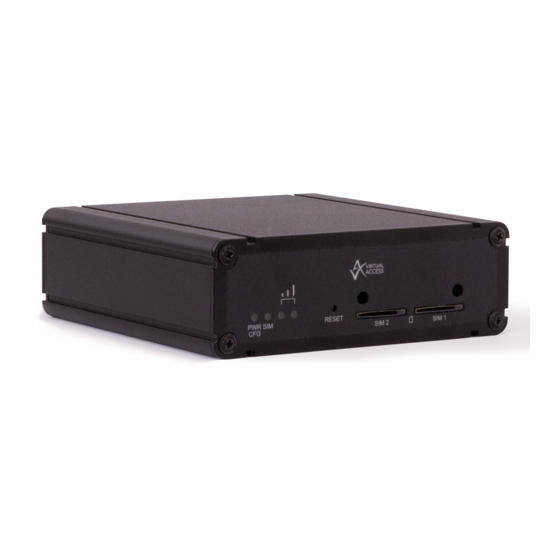

Page 1 GW1000 Series User Manual GW1000 Series Router GW1000M Series Router Issue: Date: 27 March 2017...
Page 2: Table Of Contents
Configuring the password using package options......... 27 Accessing the device using RADIUS authentication ........28 6.10 Accessing the device using TACACS+ authentication ........29 6.11 SSH ...................... 32 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 2 of 350...
Page 3 Monitor ....................82 12.3 Configuration packages used ..............82 12.4 Autoload: boot up activation ..............83 12.5 Autoload packages .................. 83 12.6 Autoload using UCI ................. 86 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 3 of 350...
Page 4 Configuring QoS using UCI ..............132 17.5 Example QoS configurations ..............135 18 QoS: VLAN 802.1Q PCP tagging ..............136 18.1 Configuring VLAN PCP tagging ..............136 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 4 of 350...
Page 5 24 Configuring Multi-WAN ................179 24.1 Configuration package used ..............179 24.2 Configuring Multi-WAN using the web interface ......... 179 24.3 Multi-WAN traffic rules ................184 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 5 of 350...
Page 6 Advantages of using DMVPN ..............281 30.3 DMVPN scenarios .................. 282 30.4 Configuration packages used ..............284 30.5 Configuring DMVPN using the web interface ..........284 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 6 of 350...
Page 7 36 Configuring SLA reporting on Monitor ............335 36.1 Introduction ..................335 36.2 Configuring SLA reporting ..............335 36.3 Configuring router upload protocol ............336 36.4 Viewing graphs ..................336 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 7 of 350...
Page 8 Configuration package used ..............346 37.2 Configuring SLA for a router using the web interface ......... 346 37.3 Configuring SLA for a router using the UCI interface ........348 _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 8 of 350...
Page 9: Introduction
GW1000 Series and GW1000M Series are described in separate sections. 1.1.1 GW1000 Series routers The Virtual Access GW1000 Series router is a compact 3G/4G LTE router with WiFi, designed with a lightweight plastic case with optional carrier for use in vehicles and a wide range of site-based applications.
Page 10 However the documentation usually assumes that a section label is not configured. The table below shows fields from a variety of chapters to illustrate the explanations above. _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 10 of 350...
Page 11 Diagnostics are explained at the end of each feature’s chapter. 1.2.4 UCI commands For detailed information on using UCI commands, read chapters ‘Router File Structure’ and ‘Using Command Line Interface’. _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 11 of 350...
Page 12: Gw1000 Series Hardware
Dual Ethernet, 3G, dual SIM, dual WiFi, dual WiFi SMA connectors, metal casing, optional carrier. GW1042M Dual Ethernet, 4G/LTE, dual SIM, dual WiFi, dual WiFi SMA connectors, metal casing, optional carrier _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 12 of 350...
Page 13: Gw1000 Series Hardware Features
  HSPA+  EDGE/GPRS  2.4 WiFi technology  802.11 b/g/n  Single band 2.4GHz  Up to 20dBm output power  Internal antenna _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 13 of 350...
Page 14: Power Supply
EN55022:1998 Class B and EN55024:1998 ETSI 301489-17 Environmental ETSI 300 019-1-3 Sinusoidal Vibration and Shock ETSI 300 019-2-3 Random Vibration. WiFi 2.4GHz ETSI EN 300 328 V1.9 (2015-02) _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 14 of 350...
Page 15: Operating Temperature Range
MIMO support in LTE versions  1 x GPS SMA female antenna connector with 3v3 active power feed  2 x SMA female WiFi antenna sockets _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 15 of 350...
Page 16: Components
Ethernet cable. RJ45 connector at both ends. Power supply unit. Right angle antenna for 3G/4G network. Virtual Access supplies a wide range of antennas. Please visit our website: www.virtualaccess.com or contact Virtual Access for more information. 1 x fused automotive cable...
Page 17: Inserting A Sim Card
Booting is complete when the PWR/CONFIG LED stops double flashing and stays solid or flashing steady, indicating the particular running configuration is loaded. Read the chapter ‘GW1000 LED behaviour’, for PWR/CONFIG LED states. _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 17 of 350...
Page 18: Reset Button
You can use recovery mode to manipulate the config files, but should only be used if all other configs files are corrupt. If your router has entered recovery mode, contact your local reseller for access information. _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 18 of 350...
Page 19: Gw1000 And Gw1000M Series Led Behaviour
  Flashing slowing (2 flashes per second)  Flashing quickly (5 flashes per second)  Double flash (2 quick flashes then a pause)  _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 19 of 350...
Page 20: Gw1000 And Gw1000M Series Ethernet Port Led Behaviour
Figure 7: Ethernet LED Physical Ethernet link detected Ethernet LED (amber) Flashing Data is being transmitted/ received over the link. Table 6: Ethernet LED activity description _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 20 of 350...
Page 21: Installing A Router Into A Vehicle
Connect the BLUE wire to a 12V switched vehicle ignition wire.  Connect the RED wire to a 12V permanent wire. Plug the 6 pin connector into the router. _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 21 of 350...
Page 22: Installing A Router Into A Vehicle Using A Fused Power Cable
Connect the BLUE wire to a 12V switched vehicle ignition wire.  Connect the RED wire to a 12V permanent wire. Plug the 6 pin connector into the router. _______________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 22 of 350...
Page 23: Factory Configuration Extraction From Sim Card
5: Factory configuration extraction from SIM card _______________________________________________________________________________________________________ 5 Factory configuration extraction from SIM card Virtual Access routers have a feature to update the factory configuration from a SIM card. This allows you to change the factory configuration of a router when installing the SIM.
Page 24: Accessing The Router
The default settings are shown below. The username and password are case sensitive. In the username field, type root. In the Password field, type admin. Click Login. The Status page appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 24 of 350...
Page 25: Accessing The Router Over Ethernet Using An Ssh Client
SCP server. No dedicated SPC client is supported; select the SCP client software of your own choice. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 25 of 350...
Page 26: Accessing The Router Over Ethernet Using A Telnet Client
In the Router Password section, type your new password in the password field and then retype the password in the confirmation field. Scroll down the page and click Save & Apply. Note: the username ‘root’ cannot be changed. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 26 of 350...
Page 27: Configuring The Password Using Uci
'$1$wRYYiJOz$EeHN.GQcxXhRgNPVbqxVw option password ‘newpassword’ The new password will take effect after reboot and will now be displayed in encrypted format via the hashpassword option. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 27 of 350...
Page 28: Accessing The Device Using Radius Authentication
'radius' option servers '192.168.0.1:3333|test|20 192.168.2.5|secret|10' config 'pam_auth' option enabled 'yes' option pamservice 'luci" option pammodule 'auth' option pamcontrol 'sufficient' option type 'radius' servers '192.168.0.1:3333|test|20 192.168.2.5|secret|10' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 28 of 350...
Page 29: Accessing The Device Using Tacacs+ Authentication
TACACS+ authentication can be configured for accessing the router over SSH, web or local console interface. package system config system 'main' option hostname 'VirtualAccess' option timezone 'UTC' config pam_auth option enabled 'yes' option pamservice 'sshd' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 29 of 350...
Page 30 'sufficient' option type 'tacplus' option servers '192.168.0.1:49|secret' config pam_auth option enabled 'yes' option pamservice 'luci' option pammodule 'account' option pamcontrol 'sufficient' option type 'tacplus' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 30 of 350...
Page 31 'service=ppp' config pam_auth option enabled 'yes' option pamservice 'login' option pammodule 'session' option pamcontrol 'sufficient' option type 'tacplus' option servers '192.168.0.1:49|secret' option args 'service=ppp' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 31 of 350...
Page 32: Ssh
SSH allows you to access remote machines over text based shell sessions. SSH uses public key cryptography to create a secure connection. These connections allow you to issue commands remotely via a command line. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 32 of 350...
Page 33: Virtual Access 2017
In the top menu, click System -> Administration. The Administration page appears. Scroll down to the SSH Access section. Figure 14: The SSH access section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 33 of 350...
Page 34: Package Dropbear Using Uci
Table 10: Information table for SSH access settings 6.12 Package dropbear using UCI root@VA_router:~# uci show dropbear dropbear.@dropbear[0]=dropbear dropbear.@dropbear[0].PasswordAuth=on dropbear.@dropbear[0].RootPasswordAuth=on dropbear.@dropbear[0].GatewayPorts=0 dropbear.@dropbear[0].IdleTimeout=30 dropbear.@dropbear[0].Port=22 dropbear.@dropbear[0].MaxLoginAttempts=3 Package dropbear using package options _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 34 of 350...
Page 35: Certs And Private Keys
There is support for IPSec, OpenVPN and VA certificates and keys. If you have generated your own SSH public keys, you can input them in the SSH Keys section, for SSH public key authentication. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 35 of 350...
Page 36: Configuring A Router's Web Server
To configure the router’s HTTP server parameters, in the top menu, select Services -> HTTP Server. The HTTP Server page has two sections. Main Settings Server configurations Certificate Settings SSL certificates. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 36 of 350...
Page 37: Main Settings
ASN.1/DER private key used to serve HTTPS connections. If no listen_https options are given the key options are ignored. UCI: uhttpd.main.key /etc/uhttpd.key Opt: key Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 37 of 350...
Page 38 Does not follow symbolic links if enabled. UCI: uhttpd.main.no_symlinks Disabled. Opt: no_symlinks Enabled. Web: N/A Does not generate directory listings if enabled. UCI: uhttpd.main.no_dirlists Disabled. Opt: no_symlinks Enabled. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 38 of 350...
Page 39 '0.0.0.0:443' option home '/www' option rfc1918_filter '1' option cert '/etc/uhttpd.crt' option key '/etc/uhttpd.key' option cgi_prefix '/cgi-bin' option script_timeout '60' option network_timeout '30' option config '/etc/http.conf' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 39 of 350...
Page 40 Activation, this must be set to the serial number (Eth0 UCI: uhttpd.commonname MAC address) of the device. Opt: commonname Table 12: Information table for HTTP server certificate settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 40 of 350...
Page 41: Basic Authentication (Httpd Conf)
/etc/shadow or /etc/passwd. If you use $p$… format, uhttpd will compare the client provided password against the one stored in the shadow or passwd database. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 41 of 350...
Page 42: Securing Uhttpd
To get your current LAN IP address, enter: uci get network.lan.ipaddr Then modify the configuration appropriately: uci set uhttpd.main.listen_http='192.168.1.1:80' uci set uhttpd.main.listen_https='192.168.1.1:443' config 'uhttpd' 'main' list listen_http 192.168.1.1:80 list listen_https 192.168.1.1:443 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 42 of 350...
Page 43: Configuring Dynamic Dns
7 Configuring Dynamic DNS 7.1 Overview Dynamic DNS (DDNS) functionality on a Virtual Access router will dynamically perform DDNS updates to a server so it can associate an IP address with a correctly associated DNS name. Users can then contact a machine, router, device and so on with a DNS name rather than a dynamic IP address.
Page 44: Dynamic Dns Settings
UCI: ddns.<name>.ip_source network IP is a associated with a network configuration. Opt: ip_source interface IP is associated with an interface. IP is associated with a URL. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 44 of 350...
Page 45: Dynamic Dns Using Uci
Dynamic DNS uses the ddns package /etc/config/ddns 7.4.1 UCI commands for DDNS root@VA_router:~# uci show ddns ddns.ddns1=service ddns.ddns1.enabled=1 ddns.ddns1.service_name=dyndns.org ddns.ddns1.domain=fqdn_of_interface ddns.ddns1.username=testusername ddns.ddns1.password=testpassword ddns.ddns1.ip_source=network ddns.ddns1.ip_network=dsl0 ddns.ddns1.check_interval=10 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 45 of 350...
Page 46 'test' option password 'test' option ip_source 'network' option ip_network 'dsl0' option check_interval '10' option check_unit 'minutes' option force_interval '72' option force_unit 'hours' option interface 'dsl0' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 46 of 350...
Page 47: System Settings
Configure the router’s web language and style. Time synchronization Configure the NTP server in this section. 8.2.1 General settings Figure 21: General settings in system properties _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 47 of 350...
Page 48 External syslog server IP address. UCI: system.main.log_ip Range Opt: log_ip 0.0.0.0 Web: External system log server port External syslog server port number. UCI: system.main.log_port Range Opt: log_port _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 48 of 350...
Page 49 /root/syslog.messages,x (where x starts at 0). Opt: log_file_count Range Stores 1 archive log file in flash Table 15: Information table for the logging section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 49 of 350...
Page 50 UCI: system.ntp.server can be configured and are separated by a space if using UCI. Opt: list server By default all fields are set to 0.0.0.0. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 50 of 350...
Page 51: System Settings Using Uci
10.10.10.10 System settings using package options root@VA_router:~# uci export system package 'system' config 'system' 'main' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 51 of 350...
Page 52: System Diagnostics
To stop this option, type fg to view the current jobs, then press ctrl-c to kill those jobs. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 52 of 350...
Page 53 Shows end of the events stored flash. root@VA_router:~# tail –f /root/syslog.messages & Shows the log on an ongoing basis. To stop this option, press ctrl-c. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 53 of 350...
Page 54: Upgrading Router Firmware
To check which software version your router is running, in the top menu, browse to Status -> Overview. Figure 26: The status page showing a software version prior to 72.002 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 54 of 350...
Page 55 9.1.2 Upgrading router firmware for software versions pre- 72.002 Copy the new firmware issued by Virtual Access to a PC connected to the router. In the top menu, select System tab -> Backup/Flash Firmware. The Flash operations page appears.
Page 56 To verify that the router has been upgraded successfully, click Status in the top menu. The Firmware Version shows in the system list. Figure 31: The system status list _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 56 of 350...
Page 57 9.1.3 Upgrading router firmware for software version 72.002 and above Copy the new firmware issued by Virtual Access to a PC connected to the router. In the top menu, select System tab > Flash operations. The Flash operations page appears.
Page 58 To regain access to the router you must login again. If any part of the processes encounters an error the reboot does not occur and a report is given as shown in section 1.3.3. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 58 of 350...
Page 59 Version shows in the system list and also in the right top corner of the menu bar. Figure 37: The system status list showing current firmware version _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 59 of 350...
Page 60: Upgrading Firmware Using Cli
Windows it requires an additional application. The usage example below is for a Unix machine and therefore assumes the image file is in the current folder. scp LIS-15.00.72.002.image root@x.x.x.x:/tmp/LIS-15.00.72.002.image _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 60 of 350...
Page 61 After the write process has finished, you must complete post verification of the firmware. To verify the checksum of downloaded firmware, enter: va_image_csum.sh /tmp/LIS-15.00.72.002.image The checksum of the downloaded binary is shown: 08761cd03e33c569873bcc24cf2b7389 7006920 LIS-15.00.72.002 This MD5 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 61 of 350...
Page 62 Provided the programming has succeeded, you can set it as the next image to use after reboot, enter: vacmd set next image altimage To reboot using the new firmware, enter: reboot _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 62 of 350...
Page 63: Router File Structure
Figure 38: The status page System information is also available from the CLI if you enter the following command: root@VA_router:~# va_vars.sh _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 63 of 350...
Page 64: Identify Your Software Version
In the Firmware Version row, the first two digits of the firmware version identify the hardware platform, for example LIS-15; while the remaining digits: .00.72.002, show the software version. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 64 of 350...
Page 65: Image Files
To show the configuration to run after the next reboot, enter: root@VA_router:~# va_config.sh next To set the configuration to run after the next reboot, enter: root@VA_router:~# va_config.sh -s [factconf|config1|config2|altconfig] _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 65 of 350...
Page 66: Configuration File Syntax
Configurations can also be managed using directory manipulation. To remove the contents of the current folder, enter: root@VA_router:/etc/config1# rm –f * Warning: the above command makes irreversible changes. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 66 of 350...
Page 67: Exporting A Configuration File
In the top menu, select System > Backup/Flash Firmware. The Flash operations page appears. Figure 41: The flash operations page In the Backup/Restore section, select Generate Archive. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 67 of 350...
Page 68: Importing A Configuration File
8.9.1 If you have software version 72.002 or above, export a configuration file using the web interface go to section 8.9.2 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 68 of 350...
Page 69 Upload archive. Figure 44: The system – restoring…page When the ‘waiting for router’ icon disappears, the upgrade is complete, and the login homepage appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 69 of 350...
Page 70 OK to return to the Flash Operations page. There you can manually select Made Active (after reboot). Then click Reboot Now in the ‘Reboot using Active Configuration’ section. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 70 of 350...
Page 71 <paste in config file> <CTRL-D> Note: it is very important that the config file is in the correct format otherwise it will not import correctly. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 71 of 350...
Page 72: Using The Command Line Interface
11: Using the Command Line Interface _______________________________________________________________________________________________________ 11 Using the Command Line Interface This chapter explains how to view Virtual Access routers' log files and edit configuration files using a Command Line Interface (CLI) and the Unified Configuration Interface (UCI) system.
Page 73 0 Jul 3 11:37 usr lrwxrwxrwx 1 root root 4 Jul 16 2012 var -> /tmp drwxr-xr-x 4 root root 67 Jul 16 2012 www _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 73 of 350...
Page 74 444 S -ash 374 root 344 R ps ax 375 root 400 S /bin/sh /sbin/hotplug button 384 root 396 R /bin/sh /sbin/hotplug button 385 root [keventd] _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 74 of 350...
Page 75: Using Unified Configuration Interface (Uci)
-f <file> use <file> as input instead of stdin when importing, merge data into an existing package _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 75 of 350...
Page 76 Note: all operations do not act directly on the configuration files. A commit command is required after you have finished your configuration. root@VA_router:~# uci commit _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 76 of 350...
Page 77 To show the configuration ‘tree’ for a given config, enter: root@VA_router:/# uci show network network.loopback=interface network.loopback.ifname=lo network.loopback.proto=static network.loopback.ipaddr=127.0.0.1 network.loopback.netmask=255.0.0.0 network.lan=interface network.lan.ifname=eth0 network.lan.proto=dhcp network.wan=interface network.wan.username=foo _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 77 of 350...
Page 78 To show the image running currently, enter: root@VA_router:~# vacmd show current image To set the image to run on next reboot, enter: root@VA_router:~# vacmd set next image [image1|image2|altimage] root@VA_router:~# reboot _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 78 of 350...
Page 79 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 79 of 350...
Page 80: Configuration Files
11.3 Configuration files The table below lists common package configuration files that can be edited using uci commands. Other configuration files may also be present depending on the specific options available on the Virtual Access router. File Description Management /etc/config/autoload...
Page 81 It is important to note that identifiers and config file names may only contain the characters a-z, A-Z, 0-9 and _. However, option values may contain any character, as long they are properly quoted. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 81 of 350...
Page 82: Management Configuration Settings
12.2 Monitor Monitor is a Virtual Access proprietary tool, based on SNMP protocol, to monitor wide networks of deployed routers. The router will be configured to send information to Monitor, which is then stored and viewed centrally via the Monitor application. This includes features such as traffic light availability status, syslog and SLA monitoring.
Page 83: Autoload: Boot Up Activation
In the top menu, select Services ->Autoload. The Autoload page has two sections: Basic Settings and Entries. Click Add to access configuration settings for each section. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 83 of 350...
Page 84 Defines how many minutes to back off for if a download and all retires fail. After the backoff period, the entire autoload sequence UCI: autoload.main.BackoffTimer will start again. Opt: Backofftimer Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 84 of 350...
Page 85 Notifies activator sequence is complete. Opt: RemoteFilename $$ ini Request configuration $$ img Request firmware Note: $$.vas should always be requested last. Table 19: Information table for autoload _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 85 of 350...
Page 86: Autoload Using Uci
'core' 'main' option 'Enabled' "yes" option 'StartTimer' "10" option 'RetryTimer' "30" option 'NumberOfRetries' "5" option 'BackoffTimer' "15" option 'BootUsingConfig' "altconfig" option 'BootUsingImage' "altimage" config 'entry' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 86 of 350...
Page 87: Http Client: Configuring Activation Using The Web Interface
To configure HTTP Client for Activator, in the top menu, click Services -> HTTP Client. The HTTP Client page has two sections: Basic Settings and Advanced Settings. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 87 of 350...
Page 88 Opt: SecureDownload Disabled. Advanced settings Web: ActivatorDownloadPath Specifies the URL on Activator to which the client should send requests. UCI: httpclient.default.ActivatorDownloadPath /Activator/Sessionle ss/Httpserver.asp Opt: ActivatorDownloadPath Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 88 of 350...
Page 89: Httpclient: Activator Configuration Using Uci
Disabled. Opt: IgnoreServerCertificateStatus Table 20: Information table for HTTP client 12.8 Httpclient: Activator configuration using UCI root@VA_router:~# uci show httpclient httpclient.default=core httpclient.default.Enabled=yes httpclient.default.FileServer=10.1.83.36:80 10.1.83.37:80 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 89 of 350...
Page 90: Httpclient: Activator Configuration Using Package Options
PresentCertificateEnabled 'no' option ValidateServerCertificateEnabled 'no' option CertificateFile '/etc/httpclient.crt' option CertificateFormat 'PEM' option CertificateKey '/etc/httpclient.key' option ActivatorChunkyDownloadPath '/activator/partial/download' option ChunkSize '100k' option RateLimit '2' option CAFile ‘\’ _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 90 of 350...
Page 91: User Management Using Uci
Specifies SMS access permissions for the user. UCI: management_users.@user[x].smsuser Disabled. Opt: smsuser Enabled. Web: n/a Specifies linuxuser access permissions for the user. UCI: linuxuser Disabled. Opt: linuxuser Enabled. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 91 of 350...
Page 92: Configuring The Management User Password Using Uci
'$1$wRYYiJOz$EeHN.GQcxXhRgNPVbqxVw If you are changing the password using UCI, enter the new password in plain text using the password option. package management_users _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 92 of 350...
Page 93: User Management Using Uci
‘1’ option username ‘test’ option hashpassword ‘$1$XVzDHHPQ$SKK4geFonctihuffMjS4U0’ option webuser ‘1’ option linuxuser ‘1’ option papuser ‘0’ option chapuser ‘0’ option srpuser ‘0’ options smsuser ‘0’ _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 93 of 350...
Page 94: Configuring User Access To Specific Web
To specify monitor widgets only, enter: listallowed_pages 'monitor/<widgetname>' Example widget names are: dhcp, arp, 3gstats, interfaces, memory, multiwan, network, openvpn, routes, system, ipsec, dmvpn, tservd. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 94 of 350...
Page 95: Configuring An Ethernet Interface On A Gw1000 Router
To create and edit interfaces via the web interface, in the top menu, click Network -> Interfaces. The Interfaces overview page appears. Figure 49: The interfaces overview page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 95 of 350...
Page 96: Interface Overview: Editing An Existing Interface
To create a new interface, in the Interface Overview section, click Add new interface. The Create Interface page appears. Figure 50: The create interface page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 96 of 350...
Page 97 'Bring up on boot', 'Monitor interface state', Override MAC address, Override MTU and 'Use gateway metric' Physical Settings Bridge interfaces, VLAN PCP to SKB priority mapping, Firewall settings Assign a firewall zone to the interface _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 97 of 350...
Page 98 Web:IPv6 gateway Assign given IPv6 default gateway to this interface (optional). UCI: network.<if name> .ip6gw Opt:ip6gw Table 23: Information table for LAN interface common configuration settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 98 of 350...
Page 99 This replaces the following previous options in child interfaces. option local_interface lt2p option src_ipaddr option wan1 wan2 6in4 option ipaddr 6to4 option ipaddr Table 24: Information table for common configuration advanced settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 99 of 350...
Page 100 Enabled. Web: Ethernet Speed Sets Ethernet speed. Available options are: UCI: network.<if name>.speed Eth0:10,100,1000 Opt: speed Eth1:10,100 Table 25: Information table for physical settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 100 of 350...
Page 101 Table 26: Information table for IP-Aliases name assignment The IP Aliases configuration options page appears. The IP-Alias is divided into two sub sections – general setup and advanced. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 101 of 350...
Page 102 Opt: bcast Web: DNS-Server Defines the DNS server for the IP alias. UCI: network.<alias name>.dns Opt: dns Table 28: Information table for IP-Alias advanced settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 102 of 350...
Page 103 Defines the lease time of addresses handed out to clients, for example 12h or 30m. UCI: dhcp.@dhcp[x].leasetime 12 hours Opt: leasetime Range Table 29: Information table for DHCP server general setup page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 103 of 350...
Page 104: Configuring An Ethernet Interface Using Uci
Configuring an Ethernet interface using UCI The configuration files are stored on /etc/config/network, /etc/config/firewall and /etc/config/dhcp root@VA_router:~# uci show network ….. network.newinterface=interface network.newinterface.proto=static network.newinterface.ifname=eth0 network.newinterface.monitored=0 network.newinterface.ipaddr=2.2.2.2 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 104 of 350...
Page 105 13.4.1 Interface common configuration using package options The configuration files are stored on /etc/config/network, /etc/config/firewall and /etc/config/dhcp. root@VA_router:~# uci export network package network config interface 'newinterface' option proto 'static' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 105 of 350...
Page 106 To change any of the above values use uci set command. 13.4.2 Configuring ATM bridges The ATM bridges section is not used when configuring an Ethernet interface on a GW1000 router. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 106 of 350...
Page 107: Interface Diagnostics
RX bytes:43205140 (41.2 MiB) TX bytes:43205140 (41.2 MiB) To display a specific interface, enter: root@VA_router:~# ifconfig eth0 eth0 Link encap:Ethernet HWaddr 00:E0:C8:12:12:15 inet addr:192.168.100.1 Bcast:192.168.100.255 Mask:255.255.255.0 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 107 of 350...
Page 108: Route Status
Gateway Genmask Flags Metric Ref Iface 192.168.100.0 255.255.255.0 eth0 Note: a route will only be displayed in the routing table when the interface is up. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 108 of 350...
Page 109: Configuring Ignition Sense
You can configure the Vapowermond package using the web interface. In the top menu, click Services ->Power Monitor. The basic settings page appears. Figure 60: Power monitor basic settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 109 of 350...
Page 110 Table 31: Information table for power monitor basic settings 14.2.2 Power monitor advanced settings Click the Advance tab to access advanced settings. Figure 61: Power monitor advanced settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 110 of 350...
Page 111: Configuring Vapowermond Using The Command Line
‘main’ option enabled ‘1’ option timeout ‘30’ option voltage_sense_scripts_enable ‘0’ option voltage_on_script ‘/usr/bin/powermon_voltage_on.sh’ option voltage_off_script ‘/usr/bin/powermon_voltage_off.sh’ option voltage_msg ‘powermon’ option log_severity ‘5’ _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 111 of 350...
Page 112: Ignition Sense Diagnositcs
14.4.1 Monitoring Vapowermond status using the command line interface To view status information about the current ignition sense state enter: root@VA_router:~# cat /sys/class/gpio/gpio29/value 1 for ignition on;0 for ignition off _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 112 of 350...
Page 113: Configuring Dhcp Server And Dns (Dnsmasq)
In the top menu, select Network -> DHCP and DNS. The DHCP and DNS page appears. There are three sections: Server Settings, Active Leases, and Static Leases. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 113 of 350...
Page 114 15: Configuring DHCP server and DNS (Dnsmasq) _______________________________________________________________________________________________________ Figure 62: The DHCP and DNS page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 114 of 350...
Page 115 Opt: list rebind_domain No list configured. Range Table 33: Information table for general server settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 115 of 350...
Page 116 Defines local host’s files. When using UCI multiple servers should be entered with a space between them. UCI: dhcp.@dnsmasq[0].addnhosts Opt: list addnhosts Table 34: Information table for resolv and host files section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 116 of 350...
Page 117 Defines the filename of the boot image advertised to clients. This specifies BOOTP options, in most cases just the file name. UCI: dhcp.@dnsmasq[0].dhcp_boot Opt: dhcp_boot Table 35: Information table for TFTP settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 117 of 350...
Page 118 Enables disallow option for forwarding requests that cannot be answered by public name servers. Normally enabled for dial on UCI: dhcp.@dnsmasq[0].filterwin2k demand interfaces. Opt: filterwin2k Enabled. Disabled. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 118 of 350...
Page 119 Opt: dnsforwardmax Range Table 36: Information table for advanced settings 15.2.5 Active leases This section displays all currently active leases. Figure 66: The active leases section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 119 of 350...
Page 120 Web: IPv4 Address The IPv4 address specifies the fixed address to use for this host.. UCI: dhcp.@host[0].ip Opt: ip Table 38: Information table for static leases _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 120 of 350...
Page 121: Configuring Dhcp And Dns Using Uci
2.2.2.2 dhcp.@dnsmasq[0].rebind domain=tes.domain dhcp.@dnsmasq[0].enable_tftp=0 dhcp.@dnsmasq[0].tftp_root=/tmp/tftp dhcp.@dnsmasq[0].dhcp_boot=boot.image dhcp.@dnsmasq[0].nonegcache=0 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 121 of 350...
Page 122 '1' option strictorder '1' list bogusnxdomain '1.1.1.1 ' list bogusnxdomain '2.2.2.2' option port '53' option dhcpleasemax '150' option ednspacket_max '1280' option dnsforwardmax '150' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 122 of 350...
Page 123: Configuring Dhcp Pools Using Uci
Range Web: n/a Defines the offset from the network address for the end of the DHCP pool UCI: dhcp.<pool_name>.limit Opt: limit Range 0 - 255 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 123 of 350...
Page 124: Configuring Static Leases Using Uci
'00:11:22:33:44:55' option name 'mypc' This adds the fixed IP address 192.168.1.2 and the name "mypc" for a machine with the (Ethernet) hardware address 00:11:22:33:44:55. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 124 of 350...
Page 125: Configuring Vlan
16: Configuring VLAN _______________________________________________________________________________________________________ 16 Configuring VLAN 16.1 Maximum number of VLANs supported Virtual Access’ routers support up to 4095 VLANs. 16.2 Configuration package used Package Sections Network 16.3 Configuring VLAN using the web interface 16.3.1 Create a VLAN interface To configure VLAN using the web interface, in the top menu, select Network - >Interfaces.
Page 126 Enter a name, for example eth0.100. This will assign VLAN 100 to the eth0 interface. Opt: ifname Table 40: Information table for the create interface page Click Submit. The Interfaces page for VLAN1 appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 126 of 350...
Page 127 The IPv4 address of the interface. This is optional if an IPv6 address is provided. UCI: network.VLAN1.ipaddr Opt: ipaddr Web: IPv4 netmask Subnet mask to be applied to the IP address of this interface. UCI: network.VLAN1.netmask Opt: netmask _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 127 of 350...
Page 128: Viewing Vlan Interface Settings
To view the new VLAN interface settings, in the top menu, select Network -> Interfaces. The Interfaces Overview page appears. The example below shows two VLAN interfaces configured. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 128 of 350...
Page 129: Configuring Vlan Using The Uci Interface
When specifying the ifname ensure that it is written in dotted mode, that is, eth1.100 where eth1 is the physical interface assigned to VLAN tag 100. Note: VLAN1 is, by default the native VLAN and will not be tagged. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 129 of 350...
Page 130: Qos: Type Of Service
17: QoS: type of service _______________________________________________________________________________________________________ 17 QoS: type of service Virtual Access routers are capable of implementing quality of service configurations on a per interface basis, which allows traffic prioritisation based on type of service criteria parameters. 17.1 QoS configuration overview A minimal QoS configuration usually consists of: ...
Page 131 Table 42: Information table for QoS page To add classification rules, click Add. TheClassification Rules section appears. Configure each classification rule with the following parameters. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 131 of 350...
Page 132: Configuring Qos Using Uci
Each interface can have its own buffer. The interface section declares global characteristics of the connection on which the specified interface is communicating. The following options are defined within this section: _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 132 of 350...
Page 133 UCI: qos.Default.classes=Express Normal Specifies the list of names of classes which should be part of classgroup. Opt: classes qos.Default.default=Normal Defines which class is considered default. Opt: default _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 133 of 350...
Page 134 Defines to how many % of the available bandwidth this class is capped to. Opt: limitrate 17.4.4 Classify Classifiers match the traffic for desired class. config classify option target 'Express' option proto 'udp' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 134 of 350...
Page 135: Example Qos Configurations
'Express' option packetsize '1000' option maxsize '800' option avgrate '50' option priority '10' option limitrate '10' config classify option target 'Express' option proto 'udp' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 135 of 350...
Page 136: Qos: Vlan 802.1Q Pcp Tagging
18.1 Configuring VLAN PCP tagging Virtual Access routers have the capability to respect and set PCP priority values inside 802.1Q VLAN tagged frames. The following partial export of network configuration shows how to configure VLAN priorities for specific interfaces (VLANs).
Page 137: Virtual Access
Any frames received on VLAN4 destined to VLAN2 with PCP priority set to 0 will have a priority of 5 set as they leave the router on VLAN4. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 137 of 350...
Page 138 ‘vlan_qos_map_egress’ and are destined to tagged interface, 802.1Q tag will be created with a default priority of 0 and then the priority will be set according to the PCP value specified as the frames leave port. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 138 of 350...
Page 139: Configuring Static Routes
UCI: network.@route[0].target Opt: target Web: netmask Defines the route netmask. If omitted, 255.255.255.255 is assumed, which makes the target a host address. UCI: network.@route[0].netmask Opt: netmask _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 139 of 350...
Page 140: Configuring Ipv6 Routes Using The Web Interface
By default all routes are named ‘route’, it is identified by @route then the route’s position in the package as a number. For example, for the first route in the package using UCI: network.@route[0]=route network.@route[0].interface=lan _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 140 of 350...
Page 141: Ipv4 Routes Using Uci
The command line example routes in the subsections below do not have a configured name. root@VA_router:~# uci show network network.@route[0]=route network.@route[0].interface=lan network.@route[0].target=3.3.3.10 network.@route[0].netmask=255.255.255.255 network.@route[0].gateway=10.1.1.2 network.@route[0].metric=3 network.@route[0].mtu=1400 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 141 of 350...
Page 142: Ipv4 Routes Using Package Options
IPv6 routes using packages options root@VA_router:~# uci export network package network …. config route option interface 'lan' option target '2001:0DB8:100:F00:BA3::1/64' option gateway '2001:0DB8:99::1' option metric ‘1’ option mtu '1500' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 142 of 350...
Page 143: Static Routes Diagnostics
Gateway Genmask Flags Metric Ref Iface 192.168.100.0 255.255.255.0 eth0 Note: a route will only be displayed in the routing table when the interface is up. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 143 of 350...
Page 144: Configuring Bgp (Border Gateway Protocol)
In the top menu, select Network -> BGP. BGP configuration page appears. The page has three sections: Global Settings, BGP Neighbours and BGP Route Map. Figure 76: The BGP page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 144 of 350...
Page 145 Type in a name for the BGP route map name and then click Add. The ROUTEMAP configuration section appears. You can configure multiple route maps. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 145 of 350...
Page 146 Defines the set value when a match occurs. Value format depends on the set option you have selected. UCI: bgpd.ROUTEMAP.set Opt: set Table 47: Information table for routemap _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 146 of 350...
Page 147: Configuring Bgp Using Uci
You can also configure BGP using UCI. The configuration file is stored on /etc/config/bgpd root@VA_router:~# uci show bgpd bgpd.bgpd=routing bgpd.bgpd.enabled=yes bgpd.bgpd.router_id=3.3.3.3 bgpd.bgpd.asn=1 bgpd.bgpd.network=11.11.11.0/29 192.168.103.1/32 bgpd.@peer[0]=peer bgpd.@peer[0].route_map_in=yes bgpd.@peer[0].ipaddr=11.11.11.1 bgpd.@peer[0].asn=1 bgpd.@peer[0].route_map=ROUTEMAP bgpd.ROUTEMAP=routemap _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 147 of 350...
Page 148: Configuring Bgp Using Packages Options
'ROUTEMAP' config routemap 'ROUTEMAP' option order '10' option permit 'yes' option match_type 'ip address' option match '192.168.101.1/32' option set_type 'ip next-hop' option set '192.168.101.2/32' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 148 of 350...
Page 149: View Routes Statistics
To view routes via the command line, enter: root@support:~# route -n Kernel IP routing table Destination Gateway Genmask Flags Metric Ref Iface 10.1.0.0 0.0.0.0 255.255.0.0 0 br- lan2 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 149 of 350...
Page 150: Configuring A Wifi Connection
_______________________________________________________________________________________________________ 21 Configuring a WiFi connection This section explains how to configure WiFi on a Virtual Access router using the web interface or via UCI. WiFi can act as an Access Point (AP) to another device in the network or it can act as a client to an existing AP.
Page 151 Web: Transmit power Select the transmit power range range you require. UCI: wireless.radio0.txpower Range 0dBm(1mW)-17dBm(50mW) Opt: txpower 17dBM(50mW) Table 49: Information table for the device configuration section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 151 of 350...
Page 152 Web: RTS/CTS Threshold Defines the RTS/CTS threshold UCI: wireless.radio0.rts None Router defaults applied Opt: rts Range Table 50: Information table for device configuration advanced settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 152 of 350...
Page 153 Use this section to configure the interface name, mode and network settings. Differing web options may be presented depending on the Mode selected. Figure 84: The interface configuration general setup section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 153 of 350...
Page 154 Use this section to configure encryption, ciper and create a security key. Differing options wil be defined depending on the encryption selected. Figure 85: The wireless security section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 154 of 350...
Page 155 Web: Radius Accounting -Port Defines the Radius port for EAP accounting. UCI:wireless.@wifi-iface[0].acct_port Opt: acc_port Web: Radius Accounting -Secret Defines the Radius secret for EAP accounting. UCI:wireless.@wifi-iface[0].acct_secret Opt: acct_secret _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 155 of 350...
Page 156: Configuring Wifi In Ap Mode
WiFi interface’, selecting a new interface for the Wireless Network in the Interface Configuration section. Next, in the top menu, select Network -> Interfaces. The Interface Overview page appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 156 of 350...
Page 157 UCI and package options. Opt:ifname Example: option ifname ‘eth2 eth3’ or network.<if name>.ifname=eth2 eth 3 Table 54: Information table for the physical section on the common configuration page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 157 of 350...
Page 158: Configuring Wifi Using Uci
'US' config wifi-iface option device 'radio0' option mode 'ap' option disabled '1' option ssid 'Test_AP' option network 'newwifilan' option encryption 'psk' option key 'secretkey' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 158 of 350...
Page 159 'lan' option ifname 'eth0' option proto 'static' option ipaddr '192.168.100.1' option netmask '255.255.255.0' option type 'bridge' root@VA_router:~# uci export wireless package wireless _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 159 of 350...
Page 160 21.4.4 AP mode on an existing Ethernet interface using UCI root@VA_router:~# uci show network network.lan=interface network.lan.ifname=eth0 network.lan.proto=static network.lan.ipaddr=192.168.6.1 network.lan.netmask=255.255.255.0 network.lan.type=bridge root@VA_router:~# uci show wireless wireless.radio0=wifi-device wireless.radio0.type=mac80211 wireless.radio0.channel=11 wireless.radio0.phy=phy0 wireless.radio0.hwmode=11ng _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 160 of 350...
Page 161: Creating A Wifi In Client Mode Using The Web Interface
In the top menu, select Network -> Interfaces. The Interfaces Overview page appears. Click Edit in the newly created WiFi Client interface. The Common Configuration page appears. Figure 88: The client interface page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 161 of 350...
Page 162: Configuring Wifi In Client Mode Using Command Line
'radio0' option type 'mac80211' option channel '11' option phy 'phy0' option hwmode '11ng' option htmode 'HT20' list ht_capab 'SHORT-GI-40' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 162 of 350...
Page 163 21.6.2.1 uci show wireless root@VA_router:~# uci show wireless wireless.radio0=wifi-device wireless.radio0.type=mac80211 wireless.radio0.channel=11 wireless.radio0.phy=phy0 wireless.radio0.hwmode=11ng wireless.radio0.htmode=HT20 wireless.radio0.ht_capab=SHORT-GI-40 TX-STBC RX-STBC1 DSSS_CCK-40 wireless.radio0.txpower=17 wireless.radio0.country=US wireless.@wifi-iface[0]=wifi-iface wireless.@wifi-iface[0].device=radio0 wireless.@wifi-iface[0].ssid=Remote-AP wireless.@wifi-iface[0].mode=sta wireless.@wifi-iface[0].network= newwifiClient wireless.@wifi-iface[0].encryption=psk2 wireless.@wifi-iface[0].key=testtest _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 163 of 350...
Page 164: Configuring A Mobile Connection
To create a new mobile interface, in the Interface Overview section, click Add new interface. The Create Interface page appears. In the examples below 3G has been used for the interface name. Figure 89: The create interface page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 164 of 350...
Page 165 Set up more in-depth features such as initionalization timeout, LCP echo failure thresholds and inactivity timeouts. Firewall settings Assign a firewall zone to the connection. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 165 of 350...
Page 166 Allows GSM module to only connect to lte network cdma Allows GSM module to only connect to cdma network auto GSM module will automatically detect the best available technology code. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 166 of 350...
Page 167 The Modem Configuration link at the bottom of the page is used for SIM pin code and SMS configuration. For more information, read the chapter ‘Configuring mobile manager’. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 167 of 350...
Page 168 22: Configuring a mobile connection _______________________________________________________________________________________________________ 22.2.1.2 Mobile interface: advanced settings Figure 91: The advanced settings tab _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 168 of 350...
Page 169 Web: Inactivity timeout Close inactive connection after the given amount of seconds, use 0 to persist connection. UCI: network.3G.demand Do not disconnect on inactivity Opt: demand Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 169 of 350...
Page 170: Configuring A Mobile Connection Using Cli
Configuring a mobile connection using CLI 22.3.1 UCI To establish a basic mobile connection, enter: root@VA_router:~# uci show network network.3G=interface network.3G.proto=3g network.3G.monitored=0 network.3G.sim=any network.3G.auto=1 network.3G.defaultroute=1 network.3G.service=autonetwork.3G.apn=test.apn network.3G.username=username network.3G.password=password _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 170 of 350...
Page 171: Diagnositcs
To view mobile connectivity information, in the top menu, select Status -> Mobile Stats. The Mobile/3G Information page appears. Figure 93: The mobile stats page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 171 of 350...
Page 172 Home network mobile.3g_1_1_1.reg_code_pkt=1 mobile.3g_1_1_1.area=FFFE mobile.3g_1_1_1.cell=189150A mobile.3g_1_1_1.tech=7 mobile.3g_1_1_1.technology=E-UTRAN mobile.3g_1_1_1.operator=0,0,"Vodafone",7 mobile.3g_1_1_1.sim1_iccid=89460127120912066226 mobile.3g_1_1_2.sim_slot=1 mobile.3g_1_1_2.sim_in=yes mobile.3g_1_1_2.operator="Vodafone" mobile.3g_1_1_2.cdma_roaming=Not Roaming mobile.3g_1_1_2.cdma_roaming_code=0 mobile.3g_1_1_2.cdma_srvmode=EVDO Rev B mobile.3g_1_1_2.cdma_srvmode_code=5 mobile.3g_1_1_2.cdma_total_drc=0.0 kbps mobile.3g_1_1_2.cdma_carr_cnt=2 mobile.3g_1_1_2.cdma_rx0=78 mobile.3g_1_1_2.sig_dbm=nan mobile.3g_1_1_2.cdma_rx1=105 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 172 of 350...
Page 173: Configuring Mobile Manager
Roaming template 23.2 Configuring mobile manager using the web interface Select Services -> Mobile Manager. The Mobile Manager page appears. Figure 94: The mobile manager page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 173 of 350...
Page 174 If checked, the router will return an SMS. Select Respond if you want the router to reply. UCI: mobile.@caller[0].respond Disabled. Opt: respond Enabled. Table 59: Information table for mobile manager basic settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 174 of 350...
Page 175 5 channel number Web: Primary Channel B Allows the primary channel (B) to be changed UCI: mobile.main.cdma_primary_channel_b Default Opt: cdma_primary_channel_b 1-2016 any band class 5 channel number _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 175 of 350...
Page 176: Configuring Mobile Manager Using Uci
_____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 176 of 350...
Page 177: Configuring A Roaming Interface Template Via The Web Interface
To monitor via the web browser, login and select Status >system log. Scroll to the bottom of the log to view the SMS message. Figure 95: Example of output from system log _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 177 of 350...
Page 178: Sending Sms From The Router
An example would be to SMS the SIM card number by typing the following command on the phone and checking the SMS received from the router. uci show mobile.@caller[0].number _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 178 of 350...
Page 179: Configuring Multi-Wan
24.2 Configuring Multi-WAN using the web interface In the top menu, select Network -> Multi-Wan. The Multi-WAN page appears. Figure 96: The multi-WAN page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 179 of 350...
Page 180 In the WAN interfaces section, enter the name of the WAN interface to configure, and then click Add. The new section for configuring specific parameters appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 180 of 350...
Page 181 24: Configuring Multi-WAN _______________________________________________________________________________________________________ Figure 97: Example interface showing failover traffic destination as the added multi-WAN interface _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 181 of 350...
Page 182 Opt: health_recovery_retries Range Web: Priority Specifies the priority of the interface. The higher the value, the higher the priority. UCI: multiwan.wan.priority Opt: priority Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 182 of 350...
Page 183 Tech values are: GSM Compact UTRAN GSM w/EGPRS UTRAN w/HSPDA UTRAN w/HSUPA UTRAN w/HSUPA and HSDPA E-UTRAN Table 62: Information table for multi-WAN interface page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 183 of 350...
Page 184: Multi-Wan Traffic Rules
'3' option health_recovery_retries '5' option priority '2' option manage_state 'yes' option exclusive_group '0' option ifup_retry_sec '40' option icmp_hosts 'disable' option icmp_interval ‘1’ option timeout ‘3’ _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 184 of 350...
Page 185: Multi-Wan Diagnostics
The multi-WAN package is linked to the network interfaces within /etc/config/network. Note: multi-WAN will not work if the WAN connections are on the same subnet and share the same default gateway. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 185 of 350...
Page 186 '0' option ifup_retry_sec '300' option ifup_timeout_sec '40' The following output shows the multi-WAN standard stop/start commands for troubleshooting. root@VA_router:~# /etc/init.d/multiwan Syntax: /etc/init.d/multiwan [command] _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 186 of 350...
Page 187 CLI). Enter the name of the WAN interface to configure, and then click Add. The new section for configuring specific parameters will appear. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 187 of 350...
Page 188: Automatic Operator Selection
25 Automatic operator selection This section describes how to configure and operate the Automatic Operator Selection feature of a Virtual Access router. When the roaming SIM is connected, the radio module has the ability to scan available networks. The router, using mobile and multi-WAN packages, finds available networks to create and sort interfaces according to their signal strength.
Page 189 25.2.1.3 Create a primary predefined interface In the web interface top menu, go to Network ->Interfaces. The Interfaces page appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 189 of 350...
Page 190 Type the short operator name in lower case, for example: Operator name First four alphanumeric numbers Vodafone UK voda O2 – UK o2uk Orange oran _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 190 of 350...
Page 191 UCI: network.[..x..].ifname Opt: ifname Table 63: Information table for the create interface page Click Submit. The Common Configuration page appears. Figure 101: The common configuration page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 191 of 350...
Page 192 Click the link if you need to configure additional options from Mobile Manager. UCI: N/A Opt: N/A Table 64: Information table for the general set up section Click Save & Apply. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 192 of 350...
Page 193 On the web interface go to Network ->Multi-Wan. The Multi-WAN page appears. Figure 102: The multi-WAN page In the WAN Interfaces section, type in the name of the Multi-WAN interface. Click Add. The Multi-WAN page appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 193 of 350...
Page 194 Opt: alt Enabled. Web: WAN Interfaces Provide the same interface name as chosen in multiwan section below and click Add. UCI: multiwan.3g_s<sim- number>_<short-operator-name> Opt: 3g_s<sim-number>_<short- operator-name> _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 194 of 350...
Page 195 Range Web: Exclusive Group Defines the group to which the interface belongs, only one interface can be active. UCI: multiwan.[..x..].exclusive_group Opt: exclusive_group Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 195 of 350...
Page 196 25.2.2 Set options for automatically created interfaces (failover) From the top menu on the web interface page, select Services ->Mobile Manager. The Mobile Manager page appears. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 196 of 350...
Page 197 Web: HDR Auto User ID AN-PPP user ID. Supported on Cellient (CDMA) modem only. UCI: mobile.main.hdr_userid Opt: hdr_userid Table 66: Information table for mobile manager basic settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 197 of 350...
Page 198 If checked, the router will return an SMS. Select Respond if you want the router to reply. UCI: mobile.@caller[0].respond Disabled. Opt: respond Enabled. Table 67: Information table for caller settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 198 of 350...
Page 199 25: Automatic operator selection _______________________________________________________________________________________________________ 25.2.3 Roaming interface template Figure 105: The roaming interface template page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 199 of 350...
Page 200 Sets ping timeout in seconds. Choose the time in seconds that the health monitor ICMP will timeout at. Opt: timeout Wait 3 seconds for ping reply Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 200 of 350...
Page 201 25.2.4 Scenario 2: PMP + roaming: pre-empt disabled As in the previous section, multi-WAN connects the PMP interface and uses auto created interfaces for failover. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 201 of 350...
Page 202 In the top menu, select System -> Reboot. The System Reboot page appears. Figure 108: The system reboot page Check the Reboot now check box and then click Reboot. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 202 of 350...
Page 203 Web: PIN code for SIM2 Depending on the SIM card specify the pin code for UCI: mobile.main.sim2pin SIM 2. Opt: sim2pin blank range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 203 of 350...
Page 204 If checked, the router will return an SMS. Select Respond if you want the router to reply. UCI: mobile.@caller[0].respond Disabled. Opt: respond Enabled. Table 70: Information table for mobile manager caller settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 204 of 350...
Page 205 Web: Firewall Zone Adds all generated interfaces to this zone. UCI: Select existing zone or click unspecified or create to create a new mobile.@roaming_template[0].firewall_zo zone. Opt: firewall_zone _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 205 of 350...
Page 206 This field is not used for a roaming template. UCI: mobile.@roaming_template[0].health_rec overy_retries Opt: health_recovery_retries Web: Priority Type the priority number. The higher the value, the higher the priority. UCI: mobile.@roaming_template[0].priority Opt: priority range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 206 of 350...
Page 207 UCI: multiwan.config.alt Leave this option unselected. Opt: alt Disabled. Enabled. Table 72: Information table for multi-WAN operation _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 207 of 350...
Page 208: Configuring Via Uci
'test' option password 'test' option sim '1' option operator 'vodafone IE' To view uci commands, enter: root@VA_router:~# uci show network network.loopback=interface network.loopback.ifname=lo network.loopback.proto=static network.loopback.ipaddr=127.0.0.1 network.loopback.netmask=255.0.0.0 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 208 of 350...
Page 209 'wan' option apn 'test IE' option username 'test' option password 'test' option service 'umts' option health_interval '4' option icmp_hosts 'disable' option timeout 'disable' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 209 of 350...
Page 210 IE mobile.@roaming_template[0].username=test mobile.@roaming_template[0].password=test mobile.@roaming_template[0].service=umts mobile.@roaming_template[0].health_interval=4 mobile.@roaming_template[0].icmp_hosts=disable mobile.@roaming_template[0].timeout=disable mobile.@roaming_template[0].health_fail_retries=3 mobile.@roaming_template[0].signal_threshold=-95 mobile.@roaming_template[0].priority=5 mobile.@roaming_template[0].ifup_retry_sec=120 mobile.@roaming_template[0].ifup_timeout_sec=180 mobile.@roaming_template[0].defaultroute=yes mobile.@roaming_template[0].sort_sig_strength=yes _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 210 of 350...
Page 211 To view the uci command of package multiwan, enter: root@VA_router:~# uci show multiwan multiwan.config=multiwan multiwan.config.enabled=1 multiwan.config.preempt=1 multiwan.main_voda=interface multiwan.main_voda.health_fail_retries=3 multiwan.main_voda.health_interval=3 multiwan.3g_s1_voda.timeout=1 multiwan.3g_s1_voda.icmp_hosts=disable multiwan.3g_s1 main _voda.priority=10 multiwan.3g_s1_voda.exclusive_group=3g multiwan.3g_s1_voda.signal_threshold=-95 multiwan.3g_s1_voda.ifup_retry_sec=350 multiwan.3g_s1_voda.ifup_timeout_sec=180 multiwan.3g_s1_voda.manage_state=1 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 211 of 350...
Page 212: Configuring No Pmp + Roaming Using Uci
'test IE' option username 'test' option password 'test' option service 'umts' option health_fail_retries '2' option signal_threshold '-100' option priority '5' option ifup_timeout_sec '180' option defaultroute 'yes' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 212 of 350...
Page 213 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 213 of 350...
Page 214: Automatic Operator Selection Diagnostics Via The Web Interface
To check interfaces created in the Multi-WAN package, from the top menu, select Network -> Multi-WAN. To check interfaces that have been created in the network package, from the top menu, select Network -> Interfaces. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 214 of 350...
Page 215 Status. The Interface Status page appears. Scroll down to the bottom of the page to view Multi-WAN Stats. Figure 112: The status page: multi-WAN status section page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 215 of 350...
Page 216: Automatic Operator Selection Diagnostics Via Uci
/var/const_state/multiwan Figure 113: Example of output from the command: cat /var/const_stat/multiwan To check interfaces created in the network package, enter: root@VA_router:~# cat /var/const_state/network _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 216 of 350...
Page 217 25: Automatic operator selection _______________________________________________________________________________________________________ Figure 114: Example of output from the command cat /var/const_state/network _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 217 of 350...
Page 218 To check the status of the interface you are currently using, enter: root@VA_router:~# cat /var/const_state_/mobile Figure 115: Example of output from the command cat /vat/const_state_/mobile _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 218 of 350...
Page 219: Configuring Ipsec
If you need to create an IPSec template for DMVPN, read the chapter ‘Dynamic Multipoint Virtual Private Network (DMVPN)’. The number of IPSec tunnels supported by Virtual Access’ routers is not limited in any way by software; the only hardware limitation is the amount of RAM installed on the device.
Page 220 Table 73: Information table for IPSec common settings 26.2.2 Common settings: configure connection Figure 117: The configuring IPSec settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 220 of 350...
Page 221 Connection uses transport mode. pass Connection does not perform any IPSec processing. drop Connection drops all the packets. Table 74: Information table for connection settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 221 of 350...
Page 222 Defines the IP address of LAN serviced by remote peer. UCI: strongswan.@connection[X]. remotelan Opt:remotelan Web: Remote LAN IP Address Mask Defines the Subnet of remote LAN. UCI: strongswan.@connection[X]. remotelanmask Opt:remotelanmask _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 222 of 350...
Page 223 Using extended authentication and preshared key. never Can be used if negotiation is never to be attempted or accepted (shunt connections). Table 75: Information table for IP addressing settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 223 of 350...
Page 224 3des aes128 aes256 serpent twofish blowfish authAlgo: sha2 DHGroup: modp1024 modp1536 modp2048 modp3072 modp4096 modp6144 modp8192 For example, a valid IKE algorithm is aes128-sha-modp1536. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 224 of 350...
Page 225 UCI: strongswan.@connection[X].keyringtries for one, before giving up. The value %forever means 'never Opt: keyringtries give up'. Relevant only locally, other end need not agree on _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 225 of 350...
Page 226 Defines whether IP address or userfqdn is used. UCI: strongswan.@secret[X].idtype Opt: idtype Web: ID selector Defines the local address this secret applies to. UCI: strongswan.@secret[X].localaddress Opt: localaddress _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 226 of 350...
Page 227: Configuring Ipsec Using Uci
This will create the following output: config general 'general' option enabled 'yes' option strictcrlpolicy 'no' option uniqueids 'yes' option cachecrls 'no' option debug 'none' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 227 of 350...
Page 228: Connection Settings
This will create the following output: config connection option ikelifetime '3h' option keylife '1h' option rekeymargin '9m' option keyingtries '3' option dpddelay '30s' option dpdtimeout '150s' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 228 of 350...
Page 229 This will create the following output: config connection _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 229 of 350...
Page 230 'secret' If xauth is defined as the authentication method then you must include an additional config secret section, as shown in the example below. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 230 of 350...
Page 231: Configuring An Ipsec Template For Dmvpn Via The Web Interface
Control the overall behaviour of strongSwan. This behaviour is common across all tunnels. Connection Settings Together, these sections define the required parameters for a two-way IKEv1 tunnel. Secret Settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 231 of 350...
Page 232 Debug enabled. Most verbose logging also includes sensitive information such as keys. Table 78: Information table for IPSec common settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 232 of 350...
Page 233  Remote Id  Local LAN IP Address  Local LAN IP Address Mask  Remote LAN IP Address  Remote LAN IP Address Mask _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 233 of 350...
Page 234 26: Configuring IPSec _______________________________________________________________________________________________________ Figure 122: The connections settings section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 234 of 350...
Page 235 UCI: strongswan.@connection[X]. Leave blank for DMVPN. remotelanmask Opt:remotelanmask Web: Local Protocol Restricts the connection to a single protocol on the local side. UCI: strongswan.@connection[X].localproto Opt: localproto _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 235 of 350...
Page 236 3des aes128 aes256 serpent twofish blowfish authAlgo: sha2 DHGroup: modp1024 modp1536 modp2048 modp3072 modp4096 modp6144 modp8192 For example, a valid IKE algorithm is: aes128-sha-modp1536. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 236 of 350...
Page 237 UCI: one, before giving up. The value %forever means 'never give strongswan.@connection[X].keyringtries up'. Relevant only locally, other end need not agree on it. Opt: keyringtries _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 237 of 350...
Page 238 Defines the local address this secret applies to. UCI: strongswan.@secret[X].localaddress Opt: localaddress Web: ID selector Defines the remote address this secret applies to. UCI: strongswan.@secret[X]. remoteaddress Opt: remoteaddress _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 238 of 350...
Page 239: Configuring An Ipsec Template To Use With Dmvpn
_____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 239 of 350...
Page 240 '30s' option keyingtries '%forever' option dpdaction 'hold' option dpddelay '30s' option dpdtimeout '150s' config secret option enabled 'yes' option secrettype 'psk' option secret 'secret' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 240 of 350...
Page 241: Ipsec Diagnostics Using The Web Interface
10.68.234.133/32[gre] === 192.168./32[gre] dmvpn_89_101_154_151{1}: INSTALLED, TRANSPORT, ESP in UDP SPIs: cca7b970_i d874dc90_o dmvpn_89_101_154_151{1}: 10.68.234.133/32[gre] === 89.101.154.151/32[gre] To view a list of IPSec commands, enter: root@VA_router:~# ipsec –help _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 241 of 350...
Page 242: Configuring Firewall
The General Zone, or defaults, section declares global firewall settings that do not belong to any specific zones. These default rules take effect last and more specific rules take effect first. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 242 of 350...
Page 243 Rejected packets are blocked by the firewall and ICMP message is returned to the source host. Drop Dropped packets are blocked by the firewall. Table 81: Information table for general settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 243 of 350...
Page 244 Reject Rejected packets are blocked by the firewall and ICMP message is returned to the source host. Drop Dropped packets are blocked by the firewall. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 244 of 350...
Page 245 Defines protocol family (ipv4, ipv6 or any) to generate iptables rules for. UCI: firewall.<zone label>.family Opt: family Table 82: Information table for firewall zone settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 245 of 350...
Page 246 Opt: log Web: Limit log messages Limits the amount of log messages per interval. UCI: firewall.<zone label>.log_limit Opt: log_limit Table 83: Information table for zone settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 246 of 350...
Page 247 Note: the rules generated for forwarding traffic between zones relay connection tracking to be enabled on at least one of the source or destination zones. This can be enabled through the conntrack option or through masq. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 247 of 350...
Page 248 Web: Internal IP address Specifies the internal (LAN) IP address for the traffic to be redirected UCI: firewall.<redirect label>.dest_ip Opt: dest_ip _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 248 of 350...
Page 249 NAT loopback (reflection). Figure 130: The firewall – port forwards – forward edits page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 249 of 350...
Page 250 27.2.4 Firewall traffic rules Rules can be defined to allow or restrict access to specific ports, hosts or protocols. Figure 131: The firewall traffic rules page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 250 of 350...
Page 251 For DNAT, redirects matched incoming traffic to the specified internal host. UCI: firewall.<rule label>.dest_ip For SNAT, matches traffic directed at the given address. Opt: dest_ip _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 251 of 350...
Page 252 Table 88: Information table for match ICMP type drop-down menu _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 252 of 350...
Page 253 Extra arguments to pass to iptables, this is mainly useful to specify additional match options, like -m policy --dir in for IPSec. Table 89: Information table for custom rules commands _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 253 of 350...
Page 254: Configuring Firewall Using Uci
27.3.3 Inter-zone forwarding To enable forwarding of traffic from WAN to LAN, enter: uci add firewall forwarding uci set firewall.@forwarding[1].dest=wan uci set firewall.@forwarding[1].src=lan _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 254 of 350...
Page 255 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 255 of 350...
Page 256: Ipv6 Notes
(DoS). _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 256 of 350...
Page 257: Connection Tracking
ACCEPT option proto This example enables machines on the internet to use SSH to access your router. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 257 of 350...
Page 258 When used alone, Source NAT is used to restrict a computer's access to the internet, but allows it to access a few services by manually forwarding what appear to be a few local _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9...
Page 259 The following rule blocks all connection attempts from the client to the internet. config rule option src option dest option src_mac 00:00:00:00:00:00 option target REJECT _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 259 of 350...
Page 260 Vlan12 interface in the network file. When reverse path filtering mechanism is enabled, the router will check whether a receiving packet source address is routable. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 260 of 350...
Page 261 !192.168.1.100 option src_dport option dest_ip 192.168.1.100 option dest_port 3128 option target DNAT config redirect option dest option proto _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 261 of 350...
Page 262: Ipsec Passthrough
ACCEPT For some configurations you also have to open port 500/UDP. # ISAKMP protocol config rule option src option dest option proto option src_port _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 262 of 350...
Page 263: Firewall Management
To see the rules as they are executed, run the fw command with the FW_TRACE environment variable set to 1 (one): root@VA_router:/# FW_TRACE=1 fw reload _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 263 of 350...
Page 264 27: Configuring firewall _______________________________________________________________________________________________________ To direct the output to a file for later inspection, enter: root@VA_router:/# FW_TRACE=1 fw reload 2>/tmp/iptables.lo _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 264 of 350...
Page 265: Configuring Snmp
Configuring SMNP using the web interface In the top menu, select Services -> SNMP. The SNMP Service page appears. 28.2.1 System and agent settings Figure 133: The SNMP service page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 265 of 350...
Page 266 Map community names into security names based on the community name and the source subnet. Use the first source/community combination that matches the incoming packet. Figure 134: The COM2Sec settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 266 of 350...
Page 267 Web: Security Name An already defined security name that is being included in this group. UCI: snmpd.group[x].secname Opt: secname Table 92: Information table for group settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 267 of 350...
Page 268 Access settings map from a group of users/communities, in a specific context and with a particular SNMP version and minimum security level, to one of three views, depending on the request being processed. Figure 137: The access settings section _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 268 of 350...
Page 269 28.2.6 Trap receiver Trap receiver settings define a notification receiver that should be sent SNMPv1 TRAPs and SNMPv2c TRAP2. Figure 138: The trap receiver settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 269 of 350...
Page 270: Configuring Snmp Using Command Line
28.3 Configuring SNMP using command line The configuration files are stored on /etc/config/snmpd 28.3.1 System settings using UCI root@VA_router:~# uci show snmpd snmpd.system=system snmpd.system.sysLocation=Office 123 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 270 of 350...
Page 271 Note: the security names of “ro” and “rw” here are simply names – the fact of a security name having read only or read-write permissions is handled in the access section and dealt with at a group granularity. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 271 of 350...
Page 272 Similarly, requests from the security name “rw” in all protocols are mapped to the “private” group. 28.3.4.1 Group settings using UCI snmpd.grp_1_v1=group snmpd.grp_1_v1.version=v1 snmpd.grp_1_v1.group=public snmpd.grp_1_v1.secname=ro snmpd.grp_1_v2c=group snmpd.grp_1_v2c.version=v2c snmpd.grp_1_v2c.group=public snmpd.grp_1_v2c.secname=ro snmpd.grp_1_usm=group snmpd.grp_1_usm.version=usm snmpd.grp_1_usm.group=public _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 272 of 350...
Page 273 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 273 of 350...
Page 274 'rw' config 'group' 'private_v2c' option group 'private' option version 'v2c' option secname 'rw' config 'group' 'private_usm' option group 'private' option version 'usm' option secname 'rw' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 274 of 350...
Page 275 'access' 'public_access' option group 'public' option context 'none' option version 'any' option level 'noauth' option prefix 'exact' option read 'all' option write 'none' option notify 'none' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 275 of 350...
Page 276 # for SNMPv2c inform request receiver config informreceiver option host 'IPADDR[:PORT]' option community 'COMMUNITY STRING' An additional option was added to the 'agent' subsection: option authtrapenabled '0|1 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 276 of 350...
Page 277: Configuring Vrrp
To configure VRRP through the web interface, in the top menu, select Network -> VRRP. The VRRP page appears. To access configuration settings, click ADD. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 277 of 350...
Page 278 Sets the VRRP router ID (1 to 255). All co-operating VRRP routers serving the same LAN must be configured with the same UCI: vrrp.g1.router_id router ID. Opt: router_id Range 1-255 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 278 of 350...
Page 279: Configuring Vrrp Using Uci
'lan' option init_state 'BACKUP' option router_id '1' option priority '115' option advert_int_sec '2' option password 'secret' option virtual_ipaddr '10.1.10.150/16' option garp_delay_sec '5' option ipsec_connection 'Test' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 279 of 350...
Page 280 To change any of the above values use uci set command. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 280 of 350...
Page 281: Dynamic Multipoint Virtual Private Network (Dmvpn)
New hubs can be added to the network to improve the performances and reliability.  Ability to carry multicast and main routing protocols traffic (RIP, OSPF, BGP).  DMVPN can be deployed using Activator, the Virtual Access automated provisioning system.  Simplifies branch communications by enabling direct branch to branch connectivity.
Page 282: Dmvpn Scenarios
Then it initiates VPN IPSec connection to spoke2.  When an IPSec tunnel is established, spoke1 and spoke2 can send traffic directly to each other. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 282 of 350...
Page 283 Note: if an IPSec tunnel fails to be established between the spokes then packets between the spokes are sent via the hub. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 283 of 350...
Page 284: Configuration Packages Used
Selects the IPSec connection, defined in strongSwan, to be used as a template. UCI: dmvpn.common.ipsec_template_name Opt: ipsec_template_name Table 98: Information table for DMVPN general settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 284 of 350...
Page 285: Virtual Access
Table 99: Information table for DMVPN hub settings 30.5.3 Configuring an IPSec template for DMVPN using the web interface Configuring an IPSec template is covered in the chapter ‘Configuring IPSec’. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 285 of 350...
Page 286: Dmvpn Diagnostics
Type: local Protocol-Address: 11.11.11.7/32 Alias-Address: 11.11.11.3 Flags: up Interface: gre-GRE Type: local Protocol-Address: 11.11.11.3/32 Flags: up Interface: gre-GRE Type: cached Protocol-Address: 11.11.11.2/32 NBMA-Address: 178.237.115.129 NBMA-NAT-OA-Address: 172.20.38.129 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 286 of 350...
Page 287 10.68.234.133[10.68.234.133]...89.101.154.151[89.101.154.151] dmvpn_89_101_154_151{1}: REKEYING, TRANSPORT, expires in 55 seconds dmvpn_89_101_154_151{1}: 10.68.234.133/32[gre] === 192.168./32[gre] dmvpn_89_101_154_151{1}: INSTALLED, TRANSPORT, ESP in UDP SPIs: cca7b970_i d874dc90_o dmvpn_89_101_154_151{1}: 10.68.234.133/32[gre] === 89.101.154.151/32[gre] _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 287 of 350...
Page 288 Interface: gre-GRE Type: cached Protocol-Address: 11.11.11.2/32 NBMA-Address: 178.237.115.129 NBMA-NAT-OA-Address: 172.20.38.129 Flags: used up Expires-In: 0:18 Interface: gre-GRE Type: static Protocol-Address: 11.11.11.1/29 NBMA-Address: 89.101.154.151 Flags: up _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 288 of 350...
Page 289: Configuring Terminal Server
Configuration page appears. You must configure two main sections: Main Settings and Port Settings. 31.3.1 Configure main settings Figure 147: The terminal server main settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 289 of 350...
Page 290 31.3.2.1 Port settings: general section In this section you can configure general port settings. The settings are usually the same for the central and the remote site. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 290 of 350...
Page 291 Web: Serial Forwarding Timeout (ms) Forwarding timeout in milliseconds (network to serial). UCI: tservd.@port[0]. sfwd_timeout Set to 0 to forward to serial immediately. Opt: sfwd_timeout 20 ms Range 0-10000 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 291 of 350...
Page 292 Note:  The displayed settings vary depending on options selected.  DTR <--> DSR signalling is not available on GW2028 router models. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 292 of 350...
Page 293 31: Configuring Terminal Server _______________________________________________________________________________________________________ Figure 149: The serial section fields (portmode RS232 and usb serial disabled) _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 293 of 350...
Page 294 In RS232 half-duplex mode, time in milliseconds between raising RTS and enabling the transmitter. For use with externally UCI: tservd.@port[0].rts_timeout connected V.23 modem. Opt: rts_timeout 30ms Range _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 294 of 350...
Page 295 Opt: dtr_control_mode port is closed. DTR always on. DTR always off. DTR controlled by the application ontx In HDLC mode DTR is on during frame transmission. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 295 of 350...
Page 296 UCI: tservd.@port[0].dce_tclk_inv Normal. Opt: dce_tclk_inv Invert. Web: Dual X.21 card DCE RCLK Invert Enables X.21 DCE RCLK signal inversion. UCI: tservd.@port[0].dce_rclk_inv Normal. Opt: dce_rclk_inv Invert. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 296 of 350...
Page 297 In this section you can configure the network side of the Terminal Server. Note: the displayed settings vary depending on options selected. Figure 150: The port settings network fields (TCP server mode) _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 297 of 350...
Page 298 UCI: Set to 0 to use kernel defaults. Only displayed if Transport Mode tservd.@port[0].tcp_user_timeout is TCP. Opt: tcp_user_timeout 20000 20 seconds Range 0-65535 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 298 of 350...
Page 299: Terminal Server Using Uci
Table 104: Information table for port settings network section 31.4 Terminal Server using UCI root@VA_router:~# uci show tservd tservd.main=tservd tservd.main.log_severity=0 tservd.main.debug_rx_tx_enable=1 tservd.main.debug_ev_enable=1 tservd.@port[0]=port tservd.@port[0].devName=/dev/ttySC0 tservd.@port[0].remote_ip1=0.0.0.0 tservd.@port[0].remote_ip2=0.0.0.0 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 299 of 350...
Page 300: Terminal Server Using Package Options
TxBlocked (0) TCP Bytes Rx (0) Tx (0) UDP Datagrams Rx (0) Tx (0) TxErrs (0) UDP Bytes Rx (0) Tx (0) Up (0) Down (0) _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 300 of 350...
Page 301 - clear USB serial card statistics tserv start userial rxlog - start USB serial card rx log tserv show userial rxlog <offs> <length> - show USB serial card rx log _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 301 of 350...
Page 302 - show USB serial card CPLD programming status tserv upgrade userial - initiate upgrade of the USB serial card tserv quit - terminate termserv process _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 302 of 350...
Page 303: Configuring Terminal Package
Opt: flowcontrol Enabled. Table 105: Information table for terminal settings 32.3 Configuring Terminal package using UCI root@VA_router:~# uci show terminal terminal.ttySC0=terminal terminal.ttySC0.enabled=1 terminal.ttySC0.device=ttySC0 terminal.ttySC0.speed=115200 terminal.ttySC0.type=vt100 terminal.ttySC0.flowcontrol=1 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 303 of 350...
Page 304: Configuring Terminal Server Using Package Options
/etc/inittab ::sysinit:/etc/init.d/rcS S boot ::shutdown:/etc/init.d/rcS K stop ttyLTQ0::askfirst:getty -L 115200 ttyLTQ0 vt100 ttyLTQ1::askfirst:getty -L 115200 ttyLTQ1 vt100 ttySC0::respawn:getty -h -L 115200 ttySC0 vt100 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 304 of 350...
Page 305: Configuring A Gre Interface
DHCP or PPP to dial into the provider network. In the Interface Overview section, click Add new interface. The Create Interface page appears. Figure 151: The create interface page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 305 of 350...
Page 306 IP address, TTL, tunnel key and MTU. Advanced Settings 'Bring up on boot' and 'monitor interface state' settings. Firewall settings Assign a firewall zone to the connection. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 306 of 350...
Page 307 Subnet mask, in CIDR notation, to be applied to the tunnel. Typically '30' for point-to-point tunnels. UCI: network.<if name>.mask_length Opt: mask_length Range 0 - 30 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 307 of 350...
Page 308 UCI: network.<if name>.mtu 1472 Opt: mtu Range Table 107: Information table for GRE 33.2.2 GRE connection: common configuration-advanced settings Figure 153: GRE advanced settings page _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 308 of 350...
Page 309 After you have configured the GRE interface, you must configure a static route to route the desired traffic over the GRE tunnel. To do this, browse to Network->Static Routes. For more information, read the chapter ‘Configuring Static Routes’. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 309 of 350...
Page 310: Gre Configuration Using Command Line
‘172.255.255.100’ option ttl '128' option key '1234' option mtu '1472' option auto ‘1’ To change any of the above values use uci set command. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 310 of 350...
Page 311: Gre Diagnostics
UP LOOPBACK RUNNING MTU:16436 Metric:1 RX packets:1465 errors:0 dropped:0 overruns:0 frame:0 TX packets:1465 errors:0 dropped:0 overruns:0 carrier:0 collisions:0 txqueuelen:0 RX bytes:166202 (162.3 KiB) TX bytes:166202 (162.3 KiB) _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 311 of 350...
Page 312 255.255.255.248 U gre-Tunnel1 172.19.101.3 13.13.13.1 255.255.255.255 UGH gre-Tunnel1 Note: a GRE route will only be displayed in the routing table when the interface is up. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 312 of 350...
Page 313: Configuring Multicasting Using Pim And Igmp Interfaces
To configure PIM through the web interface, in the top menu, select Network -> PIM. The PIM page appears. To access the Global settings, click Add. Figure 155: The global settings interface _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 313 of 350...
Page 314: Global Settings
Enable SSM on given interface. UCI: pimd.interface[x].ssm Disabled. Opt: ssm Enabled. Table 110: Information table for interface settings To save your configuration updates, click Save & Apply. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 314 of 350...
Page 315: Configuring Pim And Igmp Using Uci
'yes' option igmp 'no' Alternatively, enter: uci show pimd root@VA_router:/etc/config1# uci show pimd pimd.pimd=routing pimd.pimd.enabled=yes pimd.@interface[0]=interface pimd.@interface[0].enabled=yes pimd.@interface[0].interface=lan pimd.@interface[0].ssm=yes pimd.@interface[0].igmp=yes pimd.@interface[1]=interface pimd.@interface[1].enabled=yes pimd.@interface[1].interface=wan _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 315 of 350...
Page 316 34: Configuring multicasting using PIM and IGMP interfaces _______________________________________________________________________________________________________ pimd.@interface[1].ssm=yes pimd.@interface[1].igmp=no To change any of the above values use uci set command. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 316 of 350...
Page 317: Event System
_______________________________________________________________________________________________________ 35 Event system Virtual Access routers feature an event system. It allows you to forward router events to predefined targets for efficient control and management of devices. This chapter explains how the event system works and how to configure it using UCI commands.
Page 318: Supported Targets
The configuration is composed of a main section and as many forwardings, targets and connection testers as required. 35.7.1 Va_eventd: main section 35.7.1.1 Main using UCI root@VA_router:~# uci show va_eventd va_eventd.main=va_eventd va_eventd.main.enabled=yes va_eventd.main.event_queue_file=/tmp/event_buffer va_eventd.main.event_queue_size=128K _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 318 of 350...
Page 319 To define a forwarding label of Monitor using UCI, enter: va_eventd.Monitor=forwarding In the examples below no forwarding label has been defined. 35.7.3 Forwarding using UCI root@VA_router:~# uci show va_eventd va_eventd.@forwarding[0]=forwarding va_eventd.@forwarding[0].enabled=1 va_eventd.@forwarding[0].className=ethernet _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 319 of 350...
Page 320 UCI: va_eventd.<forwarding Only generate events with the given className and the given label>.eventName eventName. The eventName is optional and can be omitted. Opt: eventName _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 320 of 350...
Page 321 If successful, the event system assumed the connection is valid for a configurable amount of time. 35.7.6.2 Ping connection tester using UCI va_eventd.@conn_tester[0]=conn_tester va_eventd.@conn_tester[0].name=pinger va_eventd.@conn_tester[0].enabled=1 va_eventd.@conn_tester[0].type=ping _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 321 of 350...
Page 322 A link connection tester tests a connection by checking the status of the interface being used. 35.7.6.6 Link connection tester using UCI va_eventd.@conn_tester[0]=conn_tester va_eventd.@conn_tester[0].name=linktest va_eventd.@conn_tester[0].enabled=1 va_eventd.@conn_tester[0].type=link va_eventd.@conn_tester[0].link_iface=eth0 Link connection tester using package options _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 322 of 350...
Page 323 When a syslog target receives an event, it sends it to the configured syslog server. In the examples below no target label has been defined. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 323 of 350...
Page 324 IP Address or FQDN and Port number to send the syslog message label>.target_addr to. If no port is given, 514 is assumed. Format: x.x.x.x:port or FQDN:port Opt: target_addr _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 324 of 350...
Page 325 1 option type email option smtp_addr "smtp.site.com:587" option smtp_user 'john_smith@site.com' option smtp_password 'secret word' option use_tls '0' option tls_starttls '0' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 325 of 350...
Page 326 Source email address. label>.from Opt: from UCI: va_eventd.<target label>.to Destination email address. Opt: to UCI: va_eventd.<target Template to use for the email subject. label>.subject_template Opt: subject_template _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 326 of 350...
Page 327 Enabled. UCI: va_eventd.<target label>.type Must be snmptrap for a snmp target. Opt: type syslog Syslog target email Email target snmptrap SNMP target exec Exec target _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 327 of 350...
Page 328 SNMP target exec Exec target UCI: va_eventd.<target Template of the command to execute. label>.cmd_target Opt: cmd_target Table 120: Information table for exec target settings _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 328 of 350...
Page 329: Event System Diagnostics
| informat | SMS send success: %{p1} | mobile 9 | SMSSendError | warning | SMS send error: %{p1} | mobile 10 | SMSSent | notice | Sent SMS _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 329 of 350...
Page 330 | ipsec 10 | IPSecDPDTimeOut | informat | IPSec IKE %{p1} DPD timed out | wifi 1 | WiFiConnectedToAP | notice | WiFi %{p1} _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 330 of 350...
Page 331 2 | Adjust | informat | NTP adjust by %{p1} | ntp 3 | QueryTimeout | warning | NTP query to %{p1} timed out. Ne.. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 331 of 350...
Page 332 'yes' option className 'l2tp' option eventName 'CannotFindTunnel' option severity 'debug-critical' option target 'syslog' config forwarding option enabled 'yes' option className 'mobile' option severity 'notice-critical' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 332 of 350...
Page 333 'yes' option type 'syslog' option target_addr '192.168.100.254:514' option conn_tester 'mon_server' config target option name 'email' option enabled 'yes' option type 'email' option smtp_addr '89.101.154.148:465' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 333 of 350...
Page 334 '192.168.100.254' option agent_addr '192.168.100.1' option conn_tester 'mon_server' config target option name 'logit' option enabled 'yes' option type 'exec' option cmd_template 'logger -t eventer %{eventName}' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 334 of 350...
Page 335: Configuring Sla Reporting On Monitor
To enable all devices under a particular reseller for SLA, under the SLA tab, click ON. The user must have admin privileges for any change to be made. If they do not, they will be informed of this fact. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 335 of 350...
Page 336: Configuring Router Upload Protocol
The graphs initially appear in an hourly format. To expand or reduce the time axis, use the appropriate zoom button. To navigate forwards or backwards chronologically, use the right and left arrow buttons. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 336 of 350...
Page 337: Virtual Access
To view raw data, click each graph to produce the following information. Figure 161: Raw data information from each graph To change the range of the graph, click zoom. Figure 162: Altered range of graph information _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 337 of 350...
Page 338 SLA Element drop-down menu. If you have not removed any graphs, this drop-down menu is not available. Figure 164: interface showing the add SLA element drop-down menu _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 338 of 350...
Page 339: Generating A Report
Monitor3 Report Generator background service. These reports can then be found in: C:\Monitor\SlaReporting directory. The available frequency of report options in the drop-down list are:  Once off  Hourly  Daily  Weekly _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 339 of 350...
Page 340 Figure 167: Sample from the select devices page Click Continue and then add SLA report elements. Figure 168: Add report elements in the create statistic report _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 340 of 350...
Page 341 To view a report, in the header menu, select Statistic Reports. From the drop down box, select the relevant report and click Generate. The report appears. Figure 169: Example of a completed report _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 341 of 350...
Page 342: Reporting Device Status To Monitor Using Uci
Monitor. To allow Monitor to track the IP address and ongoing presence of the device, a heartbeat SNMP trap is sent by default every minute. The router is capable of sending SNMP in version 1, 2c and 3. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 342 of 350...
Page 343 Opt: snmp_context_eid UCI: monitor.main. snmp_sec_eid snmpv3 security engine ID. Opt: snmp_sec_eid A sample Monitor configuration is shown below. root@VA_router:~# uci show monitor monitor.main=keepalive monitor.main.enable=yes monitor.main.interval_min=1 monitor.main.dev_reference=mikesamazondev _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 343 of 350...
Page 344 'v2' option enable 'yes' option interval_min '1' list monitor_ip '172.16.250.100' option dev_reference 'TEST' option snmp_version '2c' config keepalive 'v3' option enable 'yes' option interval_min '1' _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 344 of 350...
Page 345 'TEST' option snmp_auth_pass 'vasecret' option snmp_auth_proto 'MD5' option snmp_priv_pass 'vasecret' option snmp_priv_proto 'DES' config interface_stats 'stats' option enabled 'yes' option bin_period '1m' option bin_cache_size '1440 _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 345 of 350...
Page 346: Configuring Sla For A Router
37 Configuring SLA for a router SLA reporting works in two parts: 1. The Virtual Access Monitor system server connects via SSH into the router and schedules the task of uploading statistics to Monitor. 2. The Virtual Access router monitors UDP keepalive packets. It creates and stores statistics in bins.
Page 347 UCI: slad.main.max_bin_count Opt: max_bin_count Table 122: Information table for SLA settings When you have made all your configuration changes, click Save & Apply. _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 347 of 350...
Page 348: Configuring Sla For A Router Using The Uci Interface
Viewing SLA statistics using UCI To show all available statistic options, enter: root@VA_router:~# sla sla [current] | [all] | [oldest] | [newest] | [newest N] | [range: YYYMMDDHH-YYYYMMDDHH] _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 348 of 350...
Page 349: _______________________________________________________________________________________________________
To show the newest statistics, enter: root@VA_router: ~# sla newest ---------------------------------------- Bin valid: Start time 01.01.1970 03:32:00 End time 01.01.1970 03:33:00 Pkts In: Pkts Out: Bytes In: _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 349 of 350...
Page 350 Avg Round Trip: 1 ms Min GSM signal quality: -63 dBm Max GSM signal quality: -63 dBm Avg GSM signal quality -63 dBm Availability: 100.00% _____________________________________________________________________________________________________ © Virtual Access 2017 GW1000 Series User Manual Issue: 1.9 Page 350 of 350...

This manual is also suitable for:

Gw1042 Gw1032m Gw1042m

virtual access GW1032 User Manual

1 Introduction

2 GW1000 Series Hardware

3 GW1000 and GW1000M Series LED Behaviour

4 Installing a Router into a Vehicle

5 Factory Configuration Extraction from SIM Card

6 Accessing the Router

7 Configuring Dynamic DNS

8 System Settings

9 Upgrading Router Firmware

10 Router File Structure

11 Using the Command Line Interface

12 Management Configuration Settings

13 Configuring an Ethernet Interface on a GW1000 Router

14 Configuring Ignition Sense

15 Configuring DHCP Server and DNS (Dnsmasq)

16 Configuring VLAN

17 Qos: Type of Service

18 Qos: VLAN 802.1Q PCP Tagging

19 Configuring Static Routes

20 Configuring BGP (Border Gateway Protocol)

21 Configuring a Wifi Connection

22 Configuring a Mobile Connection

23 Configuring Mobile Manager

24 Configuring Multi-WAN

25 Automatic Operator Selection

26 Configuring Ipsec

27 Configuring Firewall

28 Configuring SNMP

29 Configuring VRRP

30 Dynamic Multipoint Virtual Private Network (DMVPN)

31 Configuring Terminal Server

32 Configuring Terminal Package

33 Configuring a GRE Interface

34 Configuring Multicasting Using PIM and IGMP Interfaces

35 Event System

36 Configuring SLA Reporting on Monitor

37 Configuring SLA for a Router

Quick Links

Need help?

Questions and answers

Related Manuals for virtual access GW1032

Summary of Contents for virtual access GW1032
