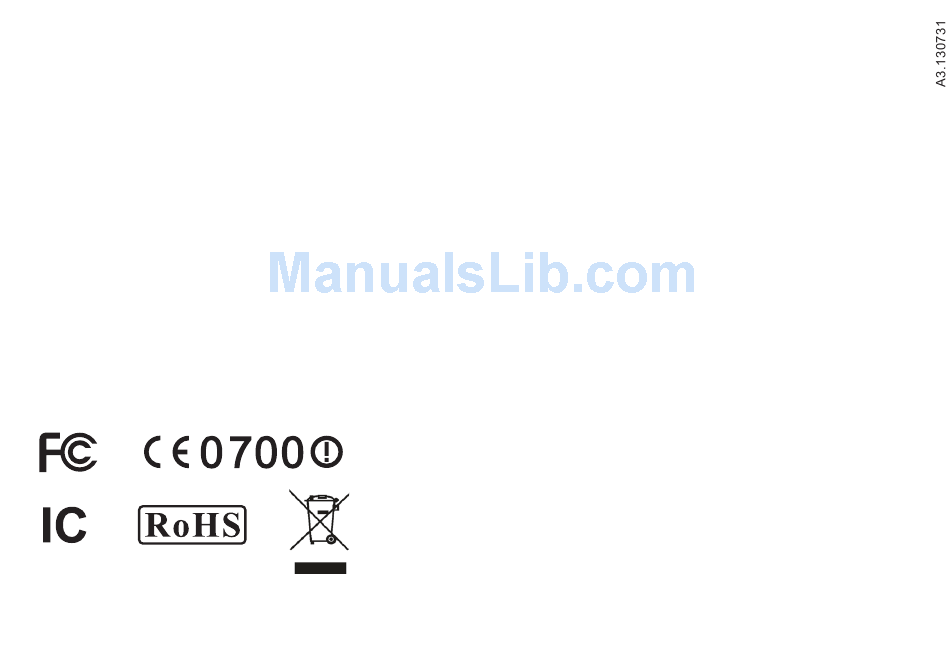

  • Page 1 ALINCO, INC. Yodoyabashi Dai-bldg 13F 4-4-9 Koraibashi, Chuo-ku, Osaka 541-0043 Japan Phone: +81-6-7636-2362 Fax: +81-6-6208-3802 http://www.alinco.com E-mail:export@alinco.co.jp UHF FM Transceiver / 400-470MHz All EU and EFTA member states. Operator license is required. Copyright Alinco, lnc. PS0786/FNEG-NI Printed in China...

  • Page 2: Instruction Manual

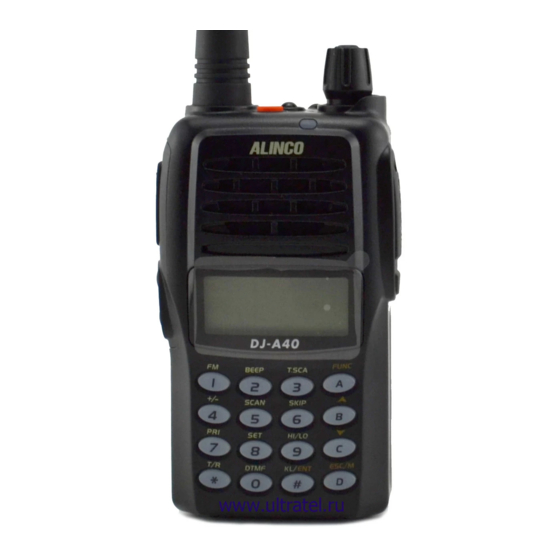

    UHF FM Transceiver Instruction Manual DJ-A40 Thank you for purchasing your new Alinco transceiver. Please read this manual carefully before using the product to ensure full performance, and keep this manual for future reference as it contains information on after-sales service.

  • Page 3: Before Transmitting

    Introduction Thank you very much for purchasing this excellent Alinco transceiver. Our products are ranked among the finest in the world. This radio has been manufactured with state of the art technology and it has been tested carefully at our factory. It is designed to operate to your satisfaction for many years under normal use.
  • Page 4 Alinco accessories and the radio has not been disassembled by the customer. The factory has tested and made the equipment compatible to IP54 certification during engineering.
  • Page 5 Features ■ Output power selectable 4W/2W/0.5W ■ 128 PC-programmable channels ■ Li-Ion battery pack and stand-charger as standard accessories ■ Alphanumeric name tags ■ FM broadcasting 76-108MHz receiver built-in ■ Selectable Battery-save parameters ■ Busy Channel Lockout ■ Voice Compander (Reduce Noise & enhance audio clarity) ■...

  • Page 6: Safety Training Information

    DO NOT operate the transceiver without a proper antenna attached, as it may damage the transceiver and may also cause you to exceed FCC RF exposure limits. A proper antenna is the genuine antenna supplied with this transceiver by Alinco or ones specifically authorized by the antenna manufacturer for use with this transceiver.
  • Page 7 • Use only the genuine Alinco accessories listed in this instruction manual for RF safety. Third party accessories are not guaranteed for RF safety by Alinco. The above provides the information needed to make users of this transceiver aware of RF exposure, and what to do to assure that this transceiver operates with the FCC RF exposure limits.

  • Page 8: Fcc Information

    FCC INFORMATION FOR CLASS B UNINTENTIONAL RADIATORS: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 9: Environment And Condition Of Use

    Alert Environment and condition of use Use of this product may be prohibited or illegal outside of your country. Be informed in advance when you travel. It is recommended that you check local traffic regulations regarding the use of a radio equipment while driving.

  • Page 10: Handling This Product

    The manufacturer declines any responsibilities against loss of life and property due to a failure of this product when used with or as a part of a device made by third parties. Use of third party accessory may result in damage to this product. It will void our warranty for repair. Handling this product Be sure to reduce the audio output level to minimum before using an earphone or a headset.

  • Page 11: In Case Of Emergency

    Securely plug the adapter into the wall outlet. Insecure installation may result in short-circuit, electronic shock and/or fire. Do not use the adapter if the plug or socket contacts are dirty. Overheating and/or short-circuiting may result in fire, electric shock and/or damage to the product. In case of emergency In case of the following situation(s), please turn off the product, switch off the source of power, then remove or unplug the power-cord.

  • Page 12: About Transceiver

    Alert Environment and condition of use Do not use the product in proximity to a TV or a radio. It may cause interference or receive interference. Do not install in a humid, dusty or insufficiently ventilated place. It may result in electric shock, fire and/or malfunction.
  • Page 13 Use a clean, dry cloth to wipe off dirt and condensation from the surface of the product. Never use thinner or benzene for cleaning. Check with your local waste officials for details on recycling or proper disposal of the electronics product, battery-packs and accessories in your area.

  • Page 14: Table Of Contents

    TABLE OF CONTENTS STANDARD ACCESSORIES ............................01 Standard Accessories ..............................01 OPERATION MODE (VFO mode and Channel mode) ....................02 KEY OPERATIONS / QUICK CHART ...........................04 BATTERY INFORMATION .............................11 Charging Operation ..............................11 Battery Charger Type ..............................11 Notice for Charging Battery ............................11 How to Charge the battery pack ..........................13 INSTALLATION &...
  • Page 15 TABLE OF CONTENTS Channel Input by Keypad ............................23 Adjusting Channel / Frequency By " 【 B 】 " Key & " 【 C 】 " Key ................23 Monitor / Squelch Off ..............................24 Receiving ...................................24 Transmitting................................25 Side Key 【 PF1 】 Function Instruction ........................25 Side Key 【...
  • Page 16 TABLE OF CONTENTS Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Encode Tone Setup ............36 Tone Squelch / DCS squelch (Sub tone CTCSS / DCS) Encode/Decode tones synchronized setup .......37 Offset Frequency ................................38 Wide/ Narrow Channel-spacing Selection ........................38 Frequency Reverse or Talk Around ..........................39 Inversion scrambling (Encryption) ..........................39 Voice Compander (Reduce noise &...
  • Page 17 TABLE OF CONTENTS Tone Burst Tone ................................51 DTMF Transmitting Time ............................52 Beep Volume level ..............................52 Priority Channel Setup ...............................53 Current Battery Voltage Display ..........................53 Resume Factory Default (RESET) ..........................54 DEFAULT SETTINGS ..............................55 OPTIONAL ACCESSORIES ............................56 RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE................57 TECHNICAL SPECIFICATIONS ............................58 TROUBLE SHOOTING GUIDE ............................60 ATTACHED CHART ...............................62...

  • Page 18: Standard Accessories

    STANDARD ACCESSORIES Standard Accessories Antenna Battery Charger AC Adaptor Belt Clip Instruction Hand Strap Manual NOTE: Accessories may differ depending on the version you have purchased. Please contact your local dealer for details of standard accessories and the warranty-policy before purchase. Professional FM Transceiver...

  • Page 19: Operation Mode (Vfo Mode And Channel Mode)

    OPERATION MODE (VFO mode and Channel mode) You may set the radio as VFO mode and Channel mode. There are also different setting parameters to properly set functions as per your operating comfort. 1. By programming software: In PC programming utility software, "General Setting" menu, choose "Display Mode" to select VFO mode or Channel mode.
  • Page 20 OPERATION MODE (VFO mode and Channel mode) 3.Commercial radio Mode: When set display mode as "CH", it enters into Commercial radio mode. At this mode, except scanning, talk around/frequency reverse, DTMF encode or editing, BEEP on/off and keypad lock, all other functions should be set by PC software (Pic 4) in advance to the operation (As pic 4).

  • Page 21: Key Operations / Quick Chart

    KEY OPERATIONS / QUICK CHART Function Key Operation Parameter Instruction Page 【 1 】 【 A 】 FM Radio On/Off Activate FM broadcasting receiver 【 A 】 【 2 】 Beep Setup Beep sound ON/OFF 【 A 】 【 3 】 CTCSS/DCS Scan CTCSS Scan 【...
  • Page 22 KEY OPERATIONS / QUICK CHART Function Key Operation Function Option Display 【 A 】 【 8 】 【 B 】 【 C 】 Sub tone (CTCSS / DCS) Decode Setup Sub tone (CTCSS / DCS) Encode Setup 【 A 】 【...

  • Page 23: Key Operation

    KEY OPERATIONS / QUICK CHART Key Operation Parameter Instruction Enter and exit Page Sub-tone setting: Operations are common to Decode (R-CDC), Encode (T-CDC) and Synchronous (C-CDC). Press CTCSS (50 Groups in total): 67Hz-254.1Hz 【 D 】 【 # 】 【 A 】 Key to move cursor to the menu, Press 【 1 】 DCS (232Groups in total): 017N-765I Key to choose CTCSS/DCS/OFF, Press 【...
  • Page 24 KEY OPERATIONS / QUICK CHART Key Operation Parameter Instruction Enter and exit Page OFF: Disable Busy-Channel-Lockout (BCL): BCL: Prohibit transmitting when receiving a carrier 【 D 】 【 # 】 Press【A】Key to move cursor to the menu, Press and squelch is open. 【B】/【C】Key to choose the value.
  • Page 25 KEY OPERATIONS / QUICK CHART Function Menu Entry Function Option Display 【 B 】 【 C 】 Voice Prompting Selection Press PF2 and hold this key for 3 seconds 【 B 】 【 C 】 Time-Out Timer (TOT) Press PF2 and hold this key for 3 seconds 【...
  • Page 26 KEY OPERATIONS / QUICK CHART Parameter Adjustment Parameter Instruction Confirm to back Page Voice prompt: Press 【 A 】 Key to move cursor to the menu 【 D 】 【 # 】 ENG: Activate English Voice-guide Press 【 B 】 / 【 C 】 key to choose the value OFF: OFF Time-out-timer setting: Press 【...
  • Page 27 KEY OPERATIONS / QUICK CHART LCD backlight color selection: Press 【 A 】 Key to move cursor to the menu BLUE: Blue backlight 【 D 】 【 # 】 Press 【 B 】 / 【 C 】 key to choose the value ORG: Orange backlight PUR: Purple backlight Press 【...

  • Page 28: Battery Information

    The battery life is over when its operating time decreases even though it is fully and correctly charged.and it must be replace to new one. Battery Charger Type Please use Alinco's designated charger, other models may cause explosion and injury. After installing the battery, when the radio displays low battery, please charge the battery.
  • Page 29 BATTERY INFORMATION Caution • Risk of explosion, generation of heat or leak of chemicals inside if the battery is replaced by an incorrect type or reverse polarity. Use always the recommended types of batteries in this manual only. • The battery pack isn't fully charged when shipped. It must be charged before use. •...

  • Page 30: How To Charge The Battery Pack

    BATTERY INFORMATION How to Charge the battery pack 1.Plug the AC adaptor into the AC outlet, then plug into the DC jack ，the indicator lights orange for 1 second and goes out---waits to charge. 2.Slide the battery or transceiver with battery into the charger;...
  • Page 31 BATTERY INFORMATION NOTE: ▲ Trouble means battery heating, short-circuit or charger malfunction. Remove the battery pack from the charger immediately and contact to your local dealer for services. ▲ The max trickle pre-charging time is 30 minutes. In case the red indicator continues to blink longer, please stop charging and consult with your local dealer for services.

  • Page 32: Installation & Connection

    INSTALLATION & CONNECTION How to Store the Battery 1.The battery should be kept in the status of 50% discharge when storing. 2.Remove the battery pack from the radio and keep it in a cool, dry place. 3.Keep away from source of heat and direct sunlight. NOTE: Incorrect storage will damage both the battery pack and the radio.

  • Page 33: Installing / Removing The Antenna

    INSTALLATION & CONNECTION Installing / Removing the Antenna Installing the Antenna: 1. Hold the antenna by its base. 2. Align the grooves at the base of the antenna with the protrusions on the antenna connector. 3. Slide the antenna down and turn it clockwise until it stops. 4.

  • Page 34: Accessories

    INSTALLATION & CONNECTION Accessories Open the jack cover and insert the accessory plug into the jack,as shown. When the accessory is not used, please be sure to close the cover securely. NOTE: 1.To keep the radio dust and splash resistant, the cover must be closed properly with the original supplied cover.

  • Page 35: Getting Acquainted

    GETTING ACQUAINTED LCD Display Following are the meaning of the icons and signs shown on the display. Some icons may not appear while operating this product due to pre-programming status by your dealer. Frequency Reverse Priority Scan VOX Function Offset direction Scan Skip Talk Around Narrow band...

  • Page 36: Front Panel

    GETTING ACQUAINTED Front Panel Jacklight Antenna Power / Volume Switch Emergency Alarm LED Indicator, red light when transmitting, green light when receiving Speaker Microphone A key/Function key B key / Up key Numeric keys C key / Down key D key, Exit key or channel/VFO Exchange key Professional...

  • Page 37: Side Panel

    GETTING ACQUAINTED Side Panel PTT key Accessory and PC programming port PF1 key (1 Primary Function key) PF2 key (2 Primary Function key) Belt Clip Battery Left Panel Right Panel Professional FM Transceiver...

  • Page 38: Basic Operations

    BASIC OPERATIONS Power On and off Turn 【 POWER 】 / 【 VOLUME 】 dial clockwise to power on. Turn it counterclockwise to power off. Adjusting Audio output level Press and hold PF2 key to monitor white noise to refer to the current audio level.

  • Page 39: Emergency Alarm Function

    BASIC OPERATIONS Emergency Alarm Function While Stand-by state, press this key for 3 seconds to enable the emergency alarm function. When activated the function, the radio will sound an alarm beep and start transmitting the alarm beep. The alarming lasts 1 minute, then the radio will return to Stand-by, or you may press this key again to stop alarming.

  • Page 40: Frequency Input By Keypad

    BASIC OPERATIONS Frequency Input by Keypad In VFO mode or FM radio receiver, You may directly enter frequency through numeric keys. 1.Press 【 D 】 to switch to VFO. 2.Enter the desired frequency in 6-digit by numeric keys. Example: To enter 455.0125, press[4][5][5][0][1][2]then 5 appears and sets automatically.To enter 455.100, press [4][5][5][1][0][0].

  • Page 41: Monitor / Squelch Off

    BASIC OPERATIONS NOTE: Available channel steps: 5K, 6.25K, 10K, 12.5K, 15K, 20K, 25K, 30K and 50KHz in total 9 for option. Please refer to stepping frequency setup in the SET-MODE chapter. In Channel mode, press 【 B 】 key/ 【 C 】 key to choose the desired channel. Press 【 B 】 key once to enter the downward channel while press 【...

  • Page 42: Transmitting

    BASIC OPERATIONS Transmitting 1. Select the frequency by using the dial or keypad. 2. Press the PTT key. The red TX indicator turns on while transmitting. 3. While holding down the PTT key, speak into the unit at normal voice from the distance of 5cm (2"). 4.

  • Page 43: Side Key 【 Pf2 】 Function Instruction

    BASIC OPERATIONS Side Key 【 PF2 】 Function Instruction Default setting: Monitor function 1. Monitor function: In stand-by state, press and hold this key to open the squelch and monitor the channel. Release the key to Exit. 2. Turning on with this key pressed and hold it for 3 seconds to enter to the parameter. Switch between VFO and Frequency+Channel Mode Press 【...

  • Page 44: Advanced Operations

    ADVANCED OPERATIONS Editing Channels 1.In VFO mode, enter the frequency and set the operating parameters as you desire. After pressing 【 A 】 icon is displayed on the top left corner, press and hold 【 D 】 key for 2 seconds. A beep key, While sounds and LCD displays the channel No.

  • Page 45: Enable /Disable Beeping

    ADVANCED OPERATIONS Enable /Disable Beeping Beep sounds to confirm or alert the operation status. In Stand-by conditions, after pressing 【 A 】 key, While icon is displayed on the top left corner, press 【 2 】 key to turn off the beep. Repeat it to enable beep sounds.

  • Page 46: Frequency/Channel Scan

    ADVANCED OPERATIONS pressing 【 A 】 key, while icon is displayed on the top left corner, press 【 4 】 key to choose positive offset direction (+), minus offset direction (-) or exit setting (no icons displayed). 1.(+)Positive offset: Indicates the frequency is higher than receiving frequency. When enable reverse function, the receiving frequency is higher than transmitting frequency.

  • Page 47: Channel Scan Skip

    ADVANCED OPERATIONS NOTE: Frequency scan checks all bands allocated to the VFO. When channel scanning, the skipped channel is excluded from the scanning. While scanning, change the direction upward/downward by pressing 【 B 】 key or 【 C 】 key. When a signal is being received, the scan stops for 15 seconds and resume scanning. Channel Scan Skip In memory modes, after pressing 【...

  • Page 48: Tx Power Selection

    ADVANCED OPERATIONS TX Power Selection After pressing 【 A 】 key, while icon is displayed on the top left corner, press 【 9 】 key to set the output power. When the bottom left corner of screen displays 'H' the power is 5W/high power.‘L’ for 0.5W. When nothing is displayed, the output power is middle/2W.
  • Page 49 ADVANCED OPERATIONS Method 2: Press and hold 【 PTT 】 key to enter the first DTMF character, then release 【 PTT 】 key. It will remain transmitting for 2 seconds. You can keep entering the desired DTMF characters using keypad and don't need to always press and hold 【...

  • Page 50: Remotely Kill / Revive

    ADVANCED OPERATIONS For example: Group code as“C” (Radio A) (Radio B) (Radio C) (Radio D) Receiver self ID Caller press and hold PTT to input 123 223 235 or 355, A or B or C or D will receive selective calling. Caller press and hold PTT to input C23 , A and B will receive group calling.

  • Page 51: Frequency Reverse / Talk Around On/Off

    ADVANCED OPERATIONS NOTE: Remotely kill/stun codes should be preprogrammed using the programming software. The maximum available digit for the kill/stun codes is16. When Revive, radios return to normal operation Frequency Reverse / Talk Around ON/OFF After pressing 【 A】key, while icon is displayed on the top left corner, press 【...

  • Page 52: Keypad Lock

    ADVANCED OPERATIONS Keypad Lock Keypad lock function is useful to prevent from wrong operation, In stand-by state, after pressing【A 】 key, while icon is displayed on the top left corner, press and hold【# 】 key for 2 seconds to start keypad lock function. Repeat to cancel the key lock function.

  • Page 53: Tone Squelch / Dcs Squelch (Sub Tone Ctcss / Dcs ) Decode Tone Setup

    ADVANCED OPERATIONS Tone Squelch / DCS squelch (Sub tone CTCSS / DCS ) Decode Tone Setup This function enables the selective-calling and speaker sounds only when a signal with matching encoded CTCSS/DCS tone being received. 1. after pressing 【 A 】 key, while icon is displayed on the top left corner, press 【...

  • Page 54: Tone Squelch / Dcs Squelch (Sub Tone Ctcss / Dcs) Encode/Decode Tones Synchronized Setup

    ADVANCED OPERATIONS 4. Press 【 B 】 key or 【 C 】 key to choose the desired CTCSS / DCS encode tone. 5.Available CTCSS tones: 67Hz- 254.1Hz, 50 tones in total, Deafault is OFF. 6.DCS: 017N-765I, 232 codes, [N] stands for positive, [I] stands for inverse codes. Default is OFF Tone Squelch / DCS squelch (Sub tone CTCSS / DCS) Encode/Decode tones synchronized setup 1.after pressing 【...

  • Page 55: Offset Frequency

    ADVANCED OPERATIONS Offset Frequency In conventional repeater systems, a signal received on one frequency is retransmitted on another frequency. The difference between these two frequencies is called the offset frequency. The selectable offset frequency of this unit is from 0 to 70.00MHz. 1.

  • Page 56: Frequency Reverse Or Talk Around

    Inversion scrambling (Encryption) NOTE:This is an analog encryption and decoding is possible by using commonly available receivers. Alinco does not warranty the confidentiality of the communications. An analog voice inversion scrambler is equipped and such audio processing can offer an advanced confidentiality to your business communications.

  • Page 57: Voice Compander (Reduce Noise & Enhance Audio Clarity)

    ADVANCED OPERATIONS ON: Scramble is enabled. OFF: Scramble is disabled. Default setting is OFF. Voice Compander (Reduce noise & enhance audio clarity) Enabling this function to reduce background noise and enhance audio clarity. It is recommended to activate this function if all radios in your group are equipped with Voice Compander otherwise worse the clarity of communications.

  • Page 58: Turn On/Off Optional Signaling Function

    ADVANCED OPERATIONS function menu. 2.Press 【 B 】 / 【 C 】 key to choose Menu 9 and display “ ”. 3.Press 【 A 】 key then press 【 B 】 key or 【 C 】 key to choose the desired parameter.

  • Page 59: Signaling Relations

    ADVANCED OPERATIONS NOTE: DTMF signaling is applied as an optional signaling to this product. Signaling Relations Select how to operate the Selective-calling(Signaling) function. 1. after pressing 【 A 】 key, while icon is displayed on the top left corner, press 【 8 】 key to enter into function menu.

  • Page 60: Ptt Id

    ADVANCED OPERATIONS PTT ID 1. after pressing 【 A 】 key, while icon is displayed on the top left corner, press 【 8 】 key to enter into function menu. 2.Press 【 B 】 / 【 C 】 key to choose Menu 12 and display “ ”.

  • Page 61: Whisper

    ADVANCED OPERATIONS Whisper This function is to increase your voice level while talking in low voice. Do not activate this function while you can talk normally otherwise the voice may be distorted. 1. after pressing 【 A 】 key, while icon is displayed on the top left corner, press 【...

  • Page 62: Set Mode Operations

    SET MODE OPERATIONS Set Mode Setting The Set mode is used to customize the various operational parameters of DJ-A40. The Set Mode parameters are stored and remain until next change regardless of power on/off operation. Please read the following pages for details of menu.

  • Page 63: Time-Out-Timer(Tot)

    SET MODE OPERATIONS Time-Out-Timer(TOT) This function stops the transmission automatically when the continuous transmission time exceeds the set time and alerts it with a beep. 1.Press and hold 【 PF2 】 key while turning on the radio, and keep pressing 【...

  • Page 64: Vox Delay

    SET MODE OPERATIONS VOX Delay This is to make a time delay at the end of VOX transmission. When you stop speaking to take breath, the radio still holds the transmission for the time you set in this menu. 1.Press and hold 【 PF2 】 key while turning on the radio, and keep pressing 【...

  • Page 65: Frequency Step Size Setup

    SET MODE OPERATIONS Frequency Step Size Setup Tuning step can't be changed in the Channel modes but usable only in VFO mode. Frequency input and frequency scan are both affected by tuning step setting. 1.Press and hold 【 PF2 】 key while turning on the radio, and keep pressing 【...

  • Page 66: Battery Save

    SET MODE OPERATIONS Battery Save This function prevents useless battery consumption by switching the power ON/OFF at a fixed ratio if there is no key operation or receiving signal for a continuous period of 5 seconds or more. Higher OFF time (1:4 setting) saves more amount of battery but may cause slight delay on receiving.

  • Page 67: Lcd Backlight Color Setup

    SET MODE OPERATIONS ON: Always lit, not recommended as it considerably consumes battery. OFF: Remain turned off always. LCD Backlight Color Setup There are three backlight colors available to suit your preference. 1.Press and hold 【 PF2 】 key while turning on the radio, and keep pressing 【...

  • Page 68: Frequency/Channel Display Mode

    SET MODE OPERATIONS 5ST: When receives signal, scan stops for 5 seconds and resume. 10ST: Same, 10 seconds. 15ST: Same, 15 seconds. Default is 10 seconds. Frequency/Channel Display Mode There are 3 different display modes available, Frequency + Channel mode, Channel mode and Channel+Name Tag modes.

  • Page 69: Dtmf Transmitting Time

    SET MODE OPERATIONS certain audible tone is required. DJ-A40 offers 4 major Tone-burst tones. 1.Press and hold 【 PF2 】 key while turning on the radio, and keep pressing 【 PF2 】 key for 3 seconds to enter into the Set Mode operations.

  • Page 70: Priority Channel Setup

    2.Press 【 B 】 / 【 C 】 key to choose the Menu 17 and display “ ”. At this state, the approximate battery voltage is displayed on the LCD. Please note that the voltage is approximate and Alinco does not guarantee the accuracy. Professional FM Transceiver...

  • Page 71: Resume Factory Default (Reset)

    SET MODE OPERATIONS Resume Factory Default (RESET) Use this feature to reset settings and go back to the default state or in case the radio malfunctions and key operations may become faulty. 1.Press and hold 【 PF2 】 key while turning on the radio, and keep pressing 【 PF2 】 key for 3 seconds to enter into the Set Mode operations.

  • Page 72: Default Settings

    DEFAULT SETTINGS VFO Frequency 456.000MHz FM Radio 1ch:456.000MHz Key Beep Memory Channel 2~128ch: Blank Offset Frequency Setup PF1 long press key Call Channel Scan Skip PF1 short press key Light Switch TX Power Selection High PF2 key Squelch Open Reverse / Talk Around Reverse Voice Prompting DTMF Code...

  • Page 73: Optional Accessories

    OPTIONAL ACCESSORIES EA-212 UHF & FM radio Antenna EBC-34 Belt Clip EBP-87 Li-ion Battery Pack (DC 7.4V 1500mAh) EBP-88 Li-ion Battery Pack (DC 7.4V 1700mAh) EDC-189 Li-ion Battery Charger EDC-190E AC Adaptor (220V Linear type) EDC-191E AC Adaptor (220V) EDC-191T AC Adaptor (120V) EME-56A Earphone Microphone...

  • Page 74: Recommended Installation Of Earphone Microphone

    RECOMMENDED INSTALLATION OF EARPHONE MICROPHONE Earphone Use a clip to fix with collar. Clip the PTT unit closer to your mouth. Carry the radio on the side or the back of your body, and the cable should go around the back as shown. Clamp the excessive length of cable at your waist.

  • Page 75: Technical Specifications

    TECHNICAL SPECIFICATIONS General Frequency range TX/RX 400.000-470.000MHz 76-108MHz (RX only) FM radio Modulation F3E(16K0F3E/11K0F3E / RX only WFM) Programmable channels 128 channels Frequency stability ±2.5ppm Power supply DC7.4V (Battery only) ≤1.4A TX(5W) ≤300mA Current drain ≤70mA Stand-by ≤30mA Battery save on Temperature range Operating:-20～+55℃(-4～131°F) / Charging:+5～+40℃(+41～104°F) Dimensions...
  • Page 76 Audio output power 1W (10% distortion) * All specifications are subject to change without notice or obligation. * ALINCO and Alinco logo are registered trademarks of Alinco,Inc in many countries including USA, Russia, EU states and China. Professional FM Transceiver...

  • Page 77: Trouble Shooting Guide

    TROUBLE SHOOTING GUIDE Problem Corrective Action A.The battery may be exhausting. Recharge or replace the battery. B.The battery may not be installed correctly. Remove the battery No power and install it again. C.The power switch is broken; send it to local dealers to repair. D.Battery life is end;...
  • Page 78 C.Earphone jack is broken, please contact with local dealers to repair. NOTE: Alinco guarantees the supply of minimum-necessary spare parts such as battery-packs, components and mechanical parts for at least 5 years after the production of this product is terminated except in case of accidents beyond control.

  • Page 79: Attached Chart

    ATTACHED CHART CTCSS Frequency Chart 67.0 94.8 131.8 171.3 203.5 69.3 97.4 136.5 173.8 206.5 71.9 100.0 141.3 177.3 210.7 74.4 103.5 146.2 179.9 218.1 77.0 107.2 151.4 183.5 225.7 79.7 110.9 156.7 186.2 229.1 82.5 114.8 159.8 189.9 233.6 85.4 118.8 162.2...

  • Page 80: Dcs Chart

    ATTACHED CHART DCS Chart Professional FM Transceiver...
