Connection-FPC unit
・Connect the connection-FPC to the connector.
・Solder the two wires (that are connected from
DC/IN).
Top cover section
・Mount the eyepiece block unit
(#B1137).
・Connect the top cover FPC to the
connector.
・Tighten each screw (#1543,
#1538, #1519, and #1510), two
screws (#1518), and two screws
(#1137).
・Put the diopter adjustment knob
(#1121).
・Tighten the screw (#1568).
・Attach the diopter adjustment
knob cover (#1130).

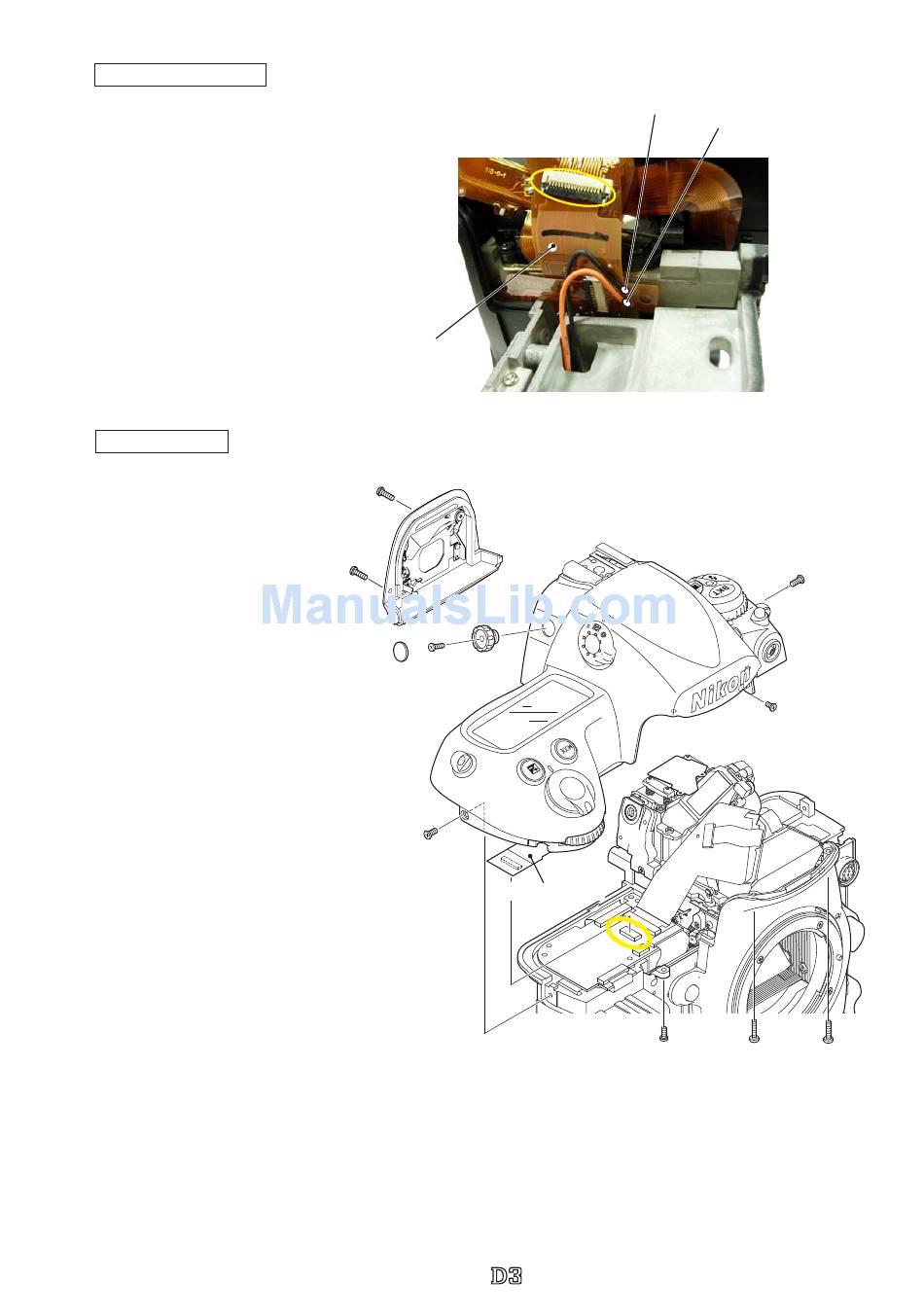

Connection-FPC
#1137×2
Eyepiece block unit (#B1137)
#1121
#1568
#1130
#1543
Top cover FPC
- Ａ  ･
logo Q0440 forGraphic
070518 Gdesign ito
Black:DC/IN
Orange:DC/IN
#1538
-
INC
VBA18001-R.3719.A
#1519
#1510
#1518×2
