Image Sensor Unit / Dg-Pcb - Nikon D3 VBA18001 Repair Manual

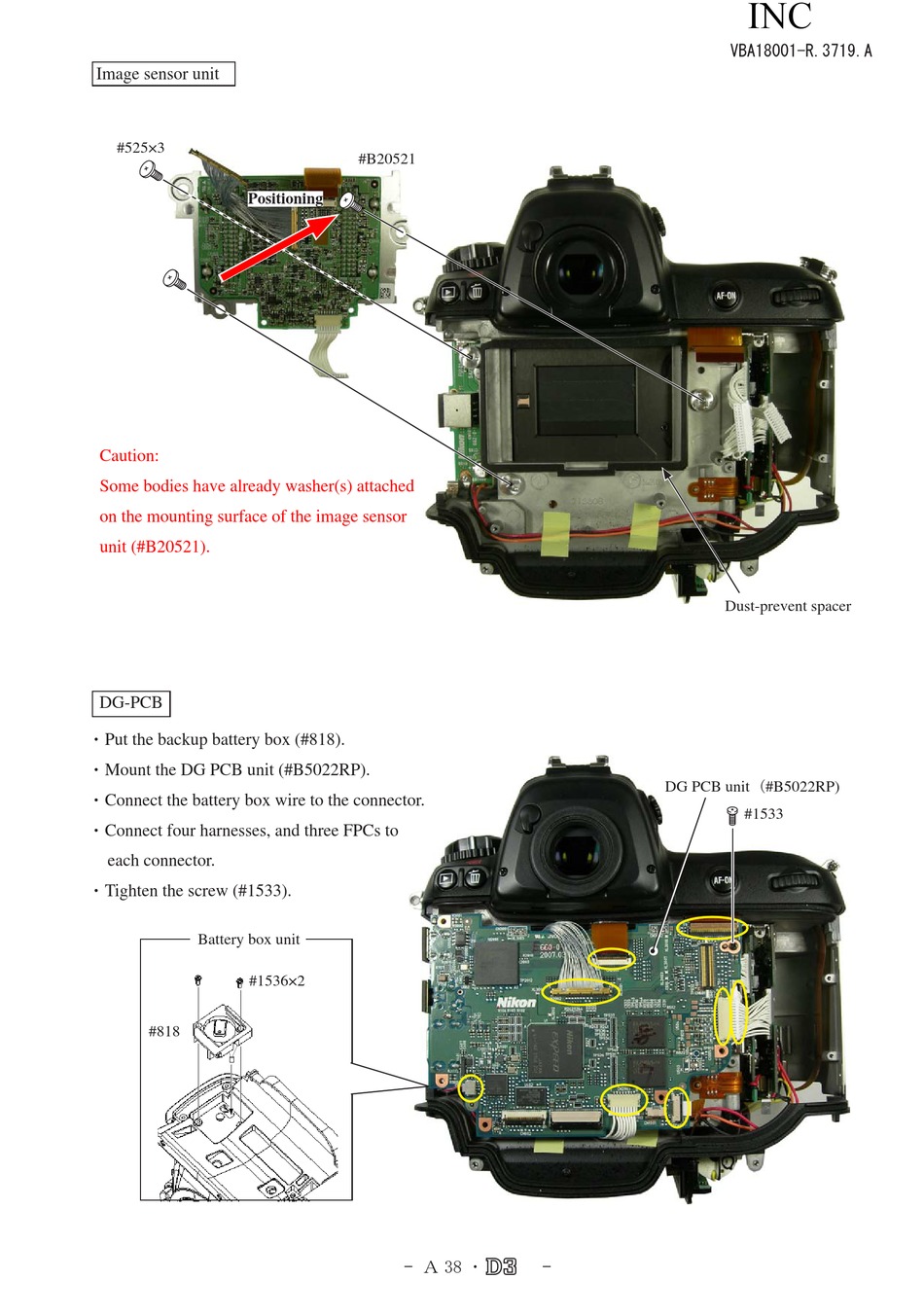

Image sensor unit
#525×3
P�si�i��i�g
Caution:
Some bodies have already washer(s) attached
on the mounting surface of the image sensor
unit (#B20521).
DG-PCB
・Put the backup battery box (#818).
・Mount the DG PCB unit (#B5022RP).
・Connect the battery box wire to the connector.
・Connect four harnesses, and three FPCs to
each connector.
・Tighten the screw (#1533).
Battery box unit
#1536×2
#818
#B20521
- Ａ  ･
logo Q0440 forGraphic
070518 Gdesign ito
DG PCB unit (#B5022RP)
-
INC
VBA18001-R.3719.A
Dust-prevent spacer
#1533
