Nikon D3 VBA18001 Repair Manual page 74

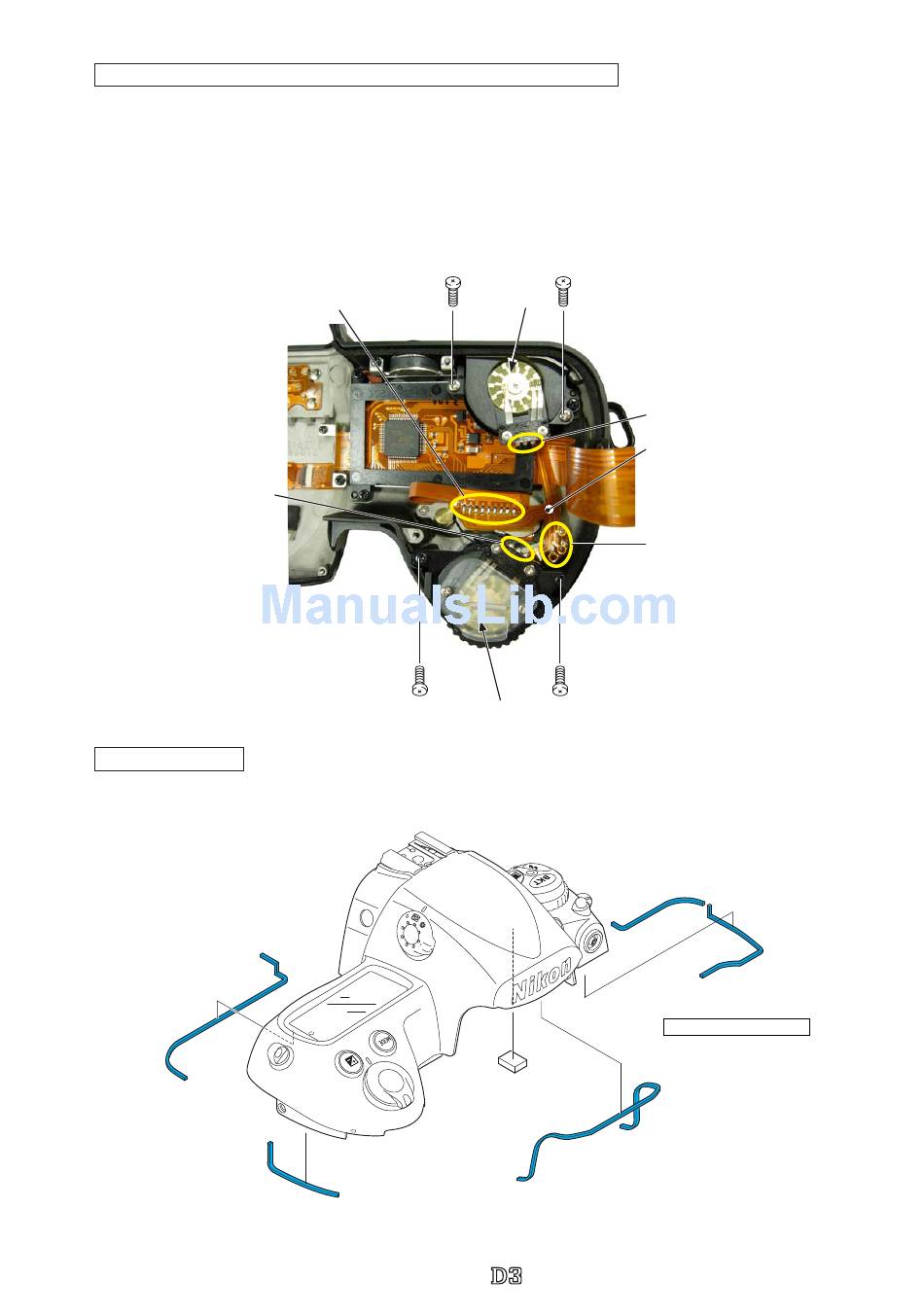

Release-SW FPC / Main command dial unit/ Sub-command dial unit
・Mount the main command dial unit (#B726), and tighten two screws (#1558).
・Mount the sub-command dial unit (#B725), and tighten two screws (#1569).
・Attach the release-SW FPC (#5044).
・Make three soldering bridges each at three places and nine soldering bridges as below.
Soldering bridge×9
Soldering bridge×3
Sponge / Rubber
#984
Main
command
dial unit
(#B726)
Sub-command dial unit
(#B725)
#1195
#985
- Ａ  ･
logo Q0440 forGraphic
070518 Gdesign ito
#1558×2
Soldering bridge×3
Release-SW FPC (#5044)
Soldering bridge×3
#1569×2
#981
Oil barrier:NKS-401H
#983
-
INC
VBA18001-R.3719.A
#982
