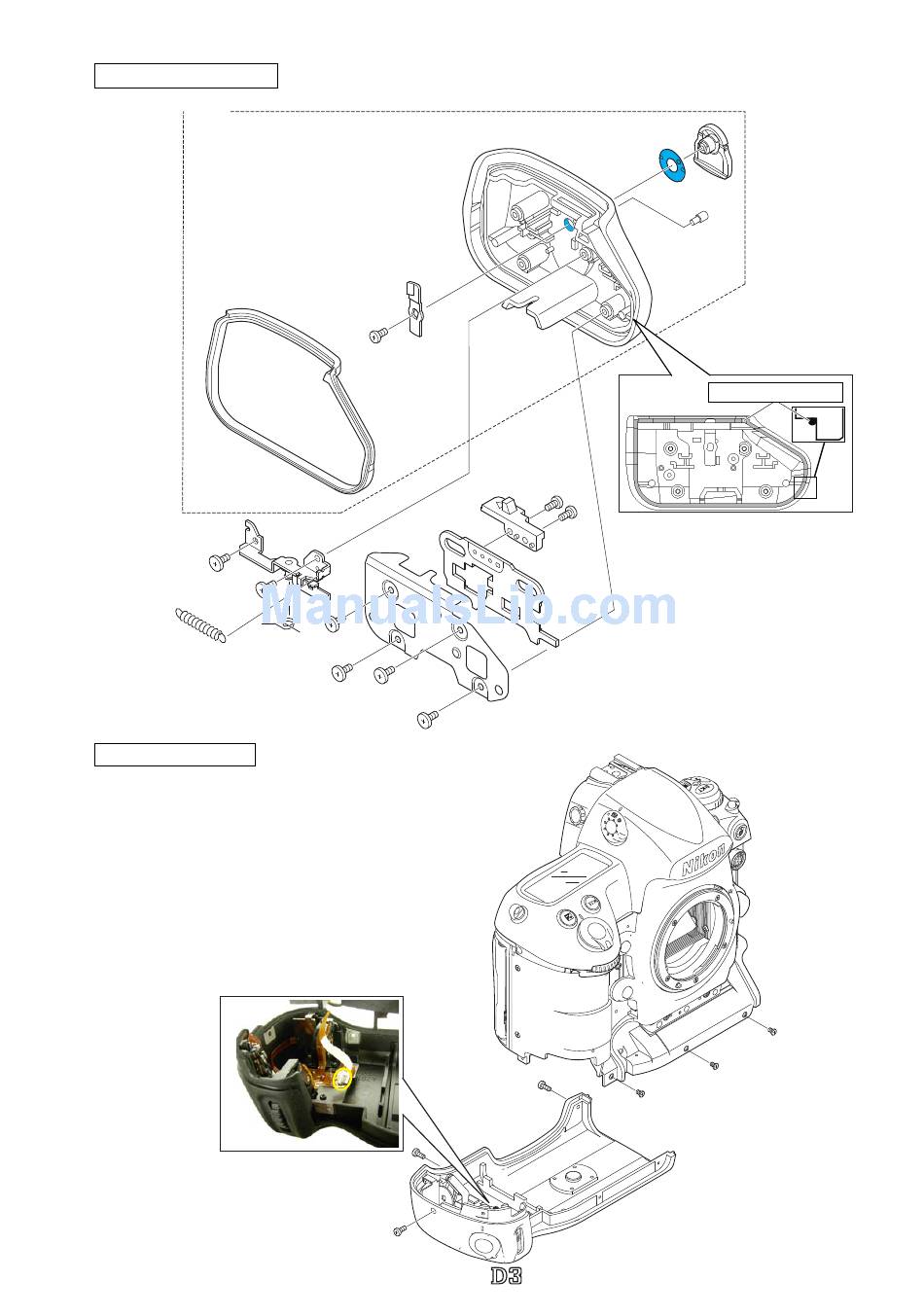

Battery cover unit\others
#B804
#805
#B282
#1600×2
#815
Bottom cover section
・Take out the three screws (#1512) and three screws (#1516).
・Remove the bottom cover unit and FPC.
※ Be careful of the connection-FPC when
removing.
#804
#809
#811
#830
#1549×4
#1512×3
- Ｄ ･
#808
#1533×2
#813
#814
-
logo Q0440 forGraphic
070518 Gdesign ito
INC
VBA18001-R.3719.A
#B806
#810
Adhesive: Super X
#1516×3
