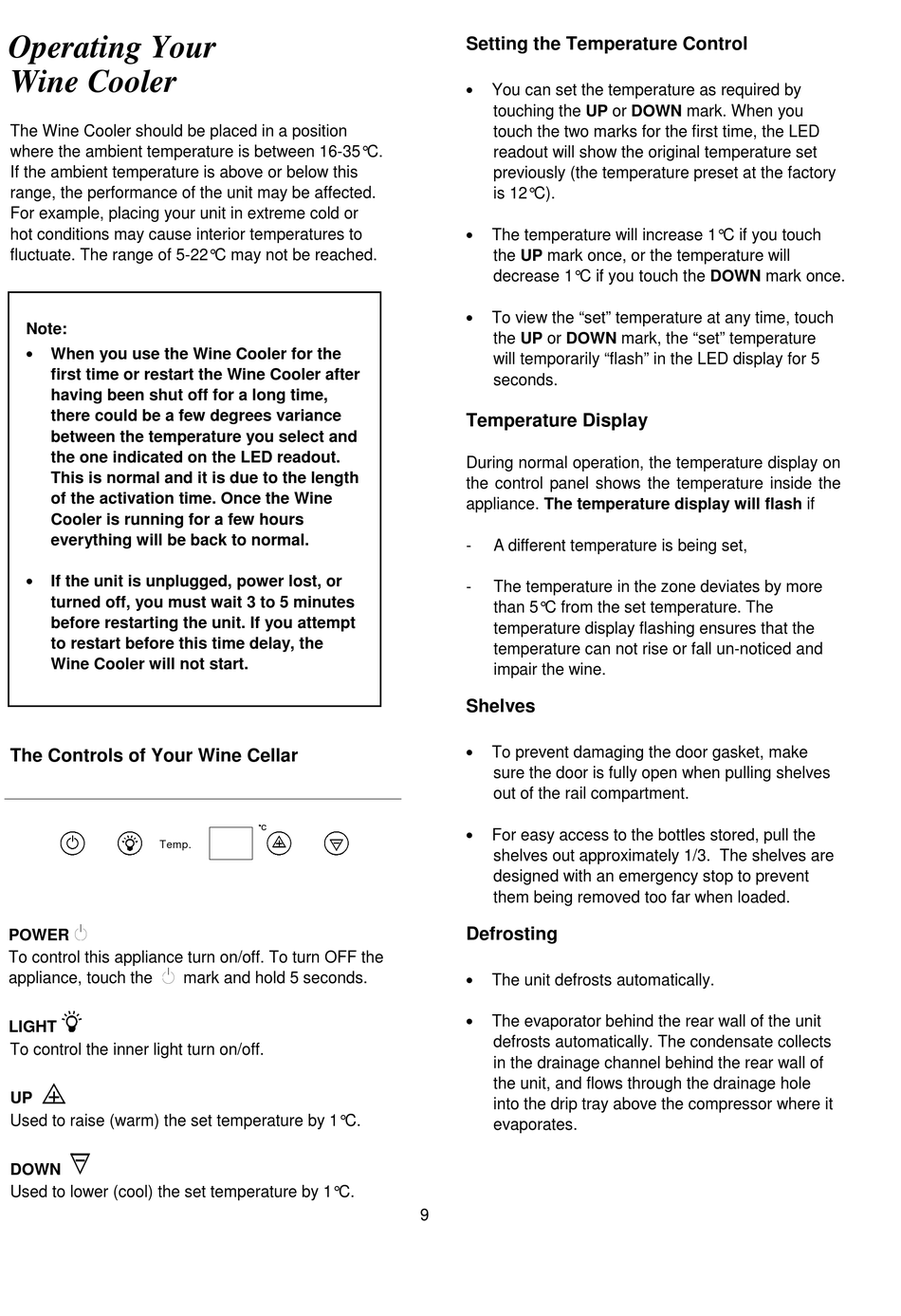

Operating Your Wine Cooler - Apelson UBWC300B Instruction Manual

Operating Your
Wine Cooler
The Wine Cooler should be placed in a position
where the ambient temperature is between 16-35°C.
If the ambient temperature is above or below this
range, the performance of the unit may be affected.
For example, placing your unit in extreme cold or
hot conditions may cause interior temperatures to
fluctuate. The range of 5-22°C may not be reached.
Note:

When you use the Wine Cooler for the
first time or restart the Wine Cooler after
having been shut off for a long time,
there could be a few degrees variance
between the temperature you select and
the one indicated on the LED readout.
This is normal and it is due to the length
of the activation time. Once the Wine
Cooler is running for a few hours
everything will be back to normal.

If the unit is unplugged, power lost, or
turned off, you must wait 3 to 5 minutes
before restarting the unit. If you attempt
to restart before this time delay, the
Wine Cooler will not start.
The Controls of Your Wine Cellar
Temp.
POWER
To control this appliance turn on/off. To turn OFF the
appliance, touch the
LIGHT
To control the inner light turn on/off.
UP
Used to raise (warm) the set temperature by 1°C.
DOWN
Used to lower (cool) the set temperature by 1°C.
c
mark and hold 5 seconds.
Setting the Temperature Control

You can set the temperature as required by
touching the UP or DOWN mark. When you
touch the two marks for the first time, the LED
readout will show the original temperature set
previously (the temperature preset at the factory
is 12°C).

The temperature will increase 1°C if you touch
the UP mark once, or the temperature will
decrease 1°C if you touch the DOWN mark once.

To view the "set" temperature at any time, touch
the UP or DOWN mark, the "set" temperature
will temporarily "flash" in the LED display for 5
seconds.
Temperature Display
During normal operation, the temperature display on
the control panel shows the temperature inside the
appliance. The temperature display will flash if
- A different temperature is being set,
- The temperature in the zone deviates by more
than 5°C from the set temperature. The
temperature display flashing ensures that the
temperature can not rise or fall un-noticed and
impair the wine.
Shelves

To prevent damaging the door gasket, make
sure the door is fully open when pulling shelves
out of the rail compartment.

For easy access to the bottles stored, pull the
shelves out approximately 1/3. The shelves are
designed with an emergency stop to prevent
them being removed too far when loaded.
Defrosting

The unit defrosts automatically.

The evaporator behind the rear wall of the unit
defrosts automatically. The condensate collects
in the drainage channel behind the rear wall of
the unit, and flows through the drainage hole
into the drip tray above the compressor where it
evaporates.
9
