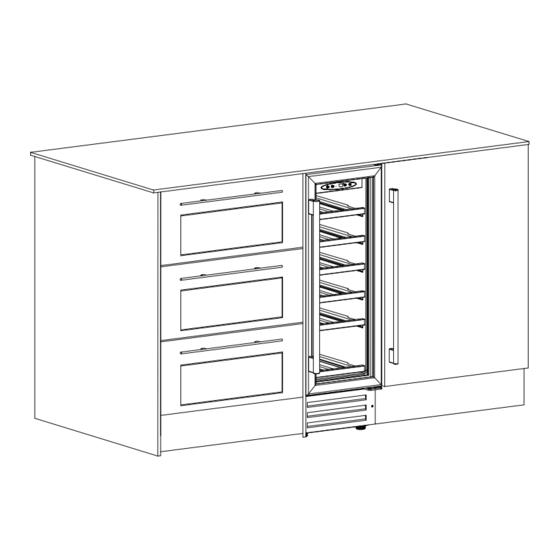

Apelson ubwc300b built-in wine cooler

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

INSTRUCTION MANUAL

BUILT-IN WINE COOLER

Model: UBWC300B

Model No.: WC300

BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING

INSTRUCTIONS.

Table of Contents

Need help?

Do you have a question about the UBWC300B and is the answer not in the manual?

Questions and answers

Summary of Contents for Apelson UBWC300B

Page 1 INSTRUCTION MANUAL BUILT-IN WINE COOLER Model: UBWC300B Model No.: WC300 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Page 2: Important Safeguards
 Important Safeguards Place the unit on a dry level surface. When using an electrical appliance, basic  Do not operate if the housing is removed or precautions should always be followed to damaged. reduce the risk of ﬁre, electric shock, and injury to persons, including the following: ...
Page 3: Disposal Of Old Appliance
of this or any other appliance. The fumes can indicates that this product is not to be handled create a fire hazard or explosion. as normal household waste but is to be taken to a recycling collection point for electrical and ...
Page 4: Connection To The Mains Supply
Connection to the Mains The BLUE wire is the NEUTRAL and must be Supply connected to the terminal which is marked with the letter ‘N’ or colored BLACK. Check that the voltage marked on the product The BROWN wire is the LIVE wire and must be corresponds with your supply voltage.
Page 5: Features Of Your Wine Cooler
Features of Your Wine Cooler Digital Control Panel Cabinet Door Temp. Handle Shelves Bottom Shelf Adjustable Legs...
Page 6: Installation Instructions
Installation Instructions  The air vent at the front of the appliance must Before Using Your Wine Cooler never be covered or blocked in any way.  Remove all exterior and interior packing.  Before connecting the Wine Cooler to the power source, let it stand upright for approximately 2 (Door) hours.
Page 7 Installing the Handle Built-in Cabinet Instructions This unit is designed for both built-in or free standing installation. If you plan to use this unit in a built-in application please follow the requirements shown to the below. Gasket Cabinet Opening Dimensions MM (min) Width 300 mm...
Page 8: Reversing The Door Swing Of Your Appliance
hinge. (Figure 3). Remove the left top hinge Reversing the Door Swing and left lower hinge from the plastic bag that of Your Appliance includes the instruction manual then install them at the designated positions at the left side of cabinet. (Figure 4) Should you desire to reverse the opening direction, please follow the instructions below.
Page 9: Operating Your Wine Cooler
Operating Your Setting the Temperature Control Wine Cooler  You can set the temperature as required by touching the UP or DOWN mark. When you The Wine Cooler should be placed in a position touch the two marks for the ﬁrst time, the LED where the ambient temperature is between 16-35°C.
Page 10: Care And Maintenance
when cleaning any area of the controls. Care and Maintenance  Wash the outside cabinet with warm water and Removing Shelves mild liquid detergent. Rinse well and wipe dry with a clean soft cloth.  To remove any of the shelves from the rail compartment, move the shelf to the position Power Failure where the notch of wooden shelf is exactly...
Page 11: Problems With Your Wine Cooler
When calling customer service, please ensure you have the model and serial number to hand. Please keep your receipt or invoice in a safe place as they will be required as proof of date of purchase. WC300 IM 100802 IM WC300_2009.04.23 UBWC300B IM...
