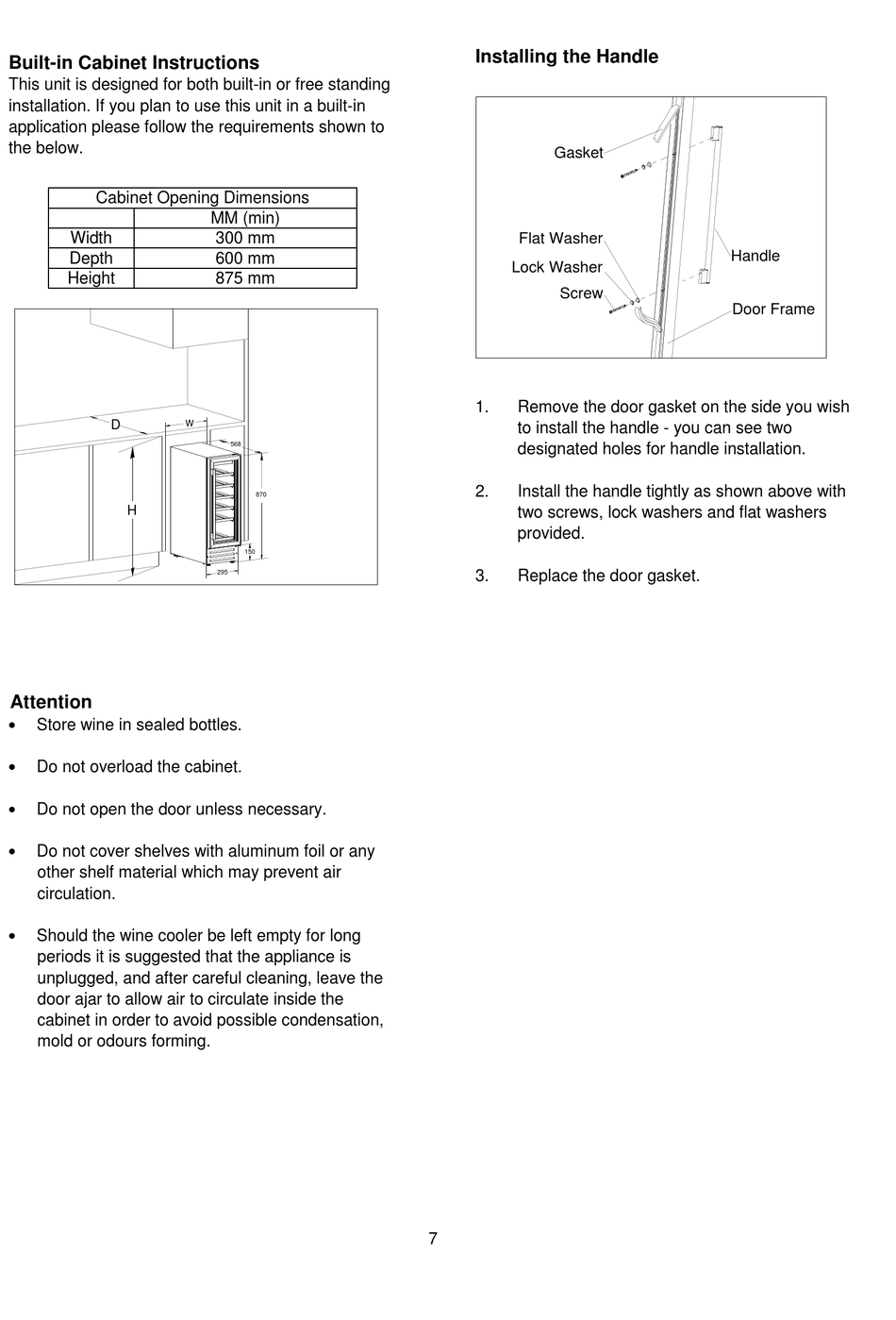

Apelson UBWC300B Instruction Manual page 7

Built-in Cabinet Instructions
This unit is designed for both built-in or free standing
installation. If you plan to use this unit in a built-in
application please follow the requirements shown to
the below.
Cabinet Opening Dimensions
Width
Depth
Height
D
H
Attention

Store wine in sealed bottles.

Do not overload the cabinet.

Do not open the door unless necessary.

Do not cover shelves with aluminum foil or any
other shelf material which may prevent air
circulation.

Should the wine cooler be left empty for long
periods it is suggested that the appliance is
unplugged, and after careful cleaning, leave the
door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation,
mold or odours forming.
MM (min)
300 mm
600 mm
875 mm
W
568
870
150
295
Installing the Handle
Gasket
Flat Washer
Lock Washer
Screw
1. Remove the door gasket on the side you wish
to install the handle - you can see two
designated holes for handle installation.
2. Install the handle tightly as shown above with
two screws, lock washers and flat washers
provided.
3. Replace the door gasket.
7
Handle
Door Frame
